SilverStone Technology

TS231U-C

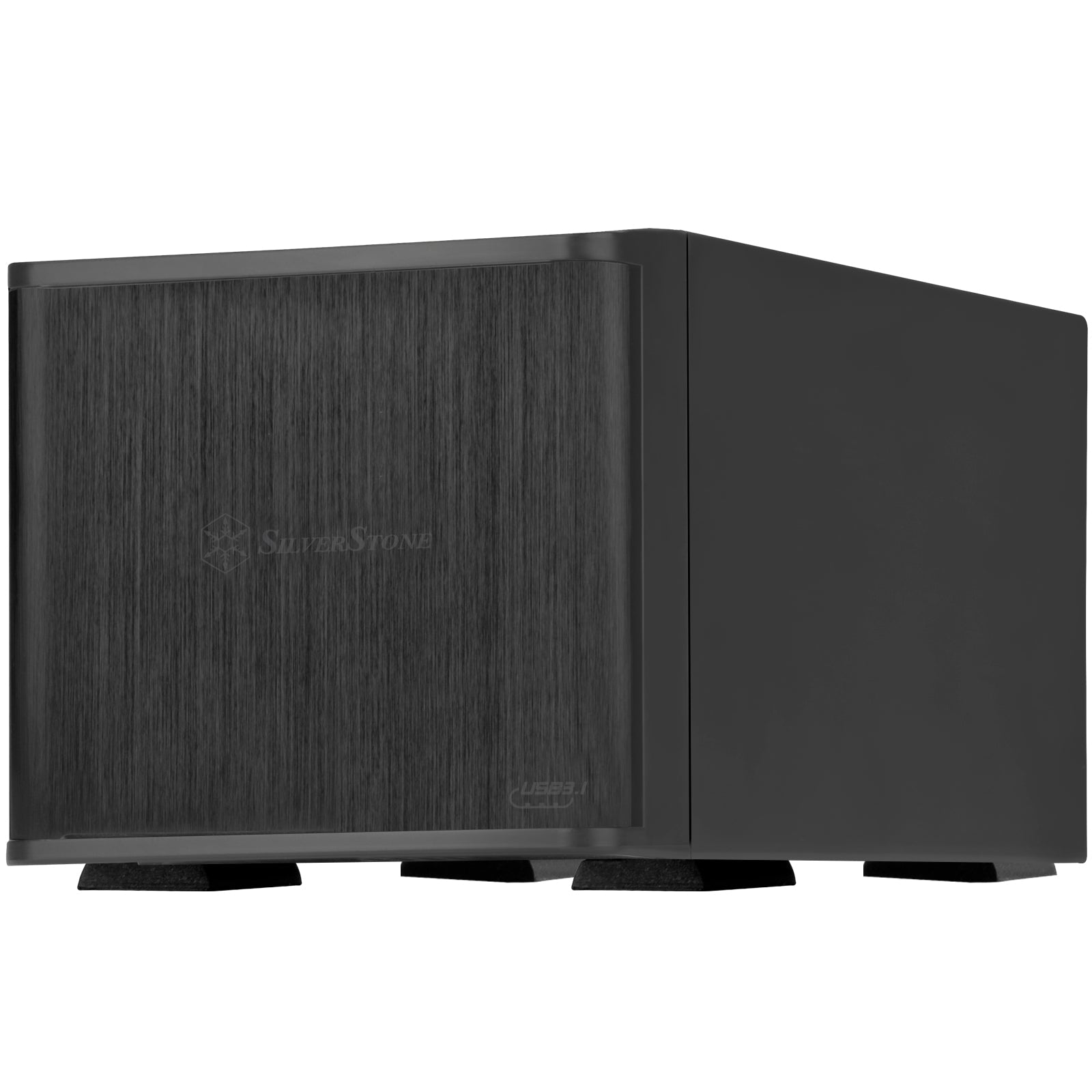

SilverStone TS231U-C is an external hard drive enclosure made to accommodate 3.5 drives at speeds up to 10Gb/s with its USB 3.1 Gen2 capability and Type-C connector. This plug and play device is easy to setup with its tray-less design so users can quickly hot-swap drives on it in no time. A full range of RAID modes (RAID 0, 1, JBOD, Non-RAID) is supported to provide the best security and performance for installed hard drives. For enthusiasts or professionals requiring even greater performance, the TS231U-C is also equipped with UASP (USB Attached SCSI Protocol) so those with computers that support it can take their data transfer rate up another level.

Found a better price? Let us know and we'll try and match it!
Estimate shipping
$174.99 $139.99 Sale Sold out
Shipping calculated at checkout.

Pickup currently unavailable at Performance-PCs.com

  • 99% of orders ship same day M-F!
  • FREE Shipping Possible!
  • All-Star CS Team
  • 30-Day Hassle Free Returns
Details

SilverStone TS231U-C is an external hard drive enclosure made to accommodate 3.5 drives at speeds up to 10Gb/s with its USB 3.1 Gen2 capability and Type-C connector. This plug and play device is easy to setup with its tray-less design so users can quickly hot-swap drives on it in no time. A full range of RAID modes (RAID 0, 1, JBOD, Non-RAID) is supported to provide the best security and performance for installed hard drives. For enthusiasts or professionals requiring even greater performance, the TS231U-C is also equipped with UASP (USB Attached SCSI Protocol) so those with computers that support it can take their data transfer rate up another level.
Features

ï¿­ USB 3.1 Type-C connector with Gen2 up to 10Gb/s super speed transfer rate


ï¿­ Configurable RAID function (RAID 0, RAID 1, JBOD, Non-RAID)


ï¿­ Compact and screw-less design for easy HDD installation


ï¿­ Supports UASP (USB Attached SCSI Protocol) function for even faster performance


ï¿­ Aluminum body with Tool-free design


ï¿­ Supports all 3.5-inch SATA drives up to any capacity


ï¿­ Plug & play with support for hot-swapping
Specifications





































































Model No.

SST-TS231U-C

Color

Black

Material

Aluminum and SECC body

Cooling system

70mm x 15mm low noise fan x 1

Operating system support

Microsoft Windows 7 (32bit/64bit)*, 8/8.1/10 (32bit/64bit)** or future release version
Mac OS 10.5*** or above

Power Supply

Internal universal power supply design
Input: AC 100-240V, 50Hz / 60Hz
Output: DC +12V / 4A

Drive support

3.5

Enclosure interface

USB 3.1 Gen2 up to 10Gbps (Compatible with USB 3.0 / 2.0 / 1.1)

LED indicator

Solid blue: Power on
Blinking blue: Read / Write
Solid red: Rebuilding
Blinking red: Drive not recognized

Chipset

ASM1352R A1, ASM1542

Driver interface support

SATA I / II / III

RAID mode support

RAID 0, RAID 1, JBOD, Non-RAID

Enclosure connector

USB 3.1 Type-C

Environment

Operating Temperature: 5°C ~ 35°C
Operating Humidity: 20%RH ~ 80%RH
Storage Temperature: -20°C ~ 50°C
Storage Humidity: 20%RH ~ 80%RH

Net weight

1983±20g

Dimension

130mm (W) x 115mm (H) x 221.35mm (D) (without feet)
5.12 (W) x 4.53 (H) x 8.71 (D) (without feet)














Remark

* If your OS version is Windows 7 or earlier, please install driver (available from SilverStone website) prior to using the TS231U-C.


** Windows 8 or 8.1, 10 supports TS231U-C automatically so you do not need to install additional driver for it.


*** User should check for XHCI function in Mac OS, if computer system supports XHCI function then it can support TS231U-C automatically without additional driver installation.
