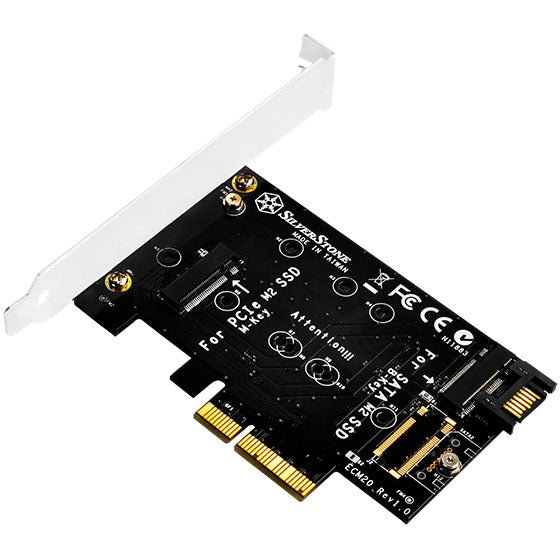

Silverstone Dual M.2 to PCI-E X4 and SATA 6G Adapter Card

SilverStoneâ??s ECM20 is an adapter designed for users wanting to utilize or add speedy M.2 devices such as SSD onto their existing PC or motherboard. In addition to supporting one M.2 device (M key) to run via the super fast PCI-E interface at up to 32Gbps, a second M.2 slot (B key) is available for connecting to a SATA III port for added storage potential. For users looking to have the fastest data access speed on a desktop computer, the ECM20 is a must have.

• Converts one M.2 port (M key) into one PCI-E x4 interface


• Converts a second M.2 port (B key) into SATA interface


• Supports two M.2 SSD simultaneously


• Includes optional low-profile expansion slot


• No driver installation required

Model No.	SST-ECM20
Interface	PCI Express X4 / SATA 6Gbps
Operating system support	Microsoft Windows Mac OS X Linux

Remark

Note: ECM20?s 'M' key is for use only with PCI-E SSD, 'B' key is for use with only SATA SSD. Note: B key SSD requires SATA 7 pin cable connected to motherboard to function.
