Product Details:

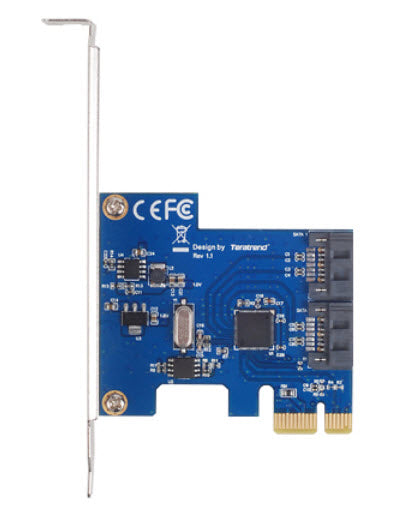

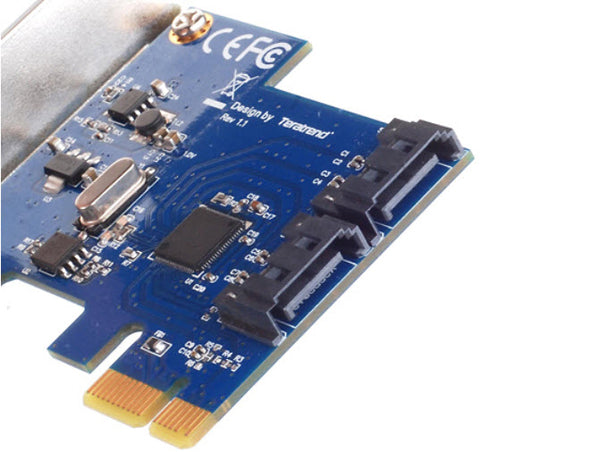

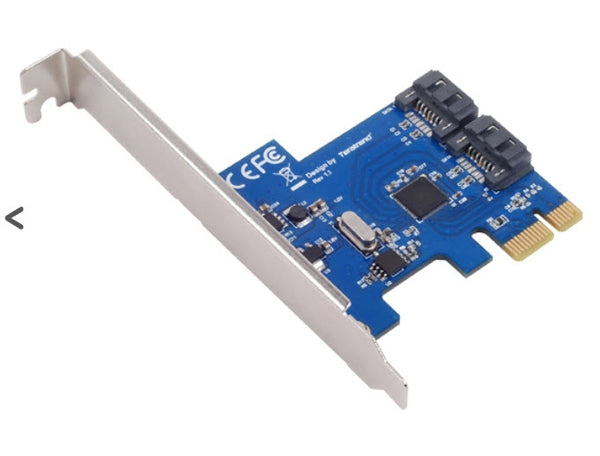

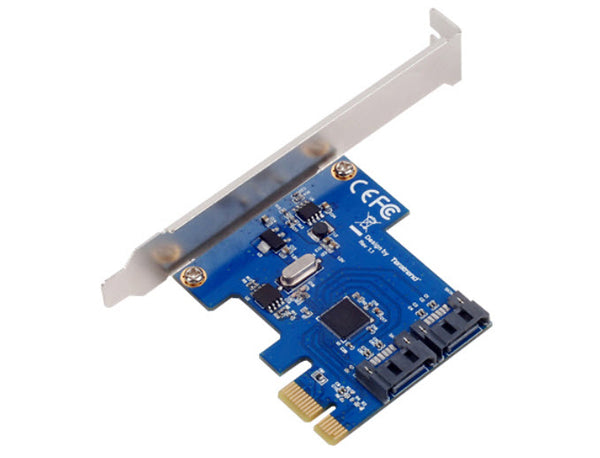

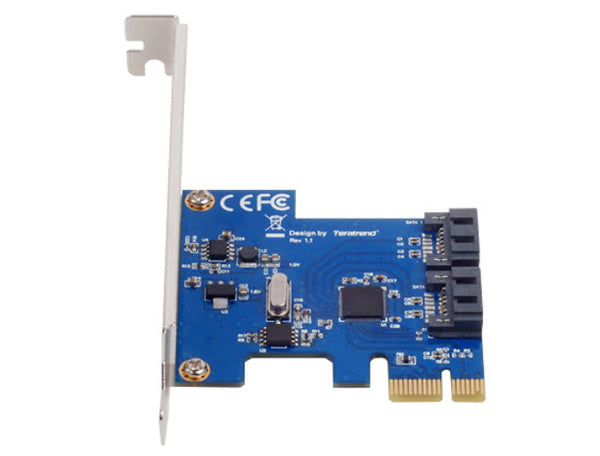

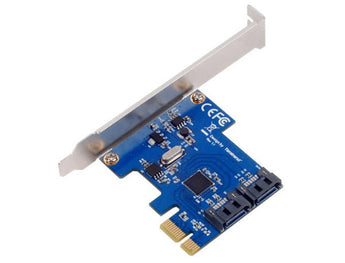

SilverStone created an excellent expansion card product, the EC05, which connects to the motherboard via single lane PCI Express 2.0 slot to support two internal SATA 6Gbps interface with maximum compatibility and stability. The EC05 can be configured to ?HyperDuo mode ? with one SSD and one HDD to support boost speed with SSD. It can also be configured to ?RAID0 ? to boost HDD transfer speed with 2 HDDs in addition to backing up valuable data through ?RAID1. ?Features:
- PCI Express 2.0 with single lane (x1) throughput 5Gbit/s.
- Supports simultaneous operation of multiple SATA 6Gbps/SATA 3Gbps devices.
- Adds two internal SATA 6Gbps ports to the system.
- Supports HyperDuo (capacity), HyperDuo (safe), RAID0, RAID1
Model No. |
SST-EC05 |
SATAIII controller |
Marvell 88SE9130 |
Ports |
SATA 6Gbps internal ports x2 |
Function mode |
HyperDuo (capacity), HyperDuo (safe), RAID0, RAID1 |
Operating system support |
Windows XP, Vista, 7(32bit/64bit) |
Form factor |
Low profile single lane(X1) PCI Express 2.0 |
Enclosure Interface |
SATA 6Gbps backwards compatible with SATA 3Gbps/SATA 1.5Gbps |
Drive Support |
SATA HDD or SSD |
Transmitting Speed |
Up to 5Gbps via PCI Express 2.0 1X slot |
