SilverStone Technology

ECU04-E

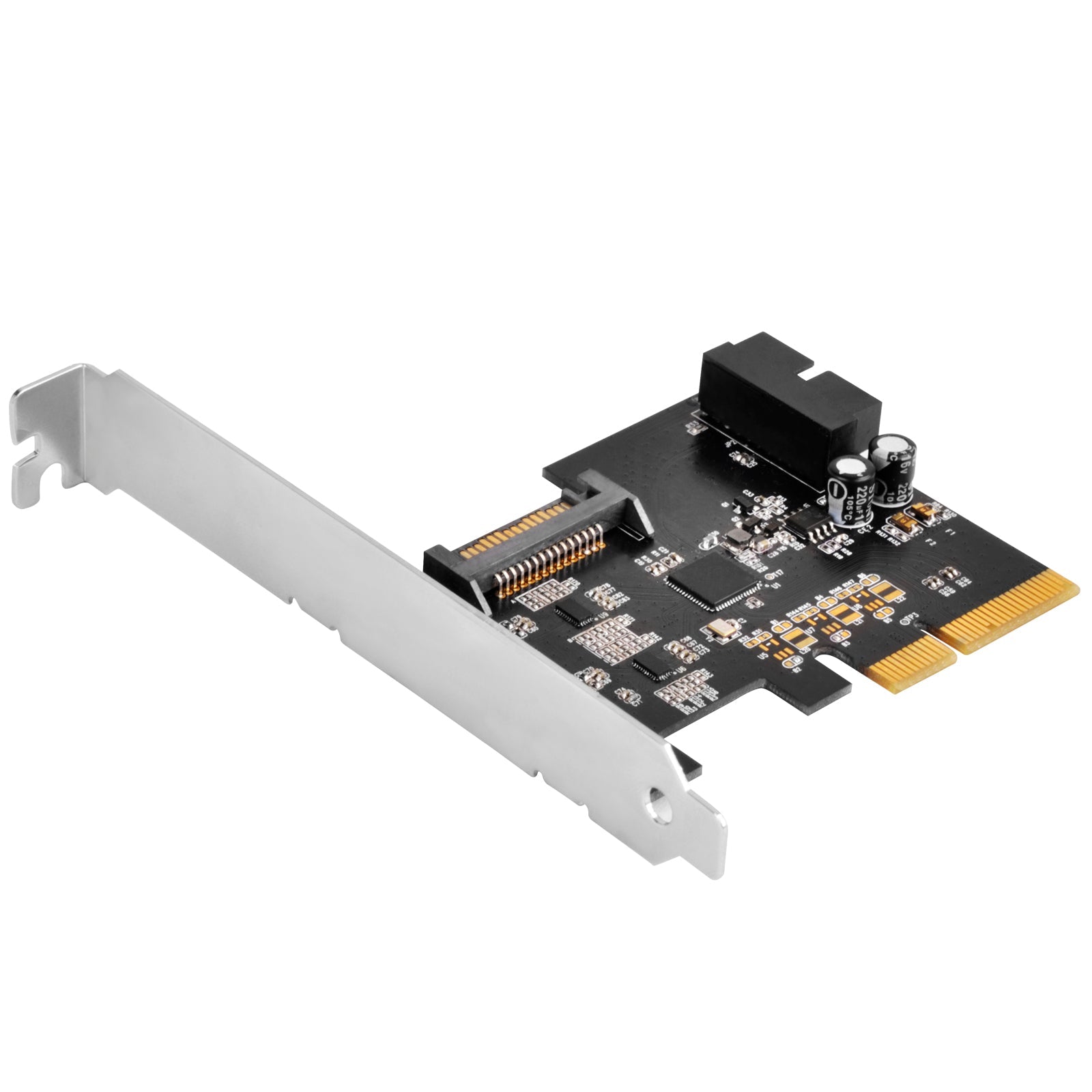

The SilverStone ECU04-E is a PCI-E Gen 2.0 x2 expansion card with one internal 19pin USB 3.1 connector (supporting two ports). It adds two redriver chips over the original ECU04 design for vastly improved performance over longer cable connections.

Found a better price? Let us know and we'll try and match it!
Estimate shipping
1 in stock
$49.99 $39.99 Sale
Shipping calculated at checkout.

Pickup available at Performance-PCs.com

Usually ready in 1 hour

  • 99% of orders ship same day M-F!
  • FREE Shipping Possible!
  • All-Star CS Team
  • 30-Day Hassle Free Returns
Details

The SilverStone ECU04-E is a PCI-E Gen 2.0 x2 expansion card with one internal 19pin USB 3.1 connector (supporting two ports). It adds two redriver chips over the original ECU04 design for vastly improved performance over longer cable connections. This ensures dual 10Gbps bandwidth transfer rate can be maintained for up to 2 meters* compared with just 1 meter per USB 3.1?s specified limitation. The ECU04-E is also backwards compatible with USB 3.0/2.0/1.1 and supports UASP (USB Attached SCSI Protocol) for enhanced performance. For operating systems with XHCI (eXtensible Host Controller Interface), the ECU04-E will easily install without the need for any drivers because it also supports XHCI. For those looking to upgrade or add additional USB 3.1 ports or devices to their computer, the ECU04-E is a great starting point.
Features

ï¿­ Includes ReDriver ASIC chips for overcoming 1 meter cable length limitation*


ï¿­ Includes USB 3.1 internal 19pin connector


ï¿­ PCI-E Gen 2.0 x2, throughput up to 10Gbps


ï¿­ Compliant with eXtensible Host Controller Interface (XHCI) specification Revision 1.1


ï¿­ Compliant with USB Attached SCSI Protocol (UASP) Revision 1.0


ï¿­ Includes optional low profile slot cover for supporting low profile cases
Specifications

















































Model No.

SST-ECU04-E

Power requirement

5V via SATA 15pin power connector

Form factor

Low profile - PCI-E 2.0 x2 (10Gbps)

USB Ports

Internal 19pin connector for dual USB 3.1 ports

USB 3.1 controller

ASMedia ASM1142

ReDriver ASIC

Pericom PI3EQX1002B

Transmitting Speed

USB 3.1 (10Gbps), USB 3.0 (5Gbps), USB 2.0 (480Mbps), USB 1.1 (12Mbps)

Power Management

Support USB 3.1 and USB 2.0 link power management

Current protection

Support over current detection and protection

Operating system support

Windows 7 (32bit/64bit)**, 8/8.1/10 (32bit/64bit)***, Ubuntu/Linux/Mac OS****

Extra

UASP function














Remark

* Total cable length includes case internal cabling plus external cabling. Sub-par cable thickness/quality and external port design/quality may also reduce supported length required for maximum performance.


** If your OS version is Windows 7 or earlier, please install driver (available from SilverStone website) prior to using the ECU04-E.


*** Windows 8, 8.1, or 10 supports ECU04-E automatically so you do not need to install additional driver for it.


**** User should check for XHCI function in Ubuntu/Linux or Mac OS, if computer system supports XHCI function then it can support ECU04-E automatically without additional driver installation.


***** If your operating system is incompatible with the expansion cards developed by SilverStone, such that your device can not be detected or recognized, please update your motherboard?s driver or BIOS to the latest version. You may also try executing compatible mode in your operating system and select previous versions of operation system to install driver required by the expansion cards.
