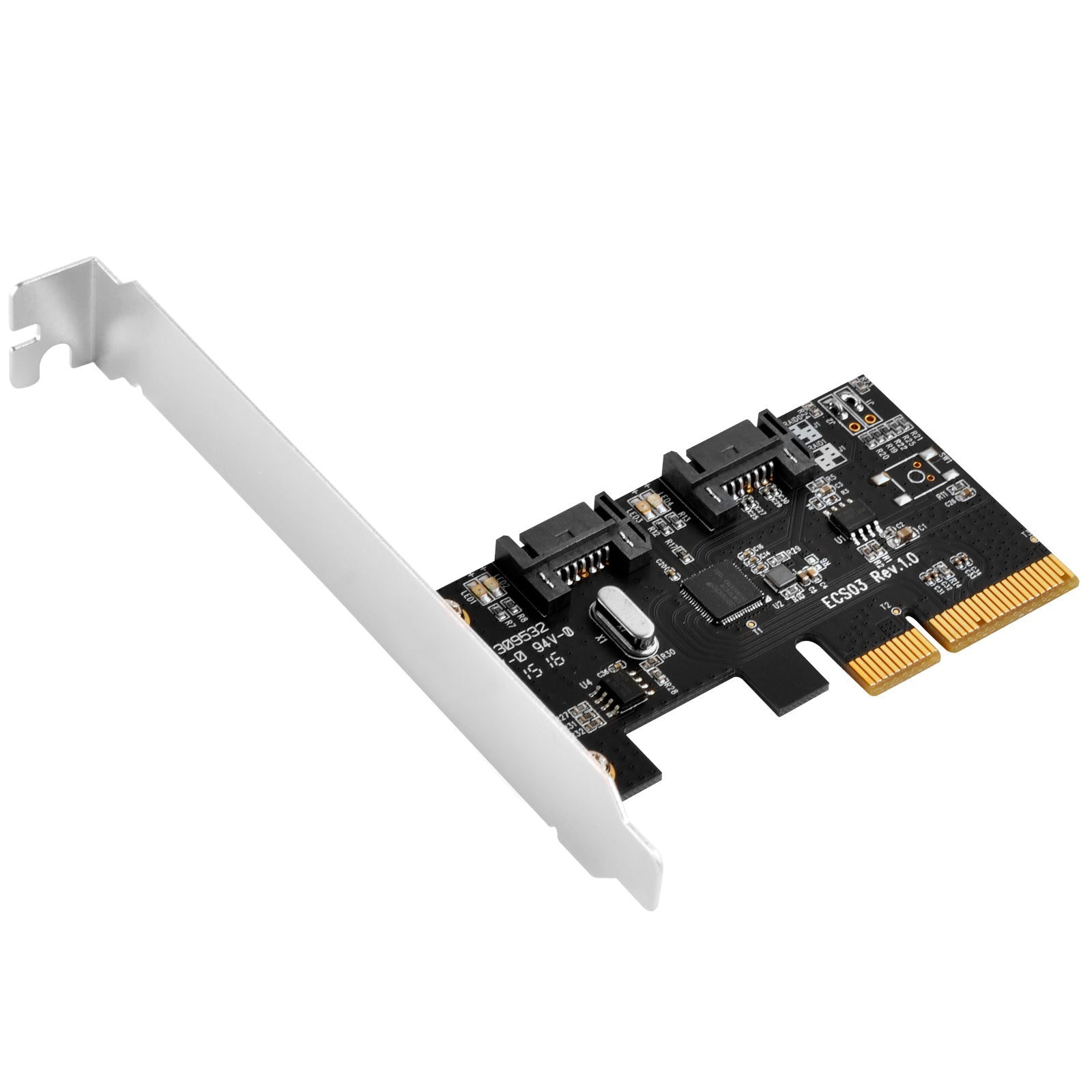

Silverstone Expansion Card Model ECS03

To satisfy professional users? need for higher performance storage solution, SilverStone created the ECS03, a hardware-based SATA RAID card. This PCIe Gen 2.0 (x2) expansion card has built-in ASMedia 1062R controller with two SATA ports for supporting RAID 0, RAID 1, SPAN, and non-RAID mode. With excellent flexibility for high performance and data security, the ECS03 is a great choice for those looking to upgrade their system for more robust storage duties.

ï¿­ PCIe Gen2 x2 with ASMedia 1062R controller

ï¿­ Supports SATA 6Gbps interface

ï¿­ Supports two SATA ports

ï¿­ Supports SATA port multiplier command based switching

ï¿­ Supports RAID 0, RAID 1, SPAN and non-RAID function

ï¿­ Low profile design

Model No.	SST-ECS03
Ports	SATA 6Gbps internal port x 2
Form factor	Low profile - PCI Express Gen 2.0
Drive Support	SATA up to 6Gb/s
Controller	ASMedia1062R
RAID function	RAID 0, 1, SPAN, non-RAID
Net weight	95g
Operating system support	Windows XP, Vista, 7, 8, 8.1 (32bit/64bit) or later
Dimension	110mm (W) x 21mm (H) x 82mm (D) 4.33 (W) x 0.83 (H) x 3.23 (D)
