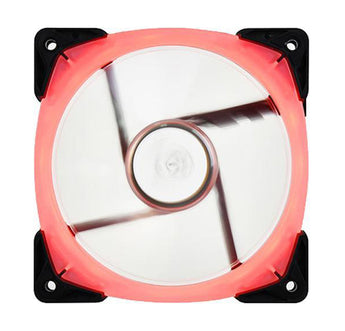

SILVERSTONE FW Series SST-FW142-RGB 140mm RGB LED Case Fan

The FW142-RGB is a SilverStone designed 140mm RGB fan for the DIY enthusiasts. It has RGB LED strip integrated within the frame and powered via PWM 4pin connector, the FW142-RGB?s speed can be adjusted by supported motherboard or fan controllers to be used for silent running builds or for cooling a high performance machine. Enthusiasts looking to upgrade RGB effects and aesthetics of their PCs will find the FW142-RGB to be an excellent choice.

ï¿­ PWM design allows 500 ~ 1500 rpm fan speed control by motherboard

ï¿­ Displays any color by use of an RGB LED control box or capable motherboard

ï¿­ Coating with special light diffusion material improves light uniformity

ï¿­ Double ball bearings for longer life and durability

ï¿­ Class-leading 18 LEDs for increased brightness

Model No.	SST-FW142-RGB
Color	Transparent fan blades, black frame
Bearing	Dual Ball Bearing
Connectors	4pin PWM for fan + 4pin RGB
Rated Voltage	12V DC
Start Voltage	9.6V
Rated Current	0.11A
Rated Power	3.84W
Speed	500 ~ 1500 rpm
Airflow	18.77 ~ 60.54 CFM
Static Pressure	0.16 ~ 1.65 mmH2O
Noise Level	18.48 ~ 23.33 dBA
Life Time	70,000 hours
Dimension	140mm (L) x 140mm (W) x 25mm (H) 5.51 (L) x 5.51 (W) x 0.98 (H)
RGB LEDs	18 PCS



Remark

* Please check to make sure the control box and motherboard RGB port that you want to connect are the same as FW142-RGB?s RGB port definition. Incorrect connection may cause malfunction or damage
