Specifications:
Model No.
|
SST-GD05B(Black) |
SST-GD05B-USB3.0(Black) |
-- |
-- |
Material
|
Aluminum skin over plastic front panel, 0.8mm SECC body |
Motherboard
|
Micro-ATX, DTX, Mini-ITX |
Multimedia
|
-- |
Drive Bay
|
External |
5.25 x 1 |
-- |
Internal |
3.5 x 2 , 2.5Â? x 1 or 3.5 x 1 , 2.5Â? x 2 |
Cooling System
|
Front |
-- |
Rear |
2 x 80mm fan slots (optional mounting) |
Side |

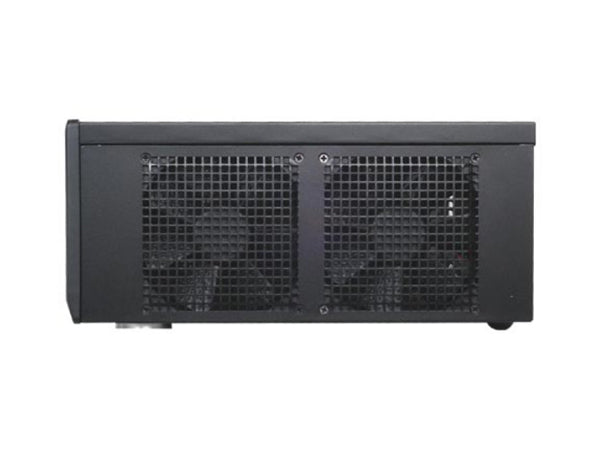

Right: 2 x 120mm intake fans, 1200rpm, 20dBA Left: 1 x 120mm intake fan, 1200rpm, 20dBA
Also compatible with 80mm fan
|
Top |
-- |
Bottom |
-- |
Internal |
-- |
Expansion Slot
|
5 |
Front I/O Port
|

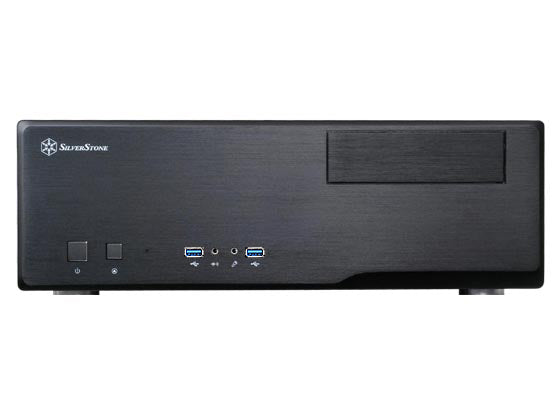

USB 2.0 x 2 (GD05B only) USB 3.0 x 2 (GD05B-USB3.0 only) audio x 1 MIC x 1
|
Power Supply
|
Support standard PS2(ATX) |
Operating system support
|
-- |
Expansion Card
|
Support graphic cards up to 11 inches., width restriction-4.92 |
Limitation of CPU cooler
|
70mm (remove ODD if you want install up to 120mm) |
Limitation of PSU
|
180mm (remove Left fan replacement as 80mm if you want install up to 220mm) |
Net Weight
|
4.7kg |
Dimension
|
440 mm (W) x 151 mm (H) x 325 mm (D), 21.6 liters |
Extra
|
support Kensington lock (v1.4 or after) |
