SPECIFICATIONS
Model No. |
SST-HYD120-ARGB |
Application |
Intel LGA 2066/2011/1200/115x/1366/775 AMD Socket AM4/AM3/AM2/FM2/FM1* |

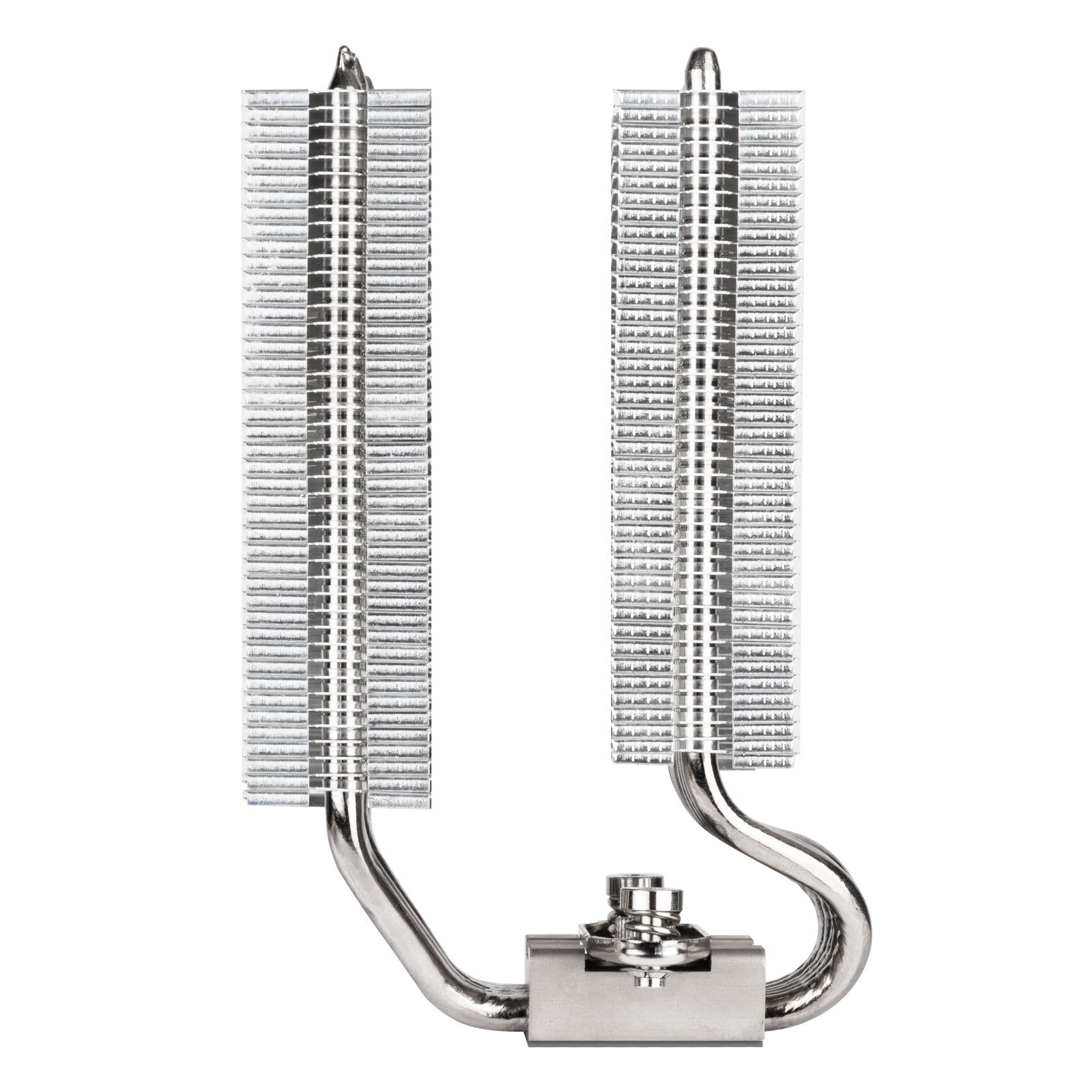

Material |

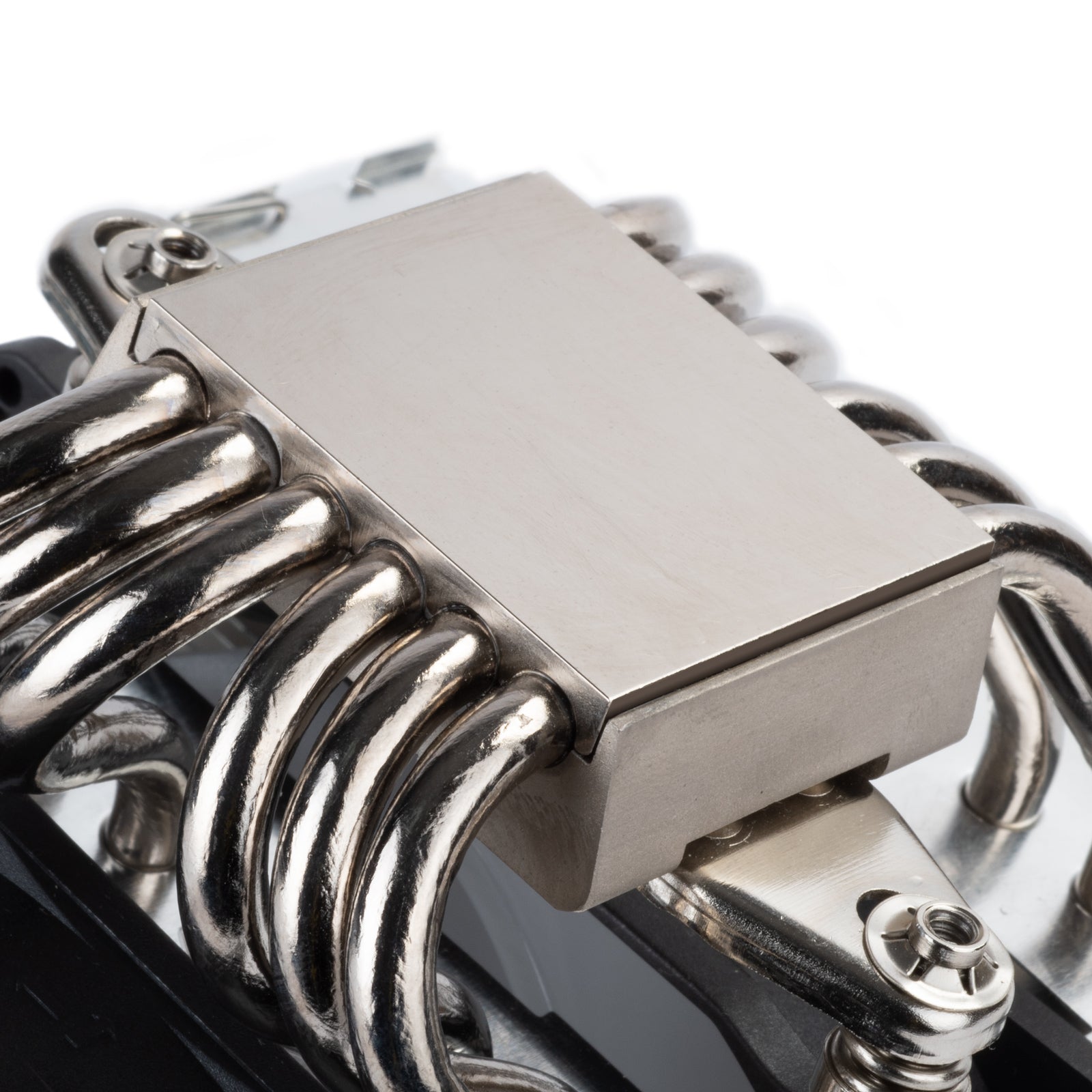

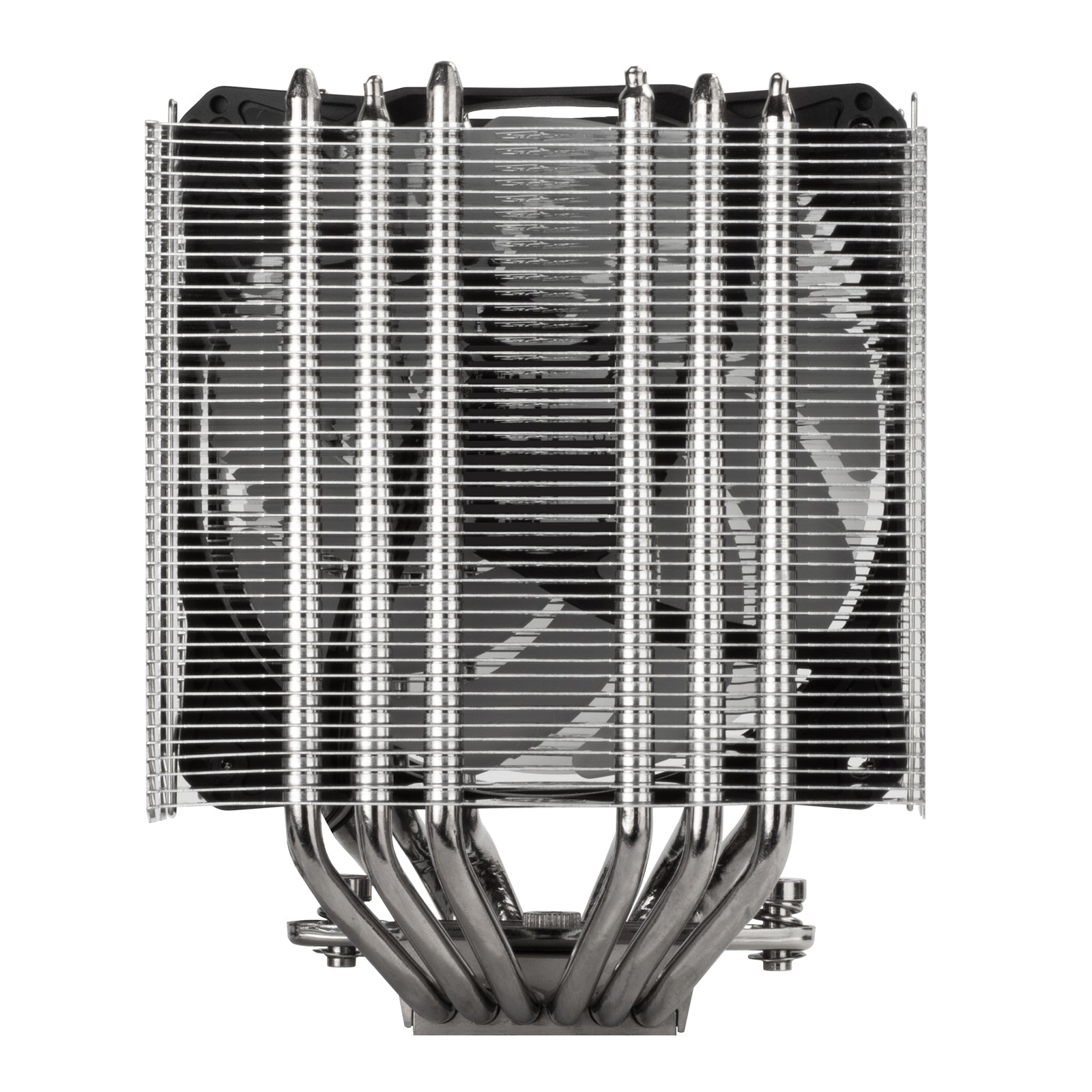

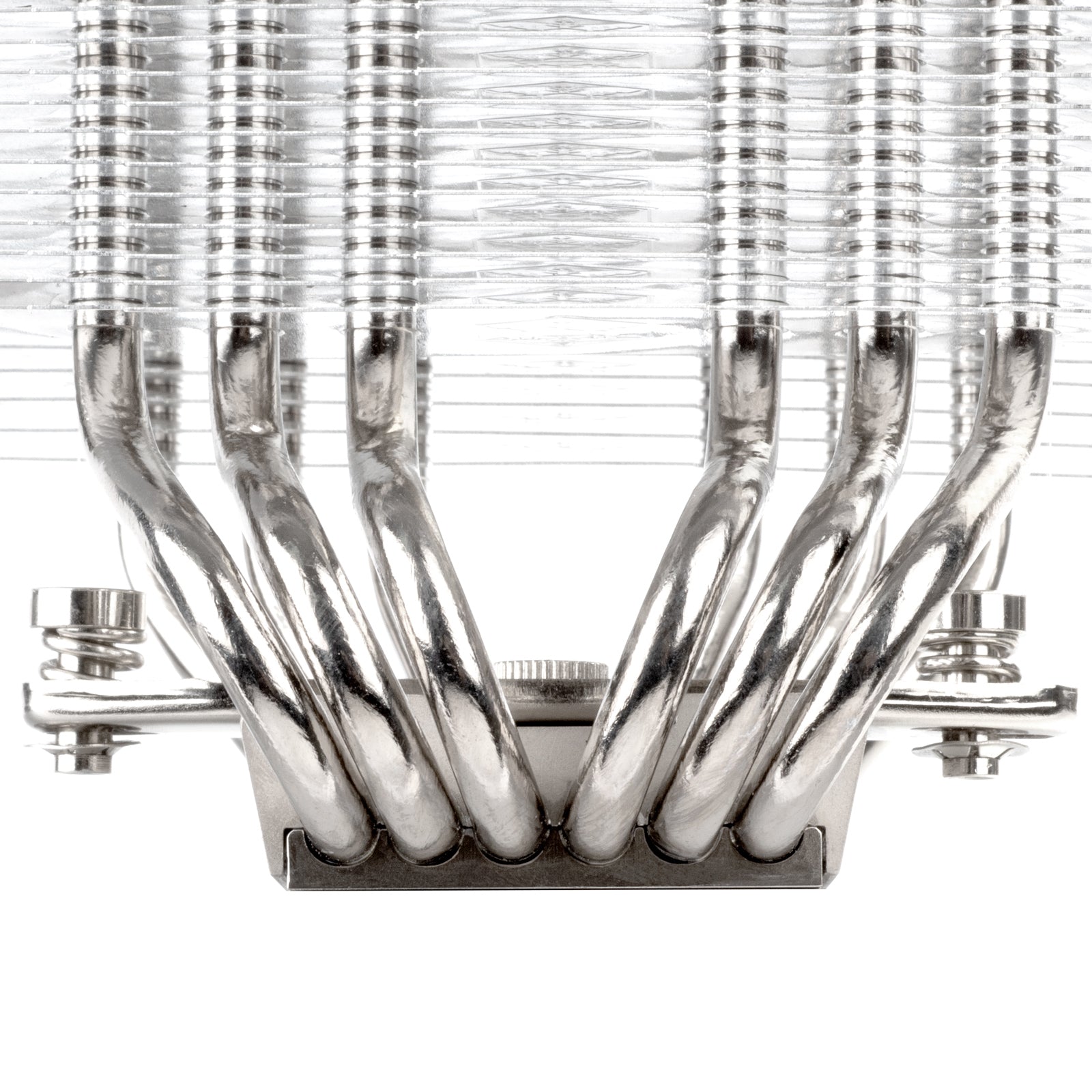

Copper heat pipes with aluminum fins |

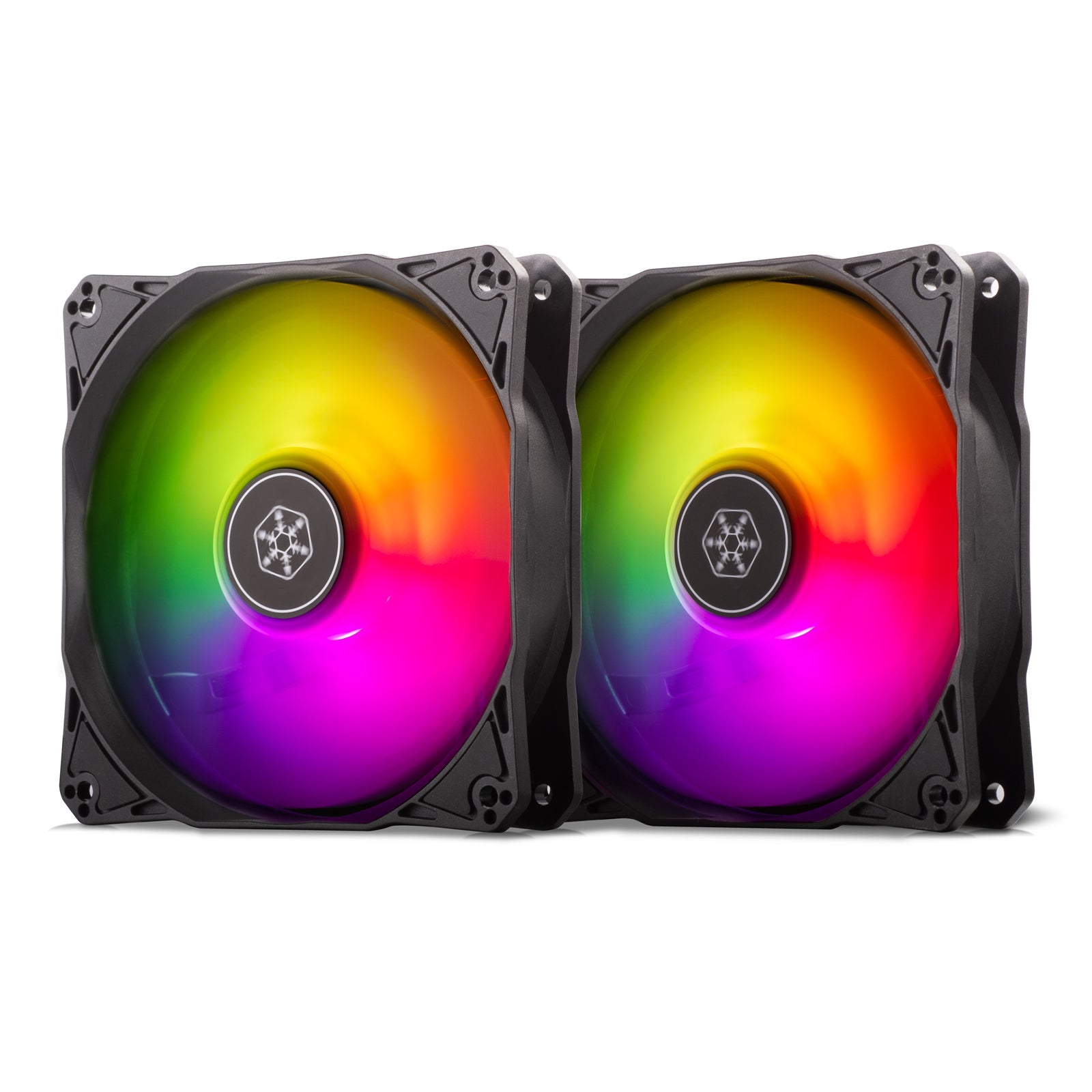

Fan dimension |
120mm (W) x 25mm (H) x 120mm (D) 4.72 (W) x 0.98 (H) x 4.72 (D) |
Speed (R.P.M.) |
0 ~ 1850 RPM** |
Air Flow (CFM) |
56.23 CFM |
Air pressure |
1.98 mmH2O |
Noise |
0~30.5 dBA |
Rated Voltage |
12V |
Rated Current |
0.21A |
Bearing |
Hydraulic bearing |
Fan MTTF |
35,000 hours |
Connectors |
4 Pin PWM & 4-1 Pin ARGB (5V LED) |
Net weight |
885g |
Dimension |
125mm (W) x 153mm (H) x 112mm (D) 4.92 (W) x 6.02 (H) x 4.41 (D) |
Remark |
* Please use the original backplate on your AMD platform motherboard. ** For 0 RPM @ PWM Duty cycle = 0%, please make sure your motherboard is capable of reaching a duty cycle of 0%. *** Please check to make sure the control box and motherboard RGB port that you want to connect are the same as HYD120-ARGBâ??s RGB port definition. Incorrect connection may cause malfunction or damage. |
