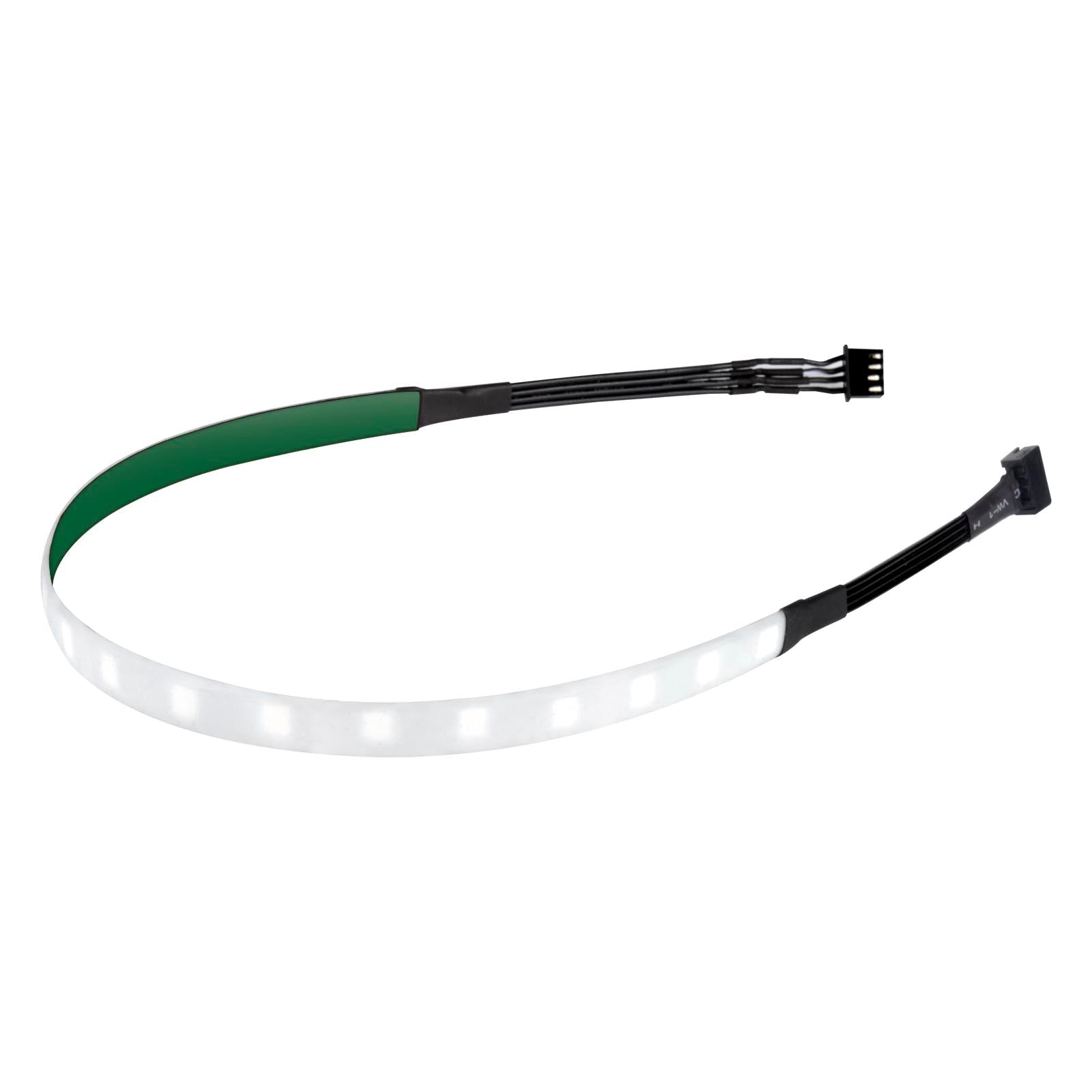

Silverstone LS02 Flexible Light Strip - RGB

LED strip is a must have for any enthusiast looking to brighten up their PCs. Improving upon SilverStoneâ??s first light strip product, the LS01, the LS02 has three more LEDs for a total of 18 for extra brightness. By injecting the clear coating with special light diffusion material, it disperses its colors smoother and with better uniformity. LS02 can be controlled by hardware or software that can manipulate +12V, G, R, B, signals such as RGB LED control box or motherboard to display userâ??s desired colors. It also has the ability to daisy chain multiple light strips to accommodate various applications. Finally, to improve ease of installation and replacement, the LS02 has both built-in magnetic strip and adhesive tape to better meet the demand of enthusiasts that require more flexibility in installation.

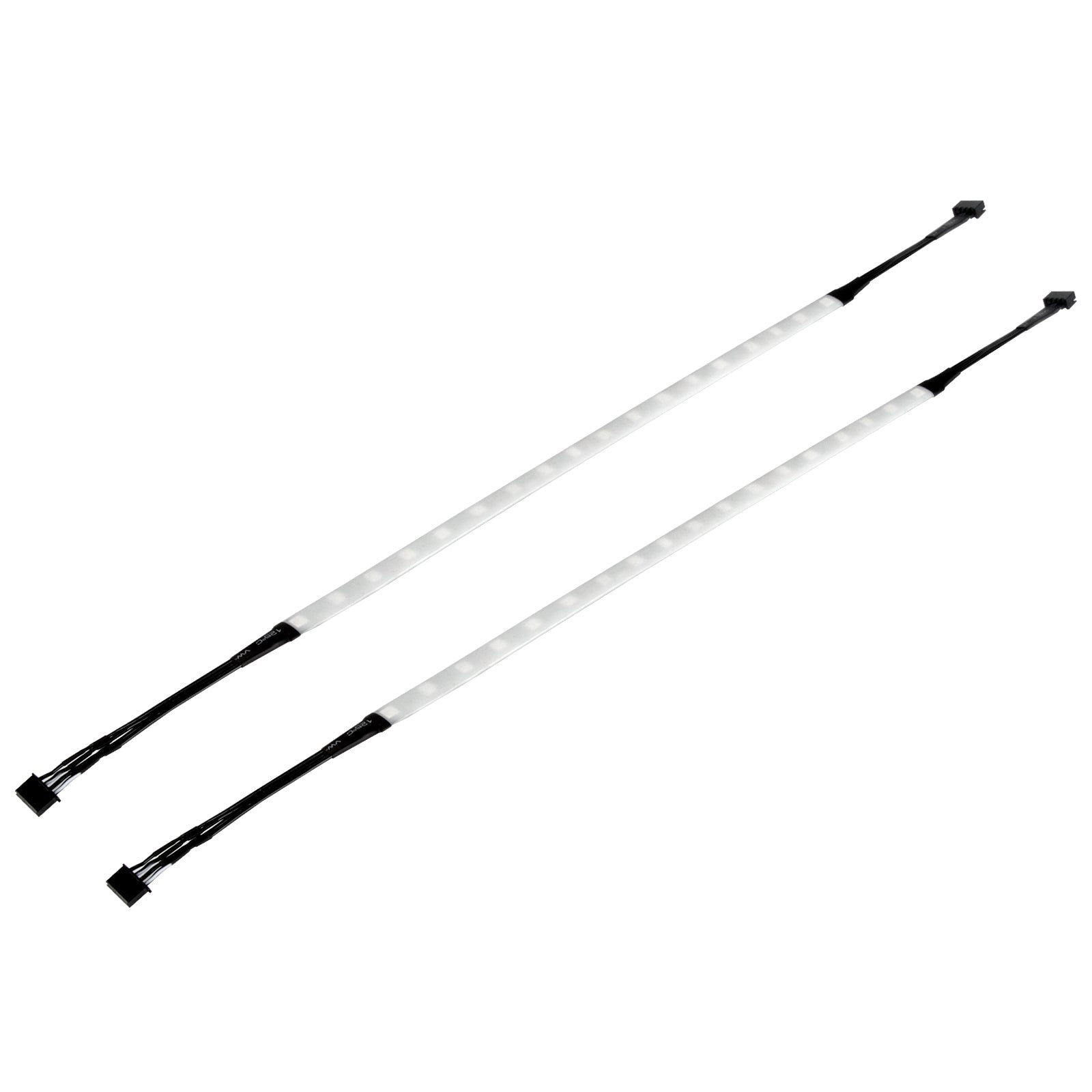

ï¿­ Package includes two RGB light strips

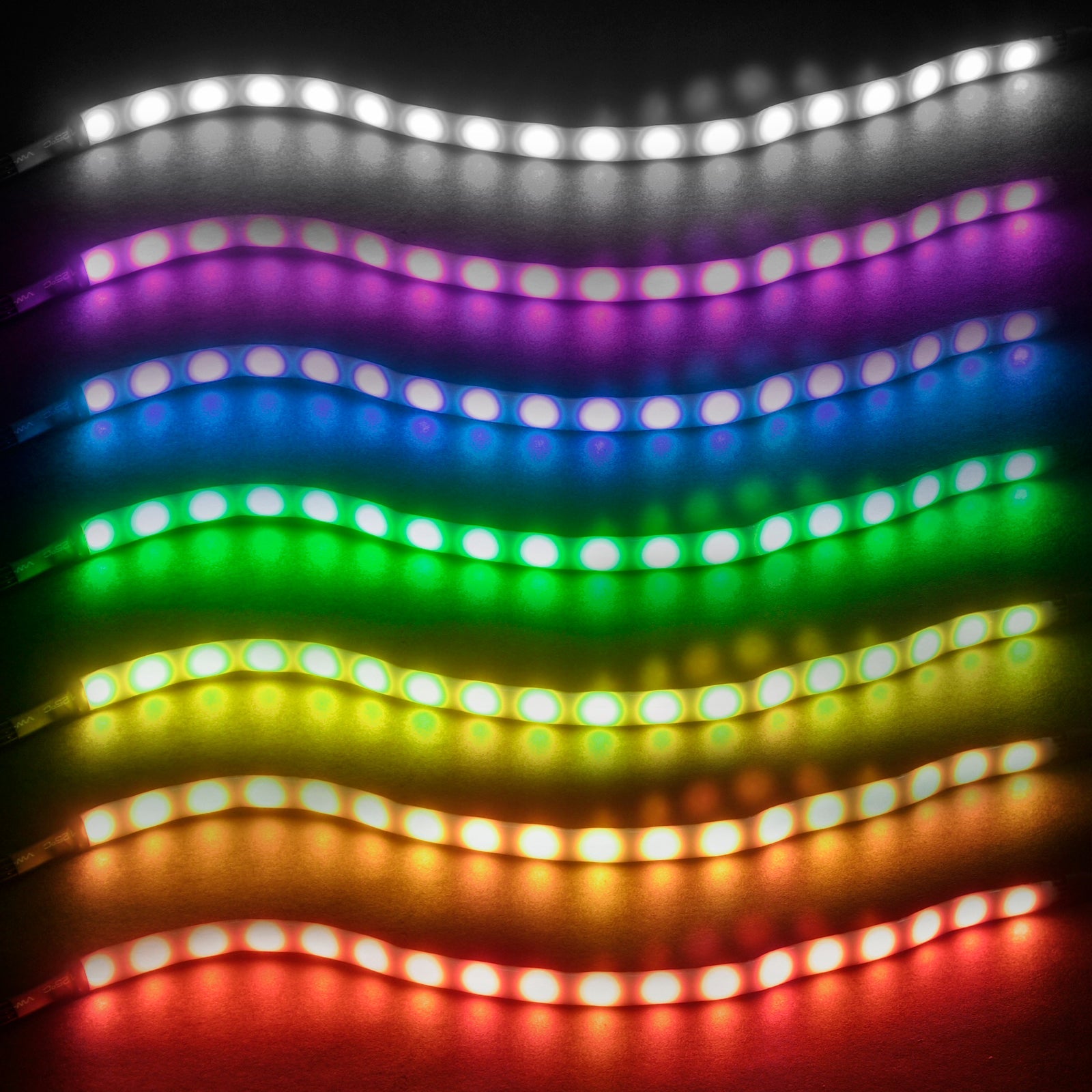

ï¿­ Displays any color by use of an RGB LED control box or capable motherboard

ï¿­ Coating with special light diffusion material improves light uniformity

ï¿­ Built-in magnetic strip and adhesive tape provides more installation freedom

ï¿­ Supports daisy chaining multiple light strips

Model No.	SST-LS02
Material	18 pcs 5050 RGB LED with magnetic strip and adhesive tape
Pin definition	+12V, G, R, B*
Included Parts	RGB LED strip x 2 Y cable x 2**
Length	300mm
Wattage	1.44W (12V, 0.12A)
Tandem limits	5 pcs on each line
Weight	30g



Remark

* Please check the control box and motherboard pin header that you want to connect are the same as LS02?s pin definition. ** Included Y cables support SilverStone?s RGB 4pin connectors and other market standard RGB 4pin connectors.
