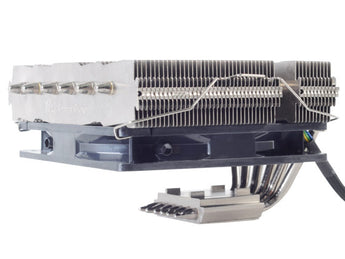

Silverstone Nitrogen Series NT06-PRO-V2 SFF CPU Heatsink

The NT06-PRO is a completely redesigned cooler based on the NT06-E. It has optimized heatsink fins soldered onto six 6mm thick copper heat pipes to provide more contact to produce higher efficiency rate of heat dissipation. A new, compact 120mm PWM fan with excellent balance of airflow and noise is included to provide forced-air heat dissipation with the ability to cool components around the CPU area. For users requiring high performance cooling with specific space requirements, the NT06-PRO is the best choice.

ï¿­ Superior silence and performance

ï¿­ Six soldered heat-pipes, copper base and aluminum fins ensuring the best thermal conducting efficiency

ï¿­ Improved air pressure design and fan mounting system

ï¿­ Includes compact 120mm PWM fan for excellent cooling and low noise

ï¿­ Intel Socket LGA775/1150/1151/1155/1156/1366/2011 and AMD Socket AM2/AM3/FM1/FM2 compatible

ï¿­ Intel Socket LGA775/1150/1151/1155/1156/1366/2011 and AMD Socket AM2/AM3/AM4/FM1/FM2 compatible (V2)

Model No.	SST-NT06-PRO SST-NT06-PRO-V2 (adds AM4 supports)
Material	Copper base, heat pipes with aluminum fins
Application	Intel Socket LGA775/1150/1151/1155/1156/1366/2011 AMD Socket AM2/AM3/*AM4/FM1/FM2
Heat Pipe Type	Ø6mm-6pcs heat-pipe
Cooling System	120mm x 120mm x 20mm fan
Bearing	Sleeve Bearing
CPU TDP	Fanless :65W 1 x 12020mm Fan:95W 1 x 12025mm Fan:130W 12020 + 12025 mm Fan:150W
Net weight	700g (with fan)
Voltage Rating (V)	12V
Start Voltage (V)	=9V
Air Flow (CFM)	33.623~73.969CFM
Speed (R.P.M.)	1000~2200RPM with PWM
Life Expectance (hrs)	30,000 hours
Dimension	140mm (W) x 82mm (H) x 139mm (D) 5.51 (W) x 3.23 (H) x 5.47 (D)
