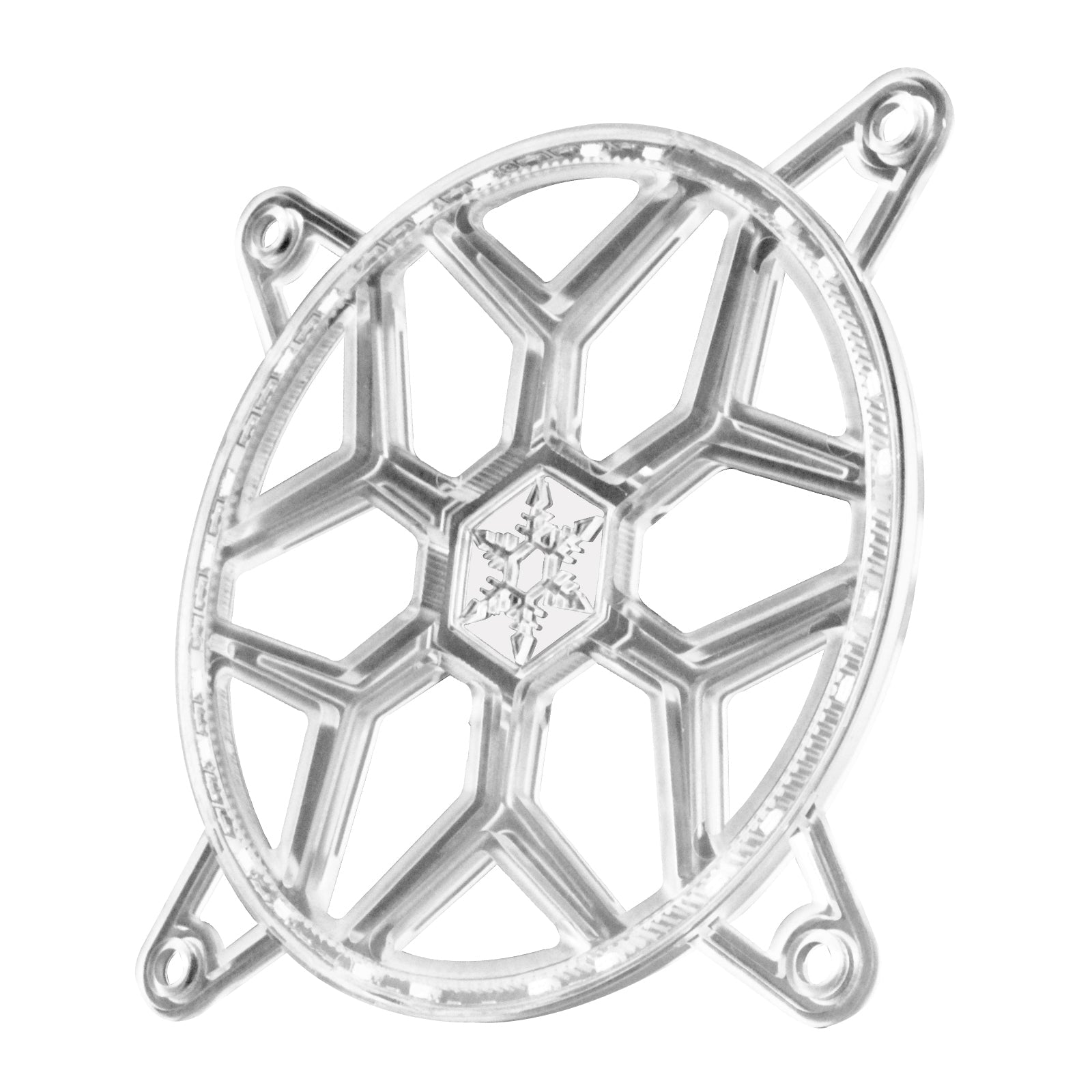

SilverStone Plastic 140mm fan grille and 28 pcs RGB LED Strip

To meet the rising demand from enthusiasts with keen sense of style and expressive personality, SilverStone created the FG141, a 140mm fan grille with 28 integrated RGB LEDs. This brilliant kit can be controlled by hardware or software that can manipulate +12V, G, R, B, signals such as RGB LED control box or motherboard. With the FG141, any 140mm fan or fan mount can be turned into an RGB display source so users can freely choose the exact fan they want to use without being constrained by the limited number of RGB fan models.

ï¿­ Displays any color by use of a RGB LED control box or capable motherboard

ï¿­ Integrated 28 pcs RGB LED Strip for brilliant light effects

ï¿­ Highly flexible and compatible with all 140mm fans

Model No.	SST-FG141
Material	Plastic fan grille and 28 pcs RGB LED Strip
Pin definition	+12V, G, R, B*
Application	140mm fan grille, LED kit
Rated Voltage	12V DC
Rated Current	0.56 A
Net weight	45g
Dimension	140mm (W) x 140mm (H) x 6mm (D) 5.51 (W) x 5.51 (H) x 0.24 (D)



Remark

* Please check the control box and motherboard pin header that you want to connect to have the same pin definition as FG141.
