Steel

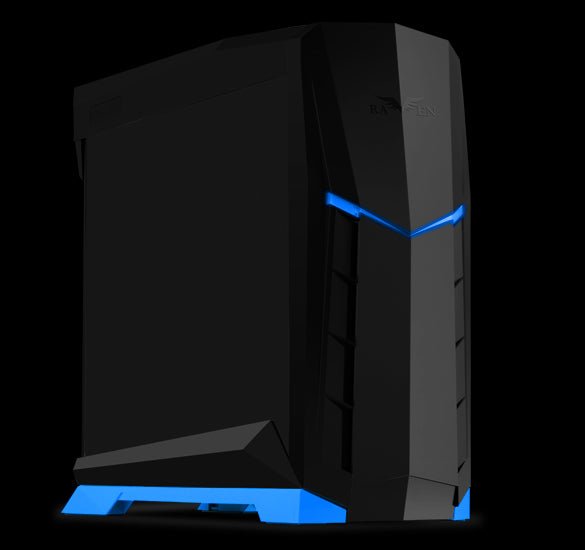

SilverStone Raven Z Series SST-RVX01BA-W (black with blue trim + window)

RVX01BA-W

After completing the evolutionary RAVEN RV05 with 5.25” drive bay design completely removed, the RAVEN team created another forward thinking line of cases with the introduction of the “RAVEN X” subcategory. This line will not only retain the essence of what made the original RAVEN series great with features such as signature aggressive styling and 90 degree rotated layout, but also cater to enthusiasts looking for more exciting designs in an entry-level price point.

Found a better price? Let us know and we'll try and match it!
Estimate shipping
$79.99 USD
Shipping calculated at checkout.

Pickup available at Performance-PCs.com

Usually ready in 1 hour

  • 99% of orders ship same day M-F!
  • FREE Shipping Possible!
  • All-Star CS Team
  • 30-Day Hassle Free Returns
Details

After completing the evolutionary RAVEN RV05 with 5.25” drive bay design completely removed, the RAVEN team created another forward thinking line of cases with the introduction of the “RAVEN X” subcategory. This line will not only retain the essence of what made the original RAVEN series great with features such as signature aggressive styling and 90 degree rotated layout, but also cater to enthusiasts looking for more exciting designs in an entry-level price point. With the smallest ever footprint for a ATX RAVEN tower case, the RVX01 has remarkably accommodating interior that can easily fit large ATX motherboards up to 12” x 11”, full size graphics card, four 2.5”/3.5” drives, and spaces for up to three radiators. From the factory, the case will come fully equipped with three of SilverStone’s famed Air Penetrator fans for class-leading thermal performance and easy to reach filter for easy maintenance. If you are looking to build an attractive, relatively compact and powerful PC on a budget, the RVX01’s combination of high affordability, top-level cooling ability, and flexible layout will fulfill the task beautifully.

Features



  • Signature RAVEN styling touches

  • 90 degree motherboard mounting from legendary RAVEN RV01

  • Three 120mm Air Penetrator fans included for sublime vertical air cooling

  • Positive pressure design for excellent cooling/quietness and dust-prevention

  • Quick access filter for convenient maintenance

  • Support up to three sets of liquid cooling radiators


Specifications

Model No.


SST-RVX01BR (black with red trim)
SST-RVX01BR-W (black with red trim + window)
SST-RVX01BA-W (black with blue trim + window)
SST-RVX01BV-W (black with green trim + window)


Material


Plastic outer shell, steel body


Motherboard


ATX (up to 12" x 11" ), Micro-ATX


Drive bay


External: None


Internal: 2.5" x 4 or 3.5" x 4


Cooling system


Front: 120mm fan slot x 1


Top: 120mm fan slot x 1


Bottom: 120mm Air Penetrator x 3, 1200±10% rpm, 19.7dBA


Radiator support


Front: 120mm x 1


Rear: N/A


Top: 120mm x 1


Bottom: 120mm x 1 / 240mm x 1


Expansion slot


7


Front I/O port


USB 3.0 x 2
audio x 1
MIC x 1


Power supply


Optional PS2(ATX)


Expansion card


Compatible up to 13.7" (347mm) long, width restriction* - 4.92" ~ 5.91" (124mm ~ 150mm)


Limitation of CPU cooler


162mm or 159mm (window)


Dimension


215mm (W) x 485mm (H) x 500mm (D) , 52.1 liters
8.46" (W) x 19.09" (H) x 19.69" (D) , 52.1 liters



* Depending on installed drives
