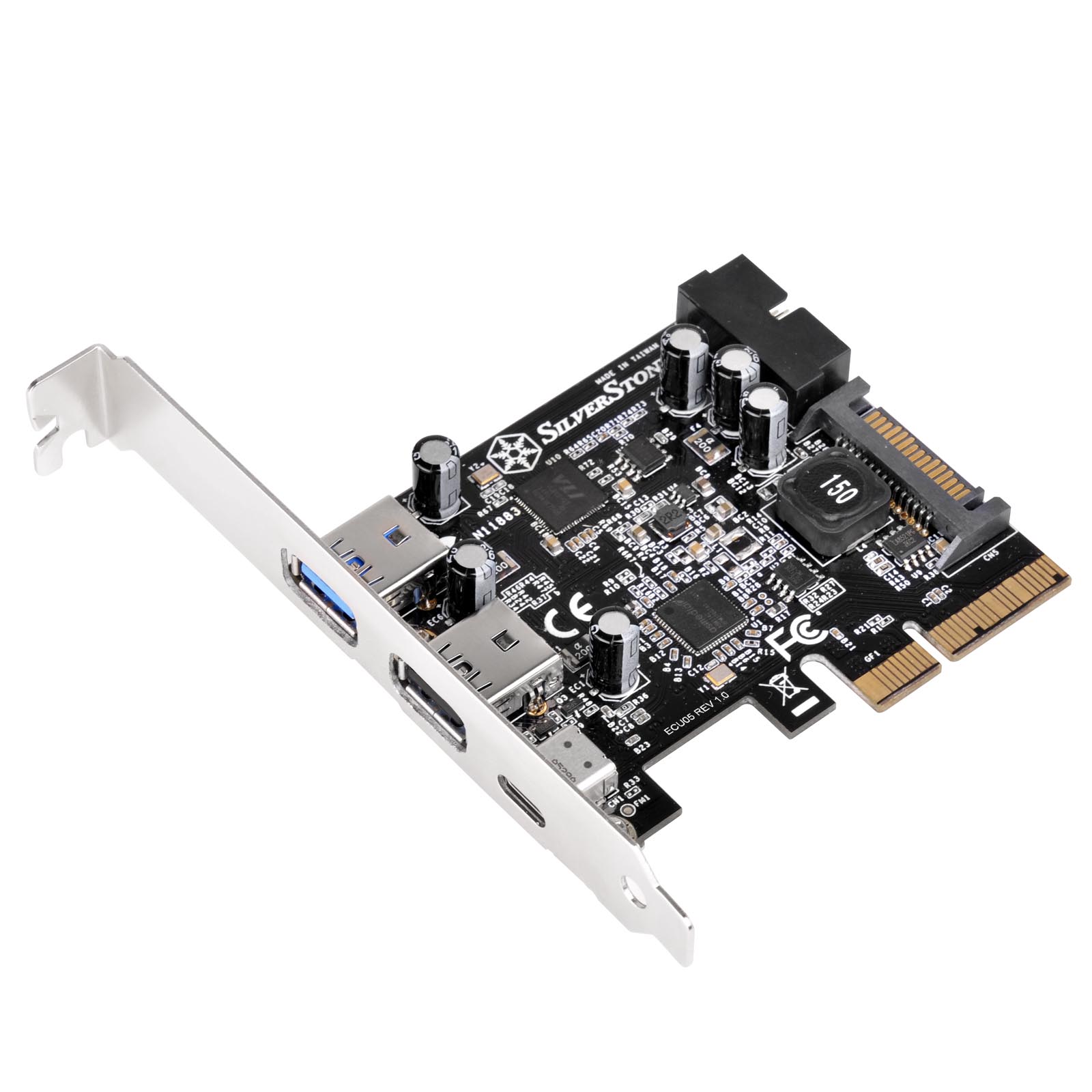

SilverStone SST-ECU05 PCI-E Gen 2.0 x2 Expansion Card

Name: SilverStone SST-ECU05 PCI-E Gen 2.0 x2 Expansion Card
Brand: SilverStone Technology
SKU: SST-ECU05
Price: 47.99 USD
Availability: InStock

SST-ECU05

Found a better price? Let us know and we'll try and match it!

Product variants

Estimate shipping

Country

Zip code

Quantity

1 in stock

~~$59.99~~ $47.99 Sale

Shipping calculated at checkout.

Pickup available at Performance-PCs.com

Usually ready in 1 hour

99% of orders ship same day M-F!
FREE Shipping Possible!
All-Star CS Team
30-Day Hassle Free Returns

Details

The SilverStone ECU05 is a PCI-E 2.0 x2 expansion card with reversible USB 3.1 Type-C and USB 3.0 ports. Its single USB 3.1 Type-C port is capable of fully utilizing PCI-E 2.0 x2 slot for up to 10Gbps bandwidth, which is twice the USB 3.0 performance for offering excellent stability when multiple external USB devices are in use simultaneously. ECU05 also has additional two external USB 3.0 Type-A ports and an internal 19pin USB 3.0 connector to provide your system with five total added USB ports. For fast charging, one of the Type-A ports (black) meets USB Battery Charging (BC) 1.2 standard to deliver quick and safe charging to your mobile devices. Finally, the ECU05 supports UASP (USB Attached SCSI Protocol) for enhanced performance, so operating systems with XHCI (eXtensible Host Controller Interface) can easily detect and install ECU05 without the need for any drivers.

Features

ï¿ Includes SuperSpeed USB 3.1 external USB Type-C connector

ï¿ Includes USB 3.0 internal 19pin connector and two external USB Type-A connectors

ï¿ Dedicated fast charging port, compliant with USB Battery Charging (BC) 1.2

ï¿ Support PCI-E 2.0 x2 with throughput up to 10Gbps

ï¿ Compliant with eXtensible Host Controller Interface (XHCI) specification Revision 1.1

ï¿ Compliant with USB Attached SCSI Protocol (UASP) Revision 1.0

ï¿ Includes optional low profile slot cover for supporting low profile cases

Specifications

Model No.	SST-ECU05
Power requirement	5V via SATA 15-pin power connector
Form factor	Low profile - PCI-E 2.0 x2 (10Gbps)
USB 3.0 controller	VIA Lab VL812
USB Ports	USB 3.1 Type-C x 1, DFP with Rp=10KO and up to 5V 3A USB 3.0 Type-A x 1 USB 3.0 Type-A with charging downstream port x 1, up to 5V 1.5A Internal 19pin connector x 1, for up to two USB 3.0 ports
USB 3.1 controller	ASMedia ASM1142
Transmitting Speed	USB 3.1 Gen 2.0 (10Gbps), USB 3.1 Gen 1.0 / USB 3.0 (5Gbps), USB 2.0 (480Mbps), USB 1.1 (12Mbps)
Power Management	Support USB 3.1 / USB 3.0 and USB 2.0 link power management
Current protection	Support over current detection and protection
Operating system support	Windows 7 (32bit/64bit), 8/8.1/10 (32bit/64bit), Ubuntu/Linux/Mac OS**

Remark

* If your OS version is Windows 7 or earlier, please install driver (available from SilverStone website) prior to using the ECU05.

** Windows 8 or 8.1, 10 supports ECU05 automatically so you do not need to install additional driver for it.

*** User should check for XHCI function in Ubuntu/Linux or Mac OS, if computer system supports XHCI function then it can support ECU05 automatically without additional driver installation.

**** If your operating system is incompatible with the expansion cards developed by SilverStone, such that your device can not be detected or recognized, please update your motherboard?s driver or BIOS to the latest version. You may also try executing compatible mode in your operating system and select previous versions of operation system to install driver required by the expansion cards.
