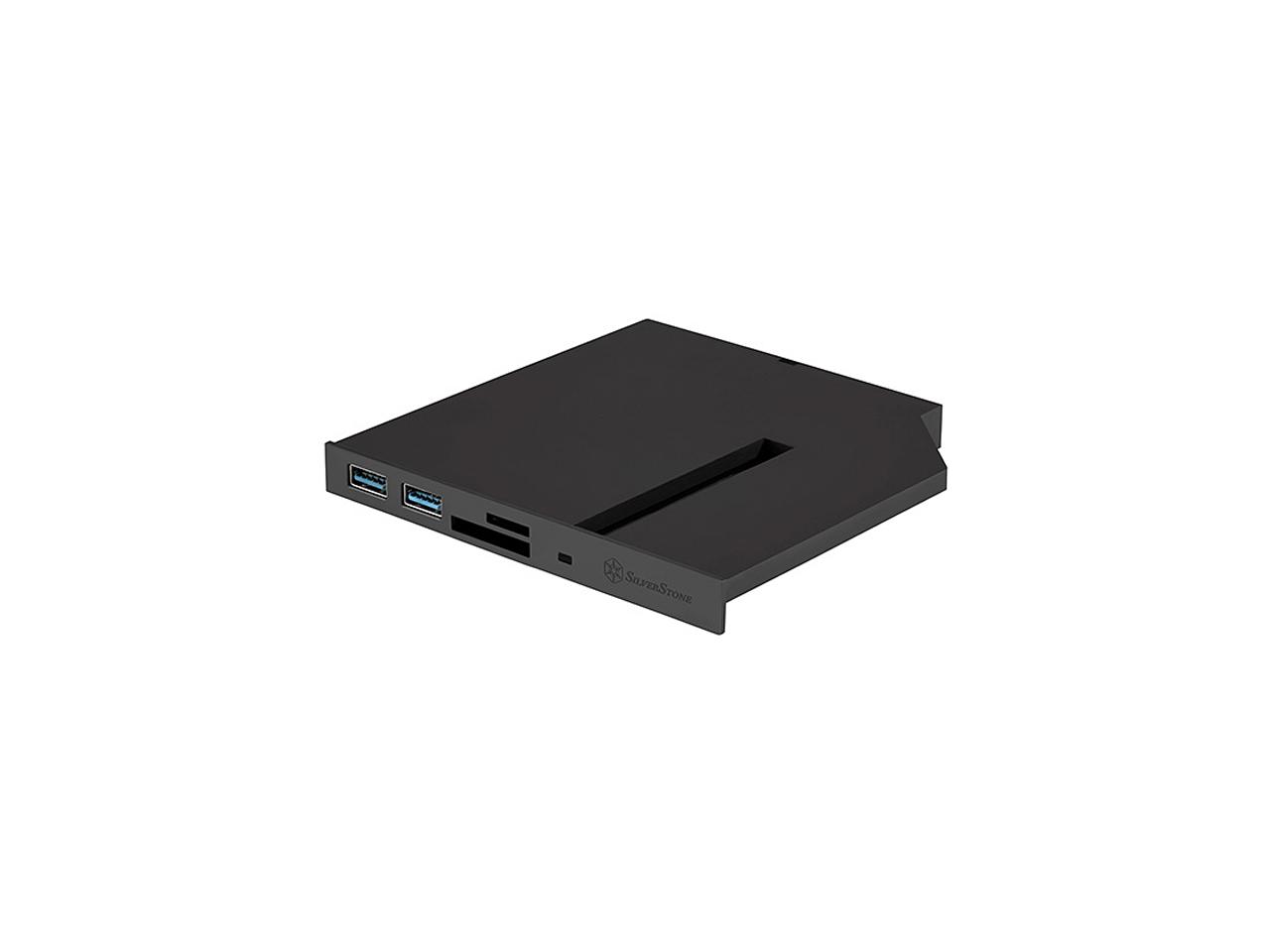

SILVERSTONE SST-FPS01 Bay Device

To meet the user?s demand for unused 12.7mm tray-loading slim optical bay, SilverStone created the FPS01, a multifunction front panel. It provides extra USB slots, SD card reader, and a M.2 SATA type SSD slot (B Key) for more expansion capability and space utilization. In addition, it includes both black and white colored panel to better match most cases.

ï¿­ Support 12.7mm tray-loading slim optical bay

ï¿­ Two USB 3.0 Type-A ports (FPS01)

ï¿­ One USB 3.0 Type-C port (FPS01-C)

ï¿­ Includes Micro SD and SD card reader

ï¿­ Built-in M.2 SATA type SSD slot (B Key)

ï¿­ Unique USB 3.0 19pin daisy-chain design retains Mini-ITX chassis? original USB port function

Model No.	SST-FPS01 SST-FPS01-C
Color	Black with optional white panel
Material	Plastic panel, plastic body
Pin definition	USB 3.0 Type-A x 2 (FPS01) USB 3.0 Type-C x 1 (FPS01-C)
LED indicator	Indicate drive?s power & card reader read / write access
Application	External 12.7mm Tray-loading Slim ODD Bay
Interface	USB 3.0 (5Gbps)
Media card support	Micro SD and standard SD / SDHC / SDXC
Support Type of M.2 SSD	B Key SATA Type M.2 SSD Slot x 1* Support 22mm x 40mm, 22mm x 60mm or 22mm x 80mm size
Operating system support	Microsoft Windows 10/8.1/8/7, Mac 10.2.8 or future release versions
Dimension	128mm (W) x 13mm (H) x 129mm (D) 5.04 (W) x 0.51 (H) x 5.08 (D)
