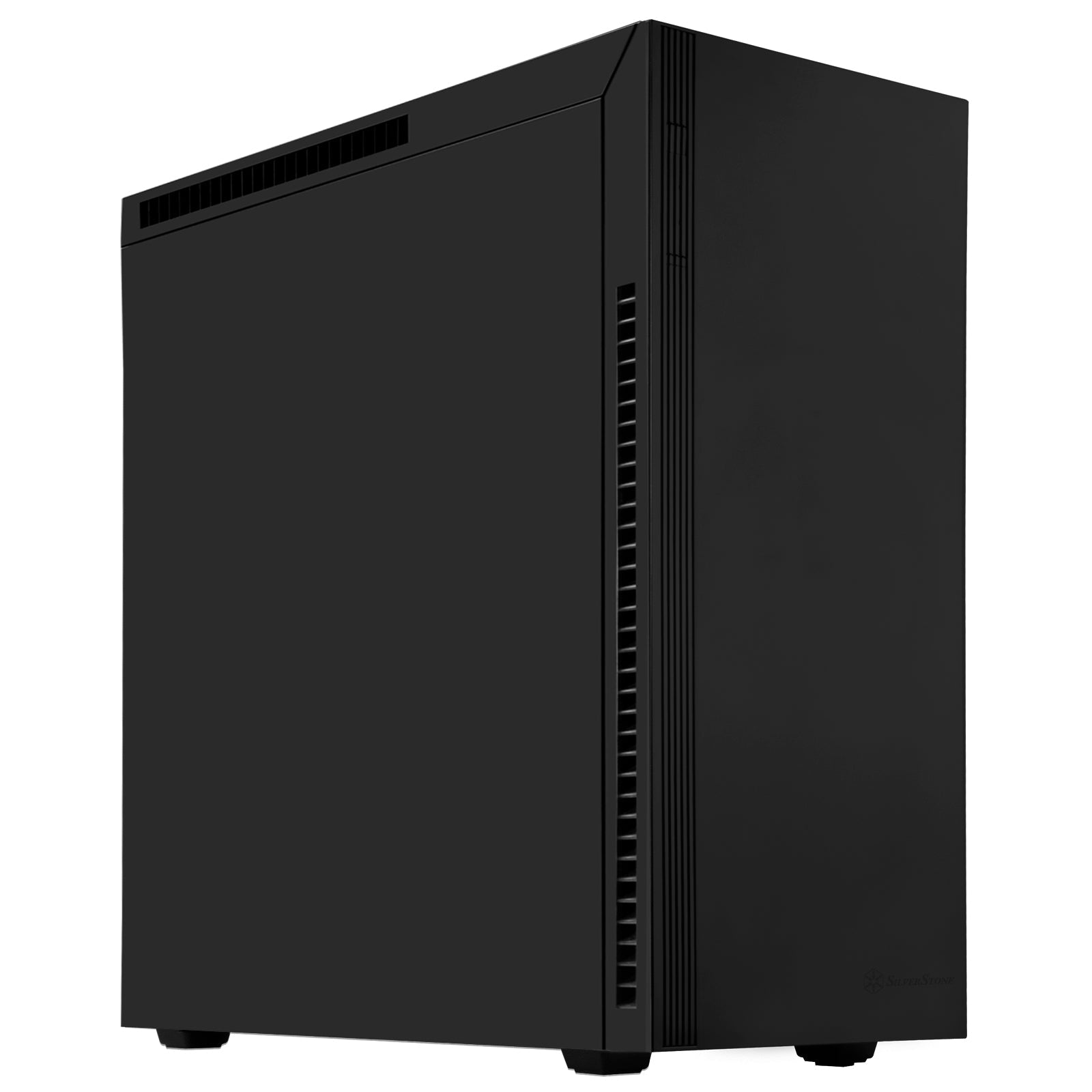

SilverStone SST-KL07B Black Computer Case PS2 (ATX) Power Supply

To meet the needs of enthusiasts and professionals building high performance but quiet PCs or liquid cooled systems, SilverStone created the Kublai KL07, a silent tower chassis with elegant styling and high-tech features. It has many modern features such as front USB Type-C connector, power supply / drive cover, convenient tool-less drive trays, and smart backside cable routing design. The KL07 not only has highly flexible space for installing all popular core components, it also has incredible support for a myriad of cooling configurations. There are six total 120 / 140mm fan slots around the case with maximum radiator support of up to 360mm. KL07 in operation can also be eerily silent as it has wave-patterned foam applied on the inside to reduce perceived noise while its front-side intake vents are designed to redirect soundwave with a quick access dust filter helping to further dampen noise output from the front side.

ï¿­ Special wavy foam padded for noise absorption

ï¿­ Super clean internal look with PSU and drive bay cover

ï¿­ Includes front mounted USB 3.0 Type-C port

ï¿­ Smart backside cable routing design

ï¿­ Motherboard back plate opening for quick CPU cooler assembly

ï¿­ Includes two 140mm fans designed to generate positive pressure

ï¿­ Supports graphics cards up to 15.3 (388mm)

Model No.	SST-KL07B (black)
	--
	--
	--
Material	Plastic front panel, steel body
Motherboard	ATX ( up to 12 x11) , Micro-ATX
Drive bay	External	--
		--
	Internal	3.5 x 3 (compatible with 2.5) , 2.5 x 3
Cooling system	Front	3 x 120 / 140mm fan slot (2 x 140mm intake fan included)
	Rear	1 x 120 / 140mm fan slot (1 x 140mm exhaust fan included)
	Side	--
	Top	2 x 120 / 140mm fan slot
	Bottom	--
	Internal	--
Expansion slot	7
Front I/O port	USB 3.0 x 2, Type-C* x 1 Audio x 1 MIC x 1
Power supply	Optional PS2(ATX)
Expansion card	Compatible up to 15.3 (388mm) in length, width restriction ?6.5 (165mm)
Limitation of CPU cooler	163 ~ 172mm**
Limitation of PSU	140 ~ 200mm***
Net weight	7.7kg
Dimension	222mm (W) x 510mm (H) x 467mm (D), 52.8 Liters 8.74 (W) x 20.08 (H) x 18.39 (D), 52.8 Liters



Remark

* SuperSpeed USB (USB 3.1) requires total cable length to be 1 meter (1000mm) or shorter. So we recommend using external USB Type-C cable with length of 400mm or less due to KL07?s internal USB Type-C cable already taking up 600mm of the total length requirement. ** 163mm is from CPU?s top surface to wavy foam pad?s surface. *** Depend on drive cage?s position.
