Silverstone SST-LSB01 RGB Light Strip Control Box with 8 Port Signal Control

SST-LSB01

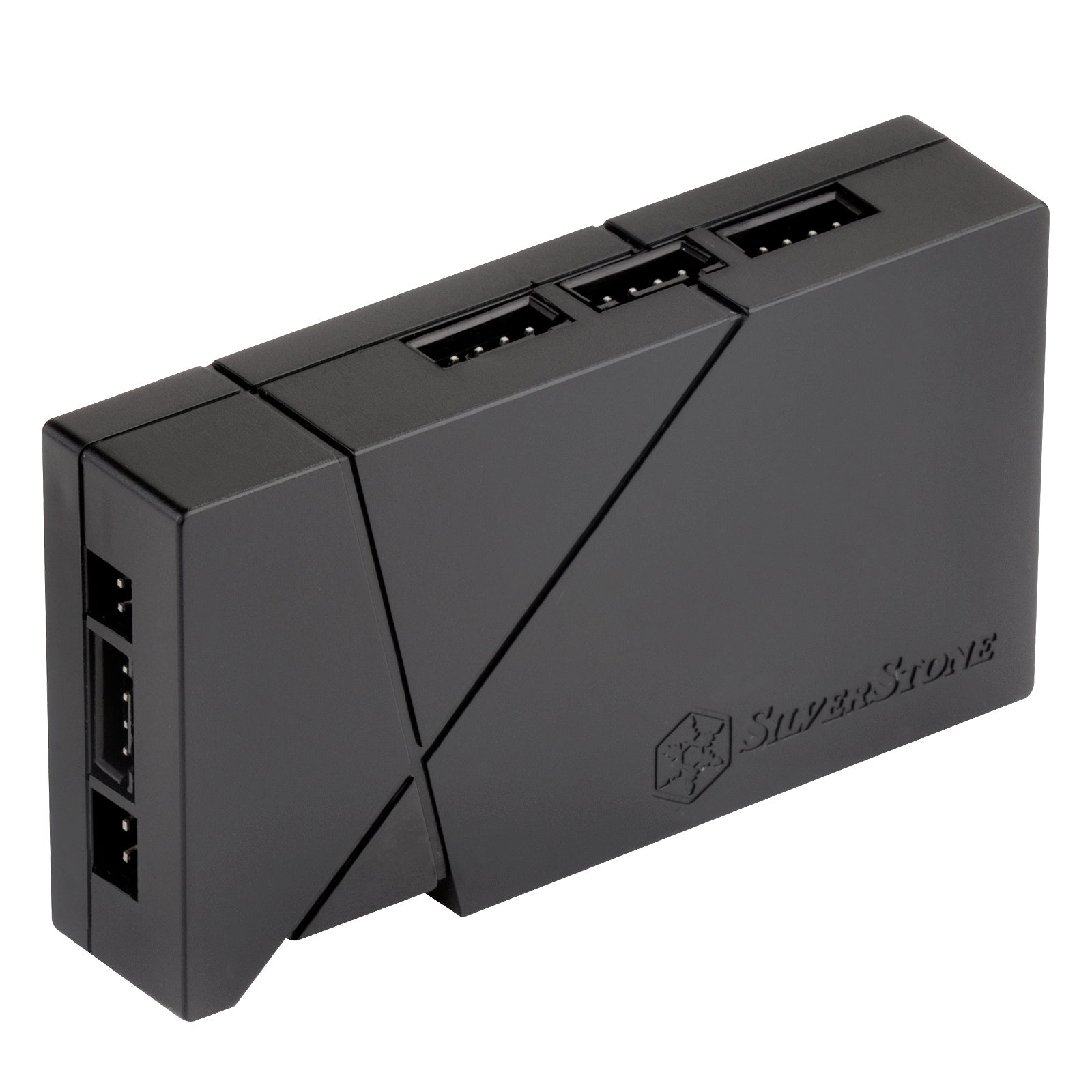

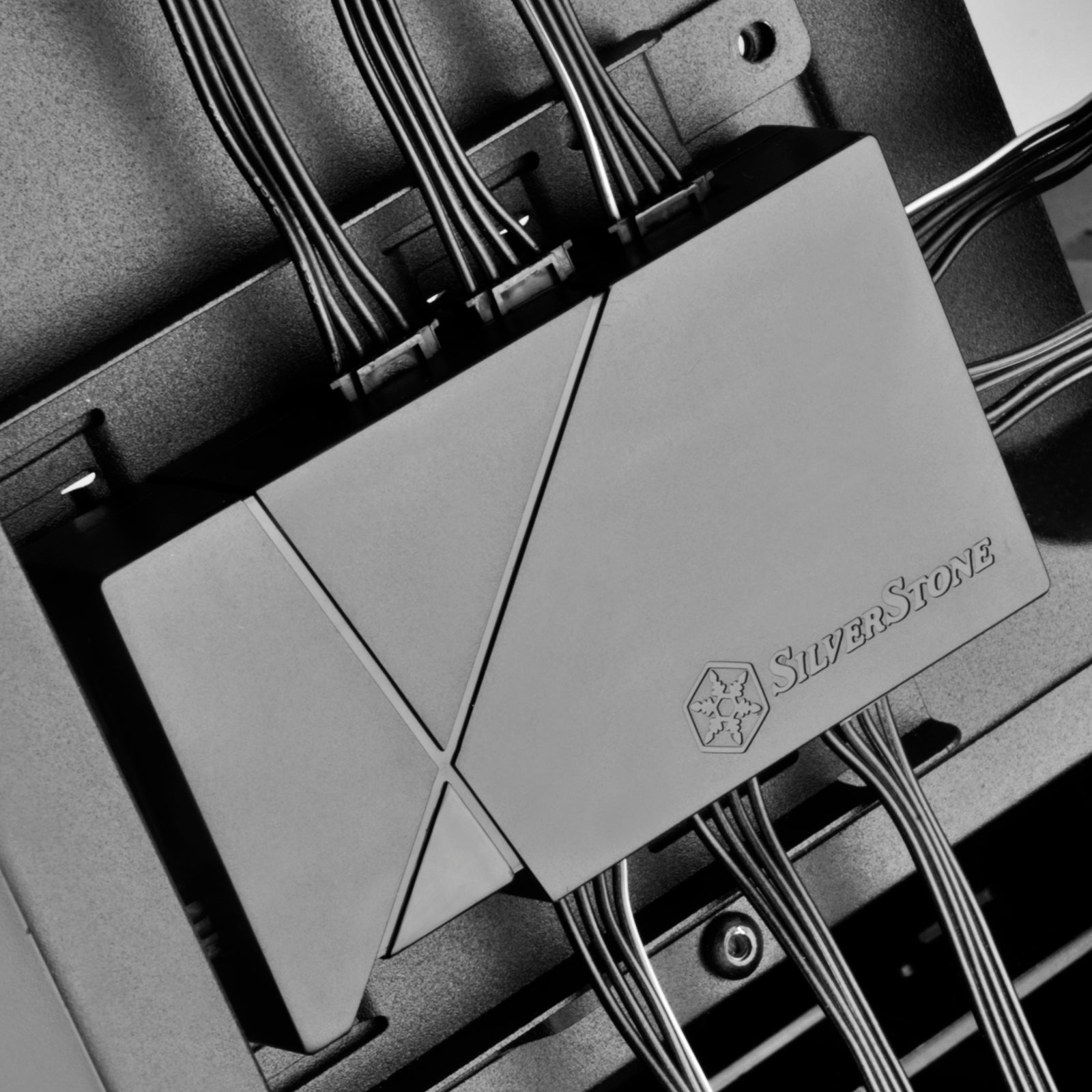

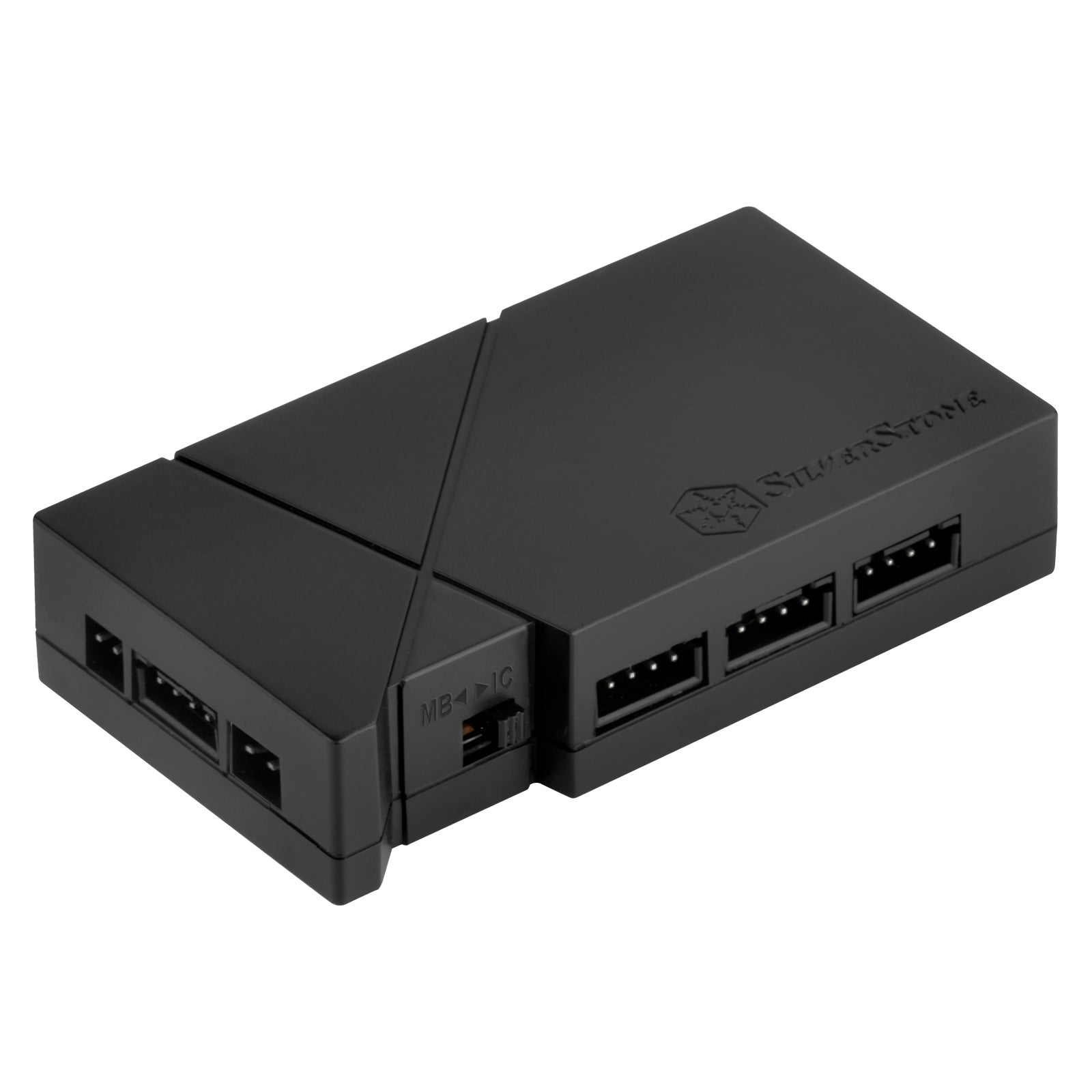

LSB01 is a SilverStone designed RGB light strip control box with 8 port signal control. For use in conjunction with SilverStone LS02, it easily expands the amount of lighting that one can control and solves the problem of insufficient RGB 4pin connectors. It can control light via motherboard RGB software or other RGB 4pin host. Apart from this, for those enthusiast?s motherboard that lacks RGB 4pin or without another signal source, the LSB01 can still offer direct control via case switch with an included cable adapter.

Found a better price? Let us know and we'll try and match it!
Estimate shipping
6 in stock, ready to ship
$43.99 USD $35.19 USD Sale
Shipping calculated at checkout.

Pickup available at Performance-PCs.com

Usually ready in 1 hour

  • 99% of orders ship same day M-F!
  • FREE Shipping Possible!
  • All-Star CS Team
  • 30-Day Hassle Free Returns
Details

LSB01 is a SilverStone designed RGB light strip control box with 8 port signal control. For use in conjunction with SilverStone LS02, it easily expands the amount of lighting that one can control and solves the problem of insufficient RGB 4pin connectors. It can control light via motherboard RGB software or other RGB 4pin host. Apart from this, for those enthusiastâ??s motherboard that lacks RGB 4pin or without another signal source, the LSB01 can still offer direct control via case switch with an included cable adapter.

Features

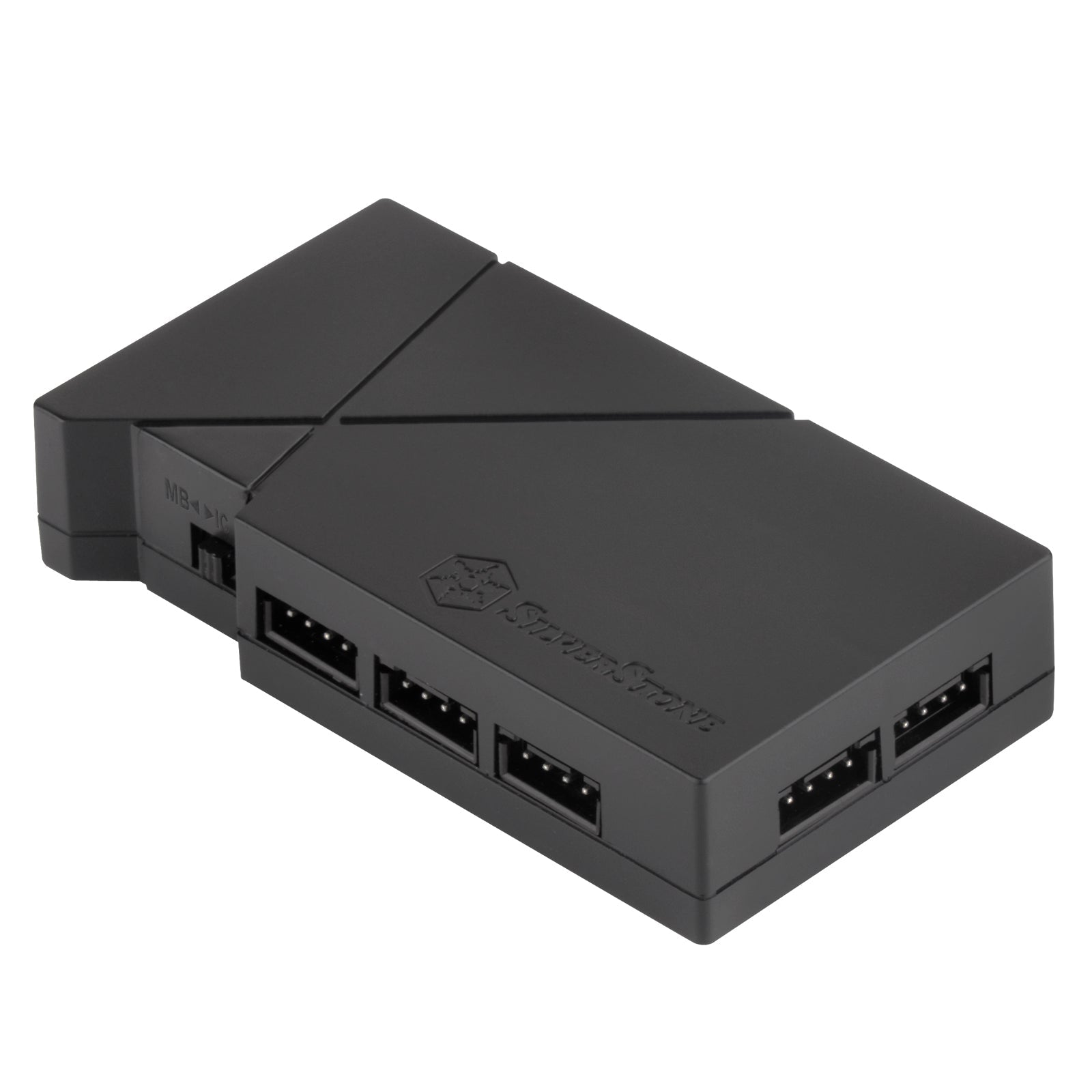

ï¿­ Eight port RGB light strip connectors


ï¿­ Includes two RGB LED light strips


ï¿­ Built-in IC preset for directly changing colors

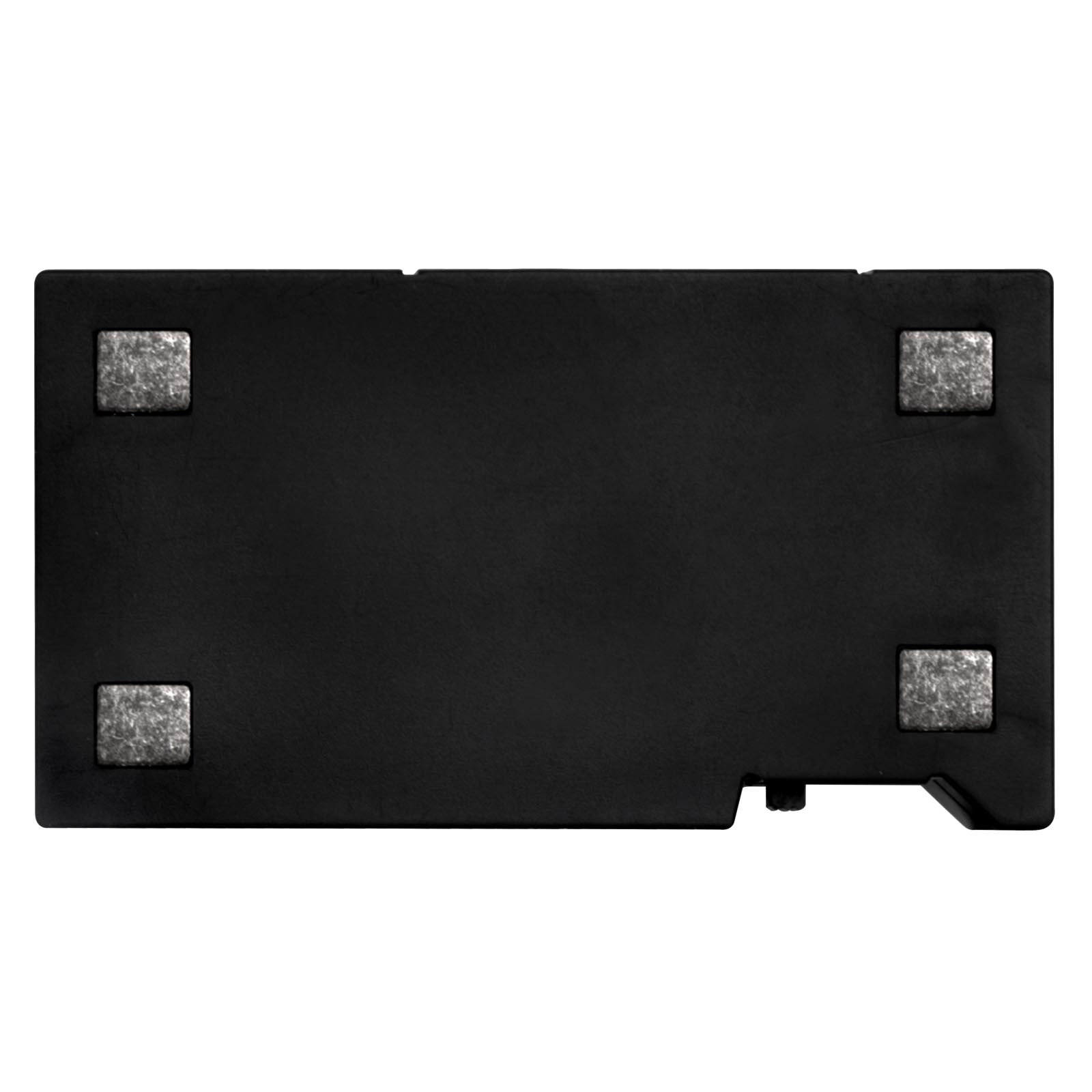

ï¿­ Built-in magnetic strip and adhesive tape provide flexible install option

Specifications

































Model No.



SST-LSB01



Material

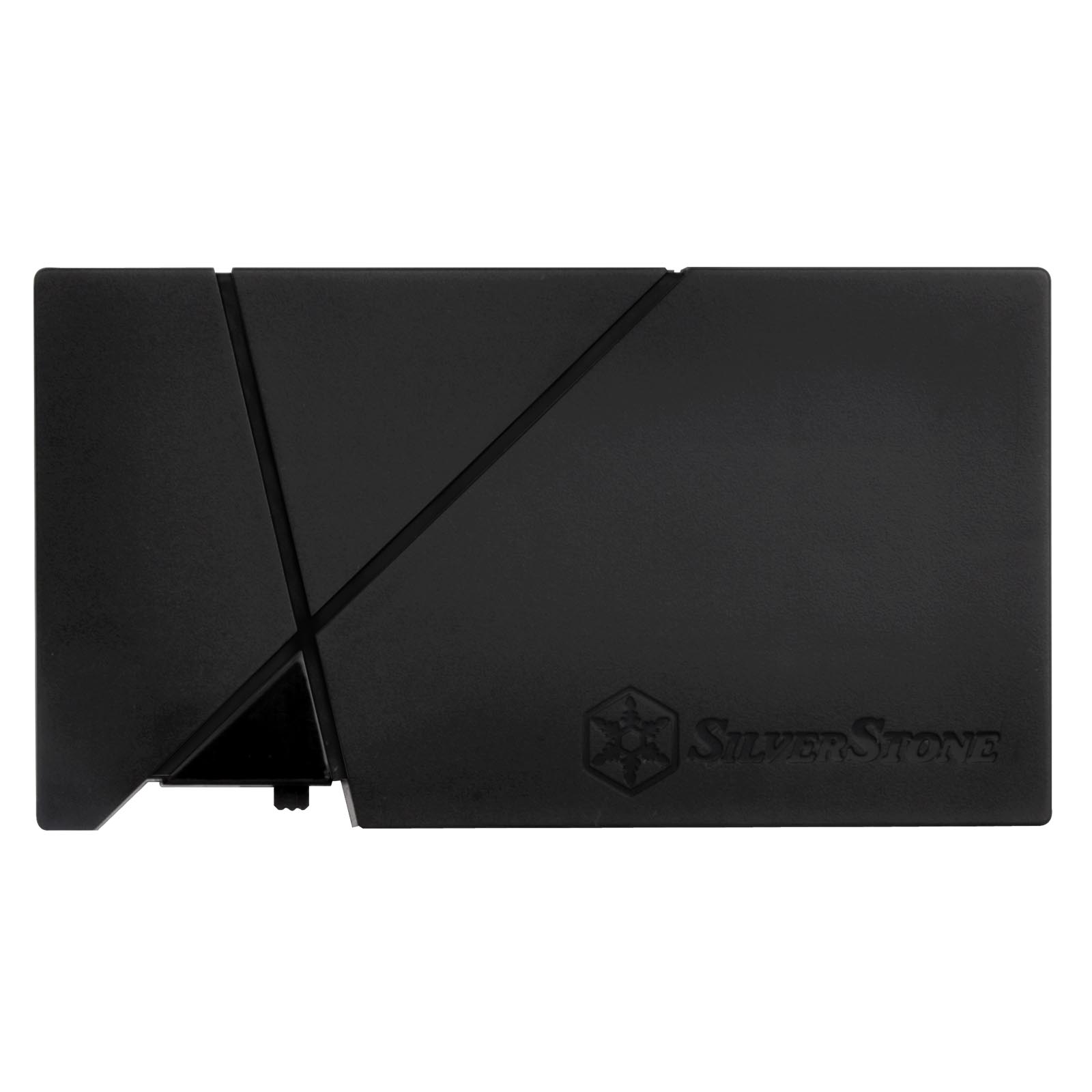

Plastic outer shell



Included Parts

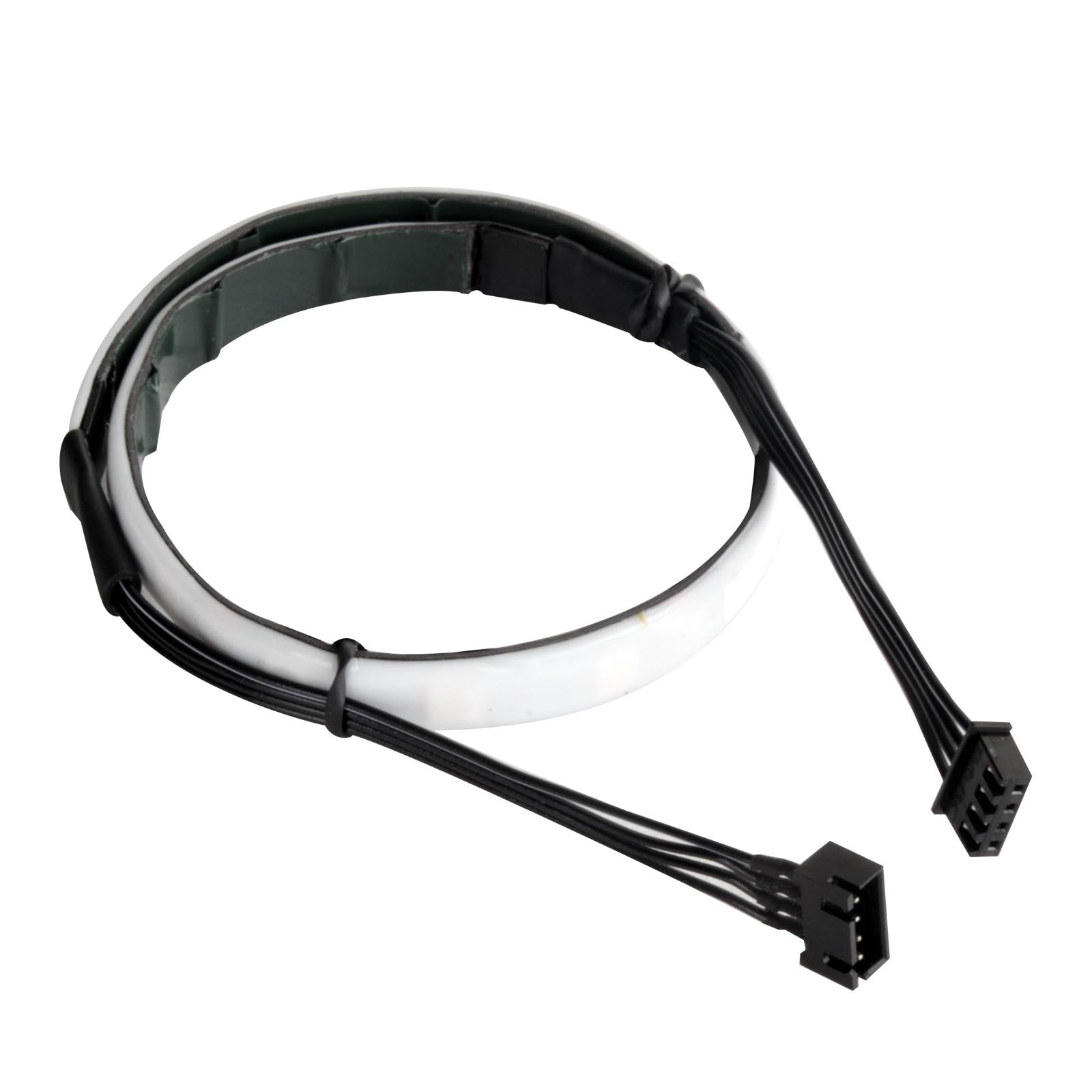

SST-LS02 RGB LED strip x 2

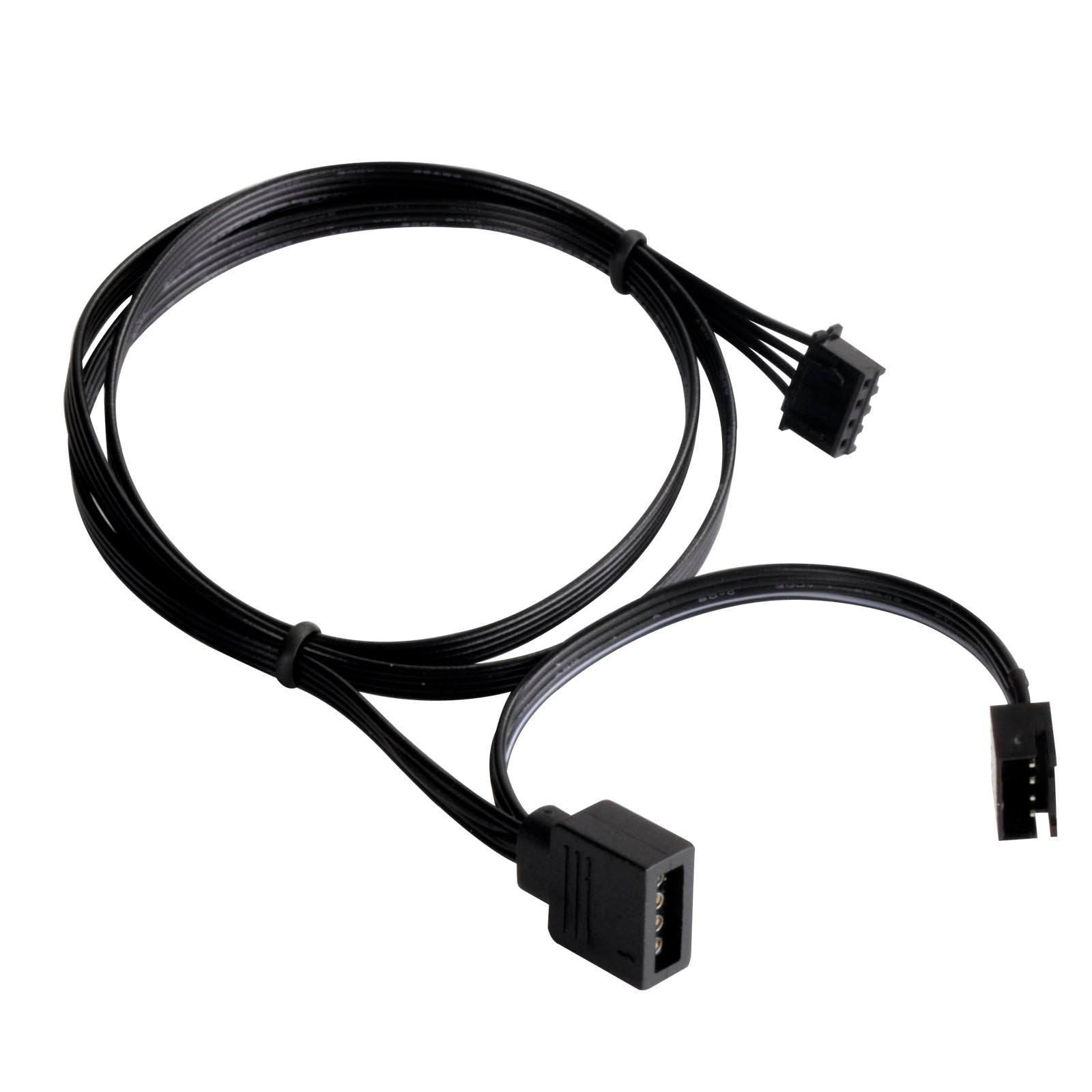

Extend Y cable x 2****

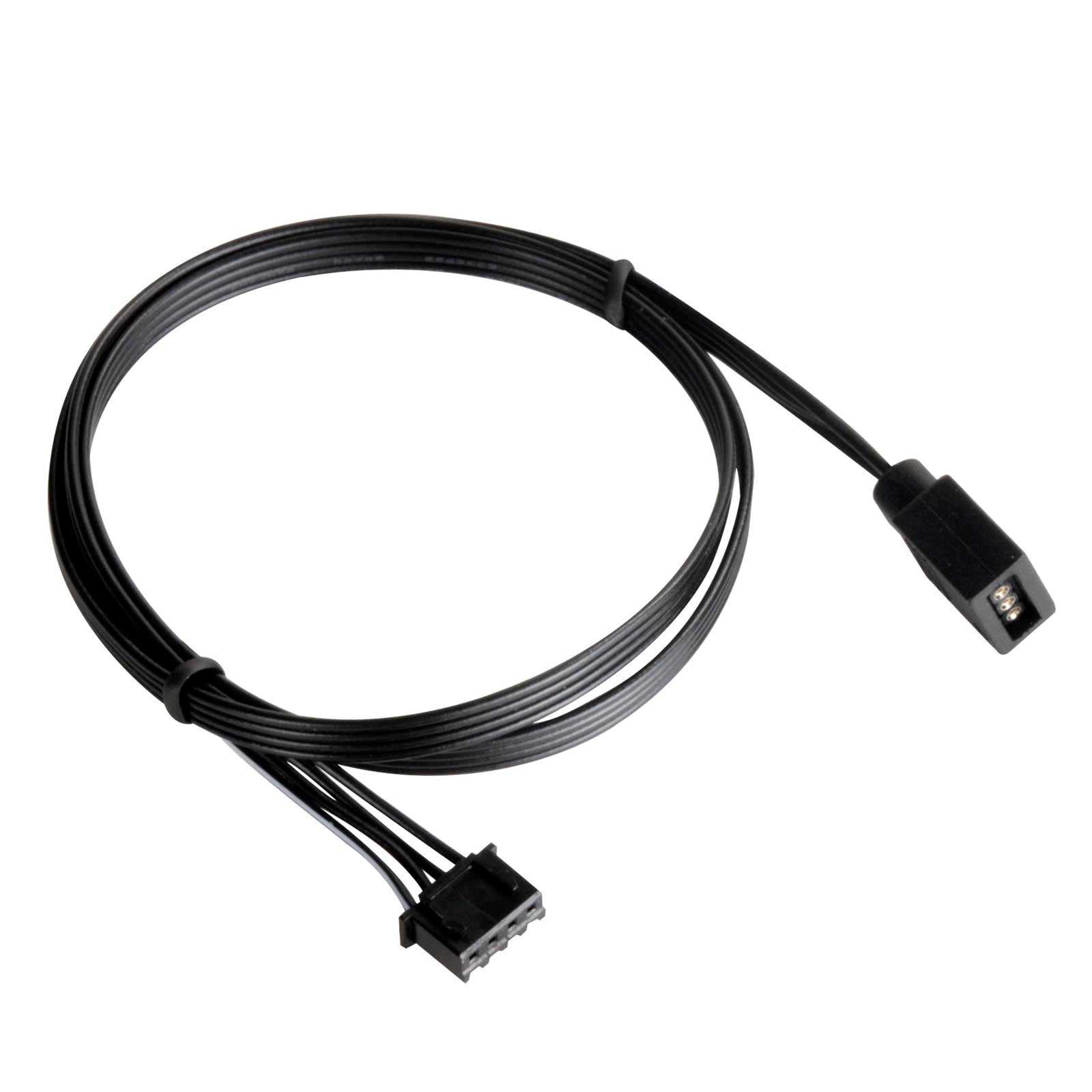

RGB 4pin signal cable x 1

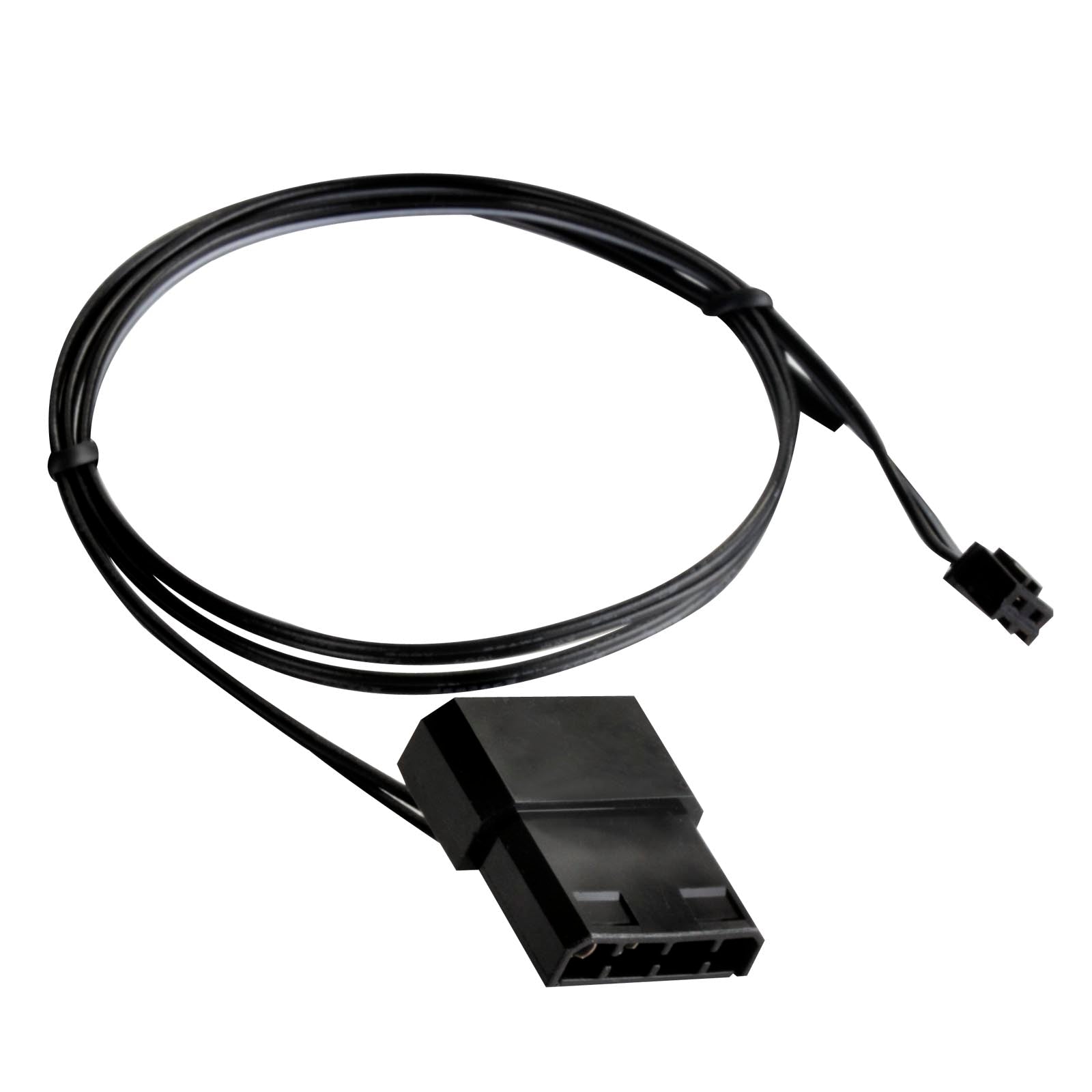

4pin peripheral cable x 1

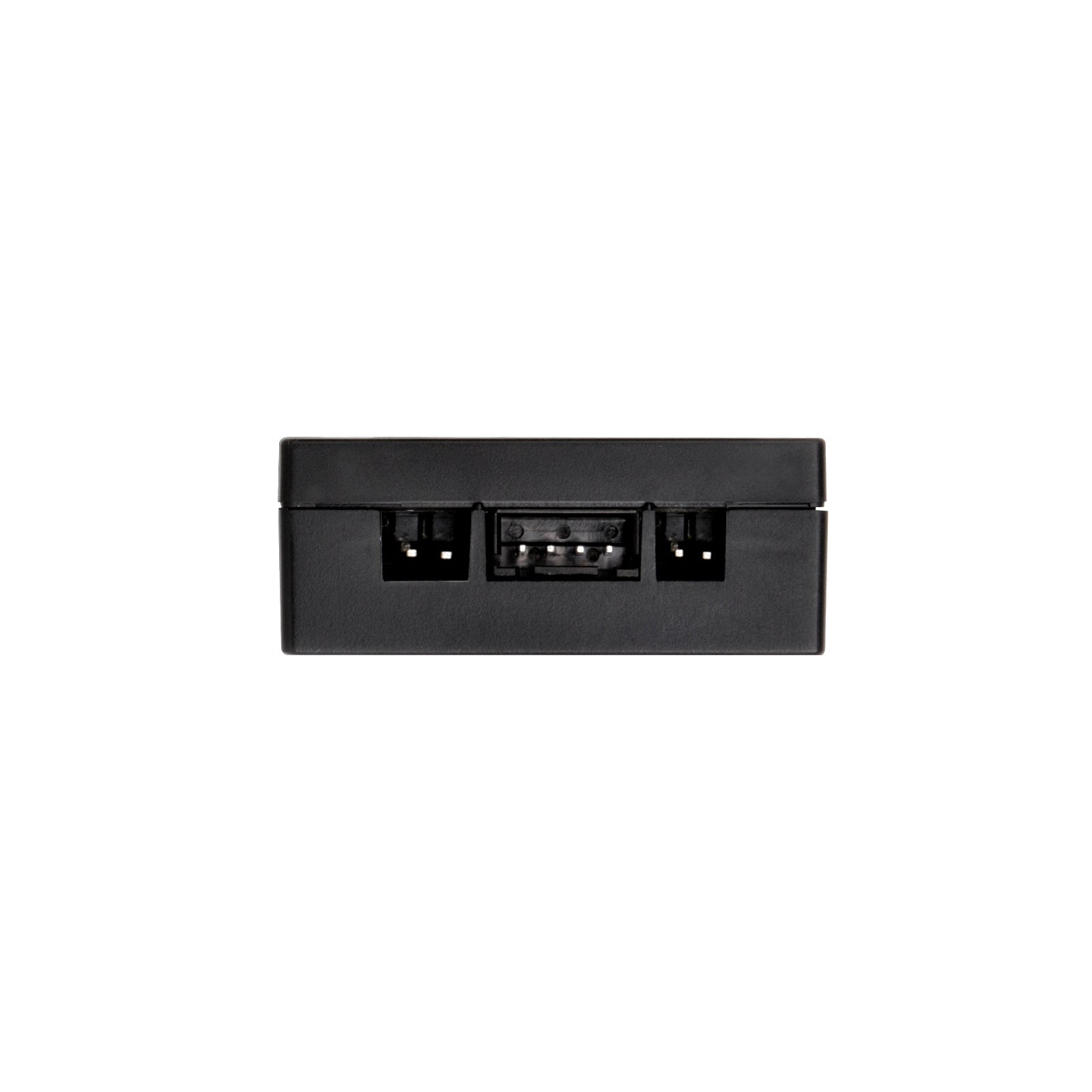

Signal input



*Via RGB 4pin host (+12V, G, R, B**) or built-in IC control



Signal output

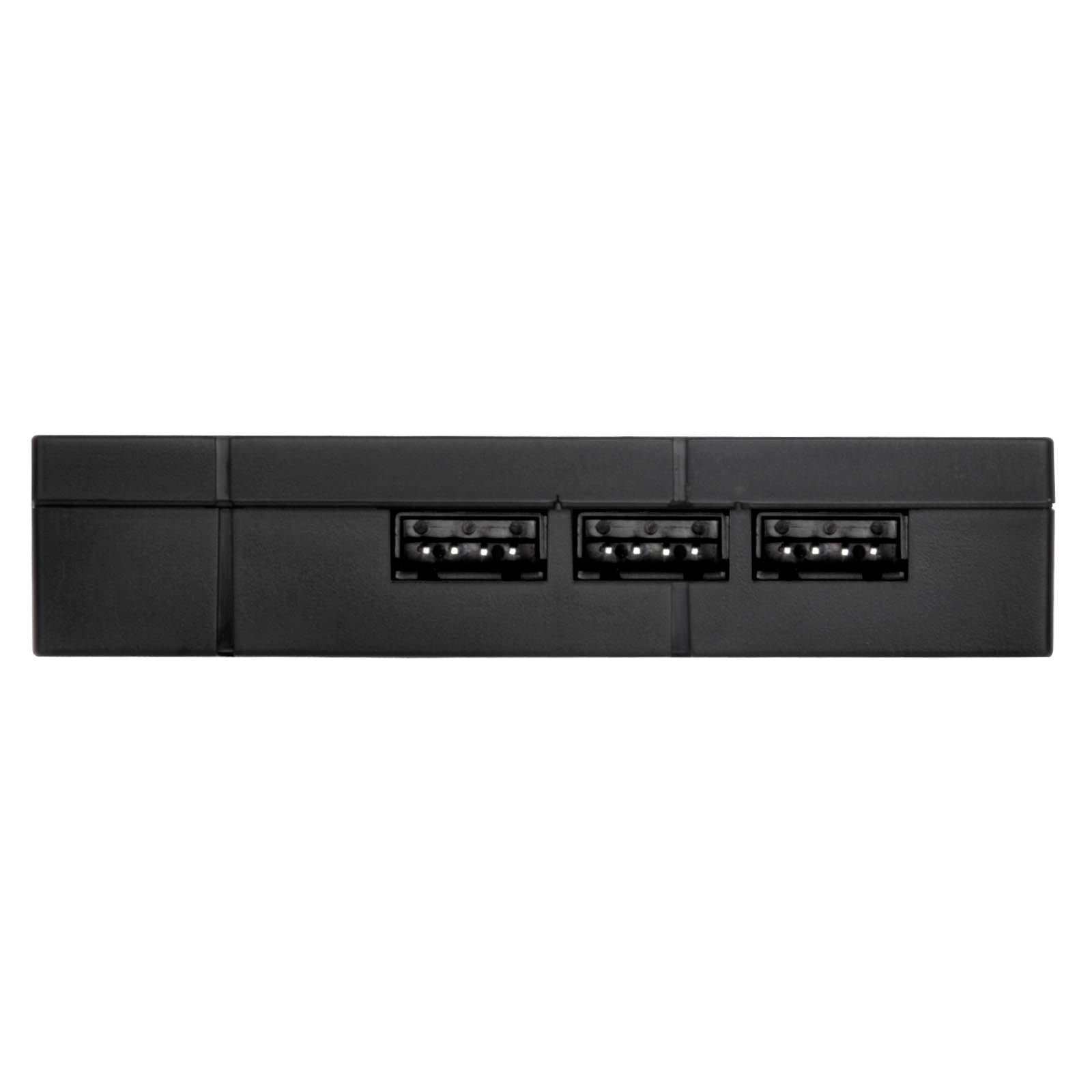

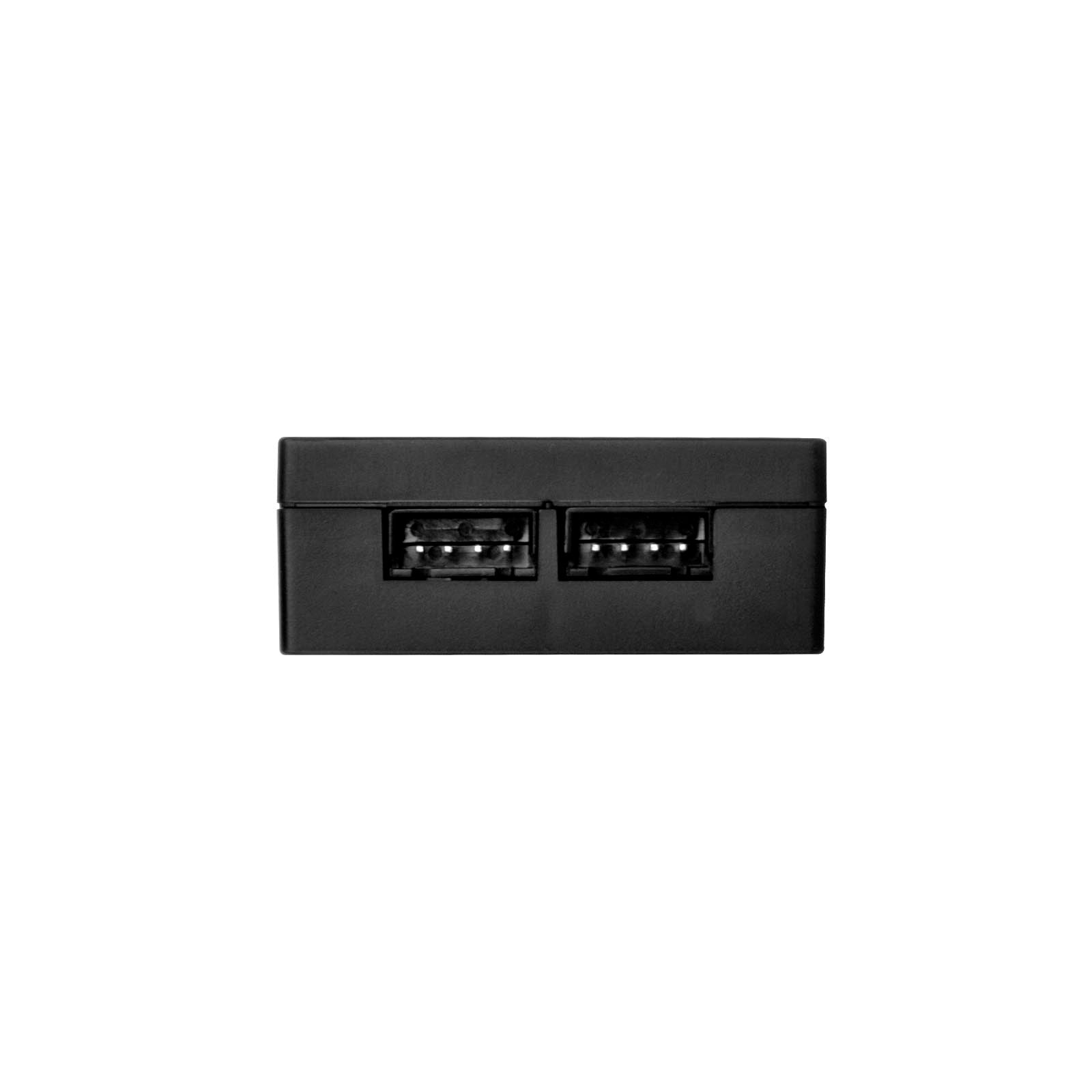

SilverStone custom RGB 4pin x 8***



Net weight



30g



Dimension



46mm (W) x 19mm (H) x 85mm (D)
1.81 (W) x 0.75 (H) x 3.35 (D)
















Remark



* Be sure to turn off power before switching signal input switch or install / remove LED strip


** Please check the signal source?s pin header that you want to connect is the same as LSB01?s pin definition.


*** Control box?s connectors are proprietary SilverStone custom connectors and are not compatible with other RGB strip?s 4pin connectors.


**** One to two Y cable can support SilverStone custom connectors and others RGB 4pin connectors.
