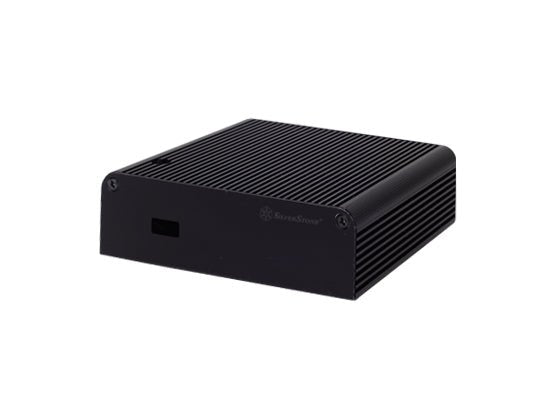

SilverStone SST-PT14B NUC Chassis with HDMI x 2 - Black

The Petit PT14 is designed to be one of the smallest computer chassis for Intel Next Unit of Computing (NUC) platform. It measures only half a liter in size while accommodating an Intel NUC motherboard. Inside the PT14 ?s aluminum top cover, SilverStone added a heat-pipe for better heat conducting efficiency to enable optional fanless operation. On the bottom, there is also an included 60mm PWM fan to provide extra cooling performance or thermal protection. Complementing this impressively small case are a VESA mounting bracket and wall mount kit to help PT14 fit in nearly any environment.

• Intel NUC compatible


• Premium all aluminium construction


• Super small at 0.5 liter


• Top cover with heat-pipe for excellent heat conducting efficiency


• Includes compact 60mm PWM fan for additional cooling or safety


• Meet VESA Mounting Interface Standard

Model No.	SST-PT14B-H2 (black + HDMI x 2)
	SST-PT14B-H1T1 (black + HDMI + Thunderbolt )
	SST-PT14B-H1D2 (black + HDMI + Display port x 2)
Material	Aluminum
Motherboard	Intel NUC
M / B Support	Intel DCP847SKE / D33217GKE (SST-PT14B-H2, SST-PT14S-H2) Intel D33217CK (SST-PT14B-H1T1, SST-PT14S-H1T1) Intel D53427RKE / D53427HYE / D73537KK / DC73537SY (SST-PT14B-H1D2, SST-PT14S-H1D2)
Cooling System	NUC chassis with heat-pipe
System fan	Size	60x60x10mm
	Speed	0~2800RPM
	Voltage	5VDC
	Bearing	Sleeve
	Air Flow (Max.)	11.48CFM
	Sound level (Max.)	22.37dBA
Front I/O Port	USB port x 1
Net Weight (case only)	322g
Dimension	106mm (W) x 122mm (H) x 38mm (D), 0.5 liters
Extra	1 x HDD LED 1 x Power LED 1 x Antenna opening
Support VESA Mount	MIS-D 75/ 75 mm × 75 mm/ M4 MIS-D 100/ 100 mm × 100 mm/ M4
