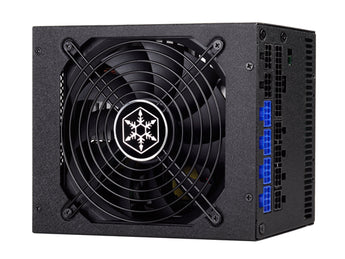

Silverstone ST1500-GS Strider Gold S Series 1500W 80 PLUS Gold Modular PSU

PS-ST1500-GS

To meet the requirements of current and future desktop computers, SilverStone created the Strider Gold S series power supplies. The Strider Gold S models are all new designs engineered to be the smallest, full-modular ATX power supplies at any wattage levels.The Strider Gold S series includes wattage range from 550W to 1500W for a great variety of applications. With short depth designs, all models in the series are among the worldâ??s smallest full-modular ATX PSUs.

Found a better price? Let us know and we'll try and match it!
Estimate shipping
3 in stock
$436.99 USD $305.89 USD Sale
Shipping calculated at checkout.

Pickup available at Performance-PCs.com

Usually ready in 1 hour

  • 99% of orders ship same day M-F!
  • FREE Shipping Possible!
  • All-Star CS Team
  • 30-Day Hassle Free Returns
Details

To meet the requirements of current and future desktop computers, SilverStone created the Strider Gold S series power supplies. The Strider Gold S models are all new designs engineered to be the smallest, full-modular ATX power supplies at any wattage levels.The Strider Gold S series includes wattage range from 550W to 1500W for a great variety of applications. With short depth designs, all models in the series are among the world?s smallest full-modular ATX PSUs. In addition to 80 PLUS Gold level efficiency, the Strider Gold S PSUs are built to meet very high standards in electrical performance with ±3% voltage regulation, ±3% ripple & noise, and high amperage single +12V rail. Other notable features included are 24/7 40â?? continuous output capability, low-noise fan, and multiple sets of PCI-E cables. For users looking for a power supply with faultless combination of compact size, performance, efficiency, and quality, the Strider Gold S Series is the only choice.

Specifications



























































































Model No.


SST-ST1500-GS


Max. DC Output


1500W (Peak 1600W)


                 Load Range









































































+3.3V +5V +12V1 +12V2 +5VSB -12V


Max.(Amps)


25A 25A 70A 70A 3.5A 0.3A


Peak (Amps)


/ / / / / /


Min.(Amps)


0.2A 0.2A 0.2A 0.2A 0A 0A


Range (%)


±3% ±3% ±3% ±3% ±5% ±10%


Line Reg.(%)


±1% ±1% ±1% ±1% ±1% ±2%


Ripple(mVp-p)


50mV 50mV 120mV 120mV 50mV 120mV


combined +3.3, +5V


150W


combined +12V


1440W/120A


Input Voltage


90V~264V


Input Frequency Range


47Hz ~ 63Hz


PFC


Active PFCï¼?PF>0.95 at Full Loadï¼?


Efficiency


87%~90%ï¼?at 20%~100% loadingï¼?


MTBF


100,000 hours


Operating temperature


0°C ~ 40°C


Protection


Over current protection
Over power protection
Over voltage protection
Over Temperature Protection
Under voltage protection
Short circuit protection
No load operation


Connectors


1 x 24 / 20-Pin motherboard connectorï¼?550mmï¼?
1 x 8 / 4-Pin EPS / ATX 12V connectorï¼?750mmï¼?
1 x 8 / 4-Pin EPS / ATX 12V connectorï¼?550mmï¼?
8 x 8 / 6-Pin PCIE connectorï¼?550mm / 150mm x4ï¼?
16 x SATA connectorï¼??600mm / 150mm / 150mm / 150mm? x4ï¼?
6 x 4-Pin Peripheral connector ï¼??600mm / 150mm / 150mm? x 2ï¼?
2 x 4-Pin Floppy connectorï¼??600mm / 150mm / 150mm / 150mm? x 2ï¼?


Color


Black (scratch resistant and lead-free paint)


Cooling System


Silent 135mm fan


Noise Level


18dBA-34dBA


Dimension


150 mm (W) × 86 mm (H) × 180 mm (D)


Weight


3.2Kg


Form factor




Certification


80 PLUS Gold


Other
