Silverstone ST75F-GS Strider Gold S Series 750W 80 PLUS Gold Modular PSU

SST-ST75F-GS

To meet the requirements of current and future desktop computers, SilverStone created the Strider Gold S series power supplies. The Strider Gold S models are all new designs engineered to be the smallest, full-modular ATX power supplies at any wattage levels.

Found a better price? Let us know and we'll try and match it!
Estimate shipping
1 in stock
$145.99 $102.19 Sale
Shipping calculated at checkout.

Pickup available at Performance-PCs.com

Usually ready in 1 hour

  • 99% of orders ship same day M-F!
  • FREE Shipping Possible!
  • All-Star CS Team
  • 30-Day Hassle Free Returns
Details

To meet the requirements of current and future desktop computers, SilverStone created the Strider Gold S series power supplies. The Strider Gold S models are all new designs engineered to be the smallest, full-modular ATX power supplies at any wattage levels.

The Strider Gold S series includes wattage range from 550W to 1500W for a great variety of applications. With short depth designs, all models in the series are among the world?s smallest full-modular ATX PSUs. In addition to 80 PLUS Gold level efficiency, the Strider Gold S PSUs are built to meet very high standards in electrical performance with ±3% voltage regulation, ±3% ripple & noise, and high amperage single +12V rail. Other notable features included are 24/7 40â?? continuous output capability, low-noise fan, and multiple sets of PCI-E cables. For users looking for a power supply with faultless combination of compact size, performance, efficiency, and quality, the Strider Gold S Series is the only choice.

Features



  • Compact design with a depth of 140mm for easy integration

  • 80 PLUS Gold certification

  • 100% modular cables

  • 24/7 continuous power output with 40â?? operating temperature

  • Class-leading single +12V rail

  • Strict ±3% voltage regulation and low ripple & noise

  • Silent running 120mm fan with 18dBA minimum


Remark:


































1. Designed for 80 PLUS Gold level of efficiency to reduce wasted heat and save on electricity.
2. 100% modular cable design for use with short cable kit such as SilverStoneÂ?s PP05-E for easy removal in a case with cable routed and tied down.
3. Strider Gold S PSUs are the first power supply models in the world to include flat 24pin cables. This cable offer much greater flexibility for tighter folding and superior cable management.
4. 150mm depth sets new standard for high wattage PSUs with modular cables.
5. Powerful single +12V rail design, perfect for future high-end component upgrades or overclocking.
6. ±3% regulation and low ripple & noise performance for high stability
7. Built-in 120mm fan has excellent airflow and low noise, perfect for quiet home or office use.


Specifications































































































Model No.


SST-ST75F-GS


Max. DC Output


750W


Power density


415W per liter


                 Load Range


























































+3.3V +5V +12V +5VSB -12V


Max.(Amps)


22A 22A 62.5A 3.0A 0.3A


Min.(Amps)


0.5A 0.2A 0A 0A 0A


Range (%)


±3% ±3% ±3% ±5% ±10%


Line Reg.(%)


±1% ±1% ±1% ±1% ±1%


Ripple(mVp-p)


50mV 50mV 120mV 50mV 120mV


Color


Black (lead-free paint)


combined +3.3, +5V


120W


combined +12V


750W


Input Voltage


90V~264V


Input Frequency Range


47Hz ~ 63Hz


PFC


Active PFC.ï¼?PF>0.95 at Full Loadï¼?


Efficiency


87%~90% at 20%~100% loading


MTBF


100,000 hours


Operating temperature


0°C ~ 40°C


Protection


Over current protection
Over power protection
Over voltage protection
Over Temperature Protection
Under voltage protection
Short circuit protection

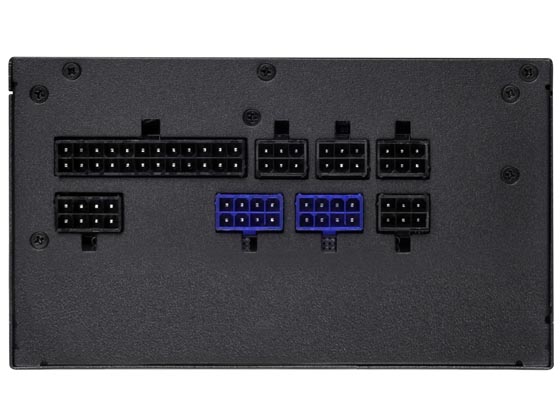

Connectors


1 x 24 / 20-Pin motherboard connectorï¼?550mmï¼?
1 x 8 / 4-Pin EPS / ATX 12V connectorï¼?750mmï¼?
4x 8/6-Pin PCIE connectorï¼?550mm / 150mm'x2ï¼?
8 x SATA connectorï¼?600mm / 150mm / 150mm /150mm x 2ï¼?
6 x 4-Pin Peripheral connectorï¼?600mm / 150mm / 150mmx2ï¼?
2 x 4-Pin Floppy connectorï¼?600mm / 150mm / 150mm / 150mmx2ï¼?


Cooling System


Single 120mm silent fan


Noise Level


18 dBA minimum


Dimension


150 mm (W) x 86 mm (H) x 140 mm (D)


Weight


2.1 kg


Form factor




Certification


80 PLUS Gold


Other
