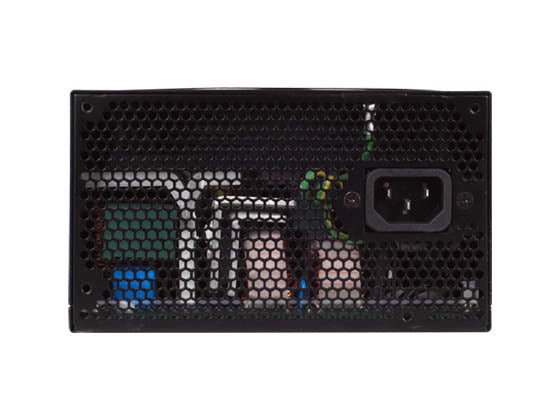

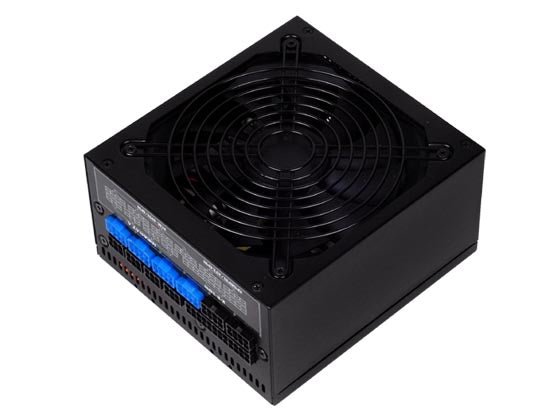

Silverstone Strider PLUS (SST-ST85F-P) 850 Watt Modular Power Supply- Active PFC

The Strider series, as the oldest and most versatile power supply line from SilverStone, has models with myriad of innovative features and rating from 350W all the way up to 1500W. To build on this impressive lineup, SilverStone engineered a new generation of power supplies that combine more important features than ever before. The Strider Plus models, ST75F-P, ST85F-P, and ST1000-P are highly efficient (80 PLUS Silver level), compact enough to fit in nearly any system (160mm depth), have tightly regulated performance of ±3% from a single +12V rail design, and equipped with a quiet but cool 135mm fan. To top these features off, the power supplies also come with 100% modular cables with all the important connectors to support current and future graphics card specifications. For enthusiasts that are looking for a power supply with all the right features to make a high performing and aesthetically pleasing system, any one of the Strider Plus models will fulfill the task with maximum satisfaction.

• 850W 24hour continuous power output with 40â??operating temperature


• 950W peak power


• 100% modular cables


• Efficiency 85%~88% at 20%~100% loading


• Class-leading single +12V rail with 60A (peak 66A)


• Strict ±3% voltage regulation and low ripple & noise

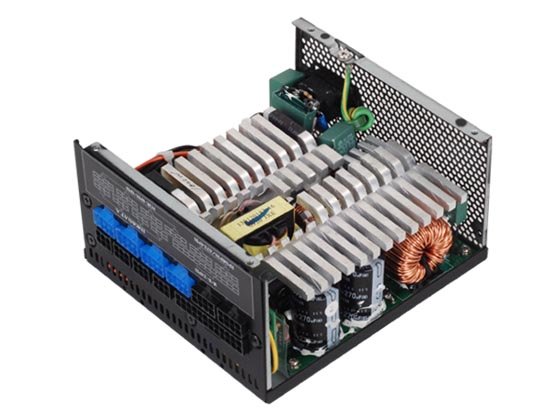

• Japanese main capacitors

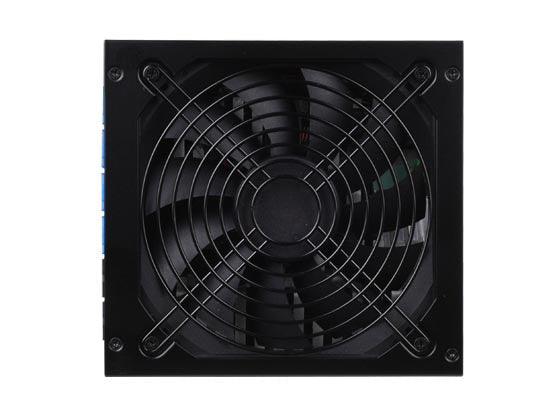

• Silent running 135mm fan with 19dBA minimum


• Dual EPS 8pin connectors support


• Dual PCI-E 8pin and four PCI-E 6pin connectors support


• Support ATX 12V 2.3 & EPS 12V

Remarks:

Model No. SST-ST85F-P  Max. DC Output 850W(Peak 950W) Load Range   +3.3V +5V +12V1 +12V2 +12V3 +12V4 +5VSB -12V -5V Max.(Amps) 20A 25A 67A / / / 3.5A 0.3A / Peak (Amps) / / 72A / / / / / / Min.(Amps) 0A 0.5A 0.1A / / / 0.1A 0A / Range (%) ±3% ±3% ±3% / / / ±5% ±10% / Line Reg.(%) ±1% ±1% ±1% / / / ±1% ±1% / Ripple(mVp-p) 50mV 50mV 120mV / / / 50mV 120mV /  combined +3.3, +5V 180W  combined +12V 804W/67Aï¼?Peak 72Aï¼?  Input Voltage 90V~264V  Input Frequency Range 47Hz~63Hz  PFC Active PFCï¼?PF>0.95 at full loadï¼?  Efficiency 85%~88%ï¼?20% to 100% loadingï¼?  MTBF 100,000 hours at 25°C, full load  Operating temperature 0°C ~ 40°C  Protection Over current protection Over power protection Over voltage protection Under voltage protection Over temperature protection Short circuit protection No load protection  Connectors 1 x 24 / 20-Pin motherboard connectorï¼?550mmï¼? 1 x 8 / 4-Pin EPS / ATX 12V connectorï¼?750mmï¼? 1 x 8 / 4-Pin EPS / ATX 12V connectorï¼?550mmï¼? 2 x 8/6-Pin PCIE connectorï¼?550mmï¼? 2 x 6-Pin PCIE connectorï¼?550mmï¼? 6 x SATA connectorï¼?500mm / 250mm / 250mmï¼? 6 x 4-Pin Peripheral connector ï¼?500mm / 250mm / 250mmï¼? 2 x 4-Pin Floppy connectorï¼?500mm / 250mm / 250mm / 150mmï¼?  Color Blackï¼?Lead-Free Paintï¼?  Cooling System Silent 135mm fan  Noise Level 19dBA-36dBA  Dimension 150 mm (W) x 86 mm (H) x 160 mm (D)  Weight 2.9 kg  Certification 80 PLUS Silver  Other GPU Support list

Stock PSU is sleeved by SilverStone in black and black. This Power Supply can also be professionally sleeved by Performance PC's. While the SilverStone Strider Power Supply is the very best in the market you will find that our sleeving techniques and range of options are far above what they can offer you. You can have this power supply customized using your choice of colors on sleeve, heatshrink , and Molex connectors.

The warranty from Performance PC's will be limited to 30 days at no extra cost. We also now have an option to extend that warranty to a Full One Year by purchasing a Performance PC's Extended Warranty which covers not only the power supply itself but, all Mods done by our company to that power supply. For more details please see our Conditions of Use page.
