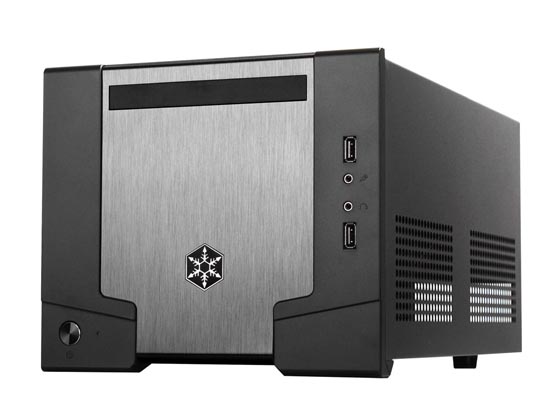

SilverStone Sugo SST-SG07B SFF Case w/ 80+ Bronze 600W PSU - Mini-DTX/ITX M/B (USB3.0 v)
SST-SG07B-USB3.0-D
Thank you for your submission!
We will get back to you soon.
Estimate shipping
10 in stock, ready to ship
Shipping calculated at checkout.
Pickup available at Performance-PCs.com
Usually ready in 1 hour
Details
Product Details:
The Sugo SG07, with a size that slots in between the venerable SG01 Micro-ATX SFF case from 2005 and the SG05, a powerful Mini-ITX case released in 2009, was designed to take the Mini-ITX platform to a whole new level. It is twice as powerful as the SG05 but only 37% bigger. Its custom 600W power supply, which is rated up to 50?with 80 PLUS Bronze level efficiency and single +12V rail, was carefully chosen and optimized for SG07. Exhaustive testing was conducted to create unique VGA fan duct and exhaust vents that enable SG07 to not only accommodate the longest consumer graphics cards physically (up to 12.2 inches/310mm) but also capable of supporting graphics thermal profile of up to 400W through overclocking. For the CPU and motherboard area, a record-breaking use of 180mm fan (bigger than the Mini-ITX motherboard!) with vortex generating design was utilized to provide possibility of fanless CPU cooling of up to 95W (via CPU cooler such as SilverStone's NT06-E). But despite having tremendous amount of cooling performance, the SG07 is easy to maintain as well. It employs positive pressure layout with all intake areas fitted with removable filters so dust will not accumulate inside. If the goal is to make the ultimate Mini-ITX system, the SG07 is hard to beat.
Features:
- Class leading SFF chassis with 180mm fan and positive pressure cooling
- Ample space for CPU cooling (117mm in height)
- Elevated standoff for motherboard back side components
- Support for two 2.5 ? SSD/hard drives and one 3.5 ? hard drive
- Includes 80 PLUS Bronze certified 600W@50? PSU with single +12V rail
- Adjustable VGA fan duct for improved cooling efficiency
- Removable fan filters included for case fan, PSU, and VGA duct
- Support graphics cards up to 12.2 inches and 400W
Video Card Compatibility:
-
AMD Radeon HD 5970 ? 12.2
-
AMD Radeon HD 6990 ? 12
-
AMD Radeon HD 6970 ? 11
-
AMD Radeon HD 6950 ? 11
-
NVIDIA GeForce GTX690 ? 11
-
AMD Radeon HD 6870 ? 10.5
-
NVIDIA GeForce GTX580 ? 10.5
-
NVIDIA GeForce GTX680 ? 10
-
NVIDIA GeForce GTX670 ? 9.5
- AMD Radeon HD 6850 ? 9
- AMD Radeon HD 5870 ? 11
- NVIDIA GeForce GTX480 ? 10.5 (how to install GTX 480?)
- AMD Radeon HD 5850 ? 9.5
- NVIDIA GeForce GTX470 ? 9.5
Specifications:
| Model No. | SST-SG07B(black) | |
| SST-SG07B-W(black+window) | ||
| SST-SG07B-USB3.0(black) | ||
| SST-SG07B-W-USB3.0(black+window) | ||
| Material | Plastic front panel with aluminum plate, SECC body | |
| Motherboard | Mini-DTX, Mini-ITX | |
| Multimedia | -- | |
| Drive Bay | External | Slim optical x 1 |
| -- | ||
| Internal | 3.5 ? x 1 , 2.5 ?x 2 | |
| Cooling System | Front | -- |
| Rear | -- | |
| Side | VGA fan duct with oversized vents | |
| Top | 180mm Air Penetrator 700/1200rpm, 18/34dBA | |
| Bottom | PSU intake vents and VGA exhaust divider | |
| Internal | -- | |
| Expansion Slot |
2 |
|
| Front I/O Port |
USB3.0 x 2 Audio x 1 MIC x 1 |
|
| Power Supply | Custom 600W with 80 PLUS Bronze certification and single +12V rail | |
| Operating system support | -- | |
| Expansion Card | Support expansion cards up to 12.2 inches | |
| Limitation of CPU cooler | 117mm | |
| Limitation of PSU | 140mm (remove VGA Card if you want install up to 170mm) | |
| Net Weight | 4.90 kg | |
| Dimension | 222 mm (w) x 190 mm (h) x 350 mm (d) | |
| Extra | -- | |
| Power supply type |
SST-ST60F-SG
|
||||||||||||||||||||||||||||||||||||||||||||||||||
| Max. DC Output |
600W
|
||||||||||||||||||||||||||||||||||||||||||||||||||
| Load Range | |||||||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||||
| combined +3.3, +5V |
140W
|
||||||||||||||||||||||||||||||||||||||||||||||||||
| combined +12V |
46A / 552W
|
||||||||||||||||||||||||||||||||||||||||||||||||||
| Input Voltage |
90V ~ 265V(Auto Range)
|
||||||||||||||||||||||||||||||||||||||||||||||||||
| Input Frequency Range |
47Hz ~ 63Hz
|
||||||||||||||||||||||||||||||||||||||||||||||||||
| PFC |
Active PFC (PF>0.95 at full load)
|
||||||||||||||||||||||||||||||||||||||||||||||||||
| Efficiency |
82%~85% at 20%~100% loading
|
||||||||||||||||||||||||||||||||||||||||||||||||||
| MTBF |
100,000 hours at 25 °C, full load
|
||||||||||||||||||||||||||||||||||||||||||||||||||
| Operating temperature |
0 ~ 50 °C
|
||||||||||||||||||||||||||||||||||||||||||||||||||
| Protection |
Over Current Protection
Over power Protection Over Voltage Protection Under Voltage Protection Short Circuit Protection |
||||||||||||||||||||||||||||||||||||||||||||||||||
| Connectors |
1 x 24 / 20-Pin Motherboard connector (670mm)
1 x 8 / 4-Pin EPS / ATX 12V connector (670mm) 1 x 8/6-Pin PCIE connector (360mm) 1 x 8/6-Pin PCIE connector (380mm) 3 x SATA connector (350mm + 130mm + 150mm) 2 x 4-Pin Peripheral connector (350mm + 100mm) |
||||||||||||||||||||||||||||||||||||||||||||||||||
| Color |
Black (Lead-Free Paint)
|
||||||||||||||||||||||||||||||||||||||||||||||||||
| Cooling System |
Single 120mm fan
|
||||||||||||||||||||||||||||||||||||||||||||||||||
| Noise Level |
19 dBA - 30dBA
|
||||||||||||||||||||||||||||||||||||||||||||||||||
| Dimension |
150 mm (W) x 86 mm (H) x 140 mm (D)
|
||||||||||||||||||||||||||||||||||||||||||||||||||
| Weight |
940g
|
||||||||||||||||||||||||||||||||||||||||||||||||||
| Form factor |
ATX PS/2
|
||||||||||||||||||||||||||||||||||||||||||||||||||
| Certification |
80 PLUS Bronze
|
||||||||||||||||||||||||||||||||||||||||||||||||||
| Other | |||||||||||||||||||||||||||||||||||||||||||||||||||
