SilverStone Technology’s Nitrogon NT08-115X

SilverStone Technology?s Nitrogon NT08-115X is a low-profile CPU cooler designed for space limited applications that utilizes LGA1150/1151/1155/1156 platforms. It has a true, solid copper center and base with extruded aluminum fins for superior thermal conductivity for up to 95W, a figure that rivals many larger and original coolers. The custom 92mm PWM fan was designed with fan blades to achieve the highest air pressure possible while maintaining an acoustic profile that is rare for cooler of this size. At a total height of 48mm tall, the NT08-115X is an excellent upgrade for any low-profile system on LGA1150/1151/1155/1156 platforms.

ï¿­ Supports Intel LGA1150/1151/1155/1156 processors

ï¿­ Designed for low-profile systems at 48mm tall

ï¿­ Large custom 92mm PWM fan for excellent cooling and low noise

ï¿­ True solid copper contact base enables heat dissipation up to 95W

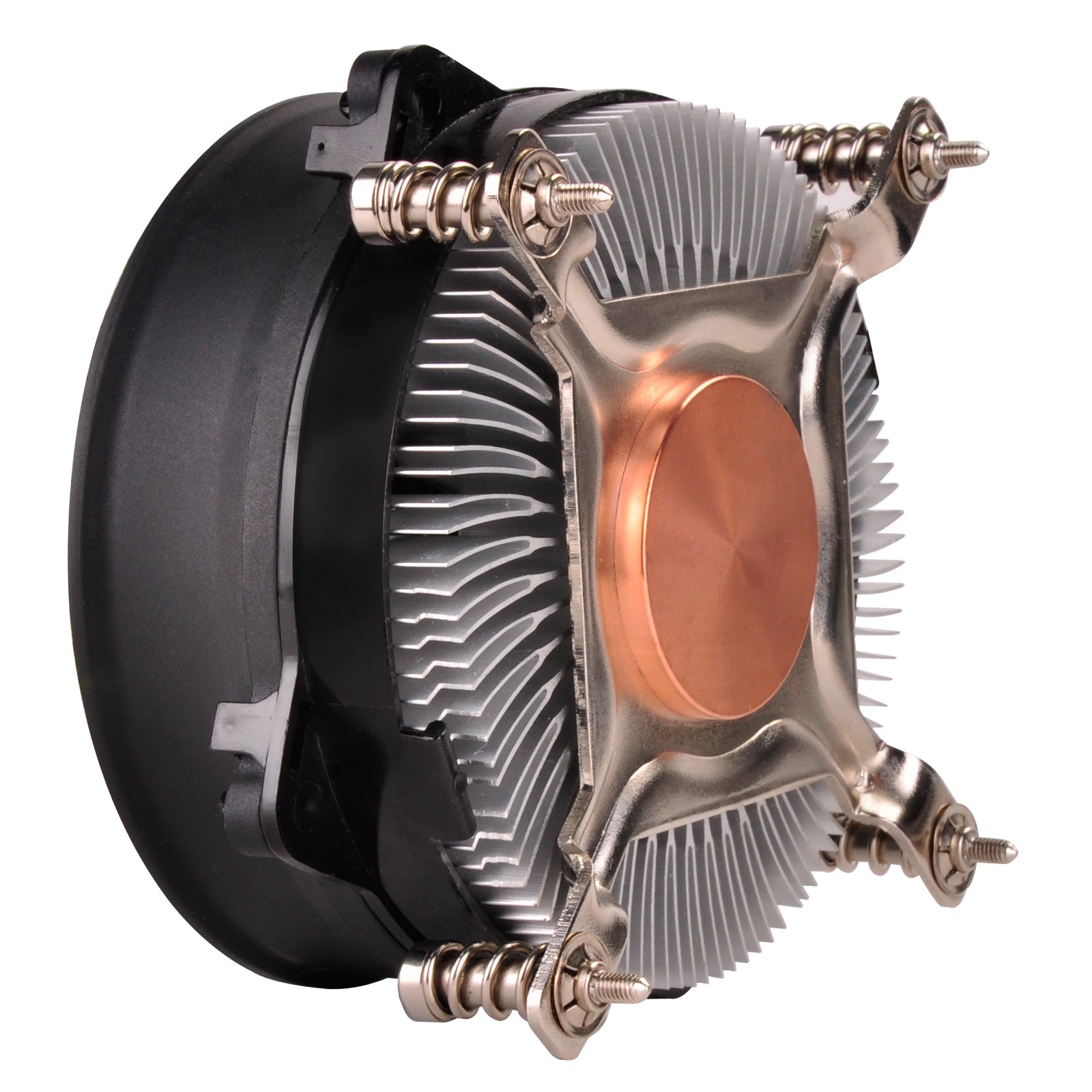

ï¿­ Copper center and base with extruded aluminum fins

ï¿­ Easy to install

Model No.	SST-NT08-115X
Material	Copper center, Extruded aluminum fins
Application	Intel LGA1150/1151/1155/1156
Fan blade size	92mm (W) x 92mm (D) x 25mm (H)
Max air pressure	0.7 ~ 5.94mmH2O
Noise	21.56 ~ 62.88dBA
Bearing	Dual ball bearing
CPU TDP	95W
Net weight	213.5g (without fan)
Start Voltage (V)	=6V
Air Flow (CFM)	10.34 ~ 47.0CFM
Speed (R.P.M.)	1200 ~ 3500RPM
Life Expectance (hrs)	70,000 hours
Dimension	101mm (W) x 101mm (D) x 48mm (H) (with Fan) 3.98 (W) x 3.98 (D) x 1.89 (H) (with Fan)
