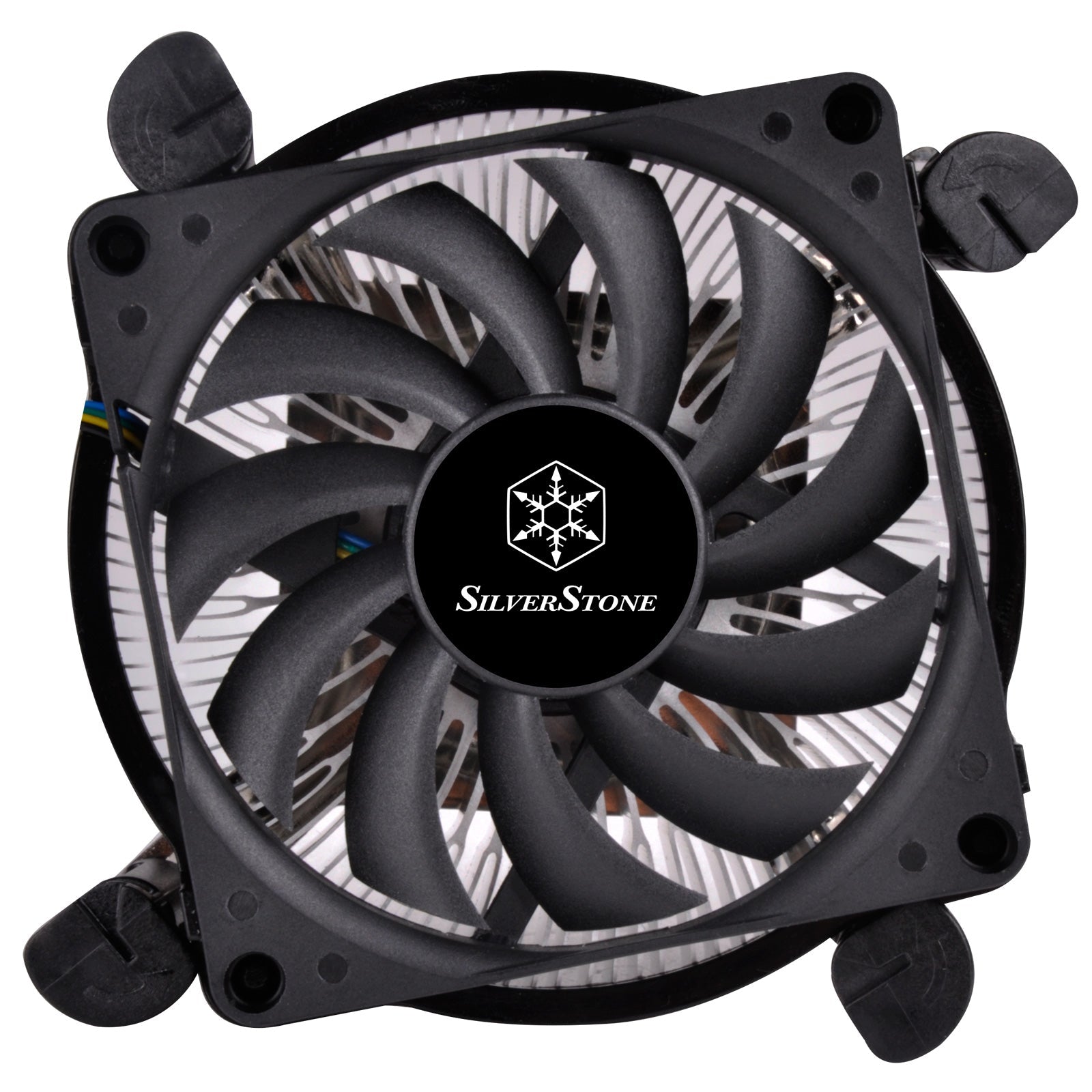

SilverStone Technology’s Nitrogon NT08-115XP

SilverStone Technology?s Nitrogon NT08-115XP is a super slim profile CPU cooler designed for space limited super slim cases such as SilverStone VT01 for Intel Mini-STX platform. It has a true, solid copper center and base with extruded aluminum fins for superior thermal conductivity for up to 65W. The custom super slim 80mm PWM fan can maintain low noise during operation. With a total height of 33mm tall and push-pin design for easy installation, the NT08-115XP is an excellent upgrade for any low-profile system on Intel LGA1150/1151/1155/1156 platforms.

ï¿­ Supports Intel LGA1150/1151/1155/1156 processors

ï¿­ Designed for Mini-STX systems at 33mm tall

ï¿­ Custom slim 80mm PWM fan for excellent cooling and low noise

ï¿­ True solid copper base with extruded aluminum fins for up to 65W TDP

ï¿­ Push-pin design for easy installation

Model No.	SST-NT08-115XP
Material	Copper center, extruded aluminum fins
Application	Intel LGA1150/1151/1155/1156
Dimension w/fan	101mm (W) x 33mm (H) x 101mm (D) (with Fan) 3.98 (W) x 1.3 (H) x 3.98 (D) (with Fan)
Fan blade size	80mm (W) x 10mm (H) x 80mm (D)
Max air pressure	0.3 ~ 2.43mmH2O
Noise	16.5 ~ 28.98dBA
Bearing	Long-Life sleeve bearing
CPU TDP	65W
Net weight	292g (with fan)
Start Voltage (V)	=6V
Air Flow (CFM)	5.64 ~ 15.98CFM
Speed (R.P.M.)	1200 ~ 3400RPM
Life Expectance (hrs)	40,000 hours
