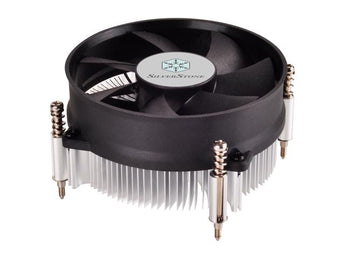

SilverStone Technology’s Nitrogon NT09-115X

SilverStone Technology?s Nitrogon NT09-115X is a slim profile CPU cooler designed for space limited applications that utilizes LGA 1156/1155/1150/1151 platforms. It has an extruded aluminum fins for excellent thermal conductive. In addition, NT09-115X is equipped with a custom PWM 92mm silent fan that is staggered against the aluminum fins for better airflow focus and enhanced heat dissipation. Measuring only 45mm tall, the NT09-115X is a premier choice for slim cases utilizing LGA 1156/1155/1150/1151 processors.

ï¿­ Supports Intel LGA1156/1155/1150/1151 processors

ï¿­ Designed for low profile systems at only 45mm tall

ï¿­ Custom quiet 92mm fan for excellent cooling and low noise

ï¿­ Extruded aluminum fins for good heat dissipation

ï¿­ Reinforced back plate design reduces motherboard bending to provide tighter CPU contact

Model No.	SST-NT09-115X
Material	Aluminum core, extruded aluminum fins
Application	Intel Socket LGA1156/1155/1150/1151
Cooling fan	92mm PWM
Dimension w/fan	96mm (W) x 45mm (H) x 96mm (D) 3.78 (W) x 1.77 (H) x 3.78 (D)
Fan blade size	92mm (W) x 25mm (H) x 92mm (D)
Fan speed	550 ~ 2500 RPM
Air pressure	0.136 ~ 2.8mmH2O
Noise	18.5 ~32.0dBA
CPU TDP	65W
Net weight	213.5g (with fan)
Air Flow (CFM)	10.34 ~ 47.0CFM
