Silverstone TS421S 4 bay 2.5" HDD / SSD storage kit

Name: Silverstone TS421S 4 bay 2.5" HDD / SSD storage kit
Brand: SilverStone Technology
Price: 268.99 USD
Availability: OutOfStock

TS421S

Found a better price? Let us know and we'll try and match it!

Product variants

Estimate shipping

Country

Zip code

$268.99 USD Sold out

Shipping calculated at checkout.

Pickup currently unavailable at Performance-PCs.com

99% of orders ship same day M-F!
FREE Shipping Possible!
All-Star CS Team
30-Day Hassle Free Returns

Details

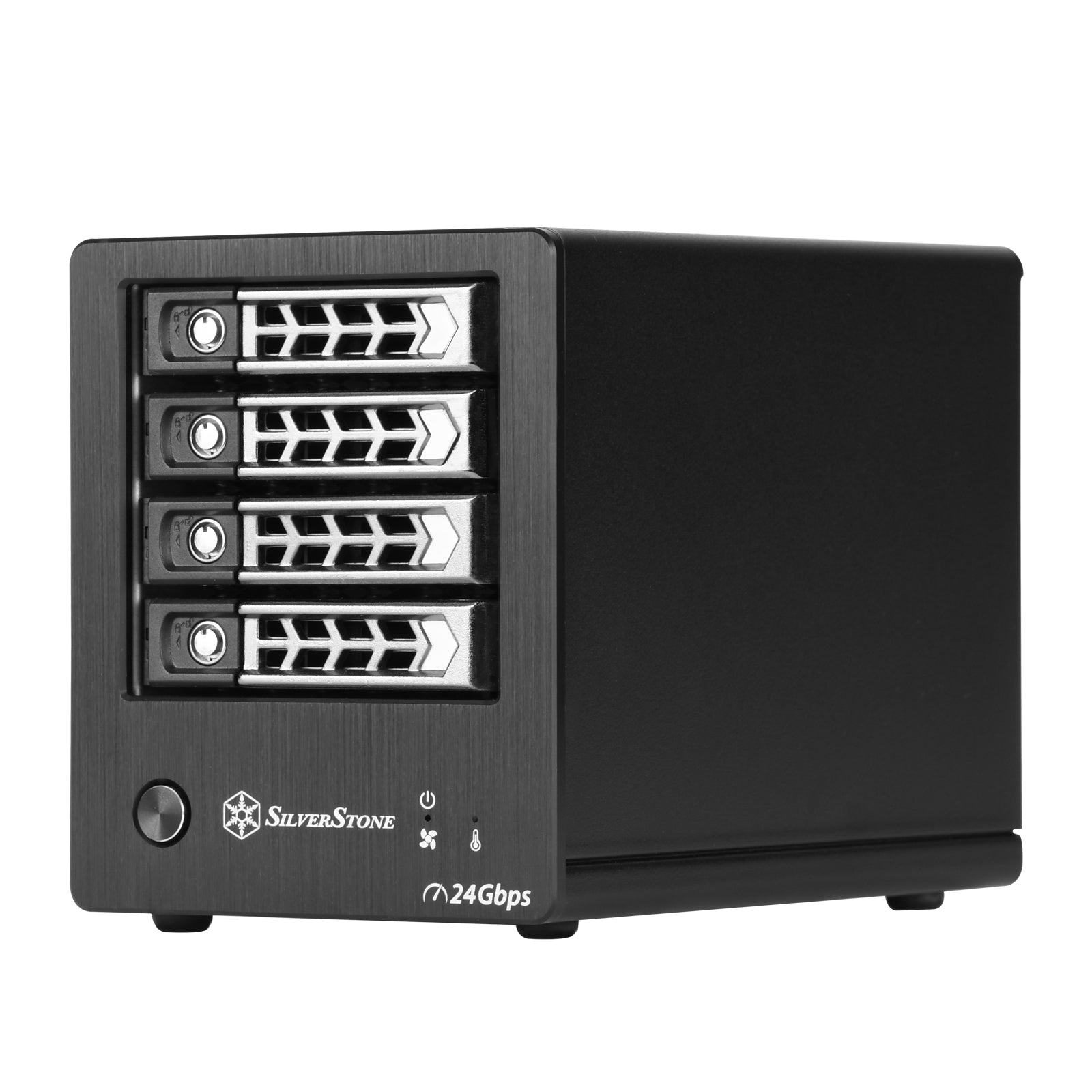

SilverStone Technology has developed a new external storage device, the TS421S. It is a 4 bay storage tower with Mini-SAS interface that supports four 2.5 HDD / SSD and hot-swap function. For security, each drive tray also has metal key lock. Built-in cooling fan behind the chassis ensures drive and run cool for extended life. Meanwhile, in order to allow common users can also enjoy high-speed transmission experience with Mini-SAS, SilverStone provide complete cables and adapters. Includes Mini-SAS SFF-8088 to Mini-SAS SFF-8088 cable, Mini-SAS SFF-8087 to SATA 7 pin cable, power adapter card and Mini-SAS adapter, the integrated package providing consumers with superior external storage solution.

Features

ï¿ Supports Mini-SAS SFF-8088 maximum 24 Gbps transfer speed

ï¿ Supports up to four 2.5 SAS / SATA 6 Gbit/s drives

ï¿ Individual metal key lock for each drive for extra security

ï¿ Independent drive status LED

ï¿ Built-in cooling fan for excellent heat dissipation

ï¿ Compatible with all 2.5 drives up to 15mm thickness

ï¿ Fully supports SATA Hot-Swap function

ï¿ Complete retail pack includes Mini-SAS SFF-8088 to Mini-SAS SFF-8088 cable, Mini-SAS SFF-8087 to SATA 7 pin cable, power adapter card and Mini-SAS adapter

Specifications

Storage
Model No.	SST-TS421S
Color	Black
Material	Steel
Drive support	4 x 2.5 SAS / SATA HDD or SSD
Transfer rate	Up to 6 Gbit/s (dependent on drive speed)
Host interface	Mini-SAS SFF-8088 26 pin connector x 1
LED indicator	Solid Green: Power On Yellow: Fan Failed Purple: Overheating White: HDD Read / Write
Cooling fan	80mm PWM fan x 1
Environment	Operating Temperature: 5°C ~ 35°C Operating Humidity: 20%RH ~ 80%RH Storage Temperature: -20°C ~ 50°C Storage Humidity: 20%RH ~ 80%RH
Net weight	1.4kg
Dimension	100mm (W) x 120mm (H) x 181mm (D) 3.94 (W) x 4.72 (H) x 7.13 (D)

Power adapter card
Model No.	SST-ECP01
Input connector and current	Peripheral 4-Pin female connector x 1 (12V/5A) or SATA 15-Pin female connector x 1 (12V/5A)
Output connector and current	DC jack connector x 1 (12V/5A) USB Type-A female connector x 1 (5V/3A)
Intelligent Security Protection	Over current protection
Cable length and specifications	DC plug 1.2m cable with 18 AWG x 1 and OD 3.5mm DC dim 2.5mm to DC dim 2.1mm adapter
Net weight	35g
Dimension	120mm (W) x 21mm (H) x 53mm (D) 4.72 (W) x 0.83 (H) x 2.09 (D)

Internal Mini-SAS cable
Model No.	SST-CPS03-RE
Color	Black and blue
Connectors	Mini-SAS SFF-8087 36pin (target) to SATA 7pin x 4 (host) with sideband cable
Length	500mm
SAS ports	4

External Mini-SAS cable
Model No.	SST-CPS01
Color	Black
Connectors	Mini-SAS SFF-8088 26pin x 2
Length	1000mm
SAS ports	4

Mini-SAS adapter
Model No.	SST-SA011
Adapter feature	Internal Mini-SAS SFF-8087 x 1 to external Mini-SAS SFF-8088 x 1 adapter
Transfer bandwidth	Up to 24Gbit/s
Connectors	Internal : Mini-SAS SFF-8087 x 1 (to host terminal, e.g. motherboard or Mini-SAS expansion card) External : Mini-SAS SFF-8088 x 1 (to external drive enclosure)
Mounting	Low profile expansion slot, Standard expansion slot (Option)
