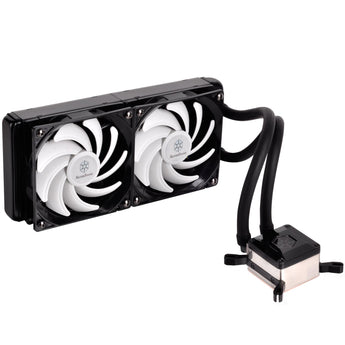

SilverStone Tundra TD02-E V2 Complete All-In-One Liquid Cooler

The Tundra TD02-E is SilverStone?s premier all-in-one liquid cooler and is a breakthrough in a market segment filled with similar-looking products. Its unique alloy water-block is constructed with copper base and aluminum body for better durability compared to plastic-built competitions. The block also has a patented design that eliminates screws in its construction to provide excellent cooling performance and integration of mounting bracket for easy installation. The radiator has another patented design that utilizes brazing fins similar to those used in top air coolers for increased heat transfer efficiency by up to 40% over traditional radiators. With it fully assembled, factory filled and sealed, the TD02-E can be used immediately with no need to refill. For those looking to finally have a unique all-in-one liquid cooler that is durable and well-constructed, the TD02-E is definitely it.

ï¿­ Easy installation with aluminum clips and steel back-plate

ï¿­ Maintenance free, no refill required

ï¿­ Dual auto adjustable 120mm PWM fans included

ï¿­ Durable alloy water-block for improved reliability

ï¿­ Patented brazing fins radiator increase cooling efficiency by 40%

ï¿­ Compatible with socket LGA775/115X/1366/2011/2011-v3/AM2/AM3/FM1/FM2

ï¿­ Compatible with socket LGA775/115X/1366/2011/2011-v3/AM2/AM3/AM4/FM1/FM2 (V2)

Model No.	SST-TD02-E SST-TD02-E-V2 (adds AM4 supports)
Water block	Dimension	60mm (L) x 55mm (W) x 33.5mm (H) 2.36 (L) x 2.17 (W) x 1.32 (H)
	Material	Copper base with nickel-plated aluminum unibody
Pump	Motor speed	2500±200RPM
	Rated Voltage	12V
	Rated Current	0.28A
Fan	Dimension	120mm (L) x 120mm (W) x 25mm (D) 4.72 (L) x 4.72 (W) x 0.98 (D)
	Speed	1500~2500RPM
	Noise level	18~35 dBA
	Rated Voltage	12V
	Rated Current	0.3A
	Max airflow	92.5CFM
	Pressure	3.5mm/H2O
	Connector	4 Pin PWM
Radiator	Dimension	278mm (L) x 124mm (W) x 27mm (H) 10.94 (L) x 4.88 (W) x 1.06 (H)
	Material	Aluminum
Tube	Length	310mm
	Material	Rubber
Application	Intel Socket LGA775/115X/1366/2011/2011-v3 AMD Socket AM2/AM3/*AM4/FM1/FM2 To buy AM4 bracket for your SilverStone CPU cooler, please click here.
Net Weight	1501g
