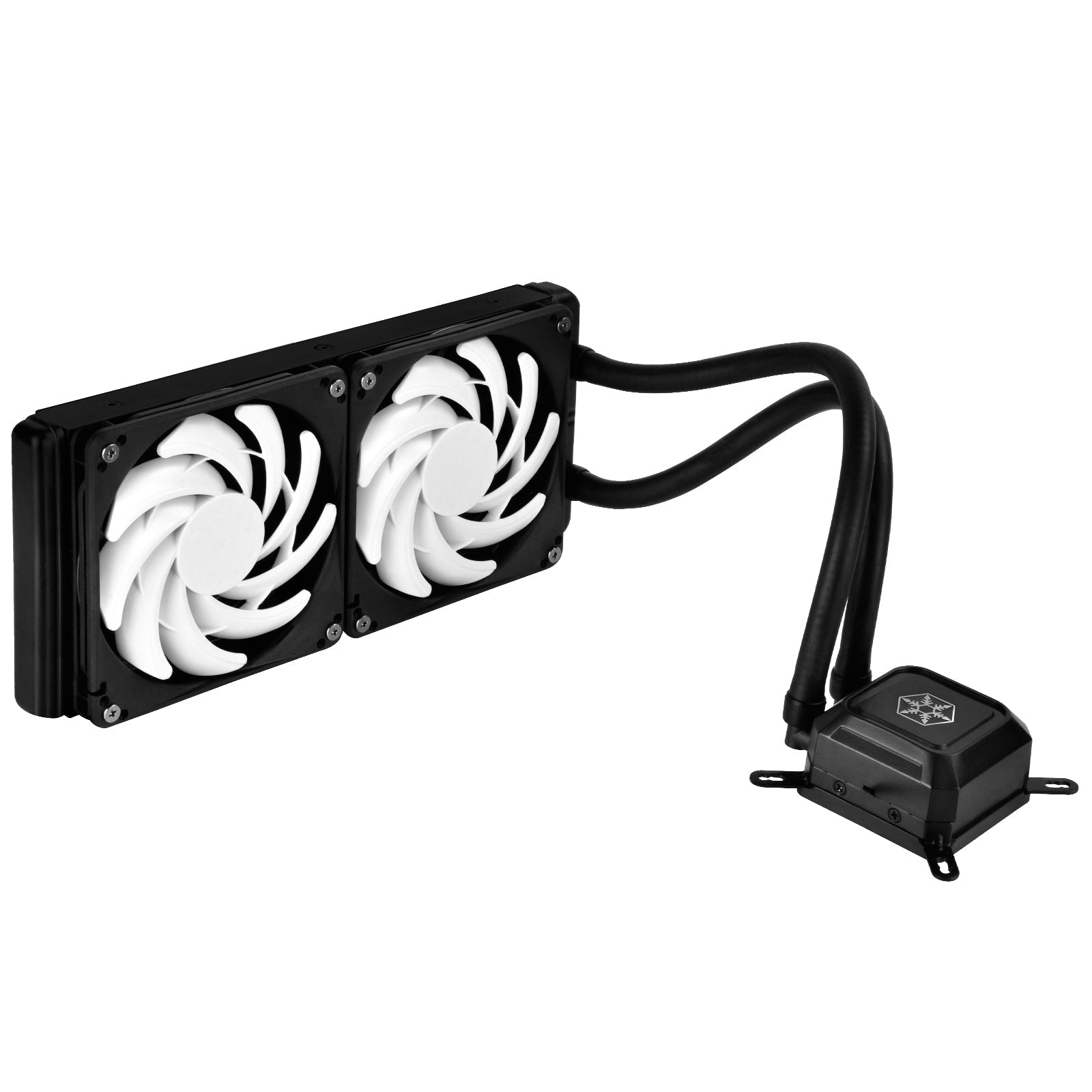

SilverStone Tundra TD02-SLIM-V2 Complete All-In-One Liquid Cooler

The advantages of a pre-filled, closed loop or all-in-one (AIO) liquid cooler are the convenience of installation and improved compatibility over high end air cooling solutions. The use of liquid as heat transfer medium also brings about improved cooling performance at the expense of higher cost. Due to limited room in smaller cases, small form factor users are often left out of liquid cooling option, so SilverStone has released the Tundra TD02-SLIM. Designed for small form factor PCs, this cooler has a radiator and fan combo of only 37mm thick, making it possible to fit into slimmer profile cases or giving more space in tight confines. By retaining many of the high end features from SilverStone?s other liquid cooling models, the TD02-SLIM also has great performance for the money and is a top choice for high performance but small PC builds.

* White LED water blocks are produced from V2.0 and after.

ï¿­ Super slim 37mm total thickness for radiator and fan

ï¿­ Maintenance free, no refill required

ï¿­ Dual auto adjustable 120mm slim PWM fans included

ï¿­ Thick, leak-proof tubing improve reliability

ï¿­ 0.2mm micro-channel water block design for improved

ï¿­ Large 100% copper base plate for fast heat transfer

ï¿­ Integrated LED indicator

ï¿­ Compatible with socket LGA775/115X/1366/2011/2011-v3/AM2/AM3/FM1/FM2

ï¿­ Compatible with socket LGA775/115X/1366/2011/2011-v3/AM2/AM3/AM4/FM1/FM2 (V2)

Model No. SST-TD02-SLIM SST-TD02-SLIM-V2 (adds AM4 supports) Water block Dimension 65mm (L) x 65mm (W) x 39.2mm (H) 2.56 (L) x 2.56 (W) x 1.54 (H) Material Copper base with plastic body Pump Motor speed 2500±200RPM Rated Voltage 12V Rated Current 0.28A Fan Dimension 120mm (L) x 120mm (W) x 15mm (D) 4.72 (L) x 4.72 (W) x 0.59 (D) Speed 800~2200RPM Noise level 16.5~27.4 dBA Rated Voltage 12V Rated Current 0.02 ~ 0.15A Max airflow 13.1 ~ 35.85CFM Pressure 0.31 ~ 1.84 mmH2O Connector 4 Pin PWM Radiator Dimension 273mm (L) x 120mm (W) x 22mm (H) 10.75 (L) x 4.72 (W) x 0.87 (H) Material Aluminum Tube Length 310mm Material Rubber Application Intel Socket LGA775/115X/1366/2011/2011-v3 AMD Socket AM2/AM3/*AM4/FM1/FM2 Net Weight 695g
