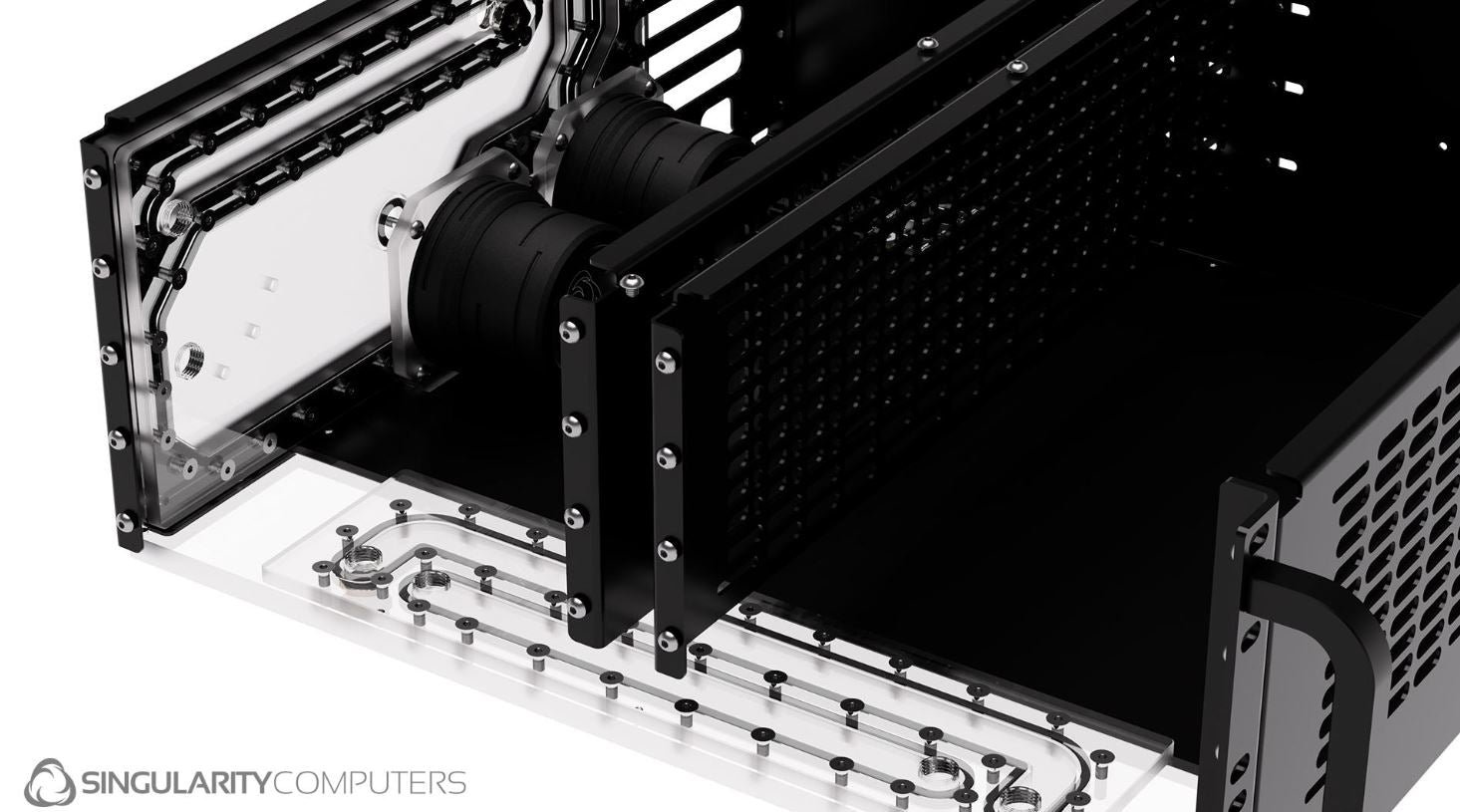

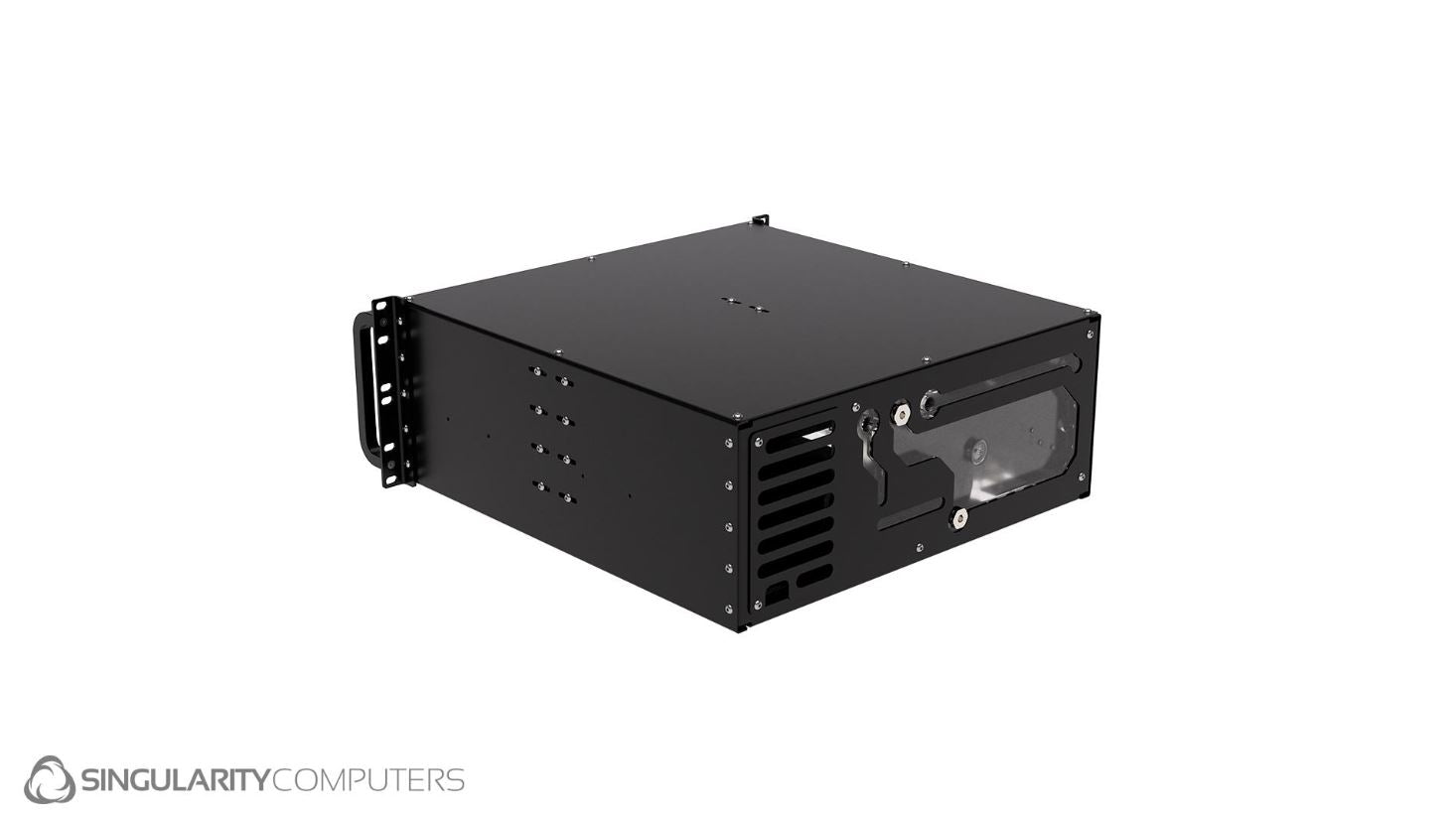

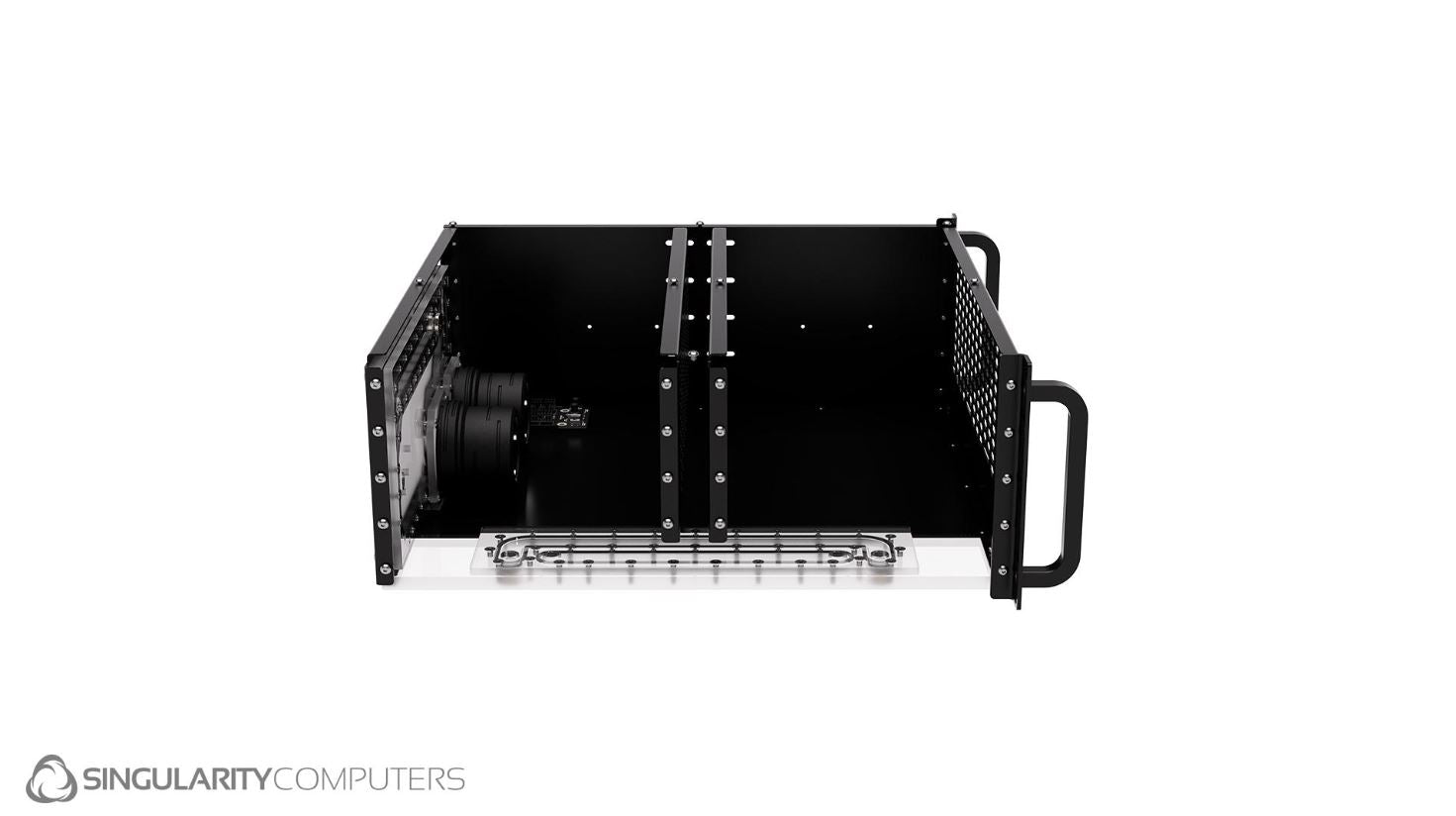

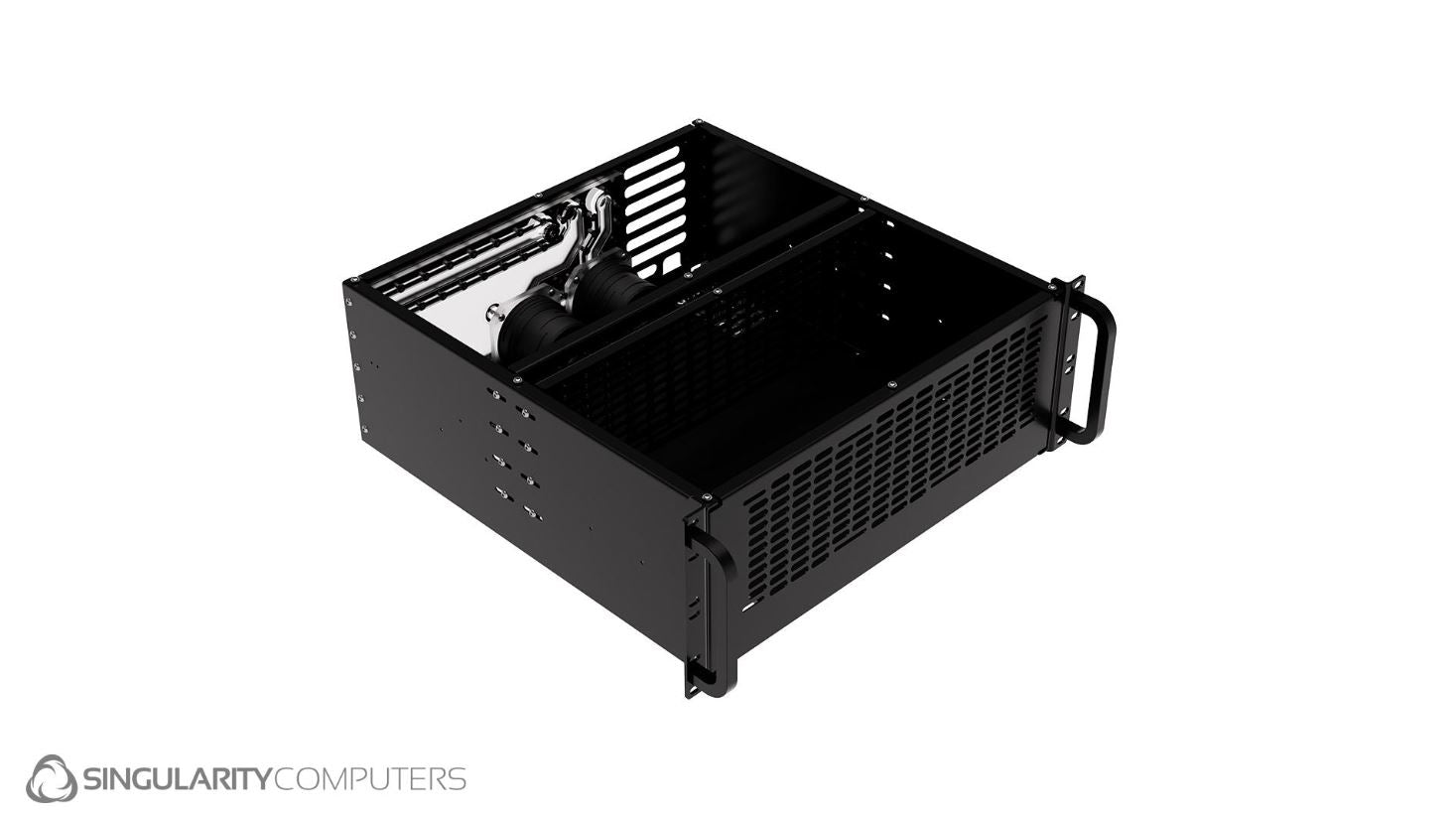

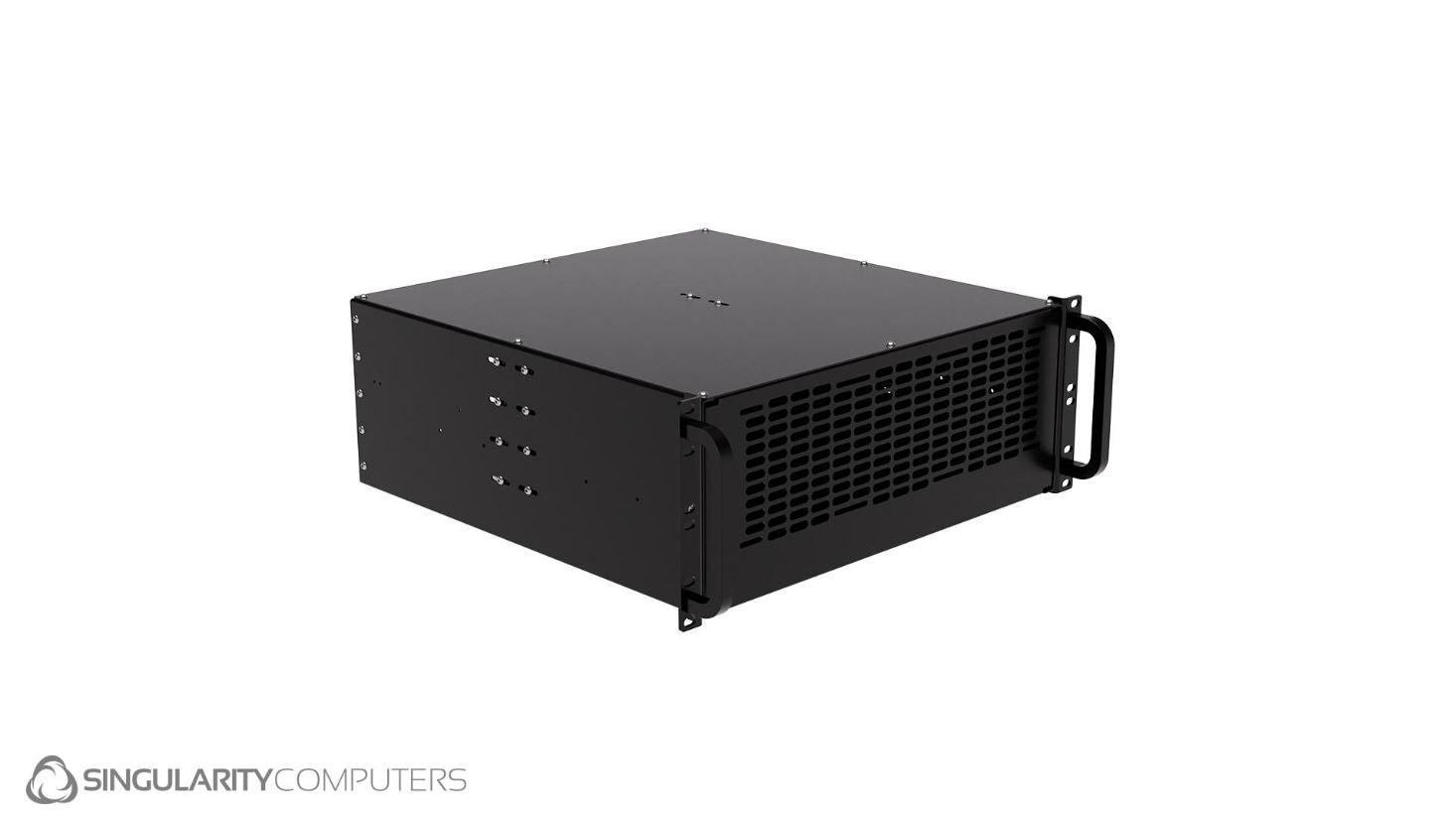

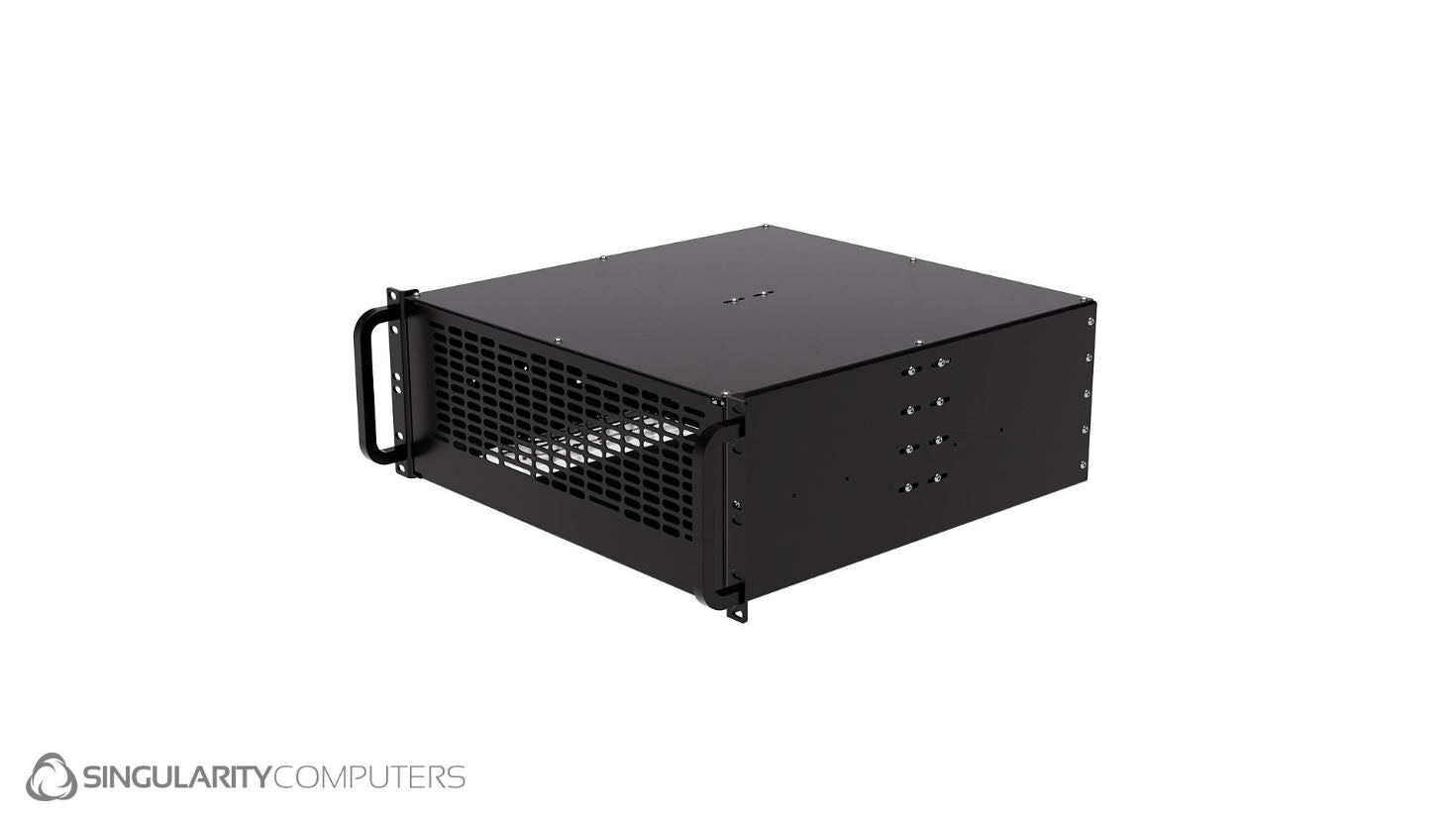

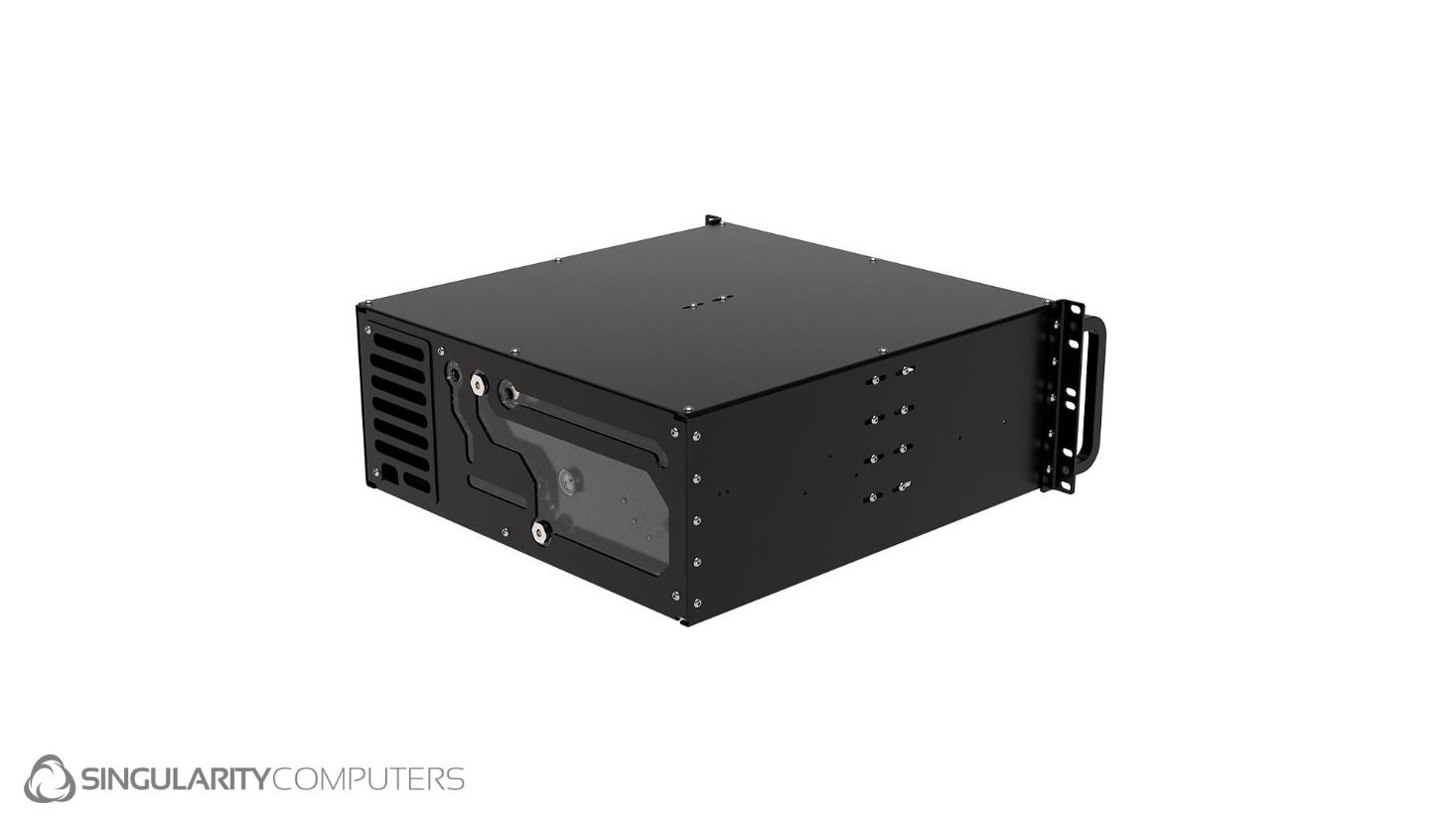

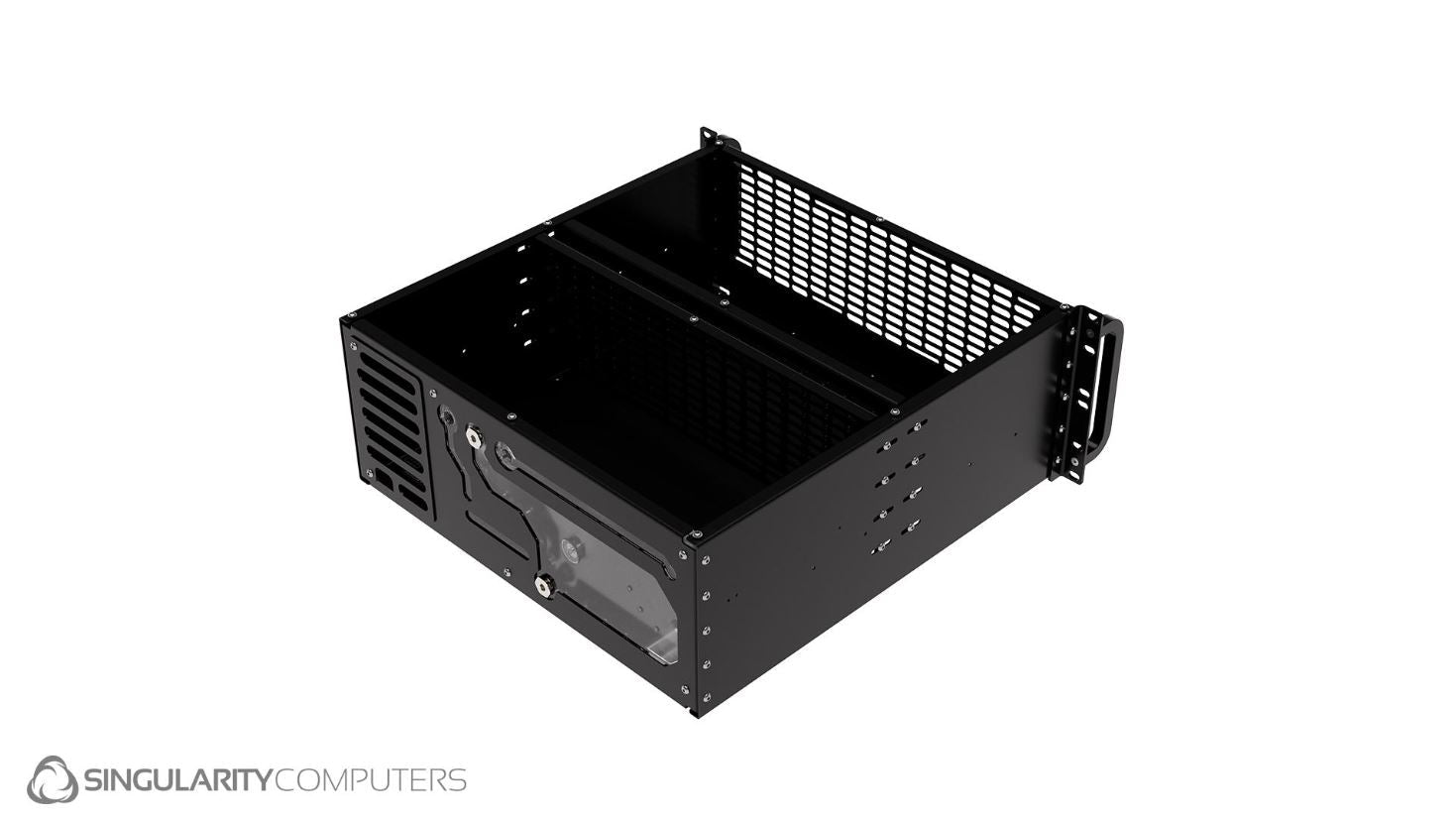

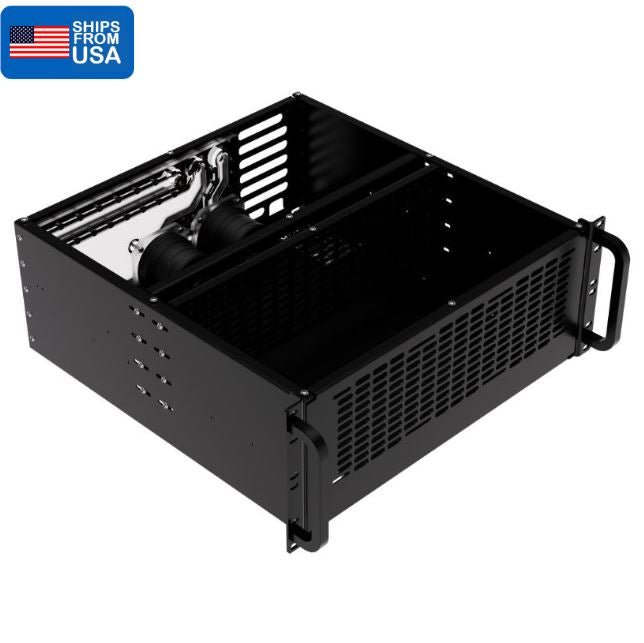

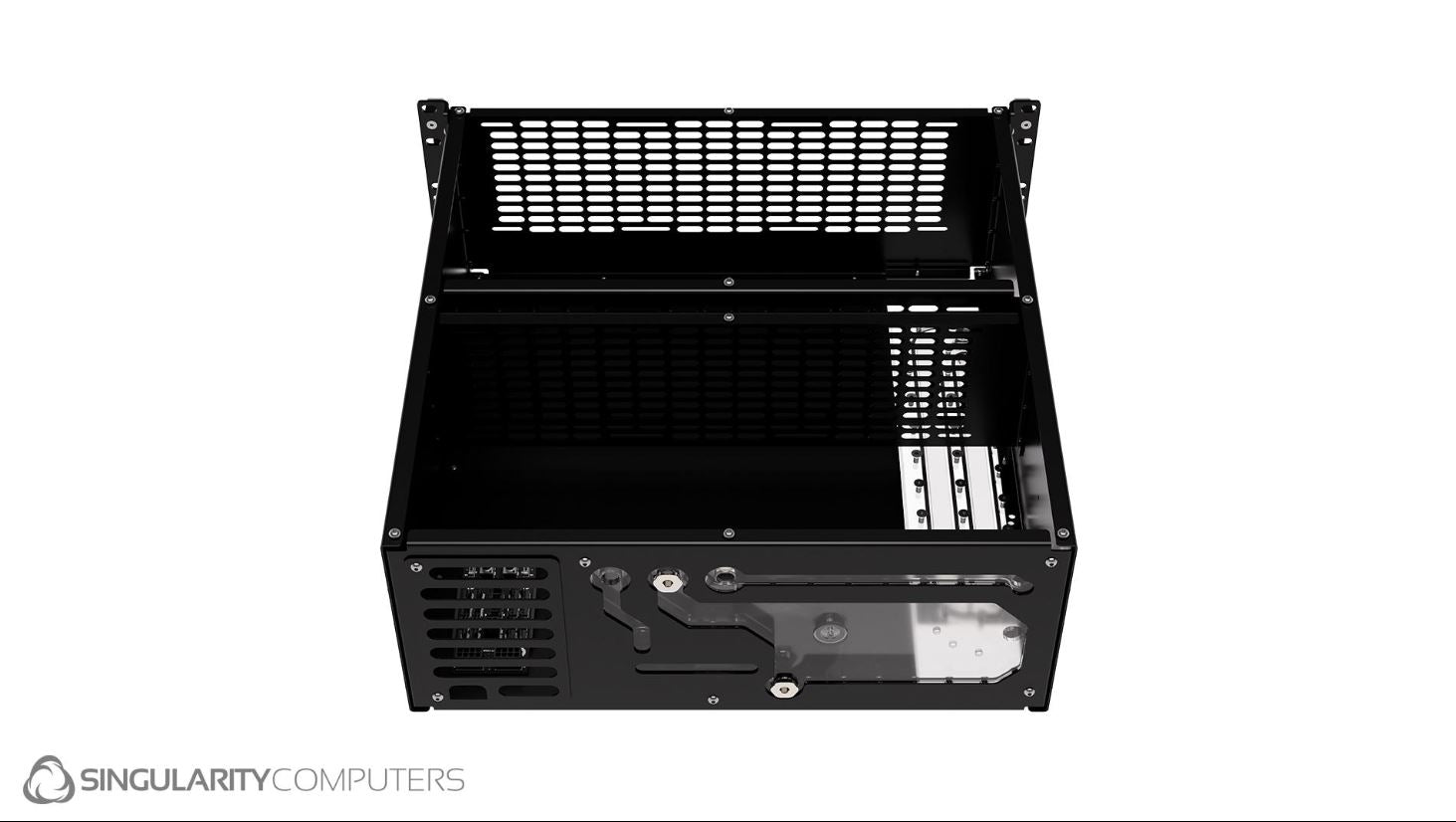

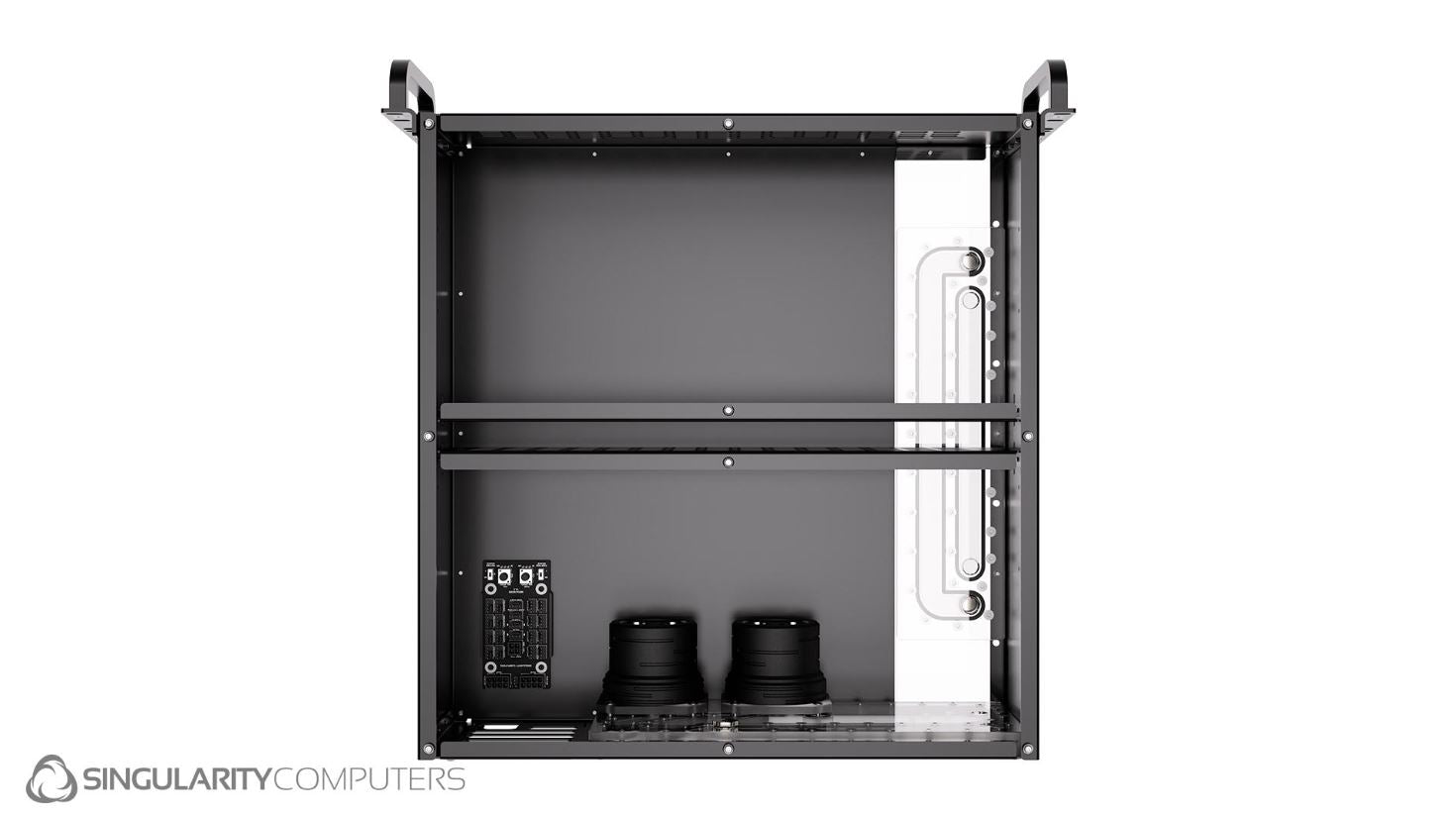

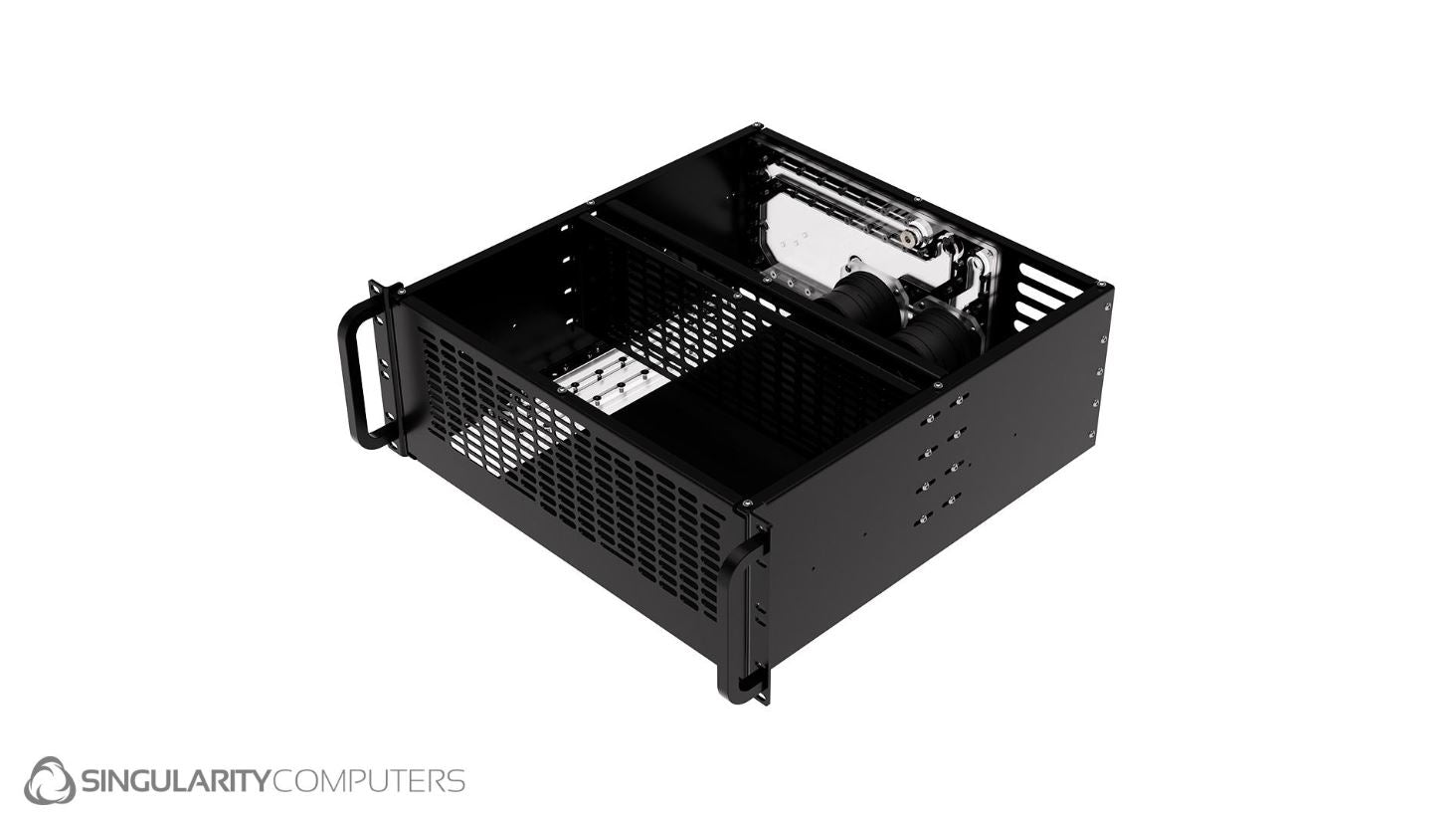

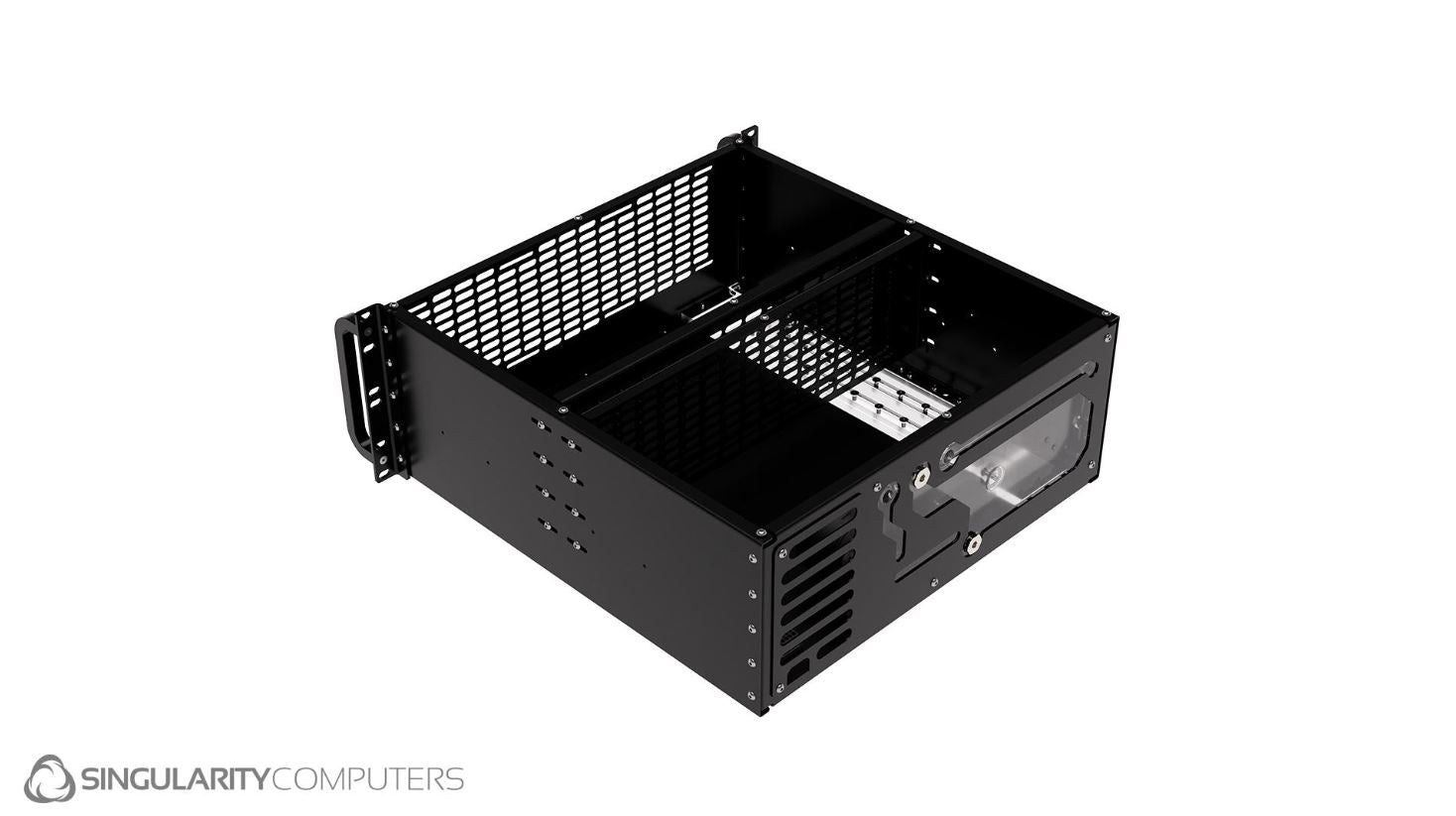

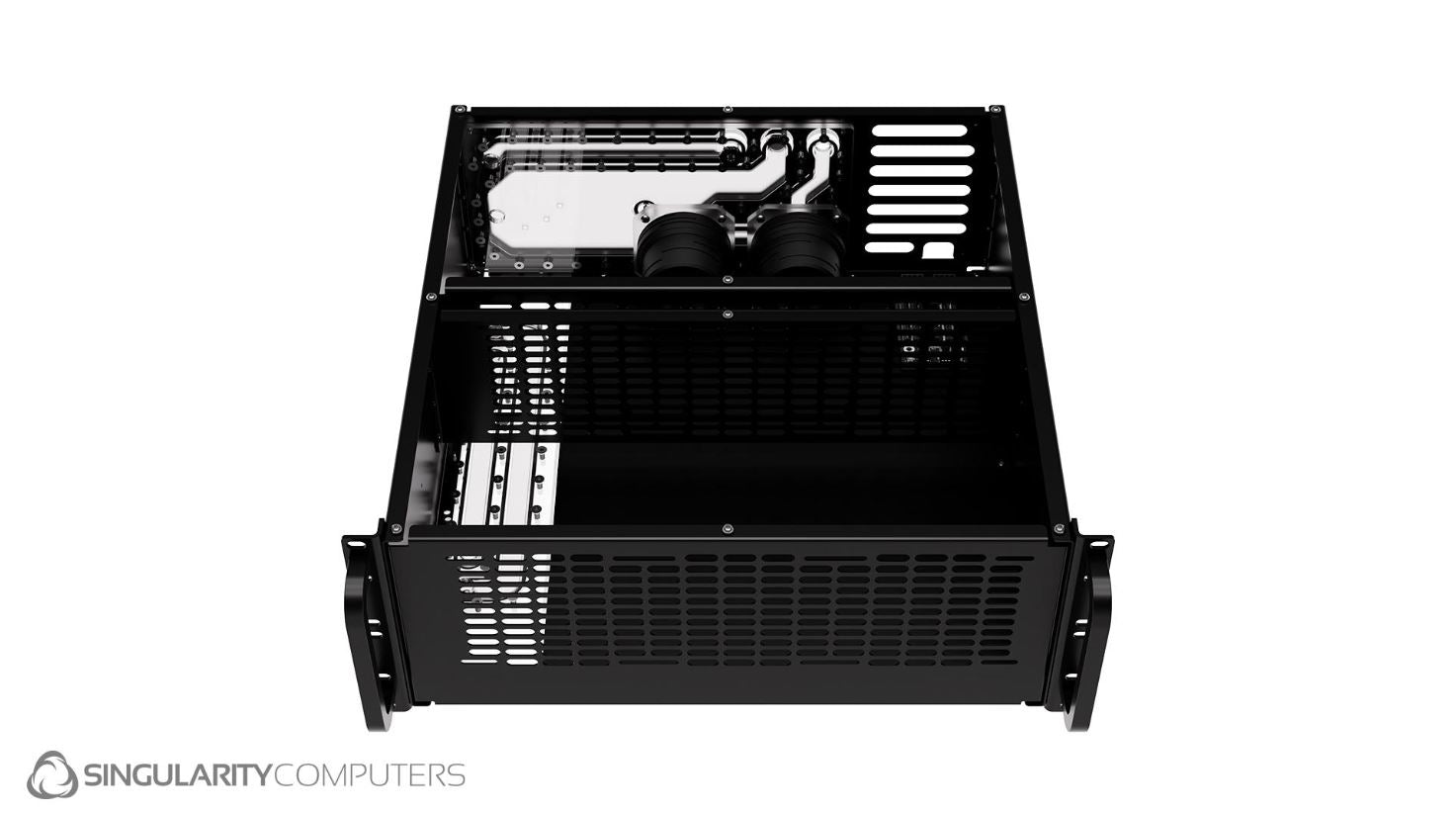

Possibly the most requested product line by our customers is finally here, we introduce the Singularity Computers Rack Case and Rack-mount Water-box which were designed to work together in pairs but they can also be used as standalone products. The SC Rackmount Water-box fits up to 3x 360mm radiators and has a built-in reservoir and distribution plate with dual pumps for redundancy and higher coolant flow. It also features a Singularity Computers Mega-Node for fan and pump speed control based on the coolant temperature for 100% system independence. The Rackmount Water-box uses 4U space.

Pump not included.

Installation:

https://singularitycomputers.com/manuals/

Specifications & Included Items:
SC 4U Rackmount Water-box: Steel powder coated. 5052 Aluminum. Folded. Anodized.
SC Mega-Node: PCB.
SC Pump and Radiator distribution plate: Machined Acryl.
Fasteners: Stainless Steel.
Radiators: 3x 360mm up to 60mm thickness.
Fans: 9x 120mm.
Water-cooling Passthroughs: x2 to connect a computer system.
Dimensions: L: 447.8mm x W: 430mm x H: 172.3mm.
Weight: kg.
Packaged Dimensions: W: mm x H: mm x D: mm.
Packaged Weight: kg.
Electronics Integration:

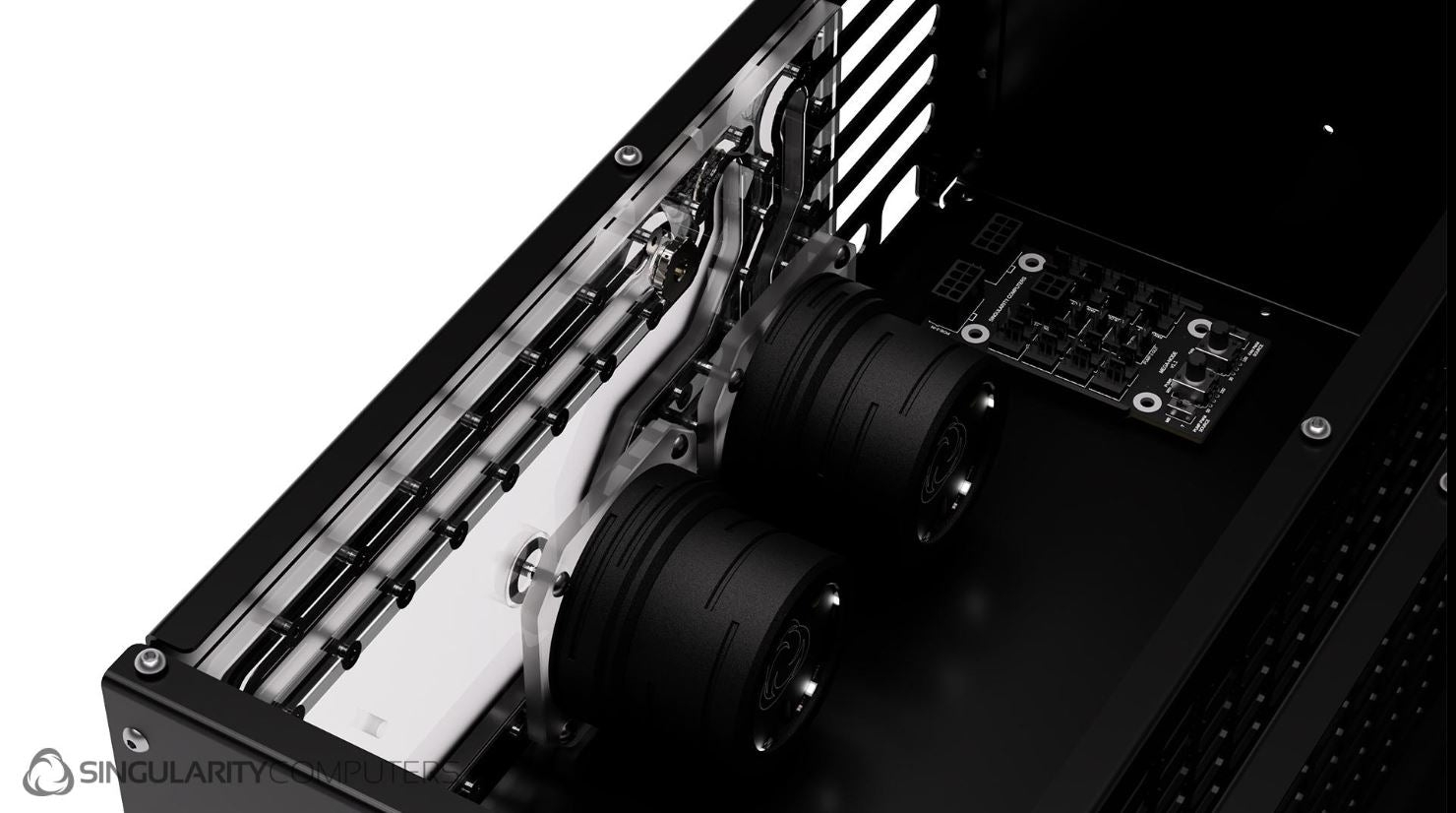

SC Mega-Node: 2x PCIE 8pin input, 1x FAN PWM input, 1x PUMP PWM input, 1x temperature sensor input, 16x FAN PWM outputs, 2x PUMP PWM outputs, 2x PUMP power outputs. The fan and pump output have coolant temperature-based PWM control or can be switched to motherboard PWM control. The built-in PWM control on the Mega-Node is independent of the motherboard and no software is needed.
PWM Control: 2x potentiometers to set the minimum PWM speed.
Temperature sensor inputs: x1. Compatible with any water-cooling brand plug temperature sensor or inline sensor if it is a 10K NTC thermistor.
4pin ATX header to power up to two pumps with custom cables.
