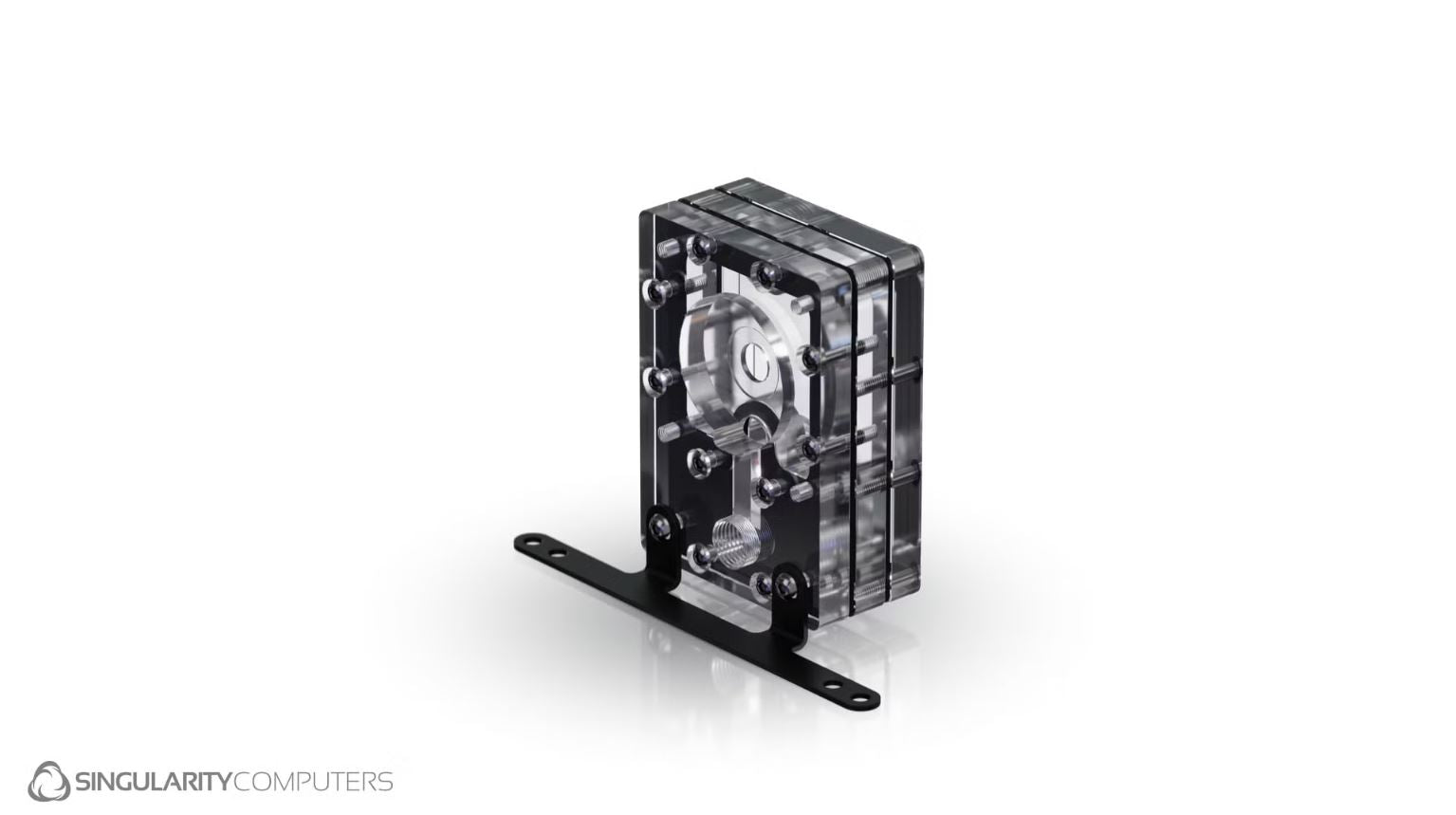

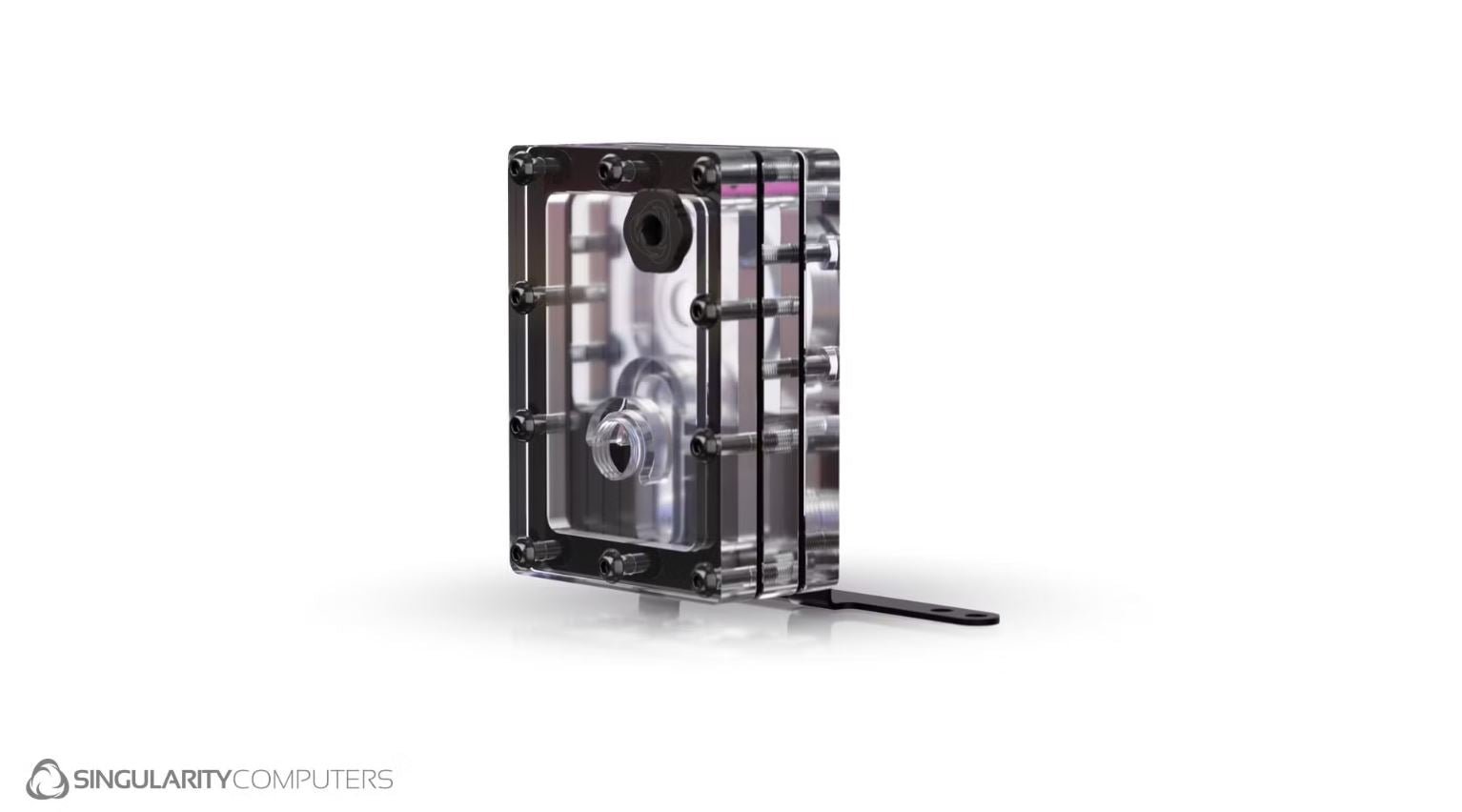

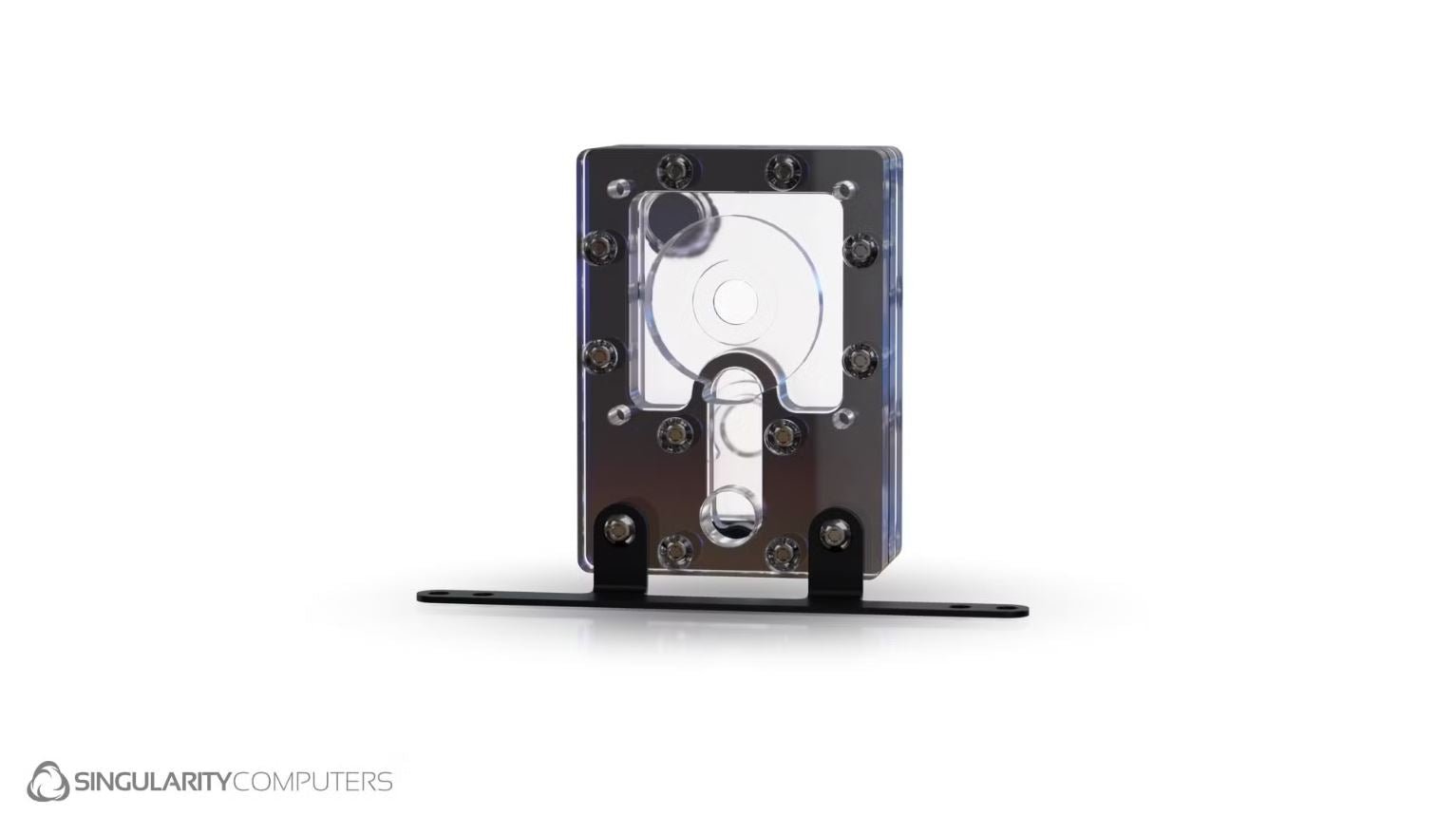

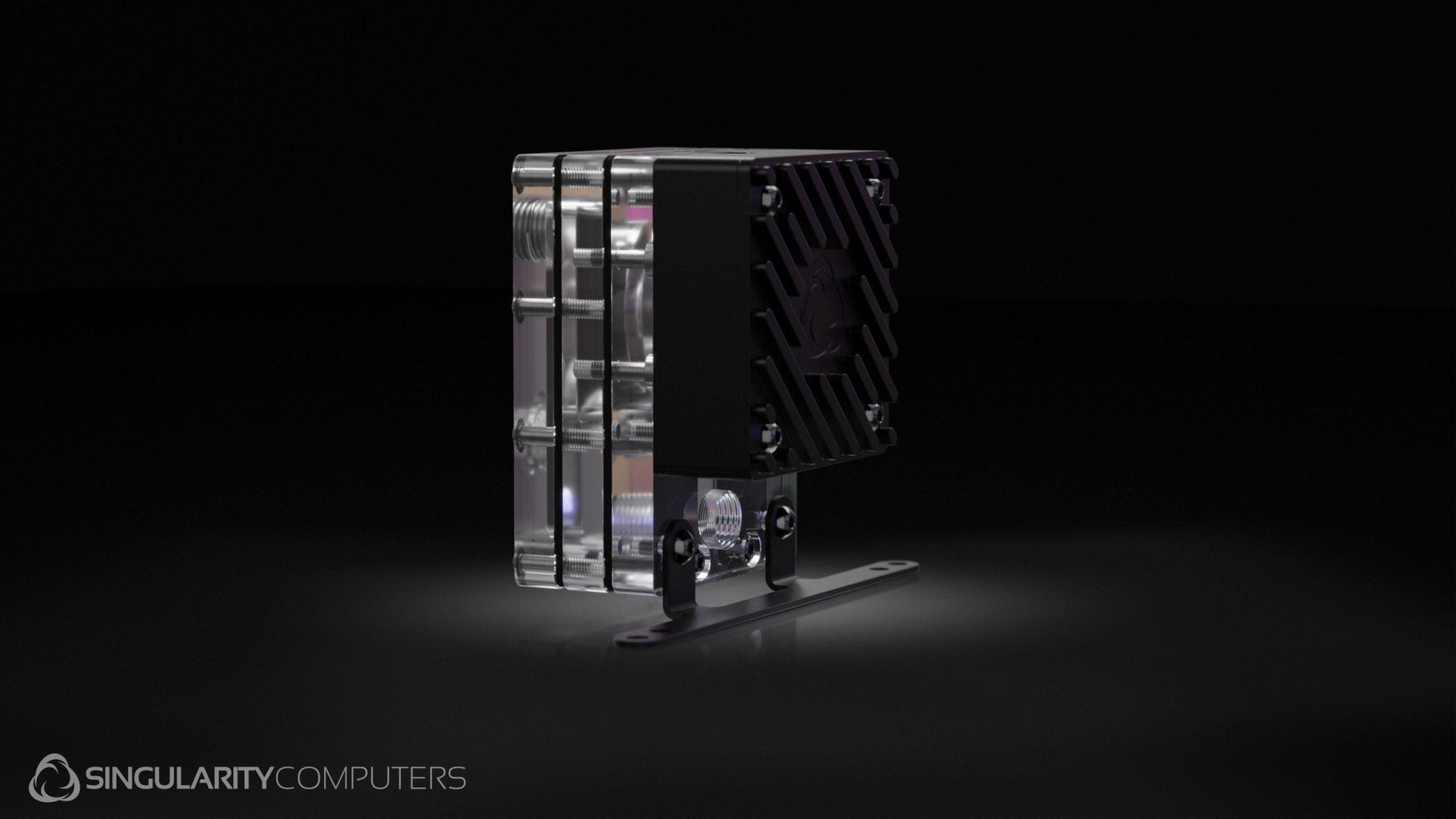

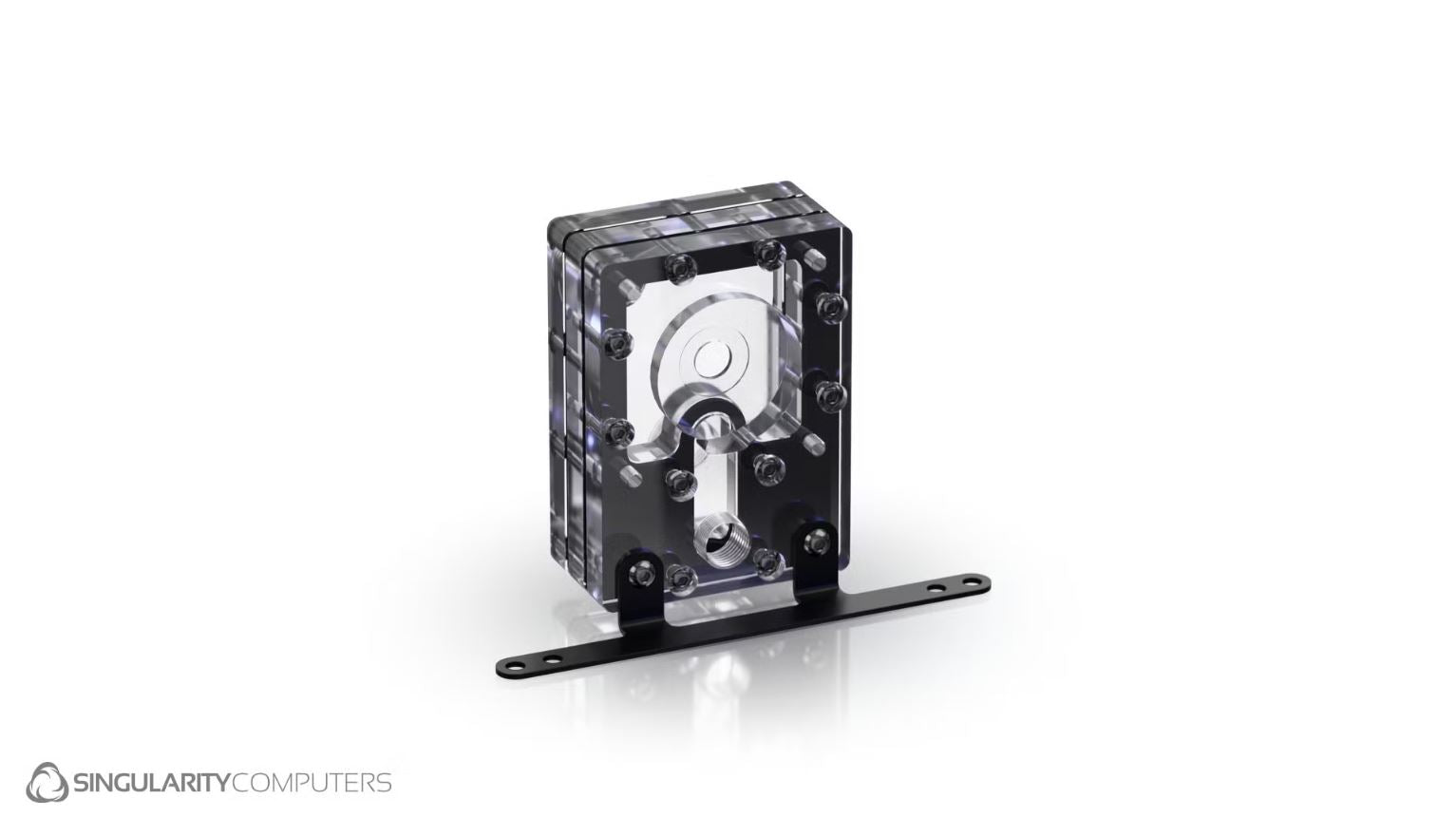

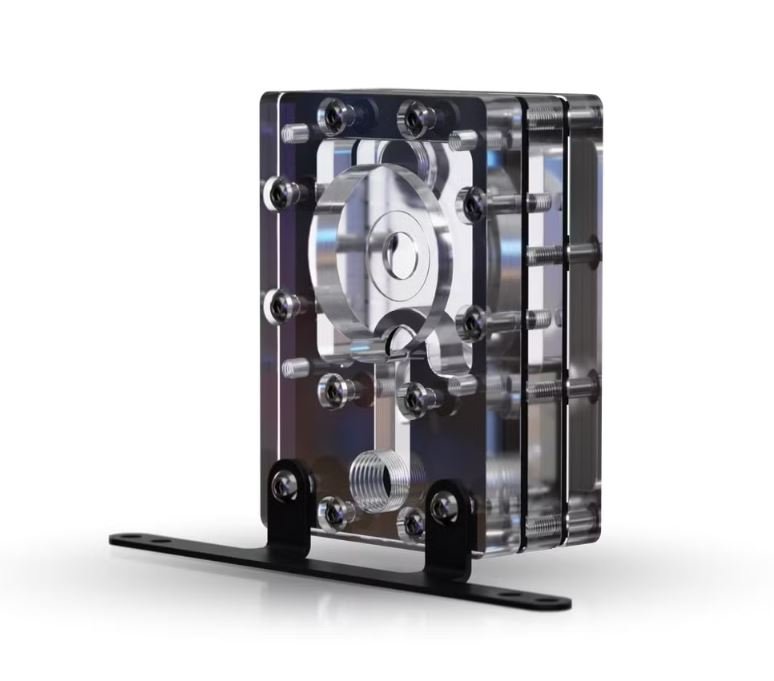

Singularity Computers Conduit Mini DDC Reservoir Distribution Plate

Conduit Mini DDC Reservoir Combo Distribution plate is a pump and reservoir combination designed to fit into any water-cooled build. It is specifically designed for SFF and compact builds being our smallest pump reservoir combo. It mounts onto 120mm or 140mm wide radiators, fans or fan mounts, and can fit on any radiator from 120mm all the way up to 560mm. The fluid volume is small due to its compact size, but it has been designed for easy air removal. It has an integrated DDC Pump Top which is compatible with any DDC pump.

Pump not included. Compatible with any DDC Pump.

Specifications:

Conduit Mini DDC Reservoir Combo Distribution Plate.

Integrated DDC Pump Top.

Integrated Reservoir.

Mount. Folded 2mm Steel Black Powder coated. Mounts to 120mm and 140mm wide radiators fans, or fan mounts.

Fasteners: Stainless Steel.

Gaskets: Silicone.

Materials: Cast Acrylic.

Manufacturing Process: CNC Router.

Stop Fittings: Powdercoated Laser Etched Brass x4.

Assembly: Assembled by hand and pressure tested.

Dimensions: L: 94mm x W: 86mm x H: 64.5mm.

Packaged Dimensions: L: 150mm x W: 150mm x H: 100mm.

Weight: 0.5kg.

Packaged Weight: 0.8kg.

Installation:

Installs onto any 120mm or 140mm wide radiator.
