Singularity Computers Fan-Node - 1×8

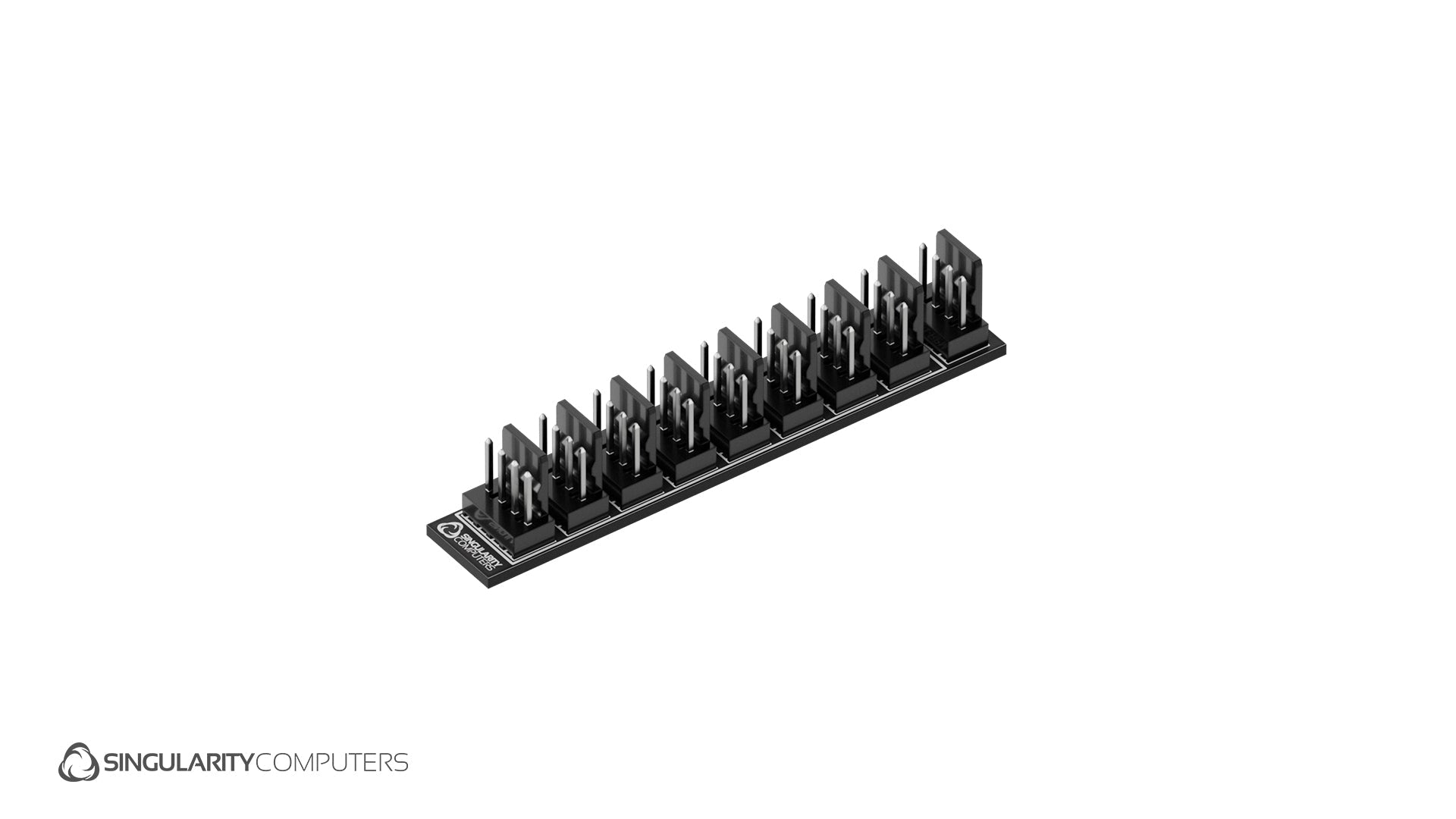

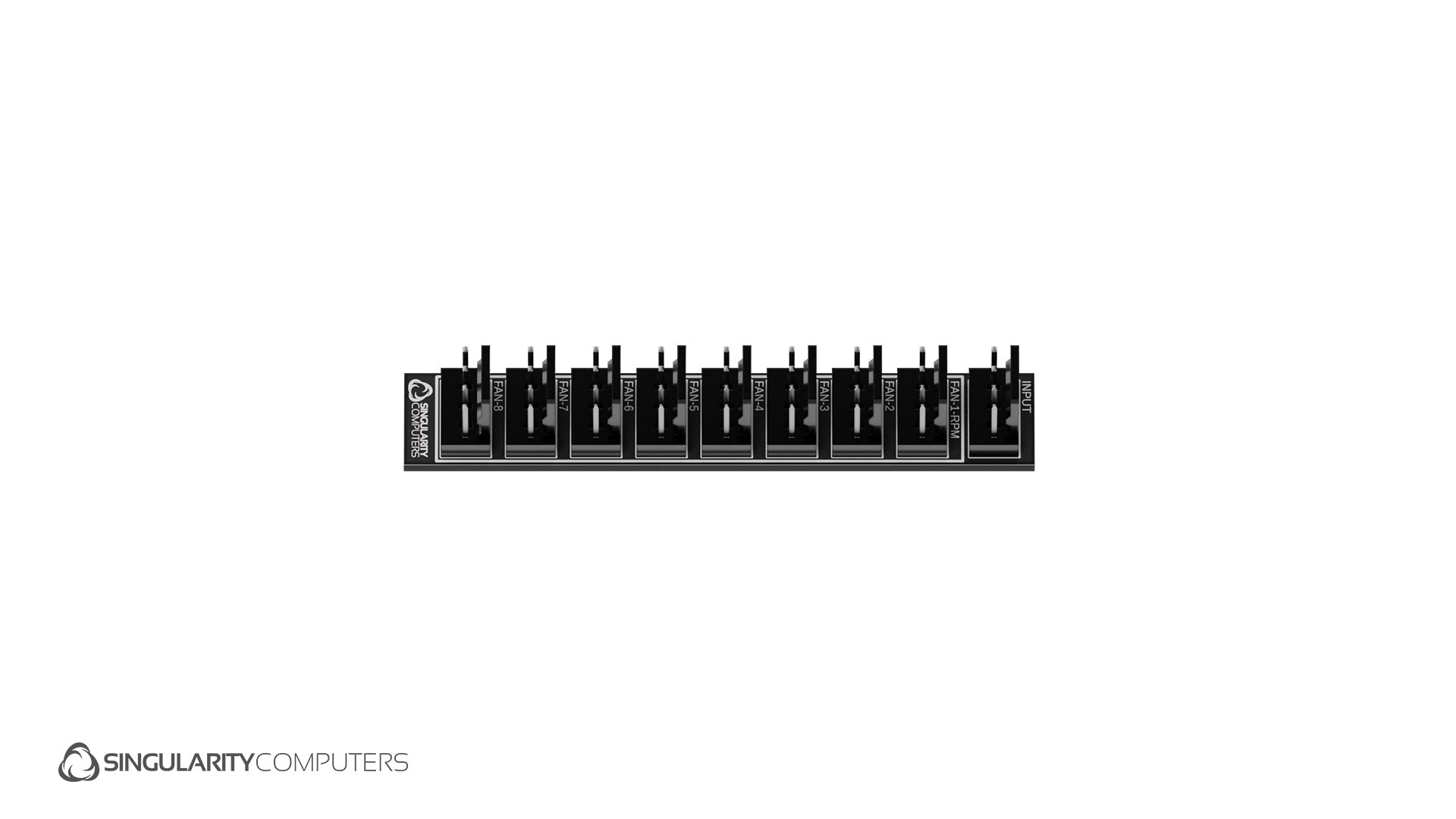

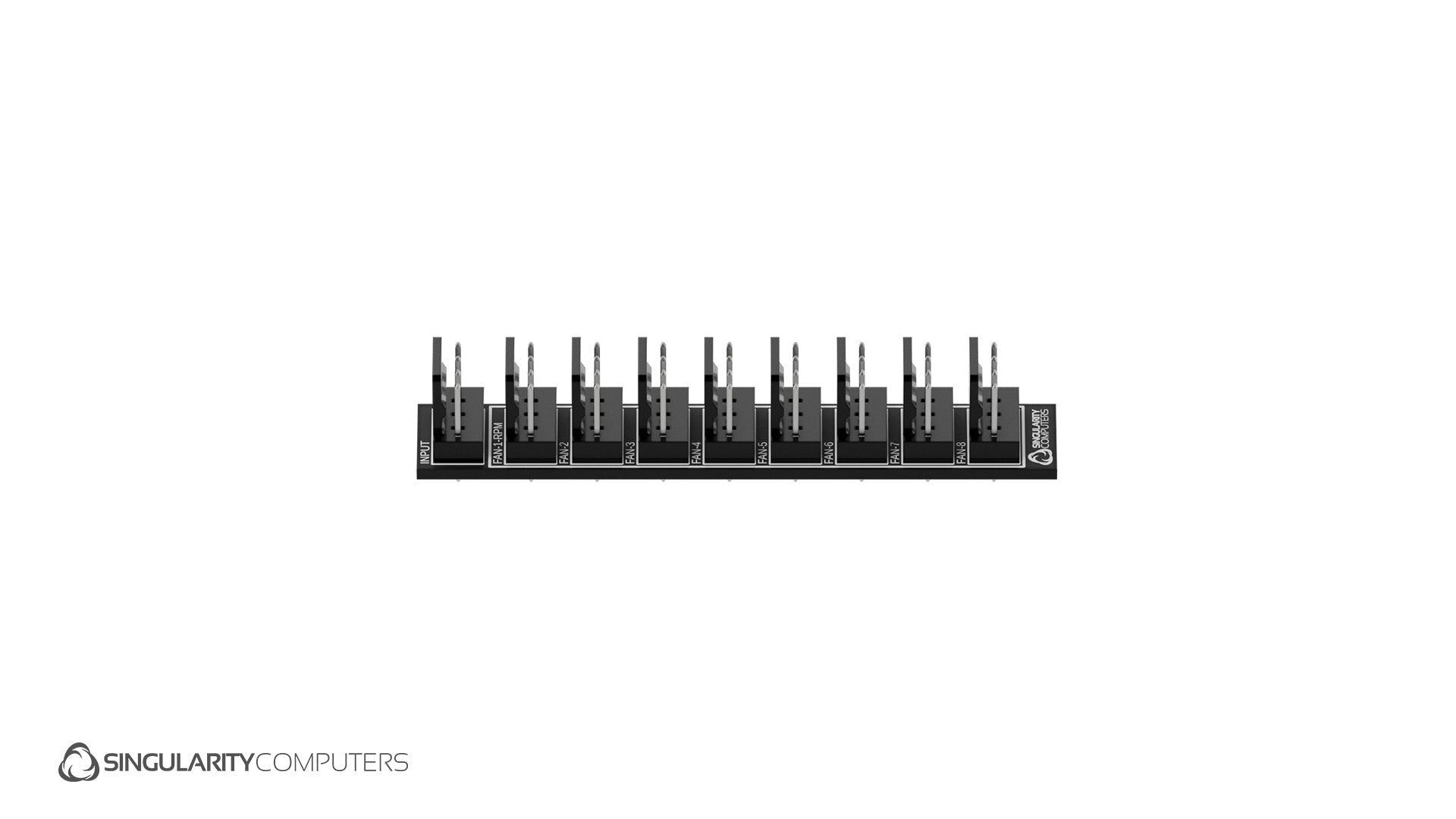

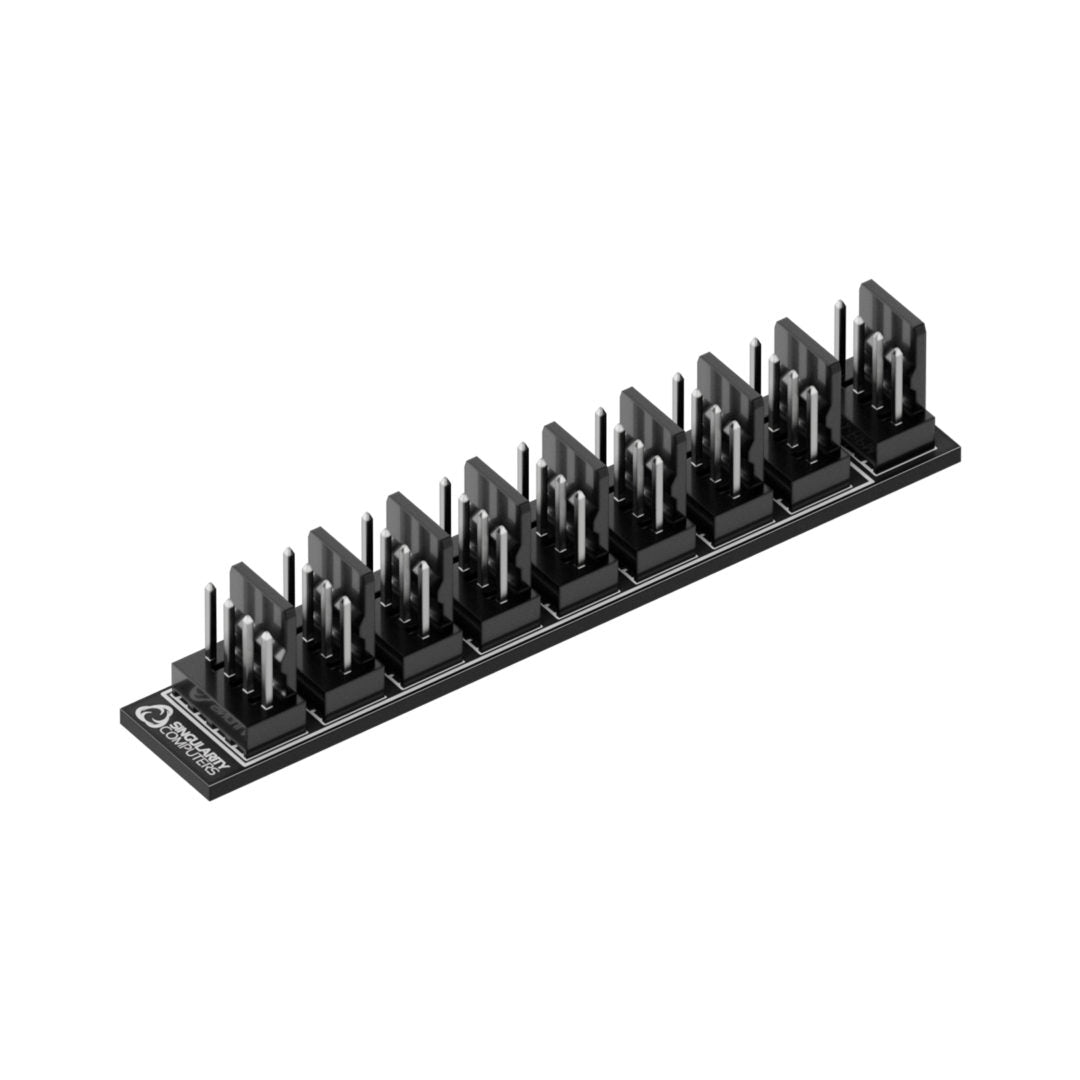

A custom designed Singularity Computers hub with high quality components and a dual layer PCB. The PCB and connectors are black with white logos and labelling. It has a PWM input which is split into 8 PWM outputs in a row. This hub draws power from the PWM input, so it does not require any extra power connections. It comes with a PWM cable to connect the hub to your motherboard or other device.

Specifications & Included Items:
SC Fan-Node 1Ã?8. Black Dual Layer PCB.
Inputs: PWM x1.
Outputs: PWM x 8 in a row.
Cable: Black Sleeved PWM 500mm.
PCB Dimensions: L75mm x W12mm x H15mm.
Packaged Dimensions & Weight: L150mm x W100mm x H20mm. 0.04kg.

Installation:
Connect the PWM Input to your motherboard or another compatible device using the included cable. Connect your fans to the hub.
