Singularity ComputersSingularity Computers FanGuardian PowerBoard ControllerSC - FG - PBC

Singularity Computers FanGuardian PowerBoard Controller

Name: Singularity Computers FanGuardian PowerBoard Controller
Brand: Singularity Computers
Price: 149.0 USD
Availability: OutOfStock

SC-FG-PBC

The FanGuardian PowerBoard Controller can be used with many of our newer PowerBoards.

Found a better price? Let us know and we'll try and match it!

Product variants

Estimate shipping

Country

Zip code

$149.00 USD Sold out

Shipping calculated at checkout.

Pickup currently unavailable at Performance-PCs.com

99% of orders ship same day M-F!
FREE Shipping Possible!
All-Star CS Team
30-Day Hassle Free Returns

Details

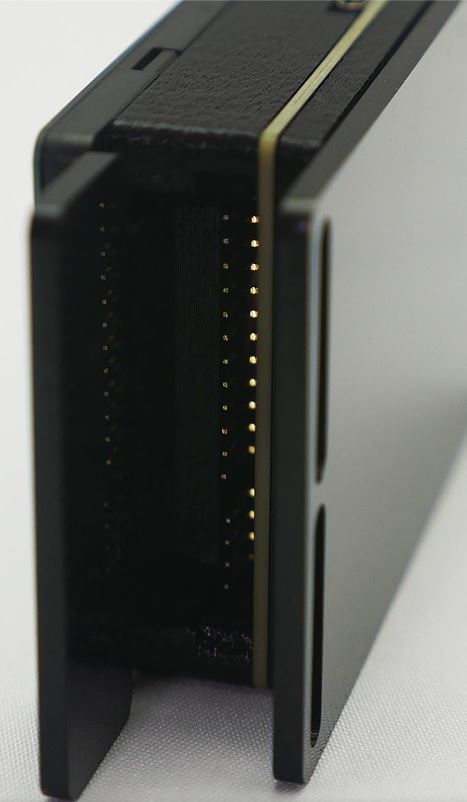

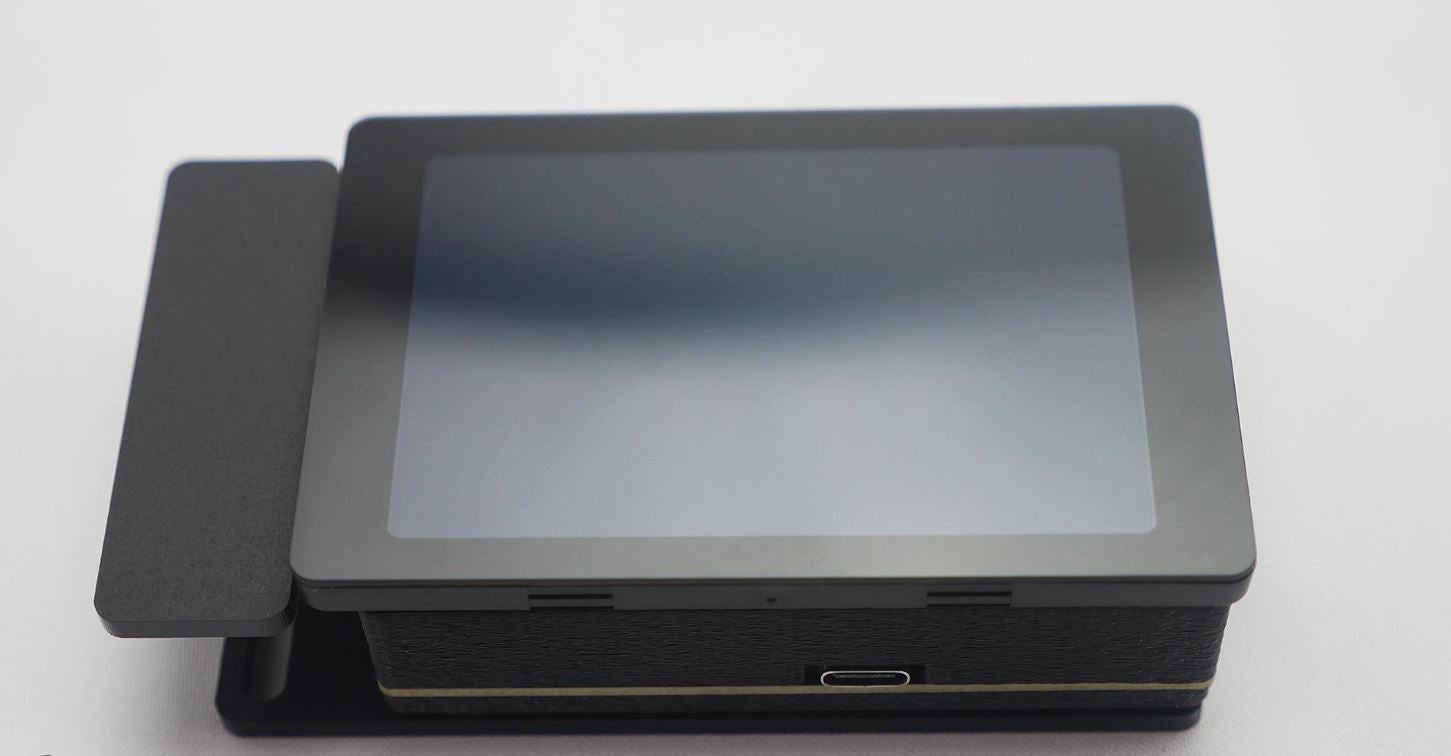

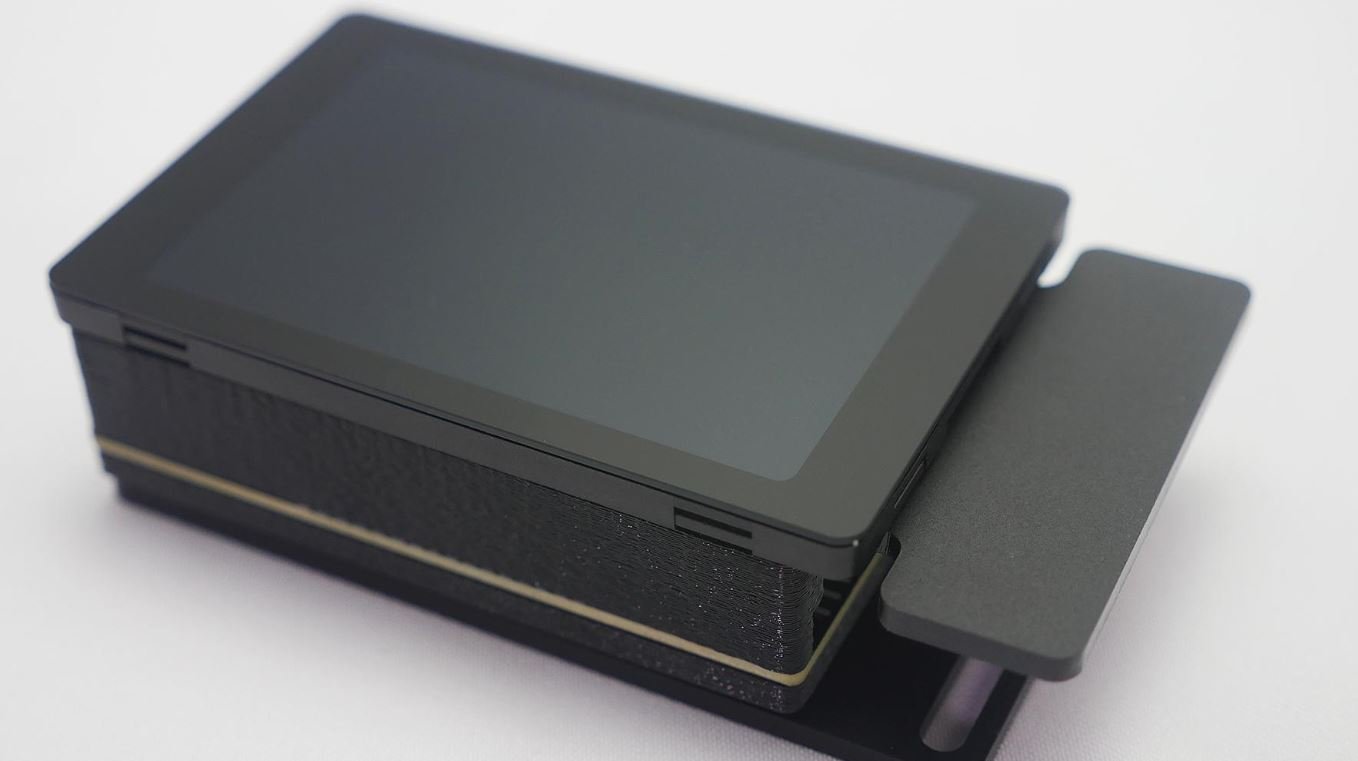

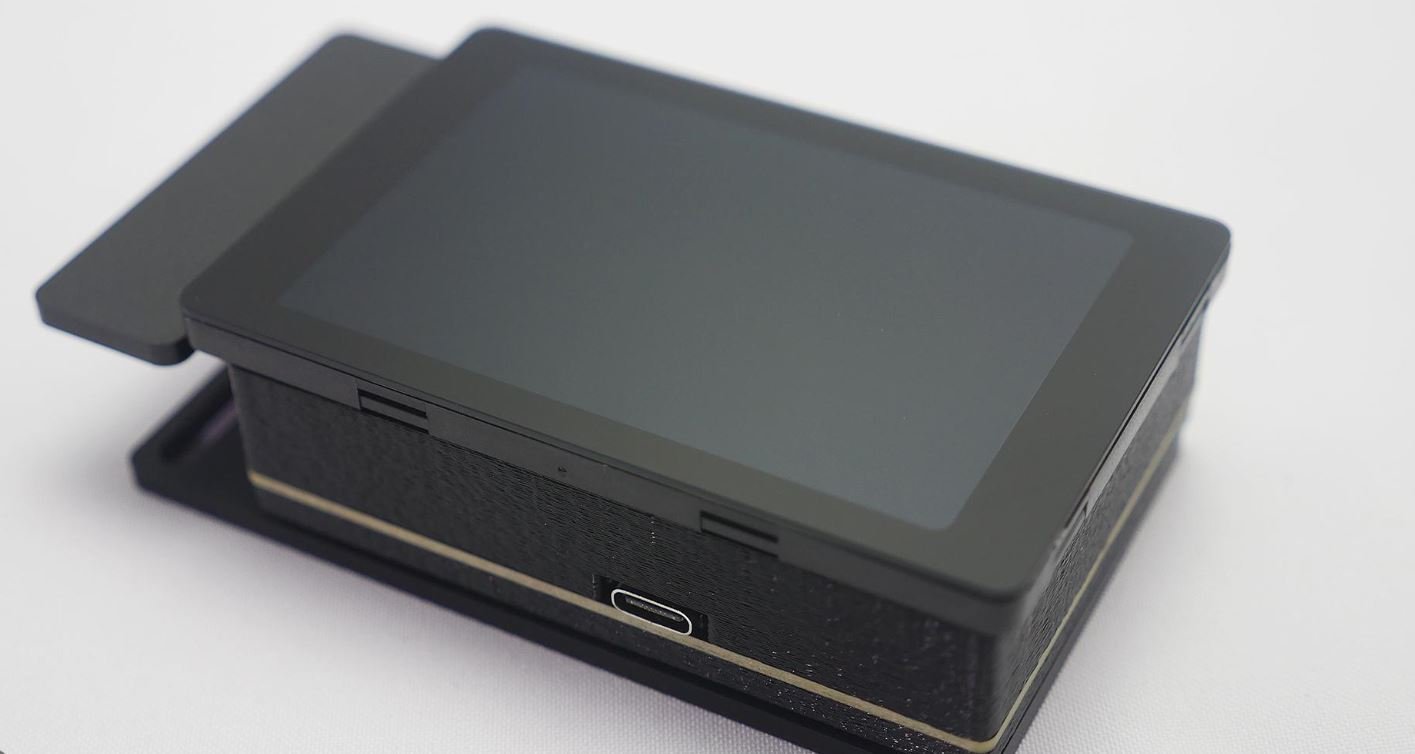

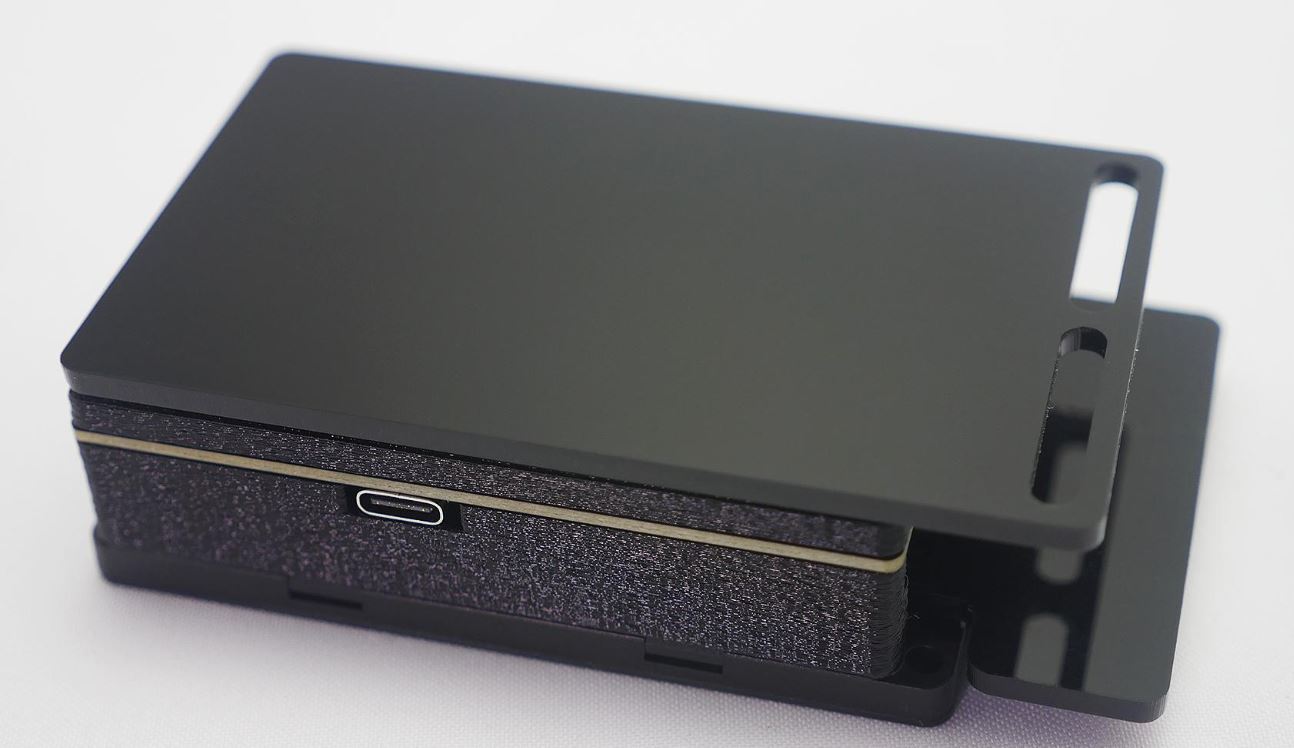

FanGuardian PowerBoard Controller

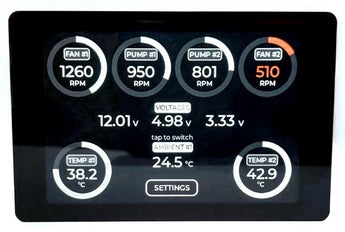

The FanGuardian PowerBoard Controller can be used with many of our newer PowerBoards. It is a 3.5” touch screen in a hard case. It controls ARGB lighting colors and has different effects and functions. It monitors RPMs, temperatures and voltages. It has an inbuilt Ambient Temperature Monitor. A low RPM warning can be set on all PWM channels. It can be mounted with fasteners onto Spectre 4 and Stream-M Water-cooling cases and with adhesive on the SC Test Bench, SC Rackmount Case and PowerBoard Universal 360mm. It has updateable Software/Firmware and we will continue adding features.

Features

Features:
Control ARGB lighting colors and effects/functions.
Monitors RPMs, Temperatures and Voltages.
Inbuilt Ambient Temperature Monitor.
Low RPM Alert feature.
Temperature based lighting control.
Latest firmwares and our opensource projects:
https://github.com/SingularityComputers/FanGuardianUI
https://github.com/SingularityComputers/FanGuardianController

Software/firmware updates:
The next update will include:
Color schemes: Red, green, blue, white and dark theme.

Installation:
Can be used with the following PowerBoards:
Spectre 4 Water-cooling Case (All versions).
Spectre 4 Enterprise Water-cooling Case.
Spectre 4 Quantum Water-cooling Case.
Stream-M Water-cooling Case (All versions).
SC Test Bench.
SC Rackmount Case.
PowerBoard Universal 360mm.
On all Spectre 4 cases it can be mounted via two of the fasteners on the distribution plate. Make sure to tension distribution plate fasteners to 0.35nm.
See manual for more information.

Specifications

Specifications & Included Items:
Fanguardian PowerBoard Controller.
3.5” Capacitive Touch LCD. Resolution 480×320. 60mmx92mmx10.8mm.

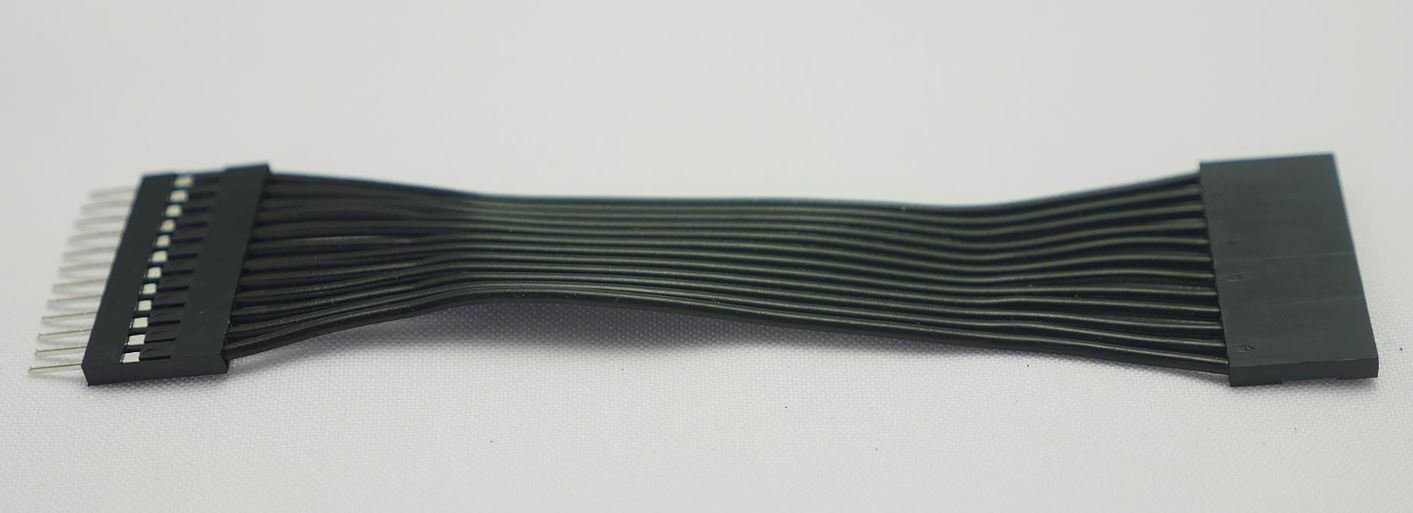

Cable: Black cable to connect Fanguardian PowerBoard Controller to the PowerBoard.
Product Dimensions: L: 70mm x W: 100mm x H: 30mm.
Product Weight: 0.2kg.
Packaged Dimensions: L: 100mm x W: 130mm x H: 50mm.
Packaged Weight: 0.3kg.
