Singularity Computers Hyte Y70 DDC Distribution Plate Set

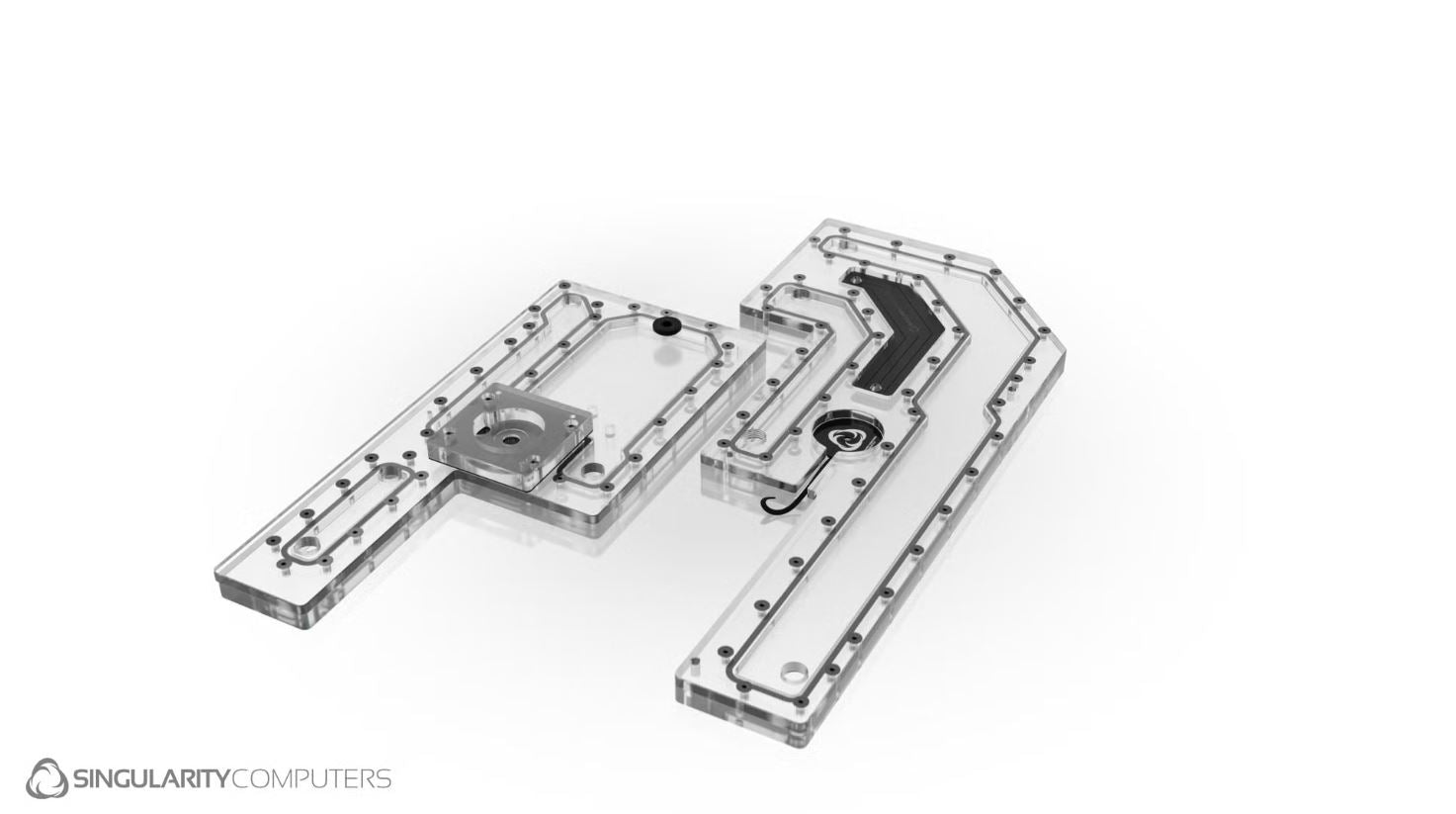

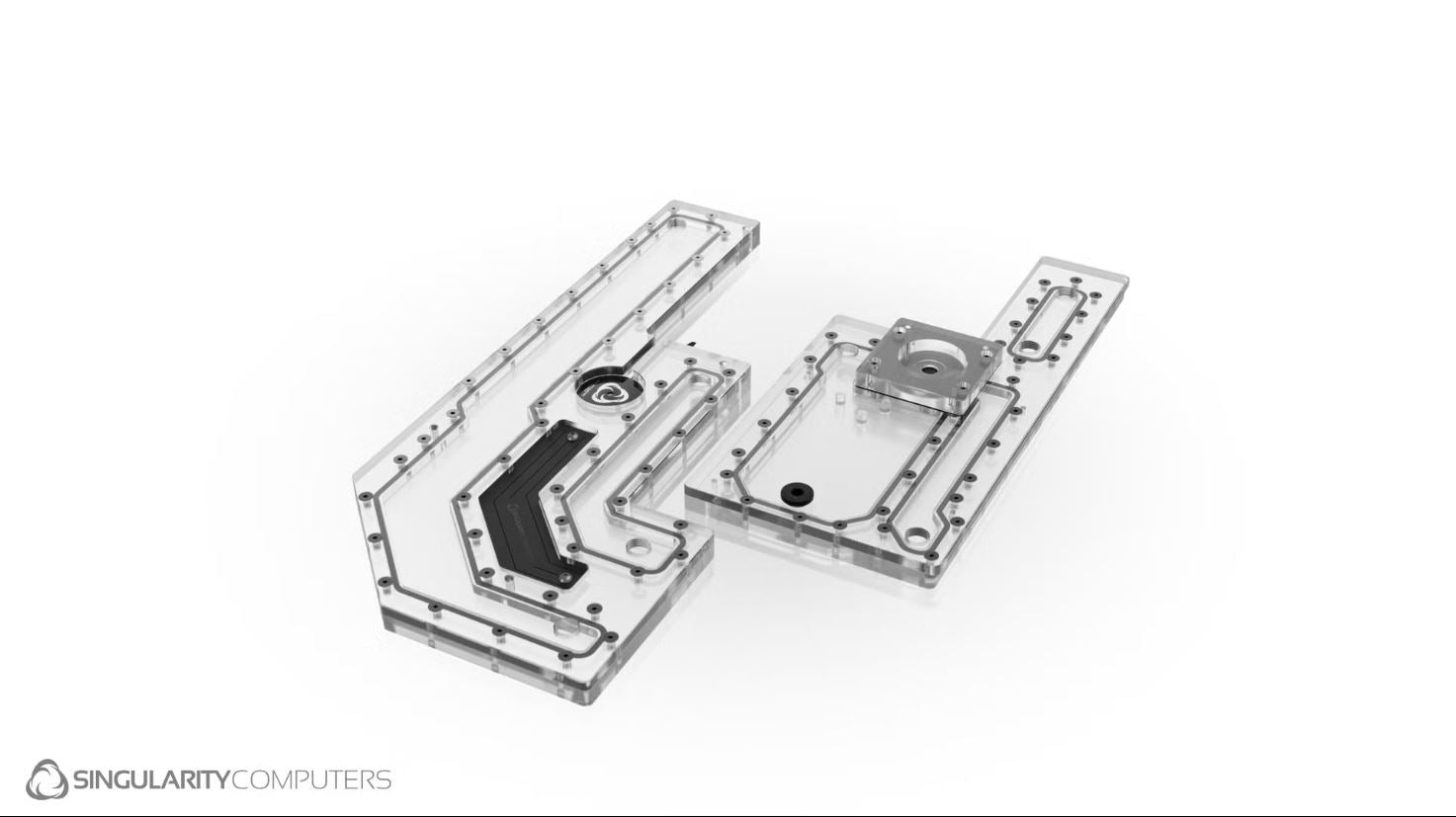

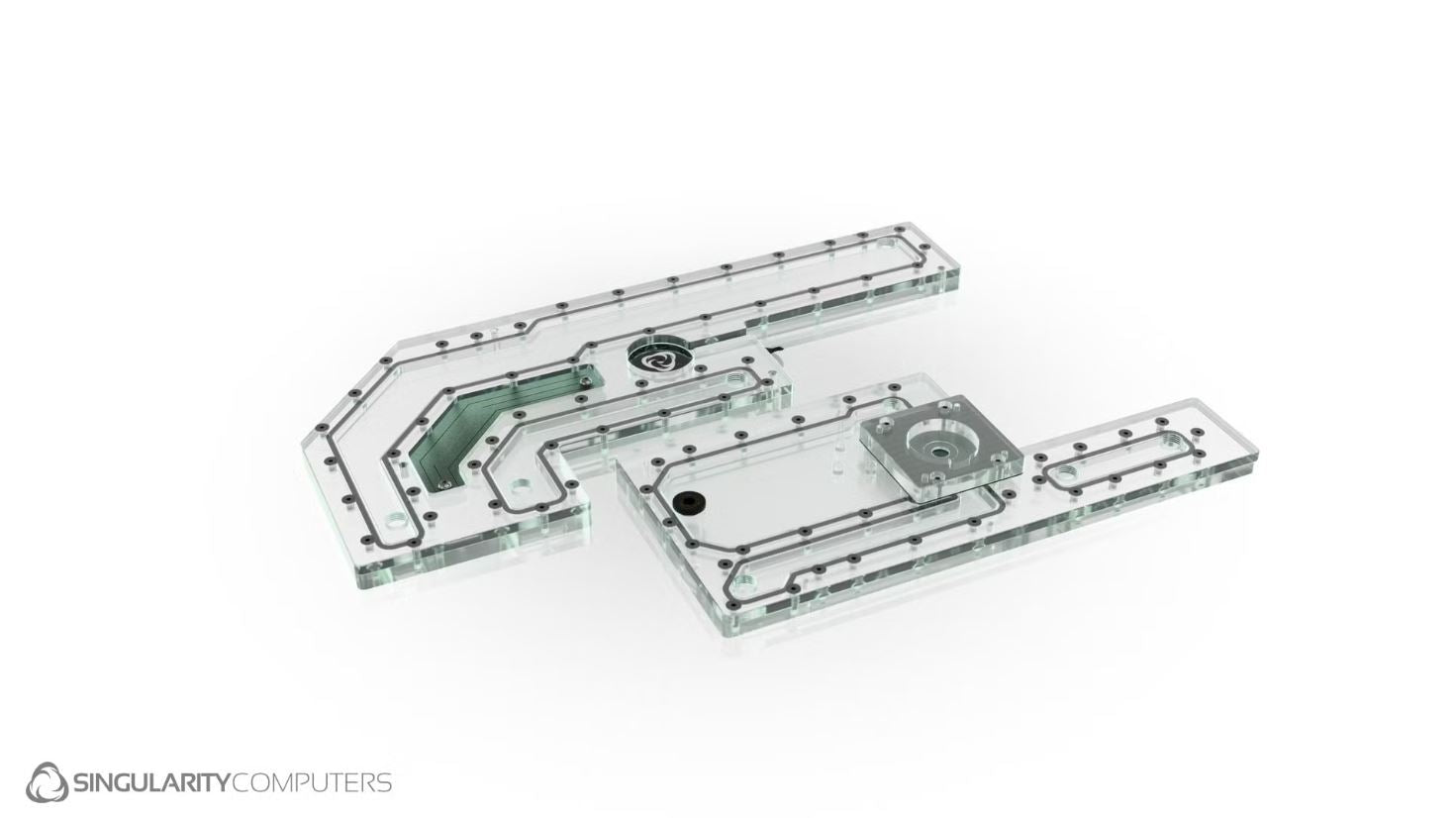

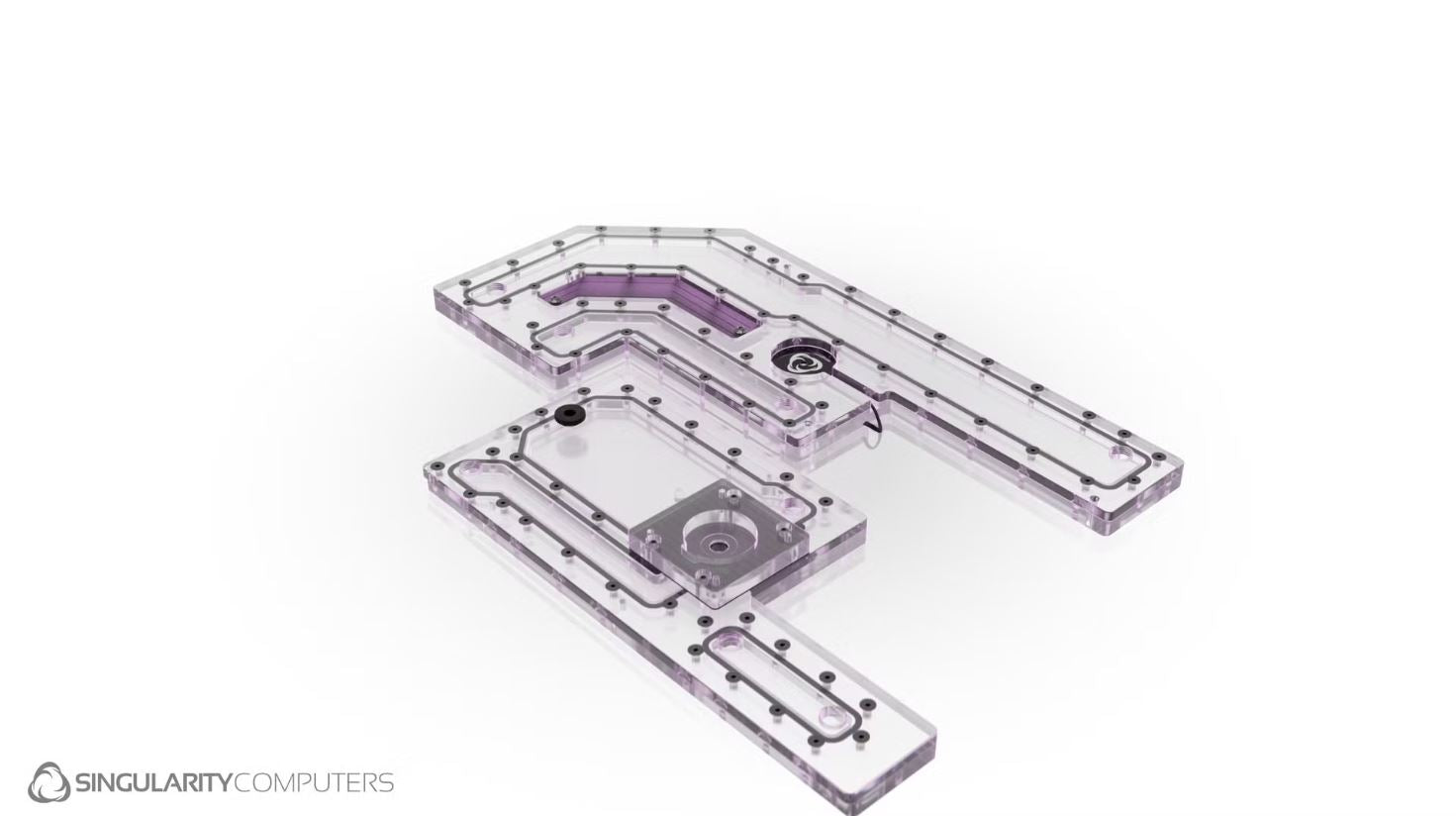

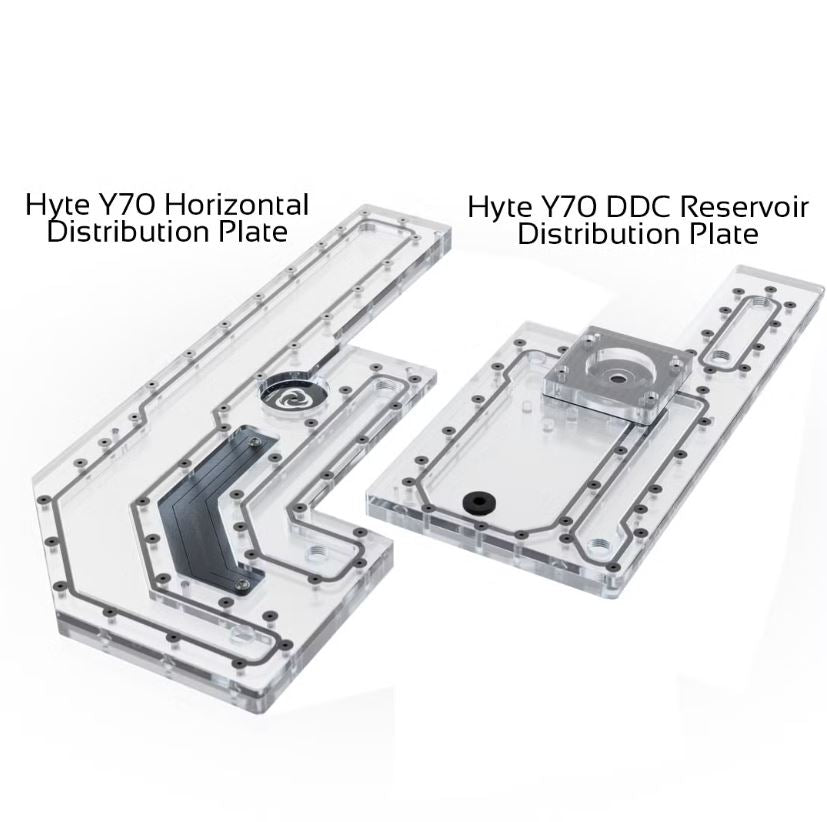

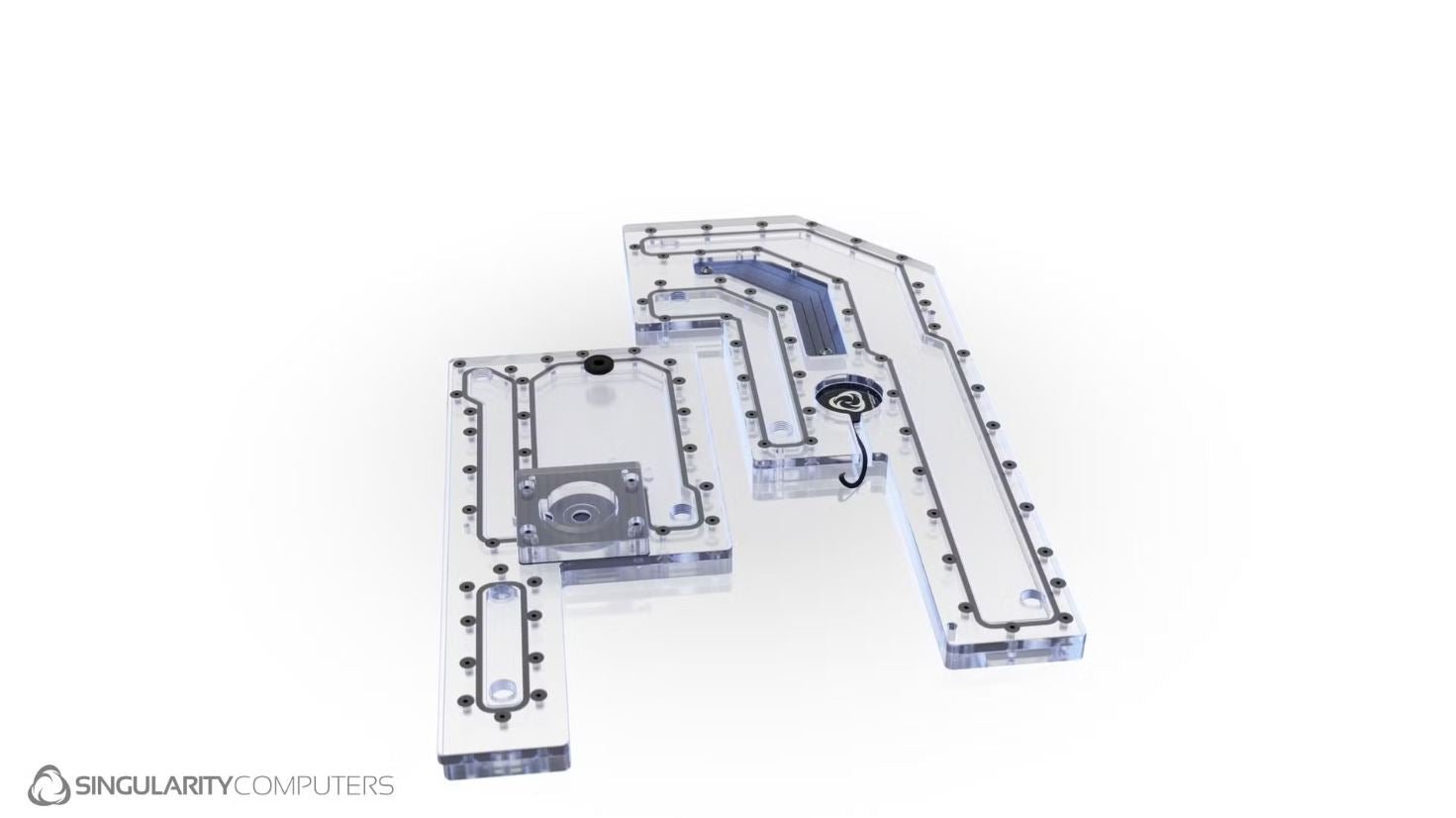

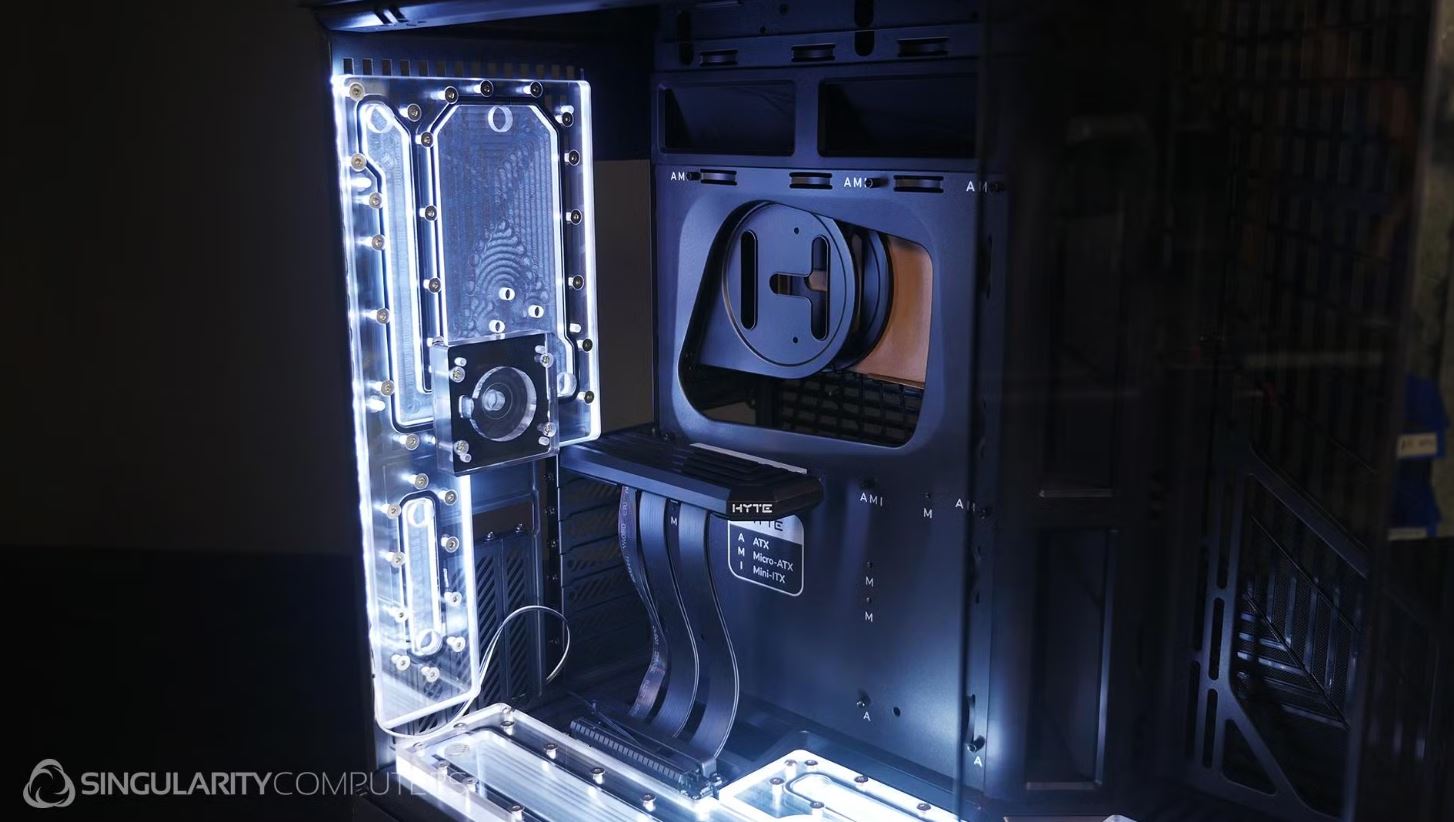

The Hyte Y70 Distribution Plate Set includes the Hyte Y70 Pump Reservoir Distribution Plate and the Hyte Y70 Horizontal Distribution Plate. This is a single loop distribution plate set. Both distribution plates can be used together or separately but the loop route is optimal if they are used together. The Pump Reservoir Distribution Plate mounts onto the rear panel and has an integrated Pump Top (DDC) and reservoir. The Horizontal Distribution Plate mounts below the motherboard on the bottom panel. The distribution plates are built from CNC machined clear cast acrylic and use gaskets instead of O-Rings for increased durability. They are hand assembled with stainless steel fasteners. On the horizontal distribution plate there is an integrated ARGB PCB and there is an ARGB LED strip included for the vertical distribution plate. There is a back plate included for the DDC Reservoir Distribution Plate and a cover for the Horizontal Distribution Plate.

DDC Pump not included.

Note: Compatible with Hyte Y70 Touch Infinite.

Installation:

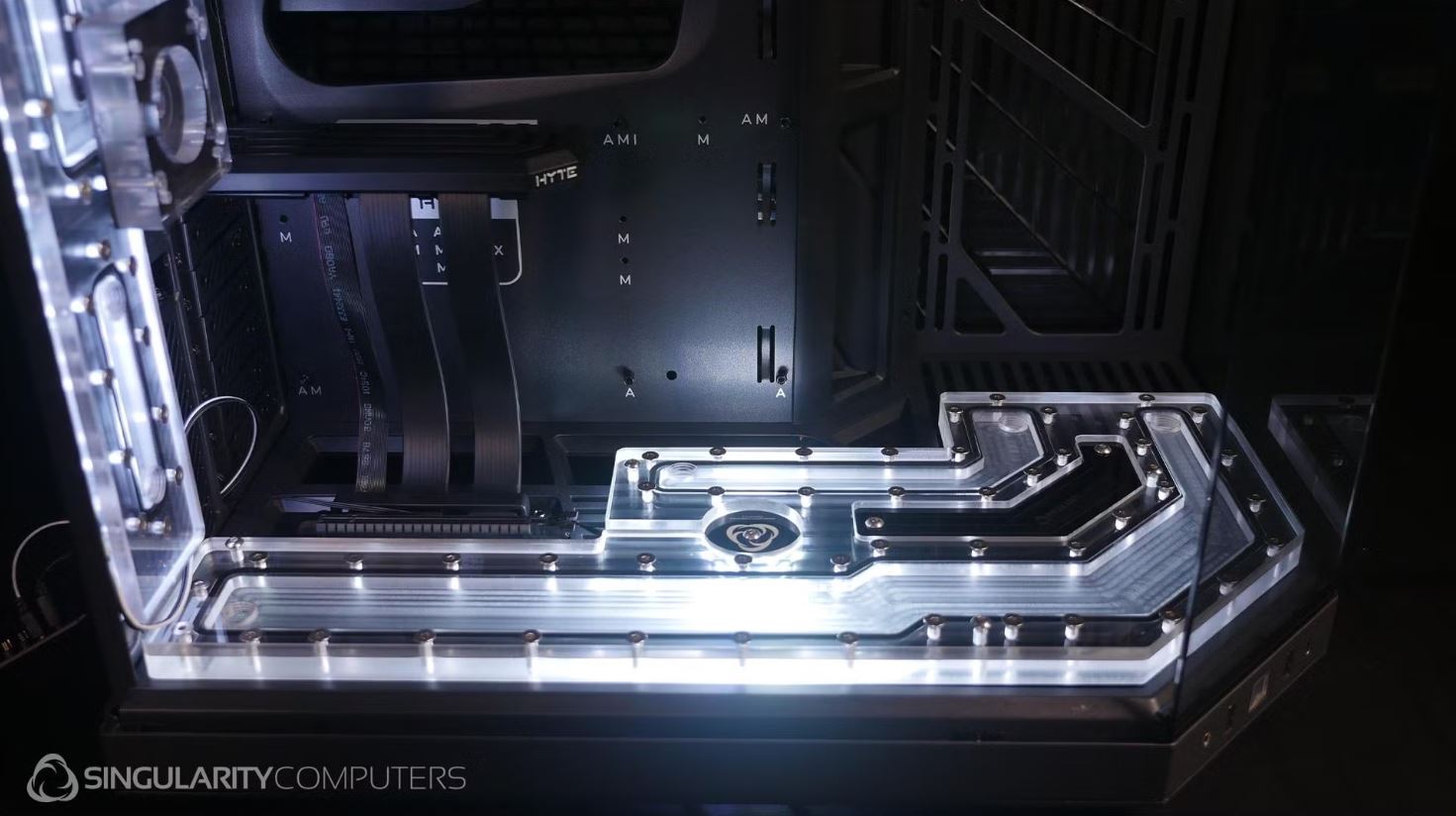

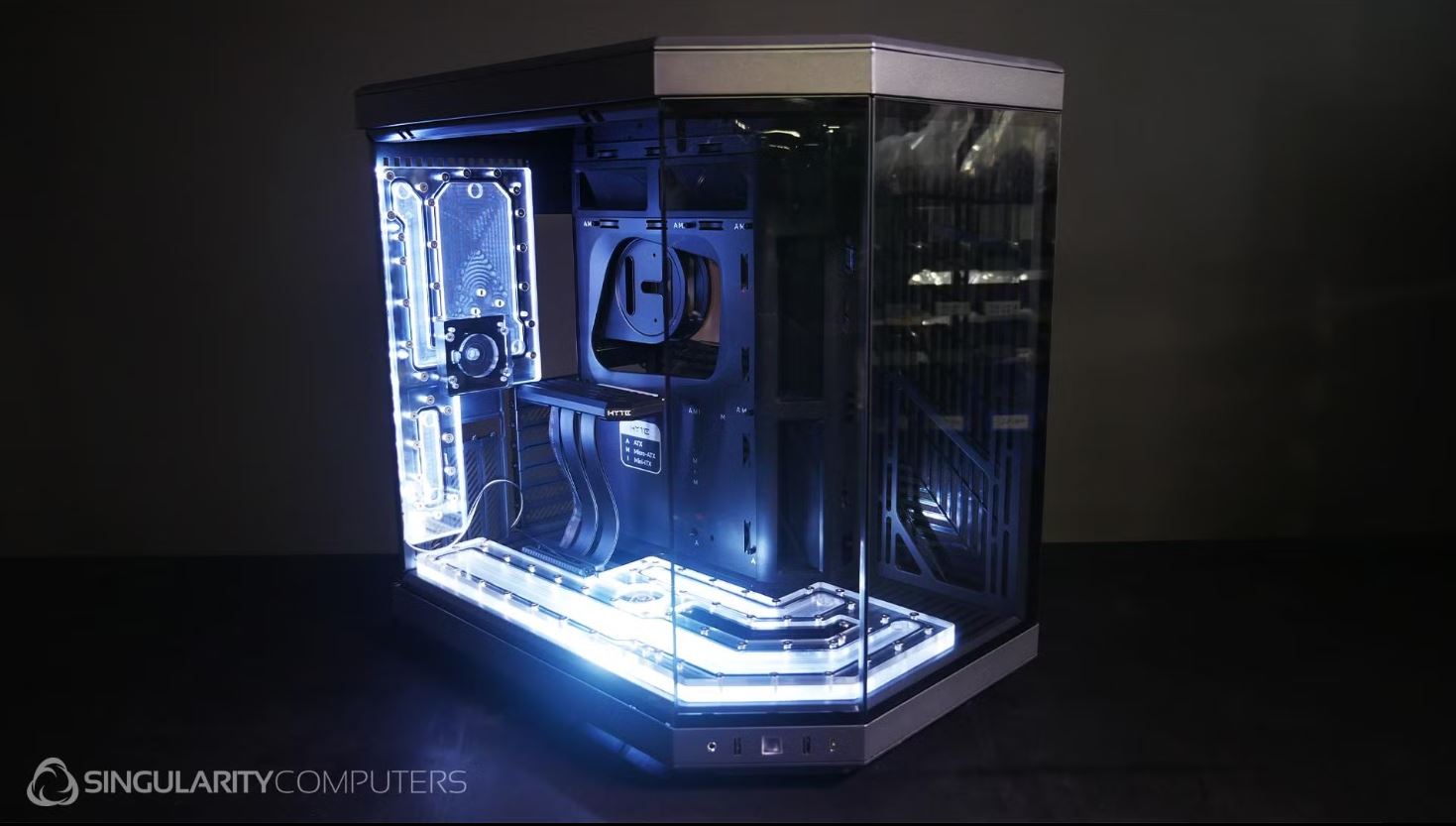

This distribution plate set includes a horizontal distribution plate which installs onto the bottom panel of the Hyte Y70 below the motherboard, and a vertical distribution plate which mounts to the rear panel of the case. Both distribution plates mount to existing holes on the case, there are no modifications needed.

Specifications:

Hyte Y70 Distribution Plate Set. The set can be purchased together or separately (select above).

Hyte Y70 Pump Reservoir Distribution Plate.

Hyte Y70 Pump Reservoir Distribution Plate Cover.

Hyte Y70 Horizontal Distribution Plate.

Integrated ARGB LED PCB x1 with 30cm black cable.

ARGB LED Strip 50cm x1 with black 50cm cable.

Fasteners: Stainless Steel. M4 8mm x4, M4 Washers x4. M4 22mm x4, M4 Washers x4, M4 Nuts x4.

Gaskets: Silicone Black.

Materials: Cast Acrylic.

Manufacturing Process: CNC Router.

Assembly: Assembled by hand and pressure tested.

Packaged Dimensions: L: 400mm x W: 300mm x H: 100mm.

Packaged Weight: 5kg.
