Singularity Computers Mega - NodeSC-MEGA-N

Singularity Computers Mega-Node

Name: Singularity Computers Mega-Node
Brand: Singularity Computers
Price: 69.0 USD
Availability: InStock

SC-MEGA-N

A custom designed Singularity Computers active powered PWM hub with high quality components and a dual layer PCB.

Found a better price? Let us know and we'll try and match it!

Product variants

Estimate shipping

Country

Zip code

Quantity

1 in stock

$69.00 USD

Shipping calculated at checkout.

Pickup available at Performance-PCs.com

Usually ready in 1 hour

99% of orders ship same day M-F!
FREE Shipping Possible!
All-Star CS Team
30-Day Hassle Free Returns

Details

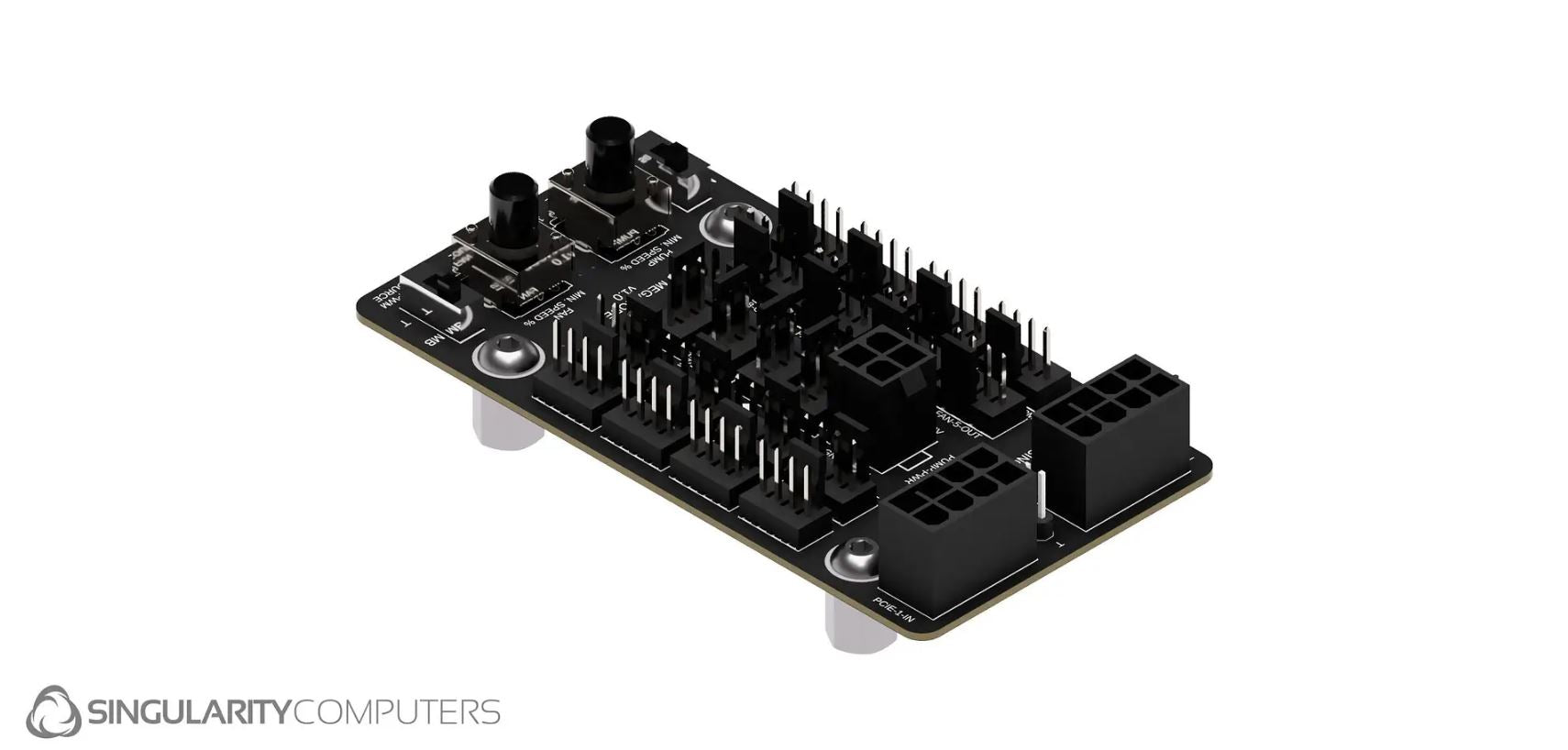

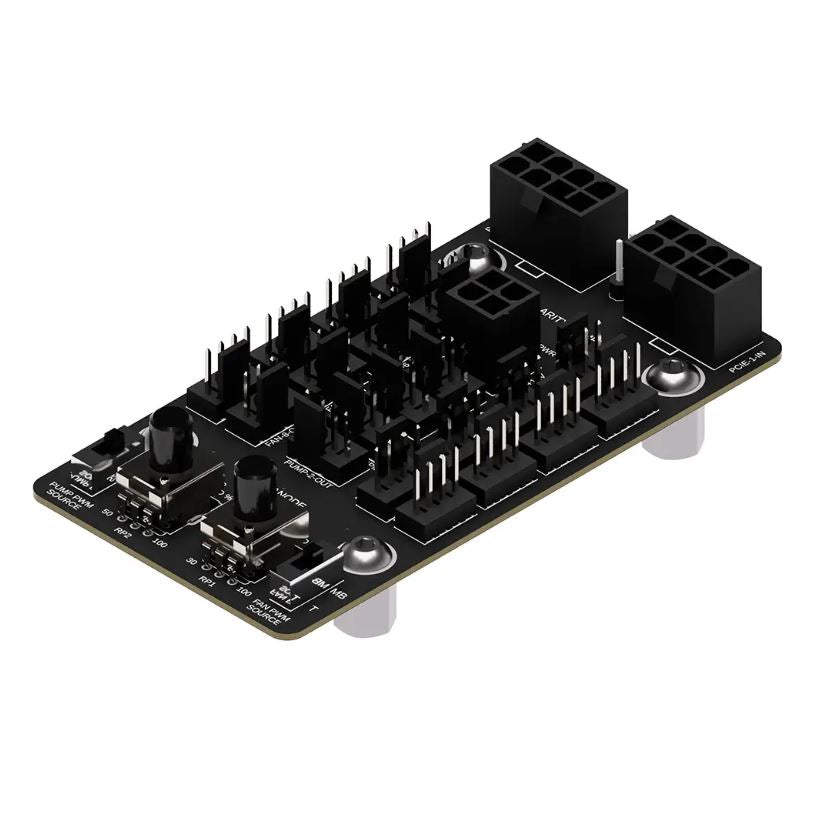

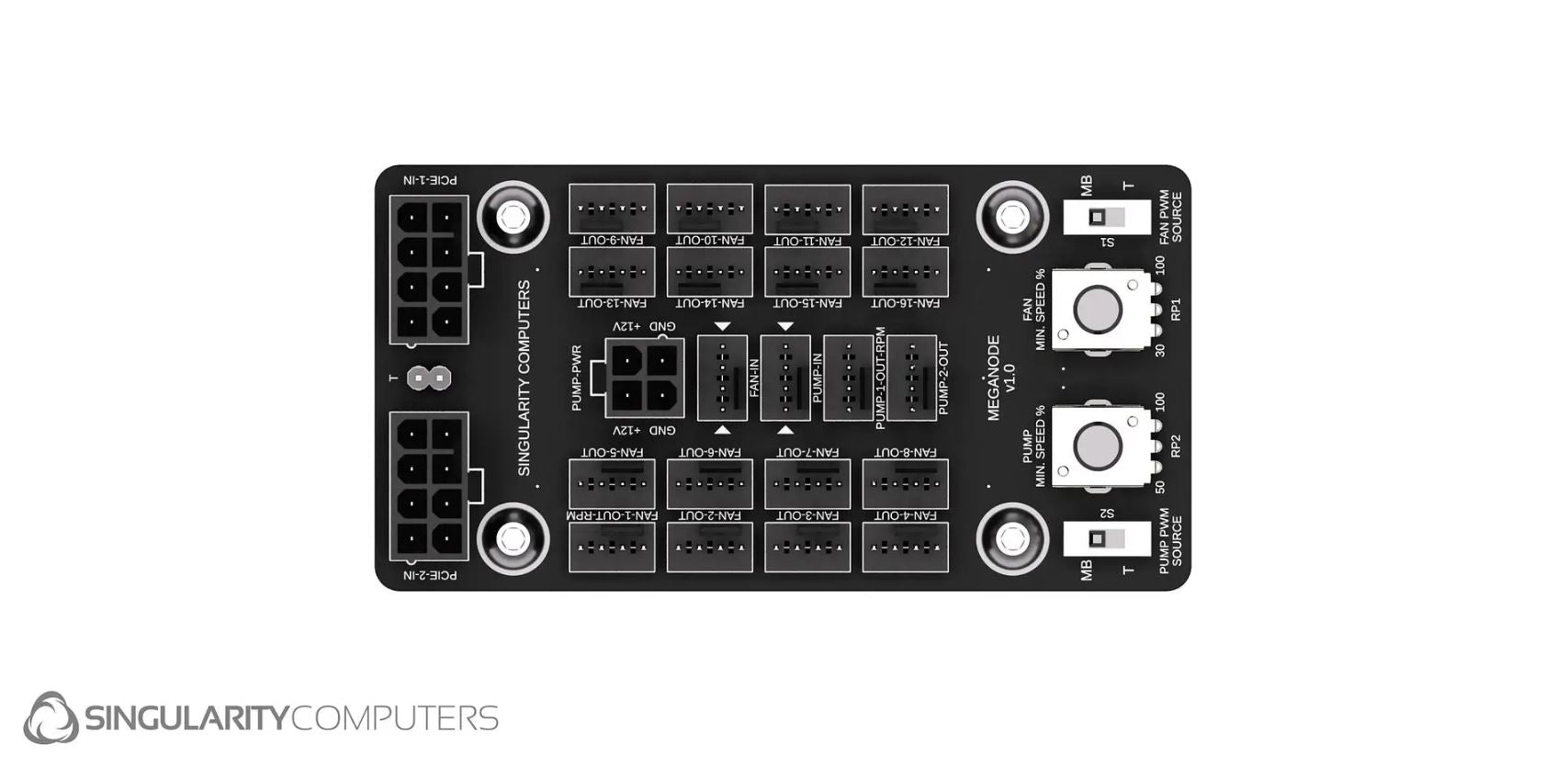

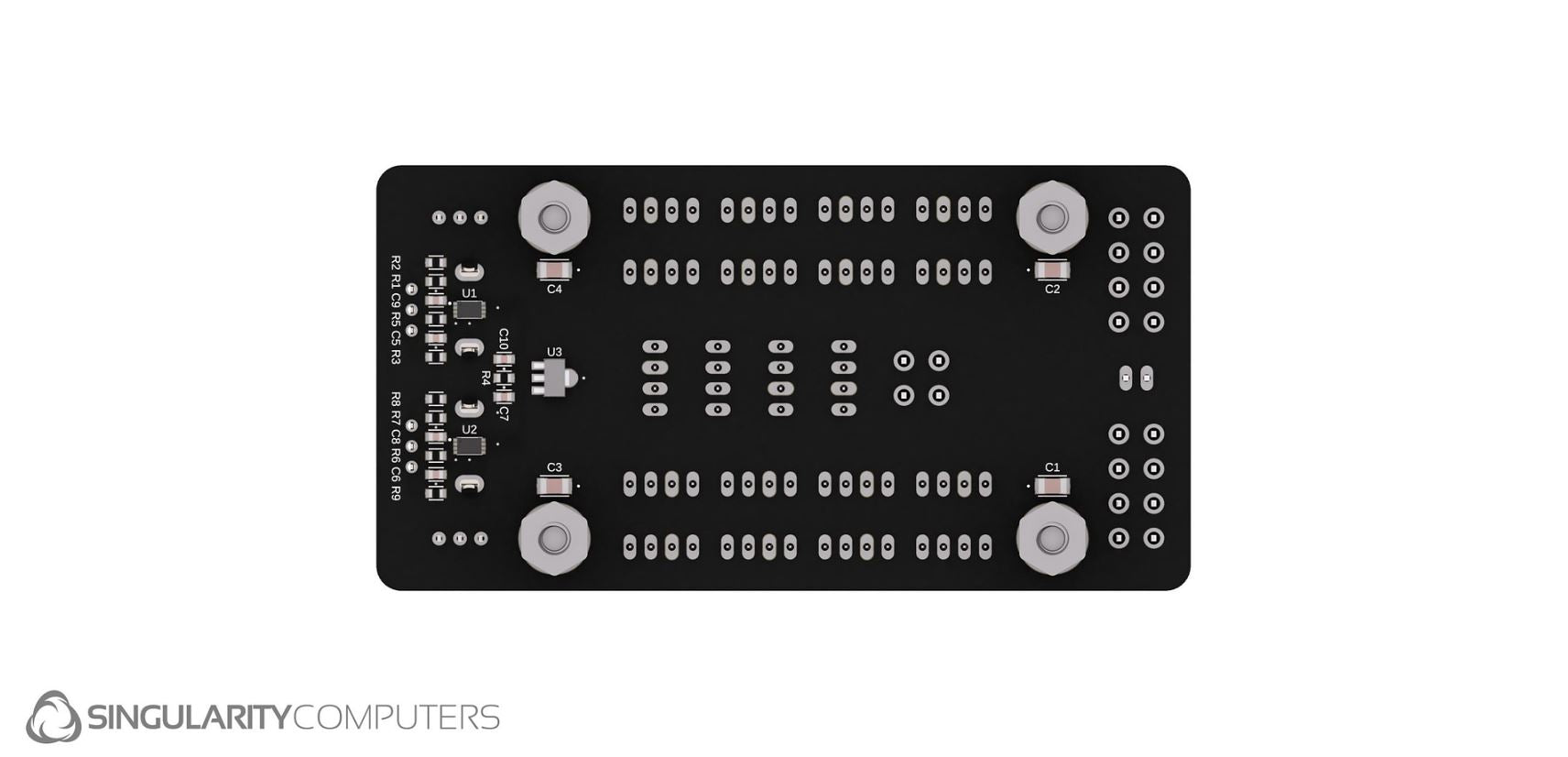

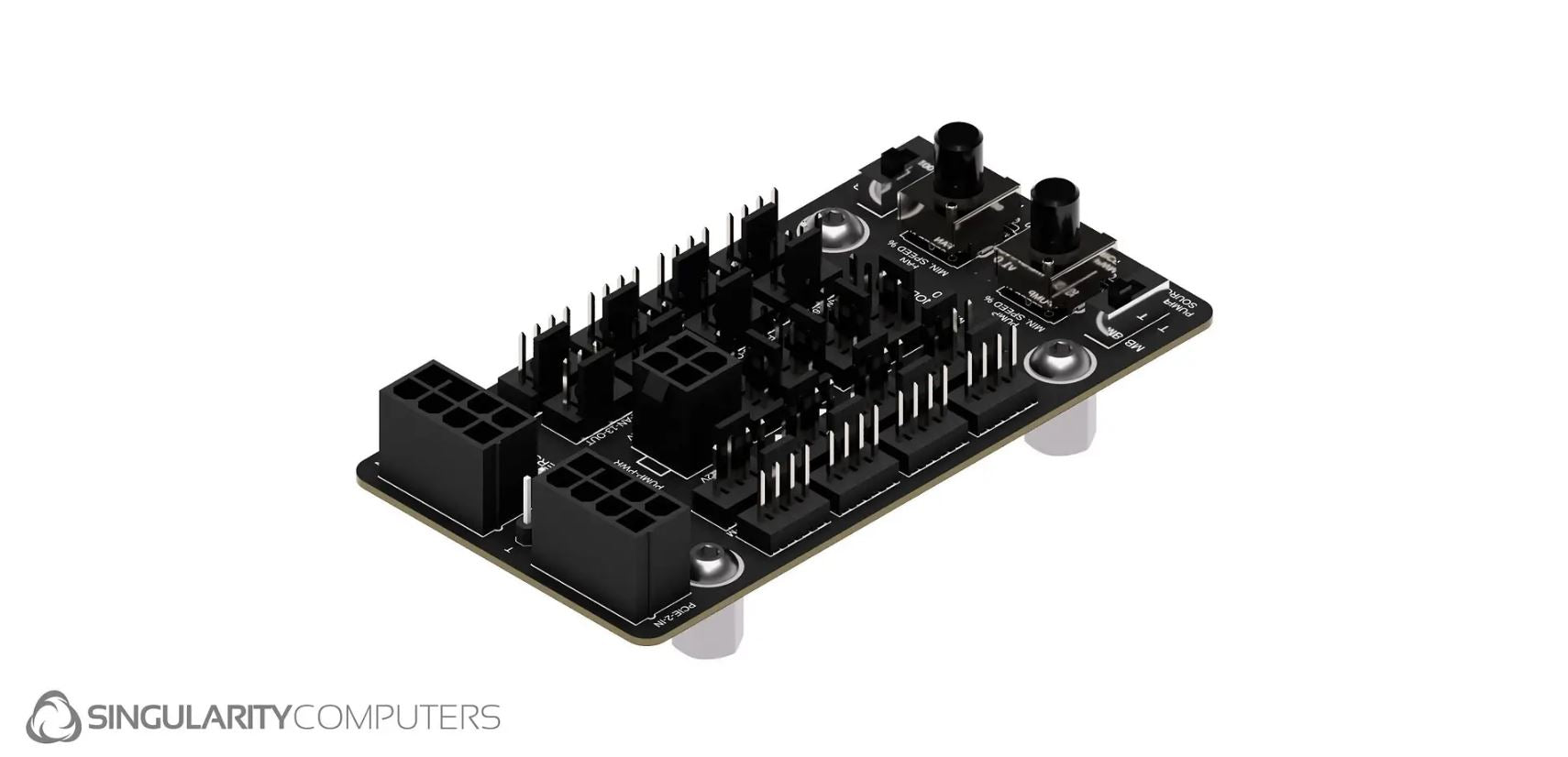

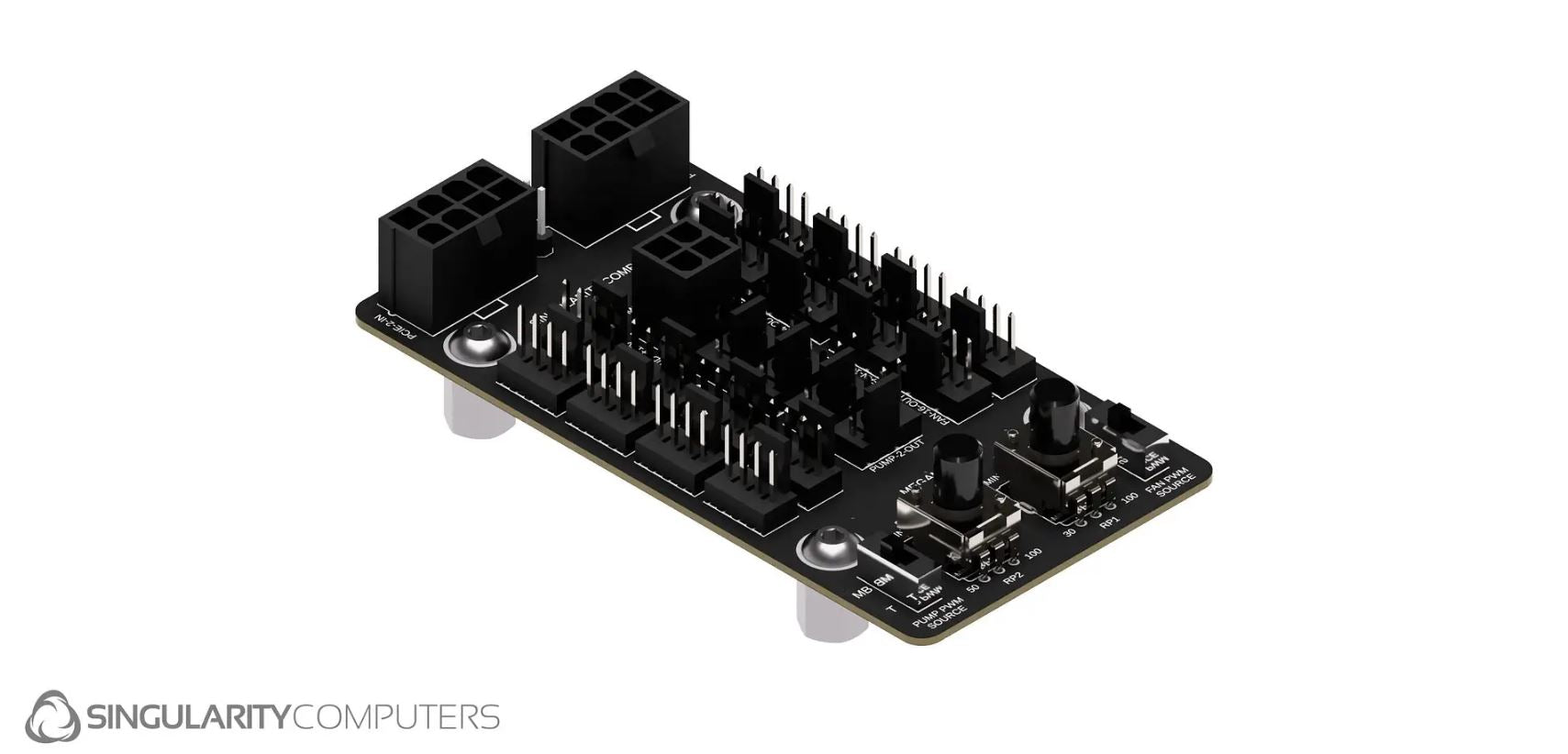

A custom designed Singularity Computers active powered PWM hub with high quality components and a dual layer PCB. The PCB and connectors are black with white logos and labeling. It has PWM inputs for the fans and pumps. Only the outputs labeled FAN-1-OUT-RPM and PUMP-1-OUT-RPM displays RPM so there are no RPM conflicts from the other PWM connections. The hub has 2 active PWM control circuits to adjust the speed of the connected fans and pumps based on the temperature of the coolant without the need of a motherboard. The potentiometers adjust the PWM speed response to the temperature reading while the switches allow choosing between motherboard and temperature-based local PWM speed control. It also has a dedicated 4pin ATX connector to power up to 2x pumps.

Specifications

Specifications & Included Items:
SC Mega-node. Black Dual Layer PCB.
Inputs: PWM x2 (1x FAN 1x PUMP). PCIE 8pin x2. T-sensor (10K NTC thermistor).
Outputs: PWM x18 (16x FAN 2x PUMP). 4Pin ATX.
Cables: Black: 2x PWM 500mm.
Fasteners: 4x M4 female standoffs. 4X M4 male standoffs, 4x M4 6mm BH
A PCIE 8pin power connector can supply up to 150W of power to the fans and pumps, total power limit is 300W with both inputs used.

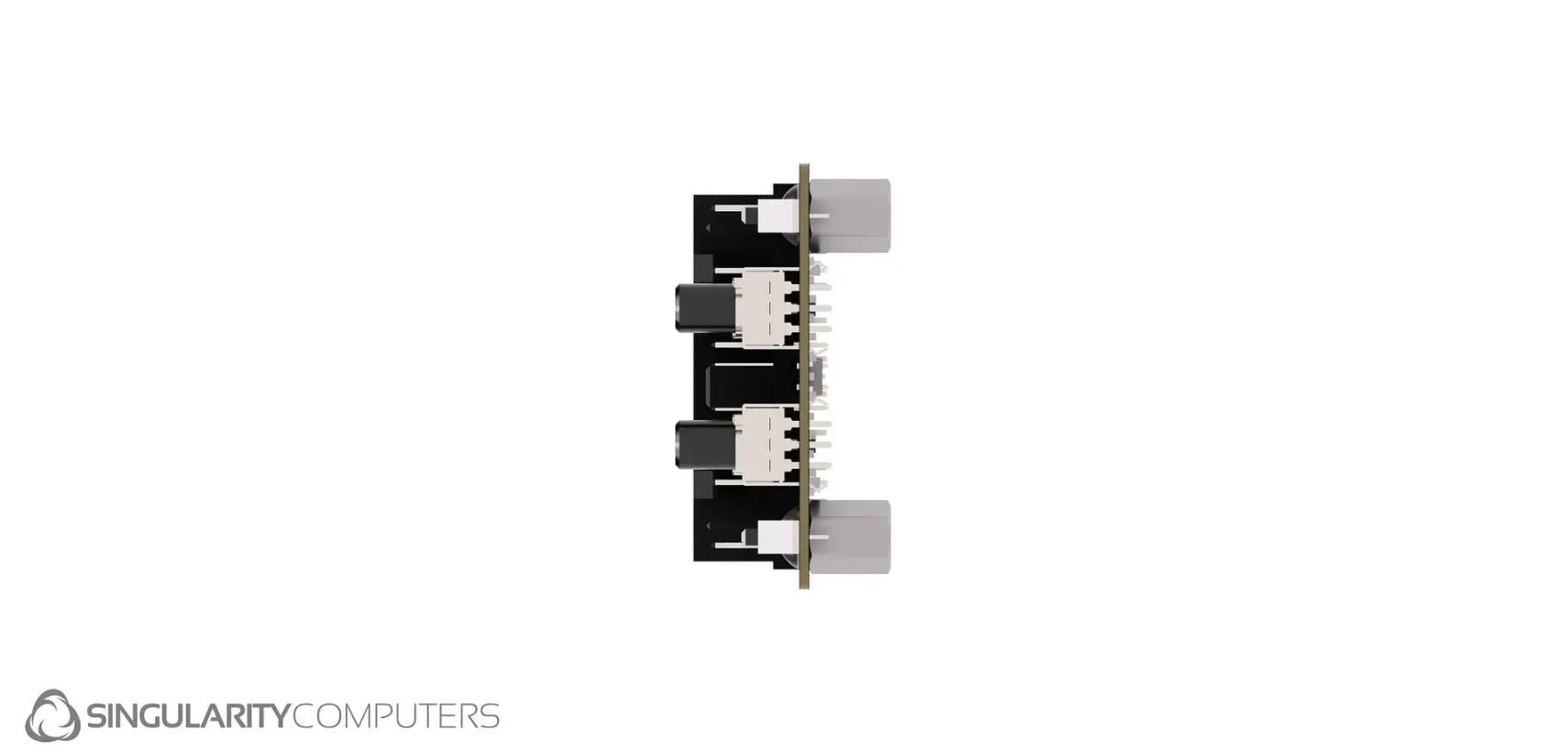

PCB Dimensions: L98.7mm x W51.6mm x H26.2mm.
Packaged Dimensions & Weight: L100mm x W20mm x H40mm. 0.1kg.

Installation:
Connect the PWM inputs to your motherboard (optional) or another compatible device using the included cables. Connect a general temperature sensor to the â??Tâ? header. Connect your fans and pumps to the hub.
