Singularity Computers PowerBoard Absolute Case

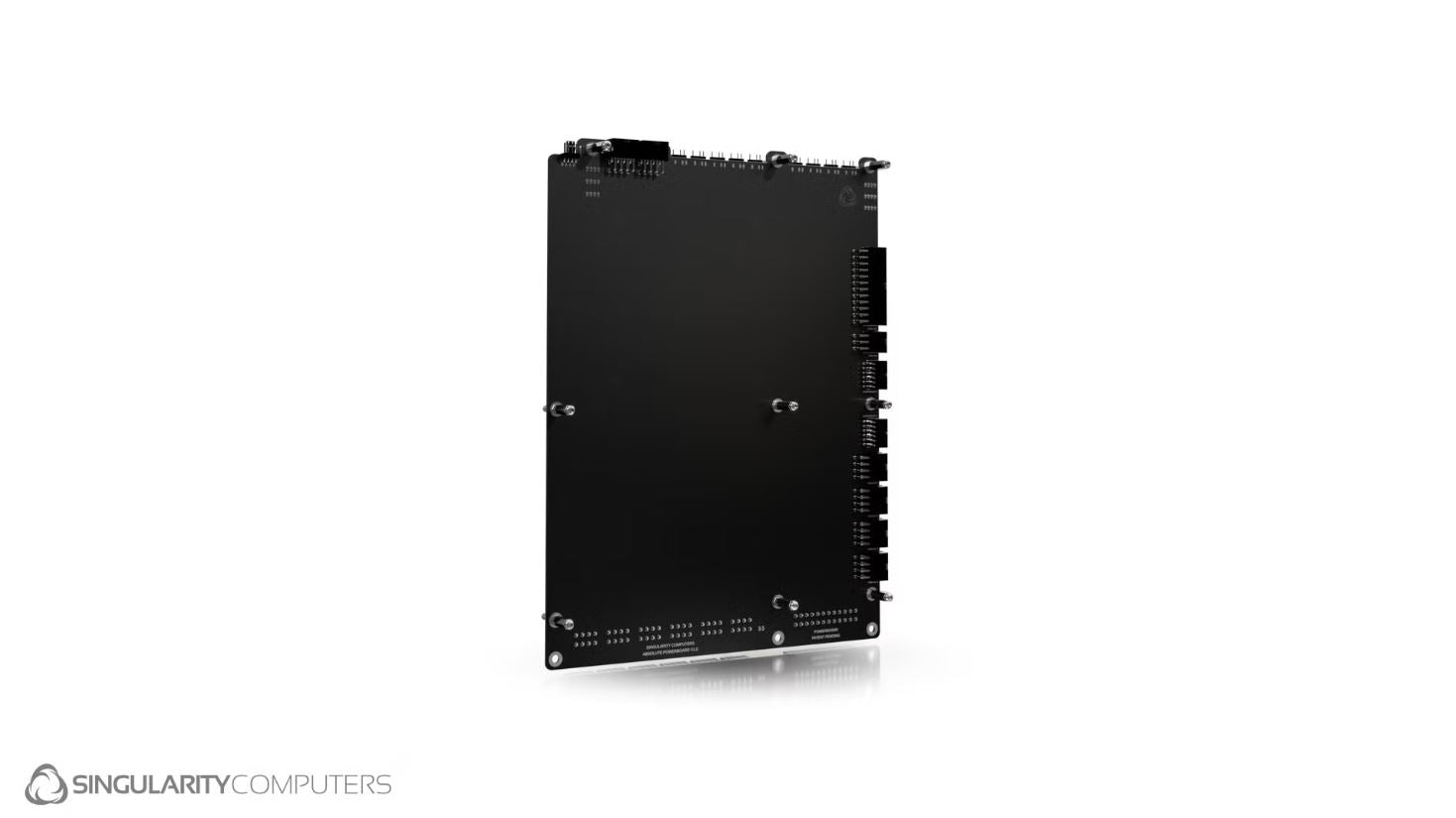

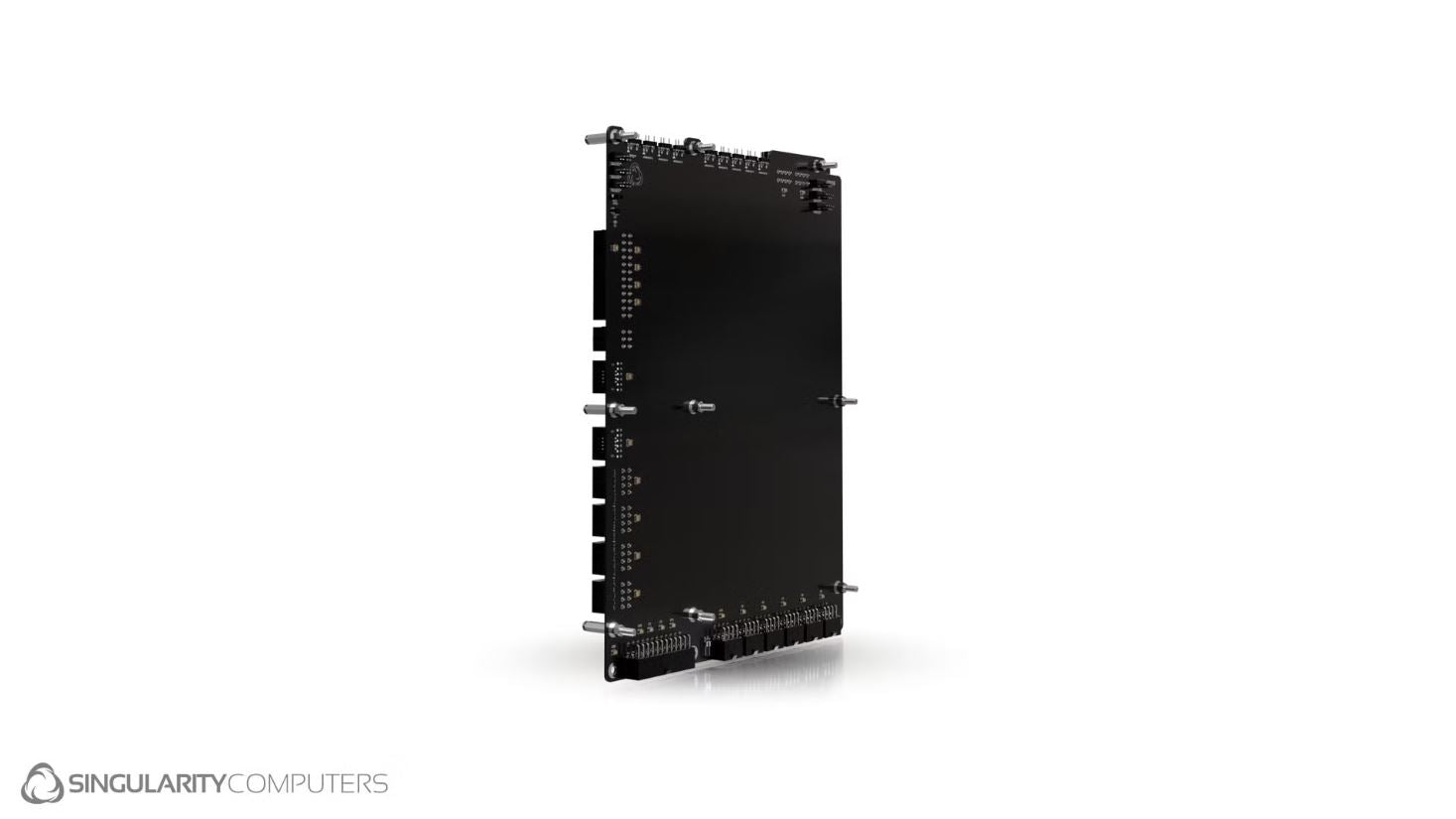

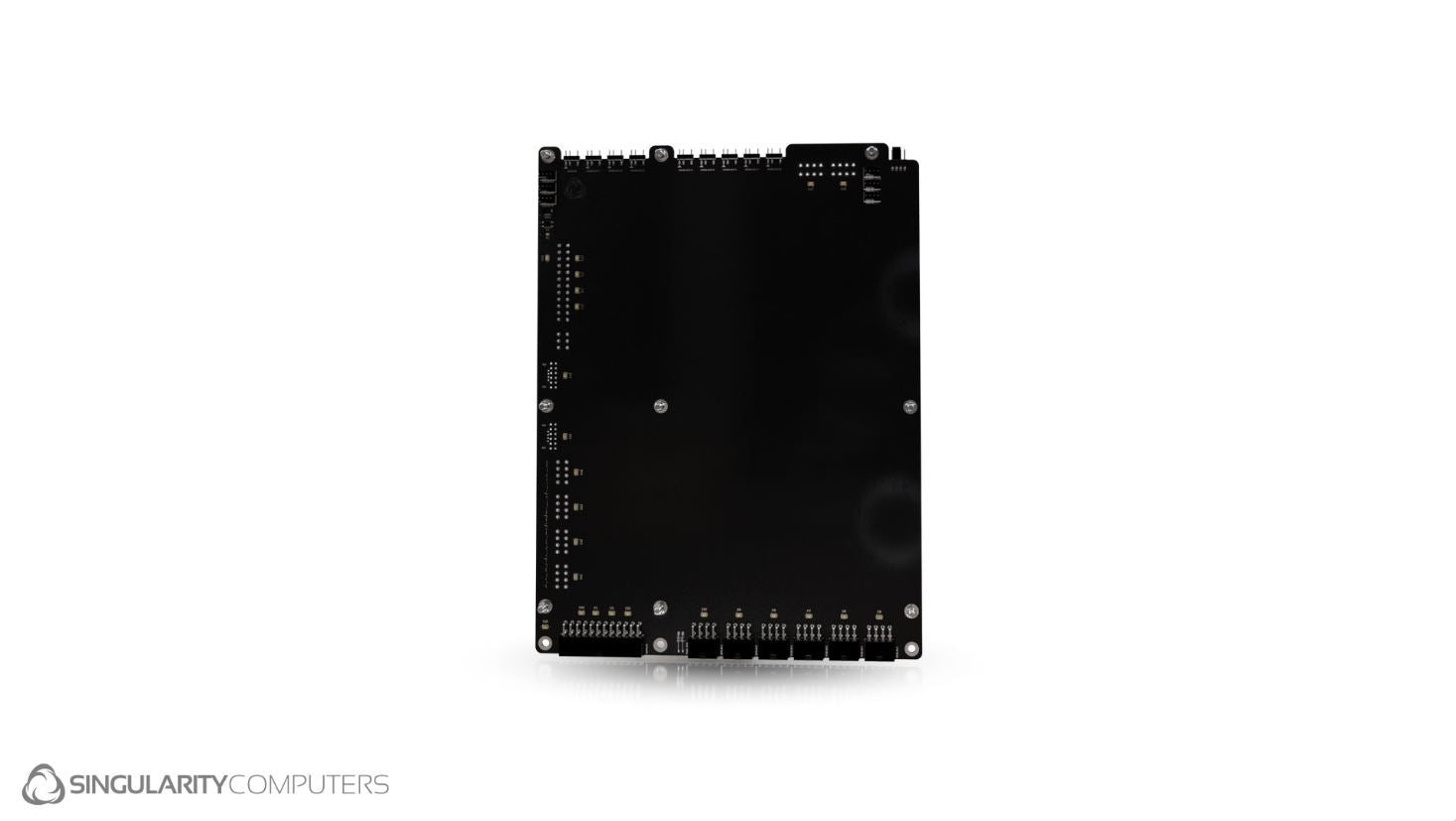

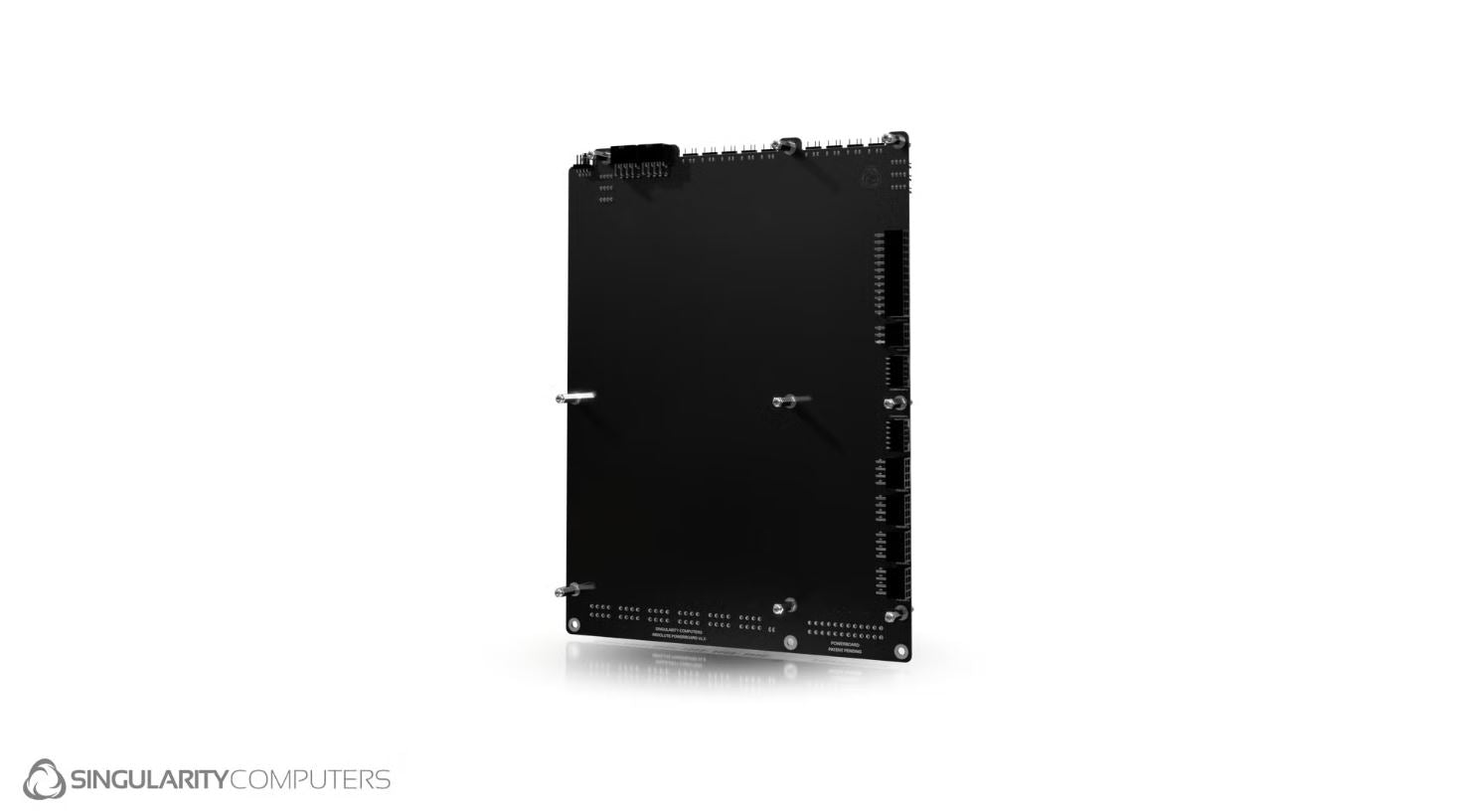

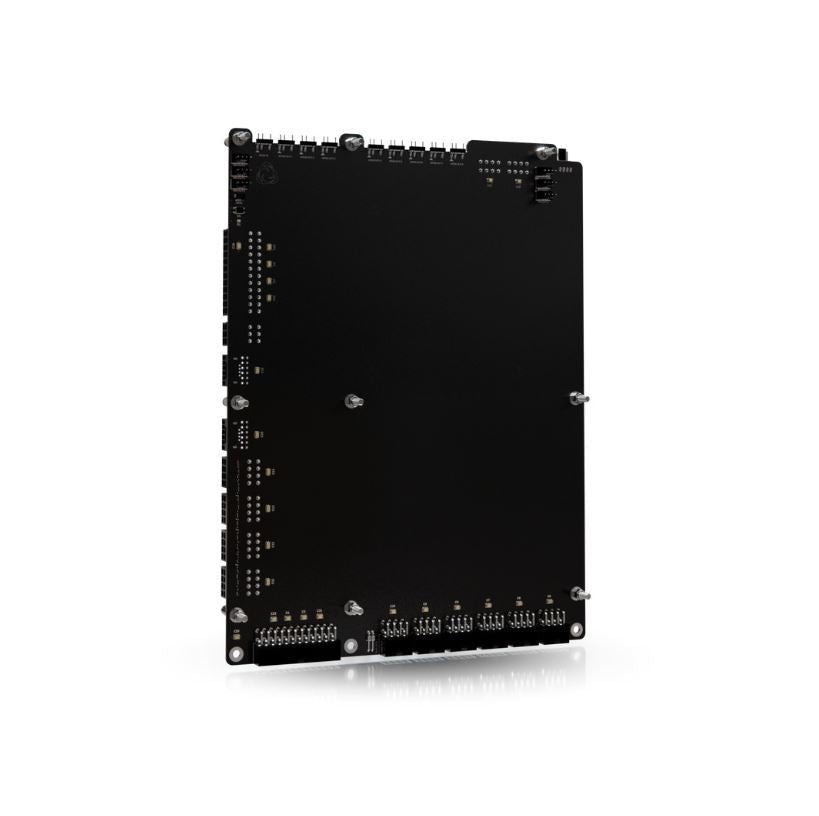

The Singularity Computers PowerBoard is a patent pending technology which completely solves the cable management problem. It is a PCB which integrates the core component cables, along with hubs and more. It is essentially a distribution plate for cables bringing the connectors close to the components allowing standardization of all cable lengths. The Absolute PowerBoard is an essential addition to create perfect cable management without the need for custom cables. It also comes included with PWM and ARGB hubs.

Specifications & Included Items:
PowerBoard Absolute Case: PCB.
Fasteners: Stainless Steel.
Dimensions: W: 240mm x H: 317.5mm x Thickness: 16mm.
Weight: 1kg.
Packaged Dimensions: W: 395mm x L: 430mm x H: 50mm.
Packaged Weight: 1.5kg.
Electronics Integration:
Connectors: 24pin x1. PCIE 8pin x4. 12VHPWR x2. 8pin EPS x2. PCIE 6pin Supplementary x1. (Equal inputs and outputs must be used).
Hubs: PWM Fan Hub x1 input x6 outputs. ARGB: x1 input x8 outputs.
Cables: PowerBoard Linking Cables Standard Set: 24pin x1. 8pin EPS x2. 8pin PCIE x3. 18AWG Black Headshrinkless Sleeve.
PWM Female to Female 50cm Black Sleeved x1.
ARGB Female to Female 50cm Black Sleeved x1.

Installation:

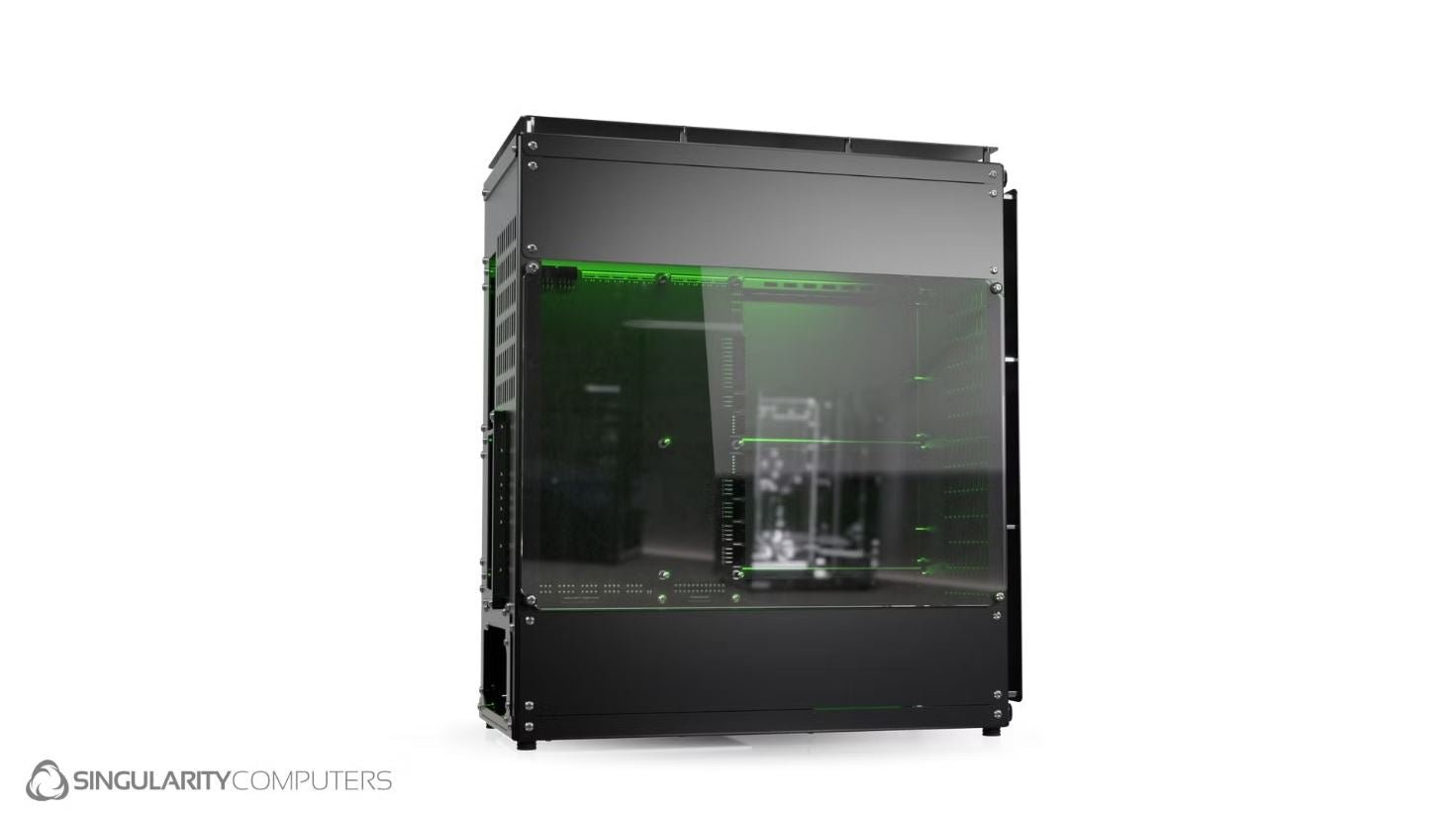

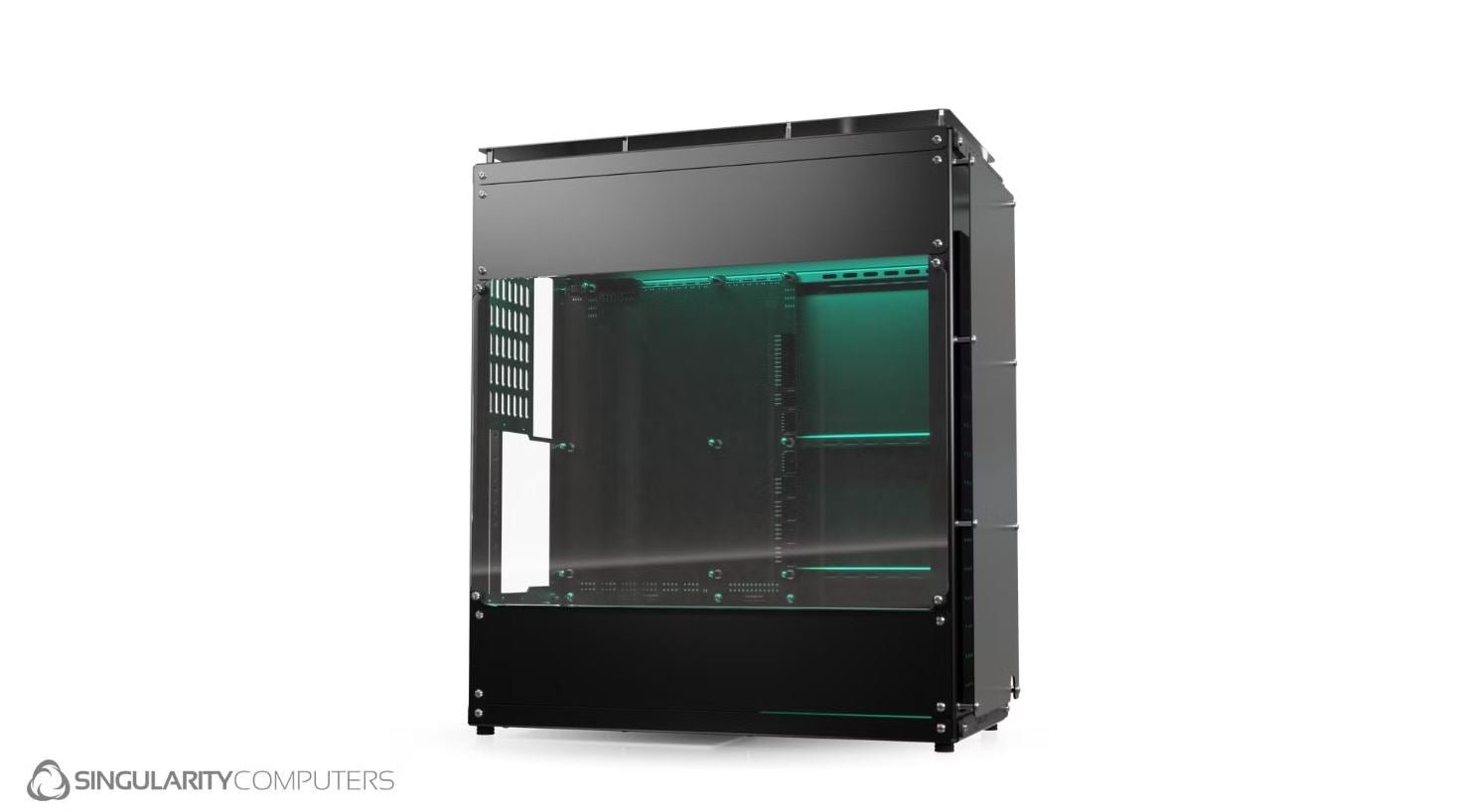

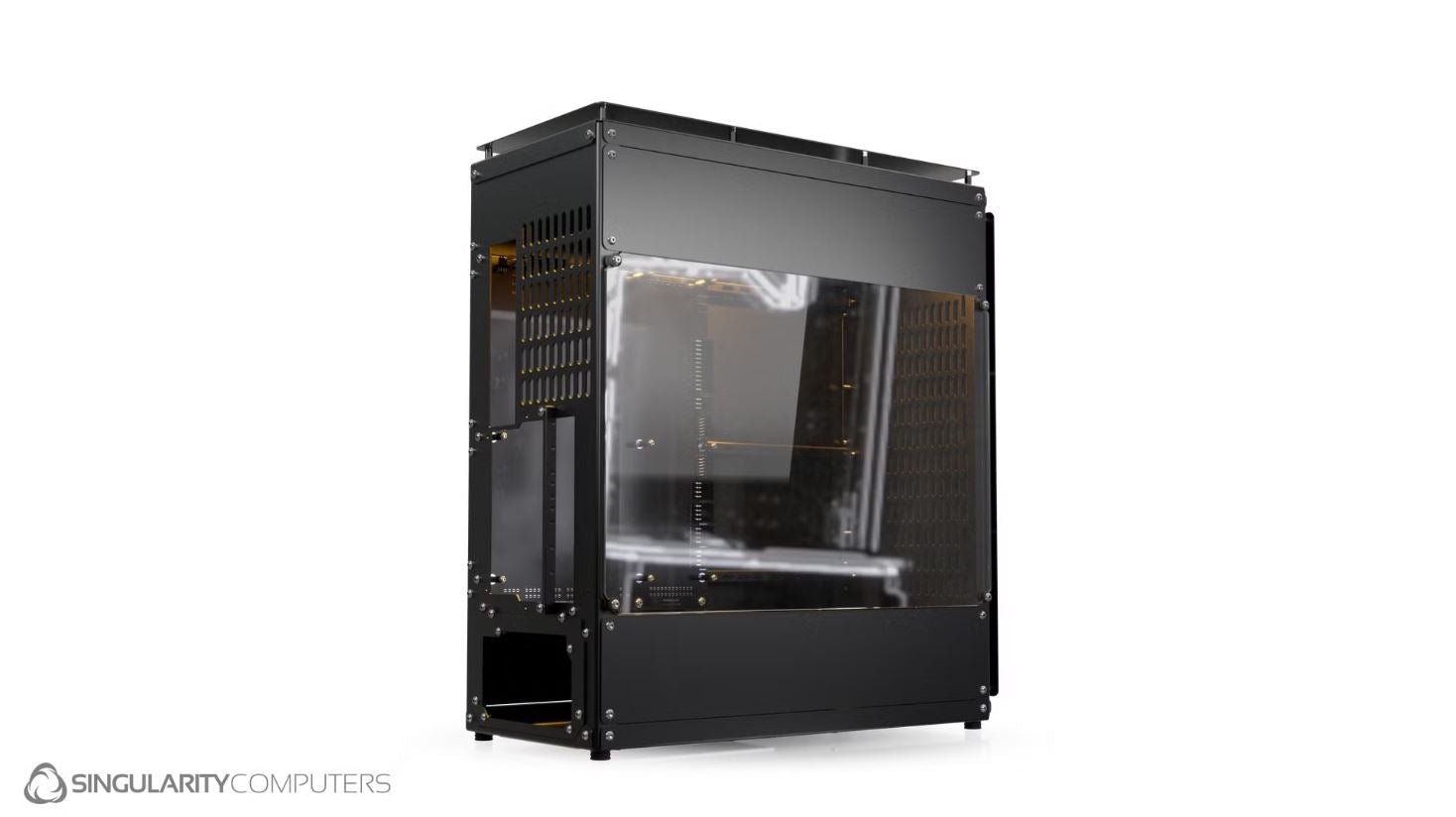

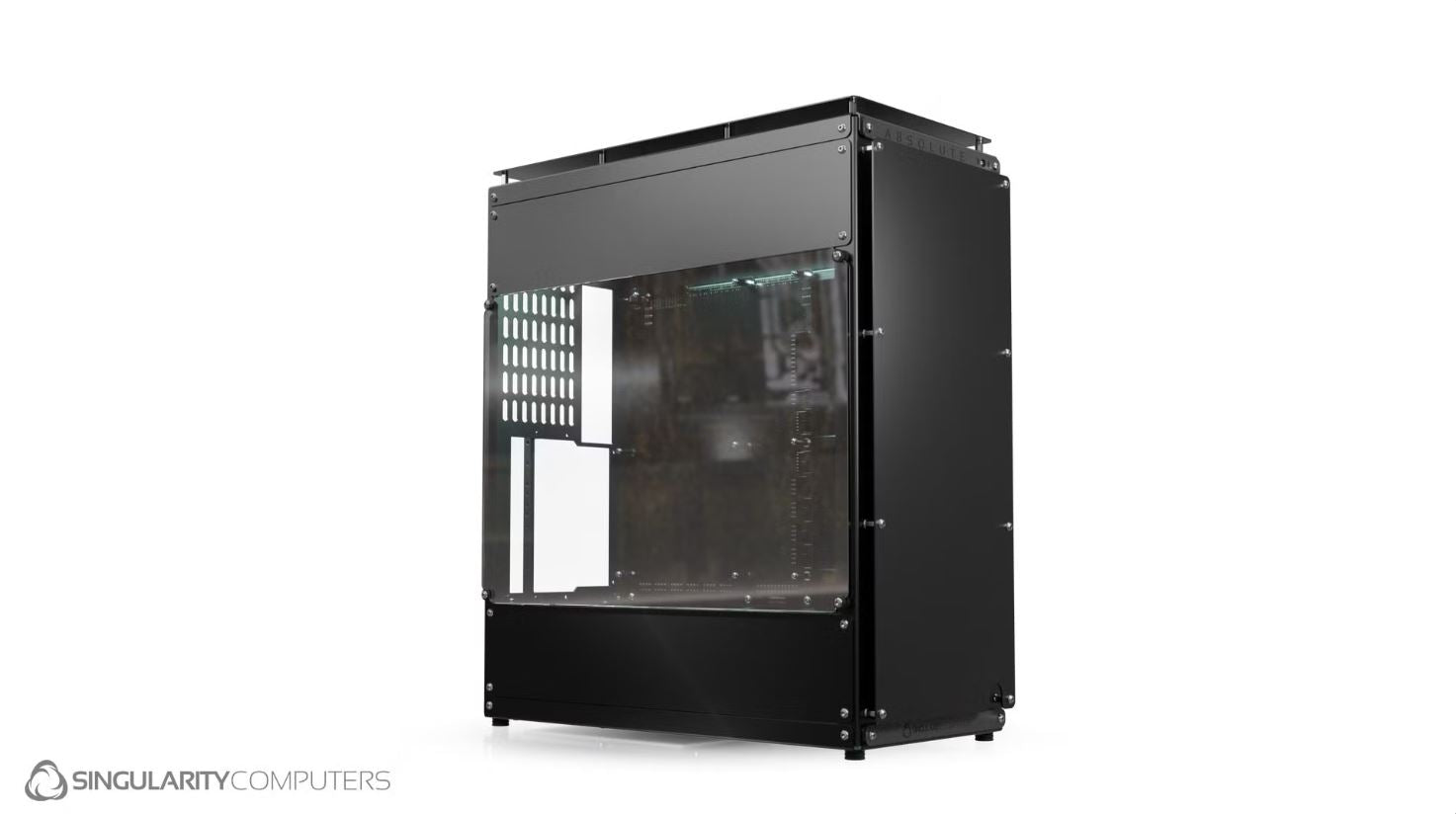

Installs onto the motherboard tray area of the Absolute Case. See manual link above.

Experience Singularity:
We create the products we want in our builds based on our 20 years of experience building high end computers. All our designs begin with function, versatility is vital to increase the possibilities so that you can create the build you want to, something unique. Our products are premium, we do not hold back on quality to save cost. All our products use the most high-end available materials and manufacturing processes. Our vision is to continue to introduce unique and exciting ideas, to inspire and lead the industry.
