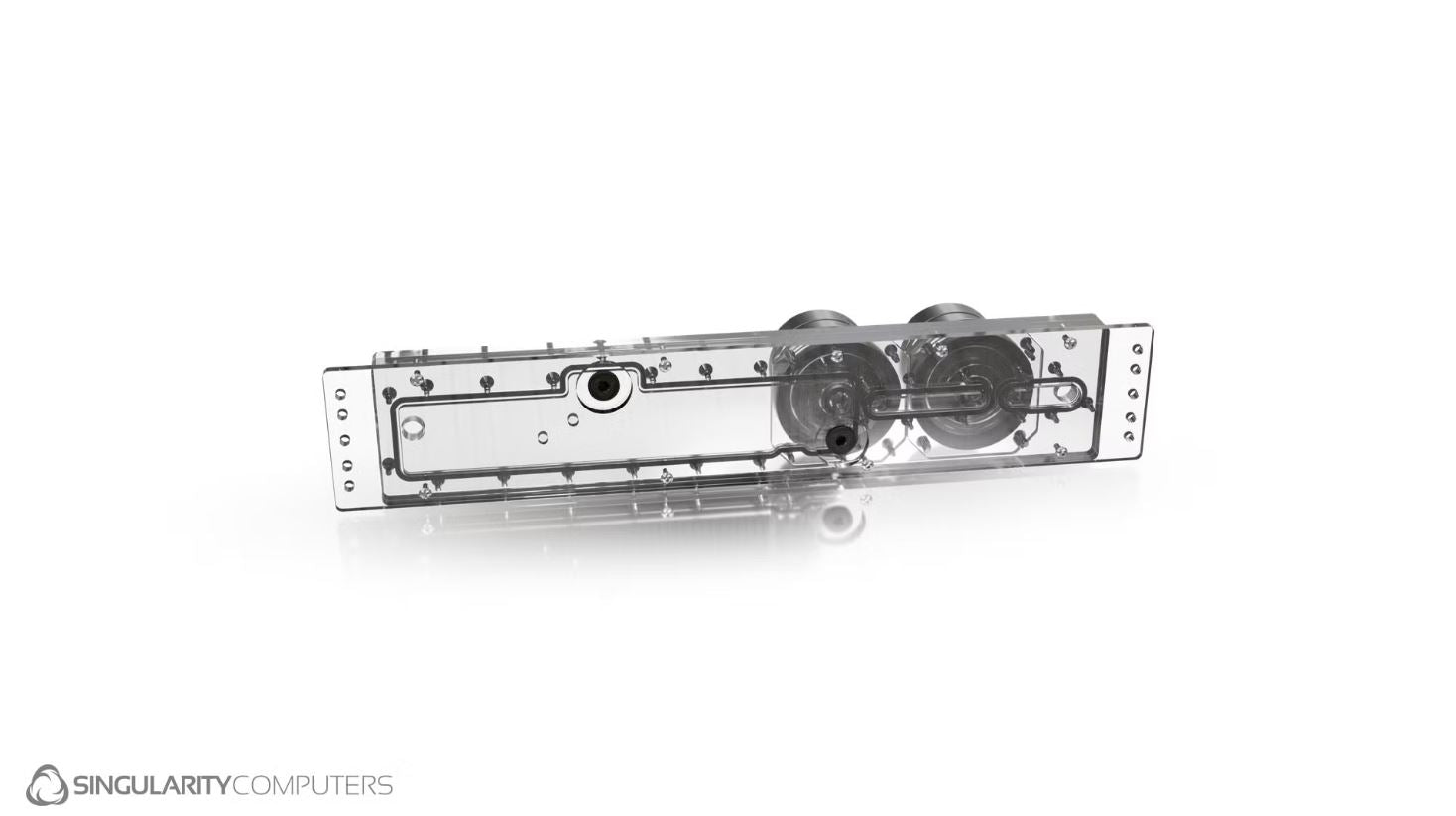

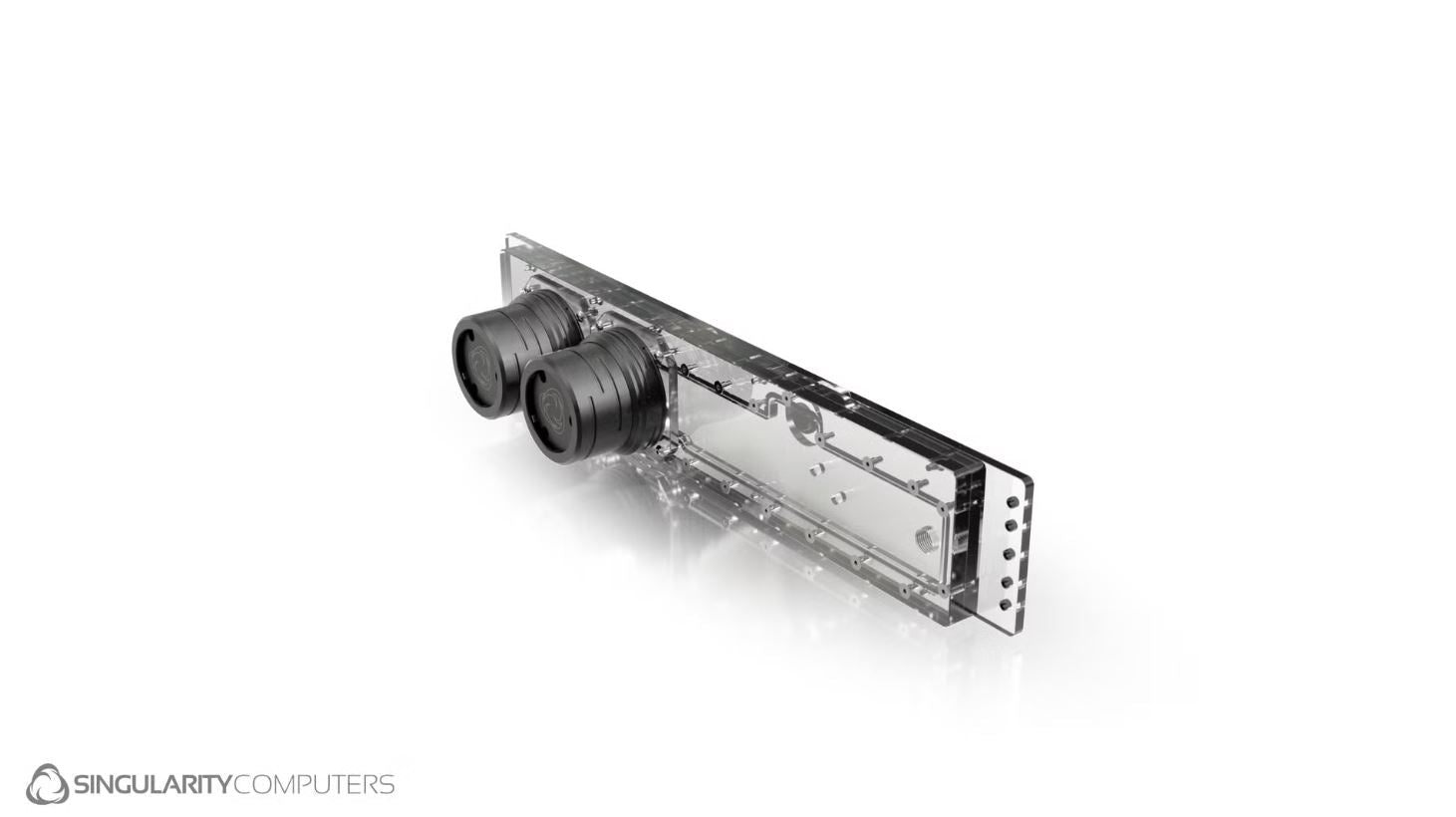

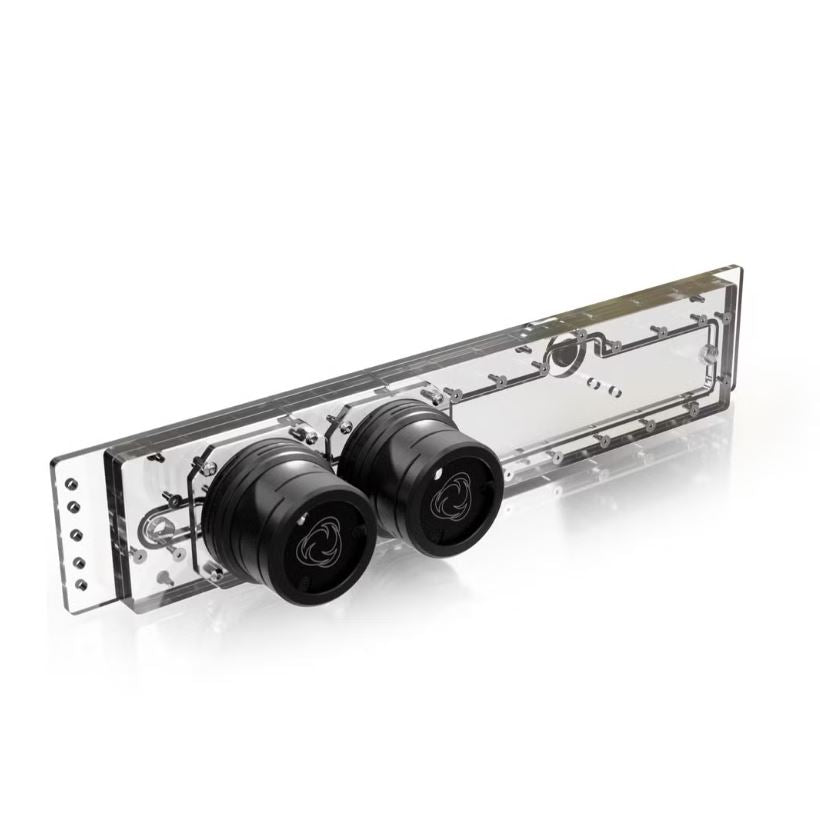

Singularity Computers Rackmount Dual D5 Reservoir Combo Distribution Plate

The Rackmount Quad D5 Distribution Plate has four D5 pumps with two pairs in series for a powerful dual loop setup with redundancy. It can be used with any rackmount water-cooling system to increase flow and performance. It is specifically designed to be used in combination with our upcoming rackmount case/water-box. It mounts directly to the front of a standard 19” rack. It has an inlet and outlet port for each pair of D5 pumps, and the outlet of the first pair can be connected to the inlet of the second pair for four D5 pumps in series. There is also a drain port for each pair of D5 pumps on the front.

Pumps not included. Compatible with any D5 Pumps.

It can be used with any rackmount water-cooling system to increase flow and performance. It is specifically designed to be used in combination with our upcoming rackmount case/water-box. It mounts directly to the front of a standard 19” rack. It has an inlet and outlet port for each pair of D5 pumps, and the outlet of the first pair can be connected to the inlet of the second pair for four D5 pumps in series. There is also a drain port for each pair of D5 pumps on the front.

Pumps not included. Compatible with any D5 Pumps.

Specifications:

Rackmount Dual D5 Reservoir Combo Distribution Plate: Cast Acrylic, Clear, CNC Machined.

Fasteners: Stainless Steel.

Gaskets: Silicone.

Orings: D5, Silicone x2.

Pump Top: D5 x2.

Pump Cover: Protium 3.0 ARGB D5 Pump Cover Black or Silver (Selectable above) x2.

Reservoir x1 (single loop).

Dimensions: L: 100mm x W: 400mm x H: 100mm.

Packaged Dimensions: L: 150mm x W: 450mm x H: 150mm.

Weight: 2.5kg.

Packaged Weight: 3kg.

Installation:

Installs onto a standard 19” Rack.
