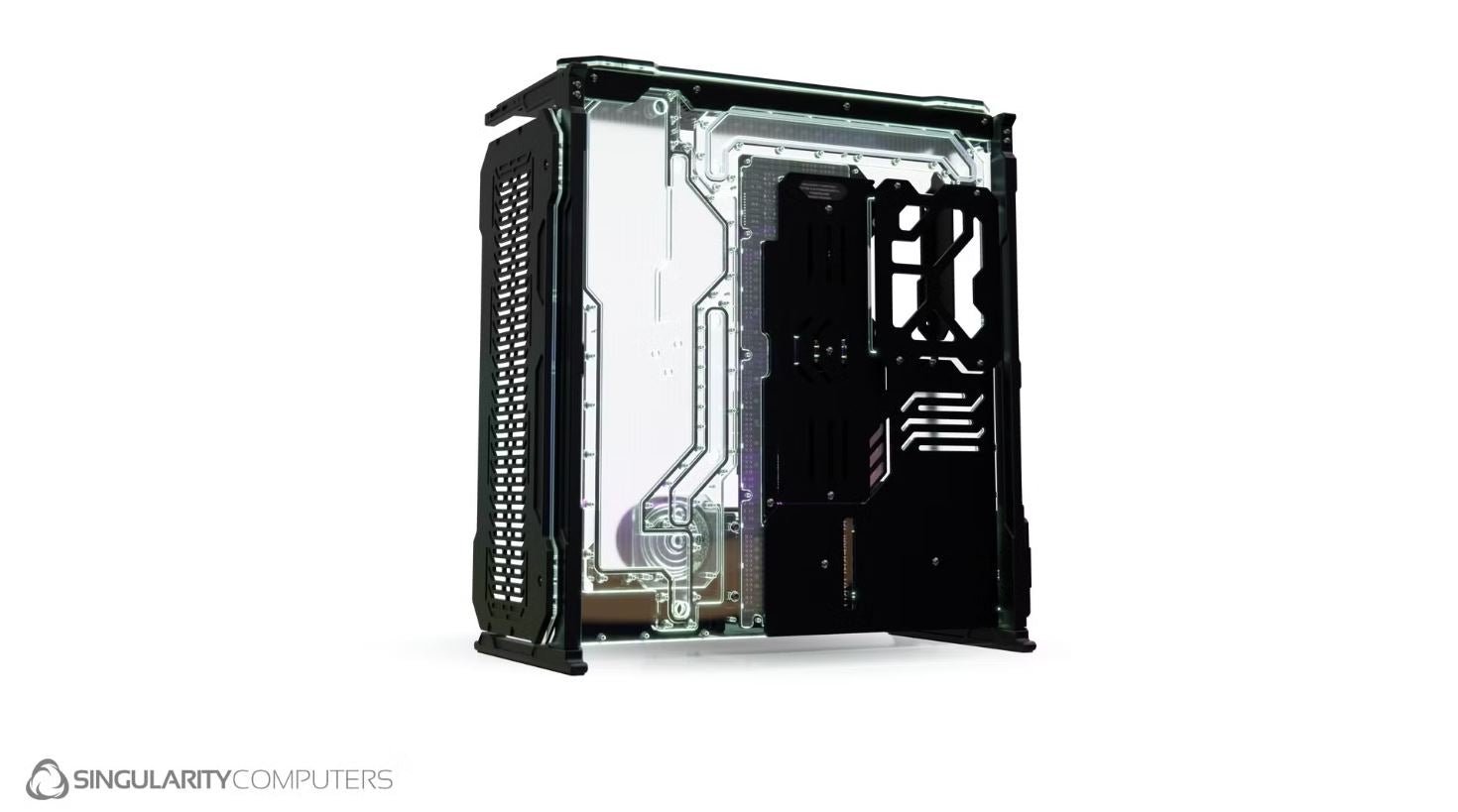

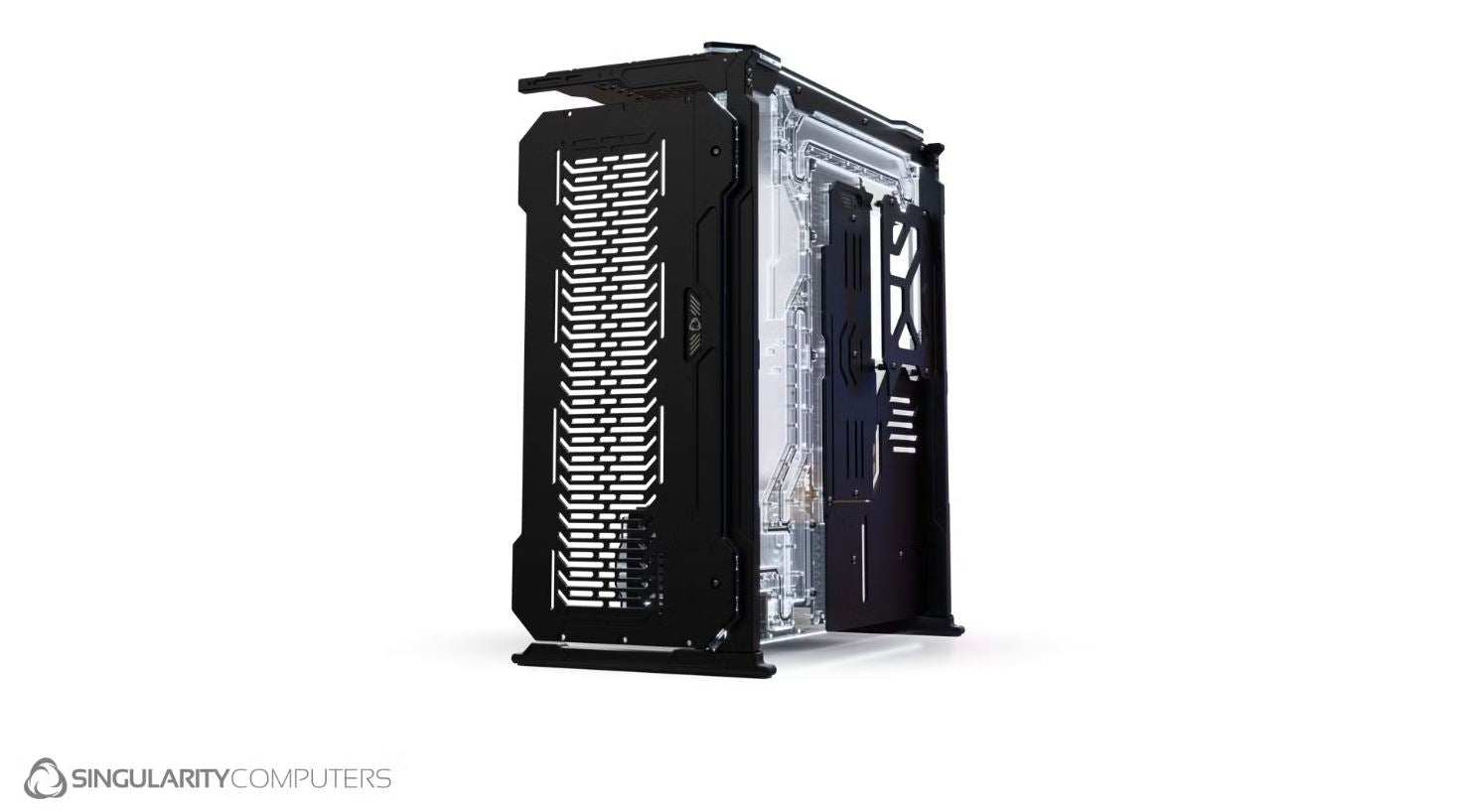

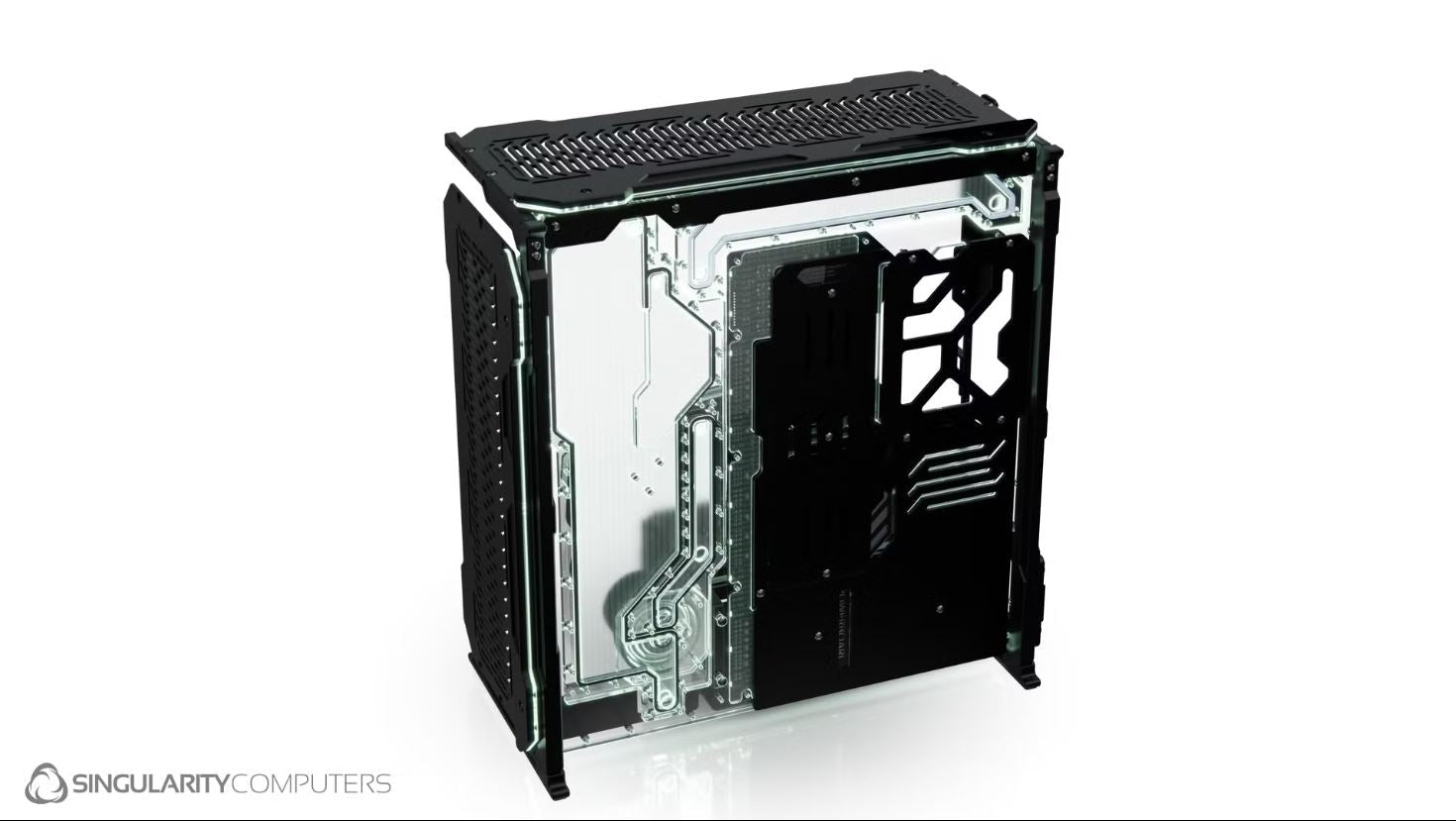

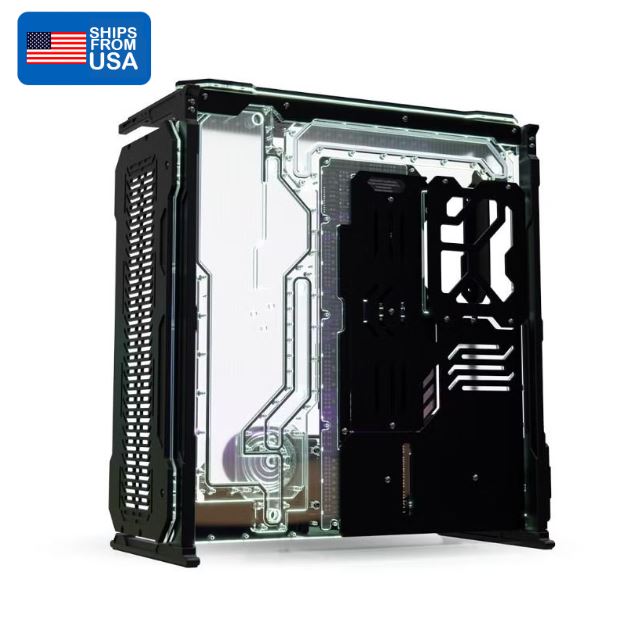

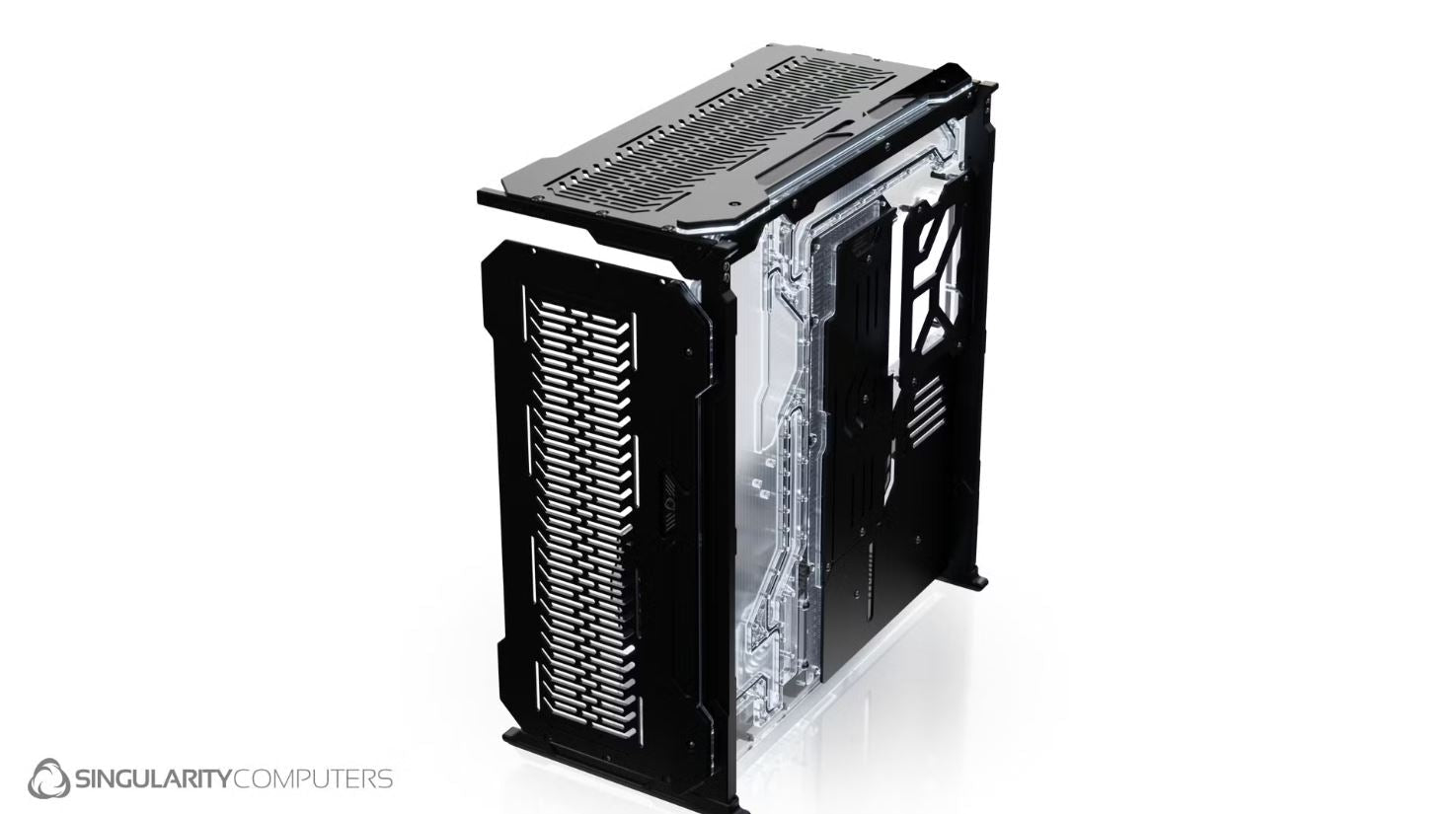

Singularity Computers Spectre 4-M Water-cooling Case

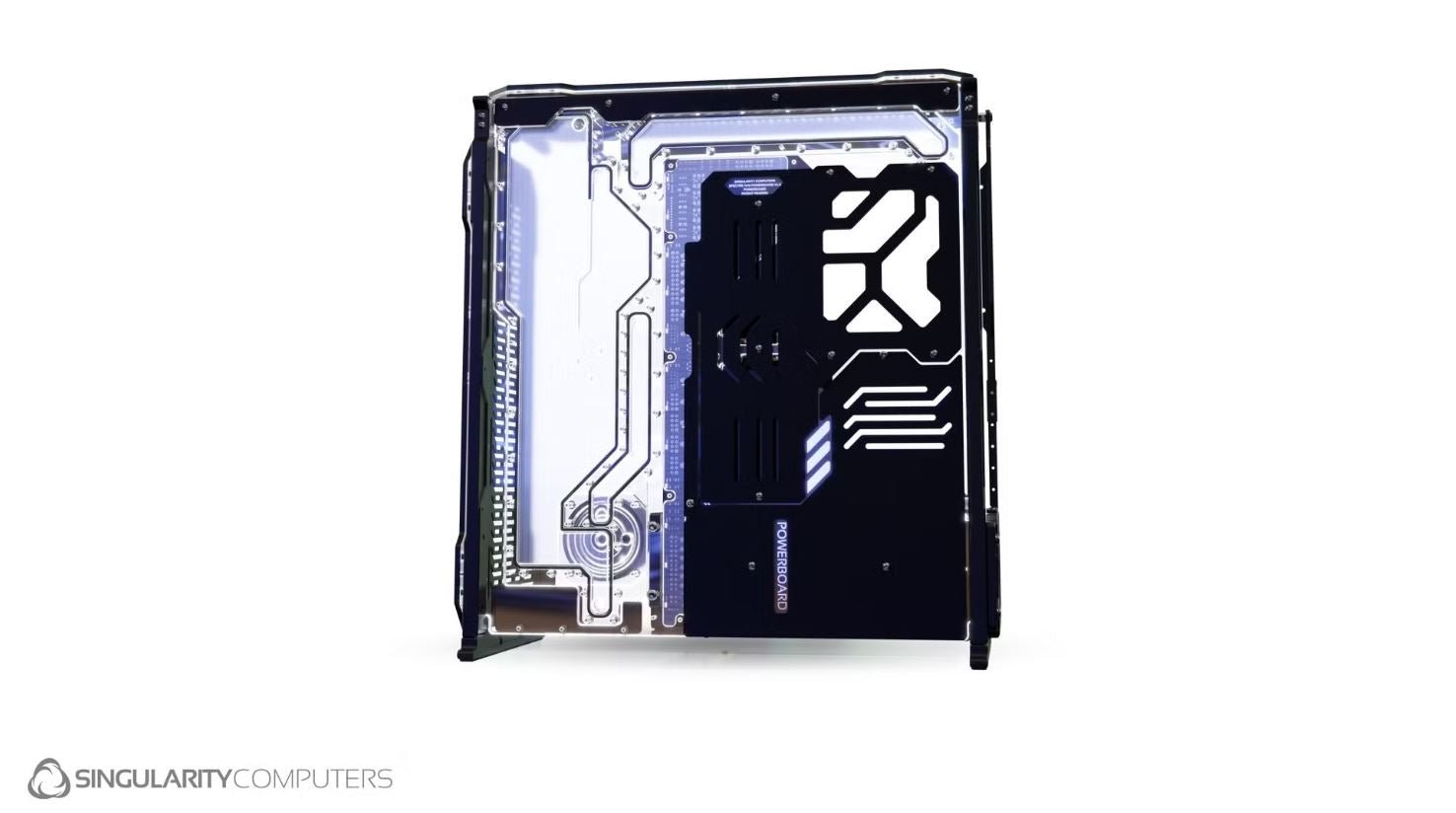

Spectre 4-M is the ultimate extreme water-cooling case with more water-cooling features than any case on the market. It continues the famous Singularity Computers water-cooling integration via a distribution plate which makes up the rear wall of the case. It has the patented Singularity Computers PowerBoard which removes the need for cable management while integrating many features.
Spectre 4-M introduces a new distribution plate design with countersunk fasteners and the 6061 CNC machined frame is new with greatly improved strength and updated aesthetics.
The PowerBoard comes with a vast range of new features including improved lighting, temperature-based RPM control, separate PWM zones, dedicated PWM pump headers, PSU jump start for running the pumps, pump power headers, temperature sensor inputs and more.
Spectre 4-M fits x2 360mm radiators, it fits a 120mm fan behind the motherboard to cool the rear of the CPU socket, two 2.5” drive mounts integrated on the PowerBoard and a touch activated power button. It also comes with dust filters on all fans’ positions.

Pump not included. Compatible with any D5 Pump.

New frame design with greatly improved strength and updated aesthetics.

New distribution plate design with countersunk bolts.

120mm fan to cool the rear of the CPU socket.

Multi zone PWM hubs.

Temperature based RPM control.

RPM curve adjustment.

Dedicated pump RPM and power headers.

Temperature sensor inputs.

12pin header for addon devices.

Improved ARGB and UV lighting.

PSU jump-start for powering pumps only.

Temperature sensor port.

Internal drain port.

Protective covers for feet.

Touch activated Power Button.

Integrated PowerBoard 2.5” Mounts x2.

Water-cooling Integration:

Reservoir, Pump Top, Pump Cover, Fill Port, Drain Port, Parts of water-cooling loop.

Ports: x9 G1/4” BSPP. 1x Fill Port. 2x Drain Ports.

Pump: (Not included): Compatible with all D5 pumps.

Electronics Integration:

Connectors: 24pin x1. PCIE 8pin x4. 12V2x6/PCIE 5.1 x2. 8pin EPS x2. Supplementary power x1. (Equal inputs and outputs must be used).

Hubs: PWM Fan Hubs x2, one with 3 outputs and one with 4 outputs. Pump inputs and outputs x2. Each fan hub and pump output have coolant temperature-based RPM control or can be switched to motherboard RPM control. There are two temperature sensor inputs. The built-in RPM control on the PowerBoard is independent of the motherboard and no software is needed.

PWM Control: 4x potentiometers to set the minimum PWM speed (bottom of the RPM curve).

ARGB: x11 with one input.

Temperature sensor inputs: x2 for up to two loops. Compatible any water-cooling brand plug temperature sensor or inline sensor if it is a 10K NTC thermistor.

LEDs: x15 Integrated ARGB 90-degree LEDs. LEDs can be switched on or off and their control can be switched from motherboard to PowerBoard control (PowerBoard control requires FanGuardian PowerBoard Controller).

Power and Reset Buttons.

PowerBoard direct mount 2.5” x2 accessible from the back of the distribution plate.

4pin ATX header to power up to two pumps with custom cables from the PowerBoard.

12pin header for FanGuardian PowerBoard Controller Addon (available separately).

PSU jump-start switch to run the pump/s without booting so that you can run only the pump for filling the loop.

Cables: PowerBoard Linking Cables Standard Set: 24pin x1. 8pin EPS x2. 8pin PCIE x3 or 12V2x6/PCIE 5.1 (select above). 18AWG Black Headshrinkless Sleeve.

PWM Female to Female 50cm Black Sleeved x2.

ARGB Female to Female 50cm Black Sleeved x1.

Touch Power Button Cables: Power, Reset, Black 20cm. PowerBoard to Horten Touch Module 60cm Black.

LED Strips: ARGB 5V 50cm x4 (pre-installed).

Motherboard Form Factor: ATX, M-ATX, Mini-DTX, Mini-ITX.

Expansion Slots: x7.

Case Form Factor: Mid Tower Water-cooling Case.

Case Dimensions: L: 486mm x W: 245mm x H: 528mm.

Case Weight: 12kg.

Packaged Dimensions: L: 640mm x W: 620mm x H: 110mm (Case is flat packed).

Packaged Weight: 14kg.

Storage: x4 x2.5” x2 are on top of the PSU shroud and cannot be used when the GPUs are vertically mounted. x2 are on the rear side of the PowerBoard, x1 is optional 2.5” or 3.5”.

Radiators: 360mm X2 up to 45mm. 70mm of thickness for radiators and fans

Maximum GPU Length: 445mm with 60mm front radiator and 25mm fans.

Maximum GPU Height: 170mm in standard orientation, unlimited in vertical orientation.

Maximum CPU Cooler Height: 170mm.

Maximum PSU Length: 240mm with a large amount of space for cables.

Front Panel I/O: No Front I/O.

Power Button: Touch Activated

Vertical GPU Mount: Vertical GPU mounting brackets with PCIE 5.0 Riser Cable. 2nd Vertical GPU Mount is available separately.

Materials: 6061 Aluminum Anodized. Cast Acrylic. Stainless Steel. PCB.

Manufacturing Process: CNC Mill, CNC Lathe, CNC Router, PCB.

Assembly: Distribution Plate Assembled by Hand. The case is flat packed, and the metal components need to be assembled by the customer.

Testing/Validation: All Distribution Plates are factory pressure tested, and precise fastener tension is applied.
