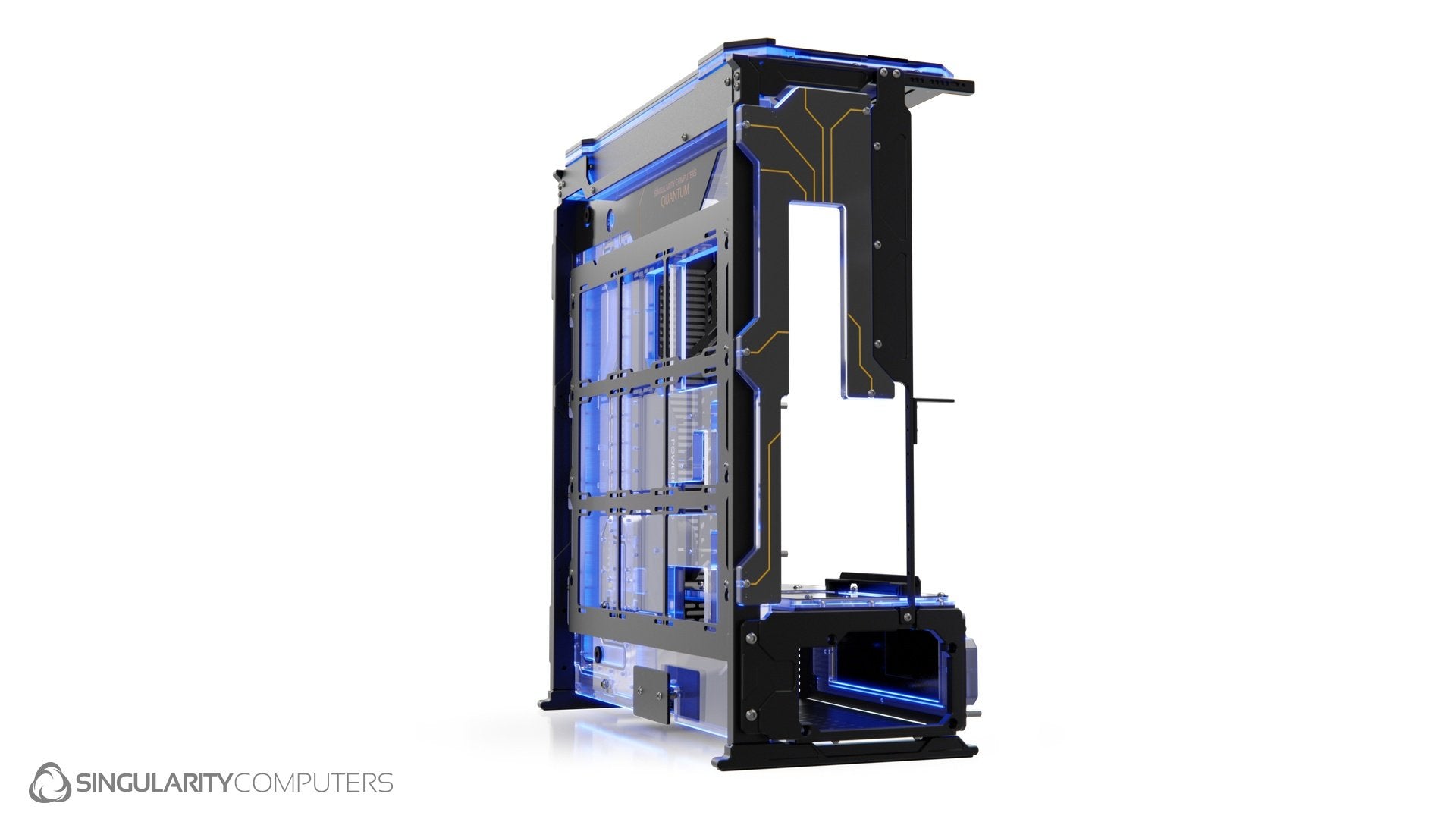

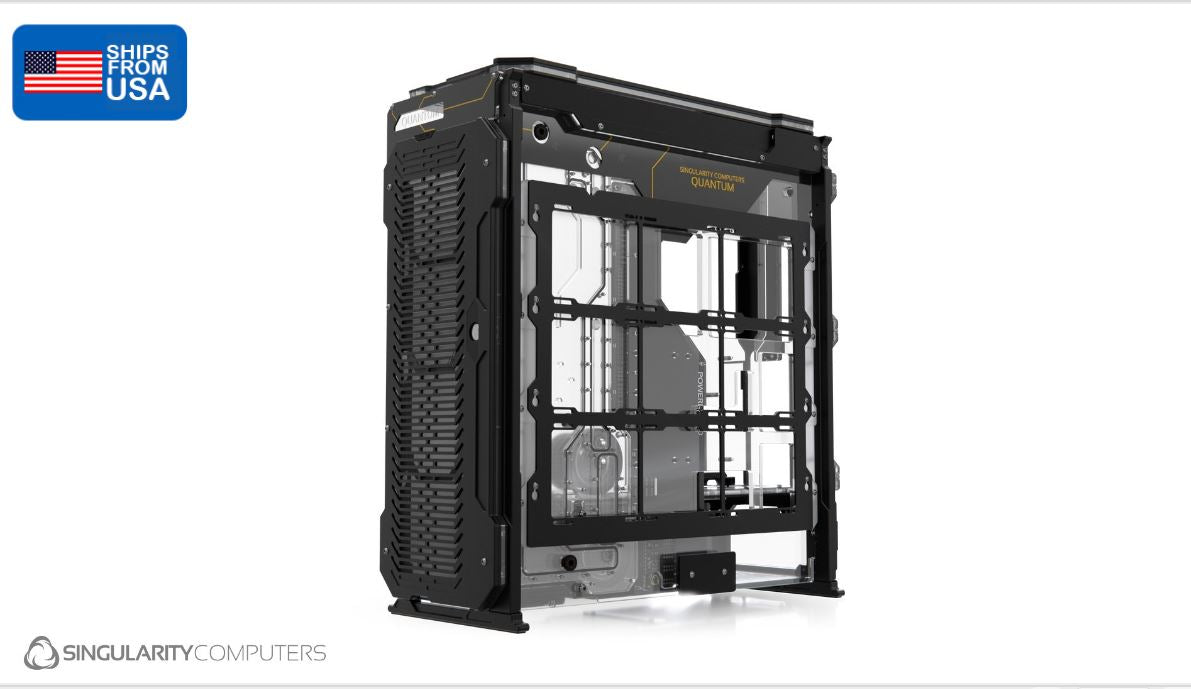

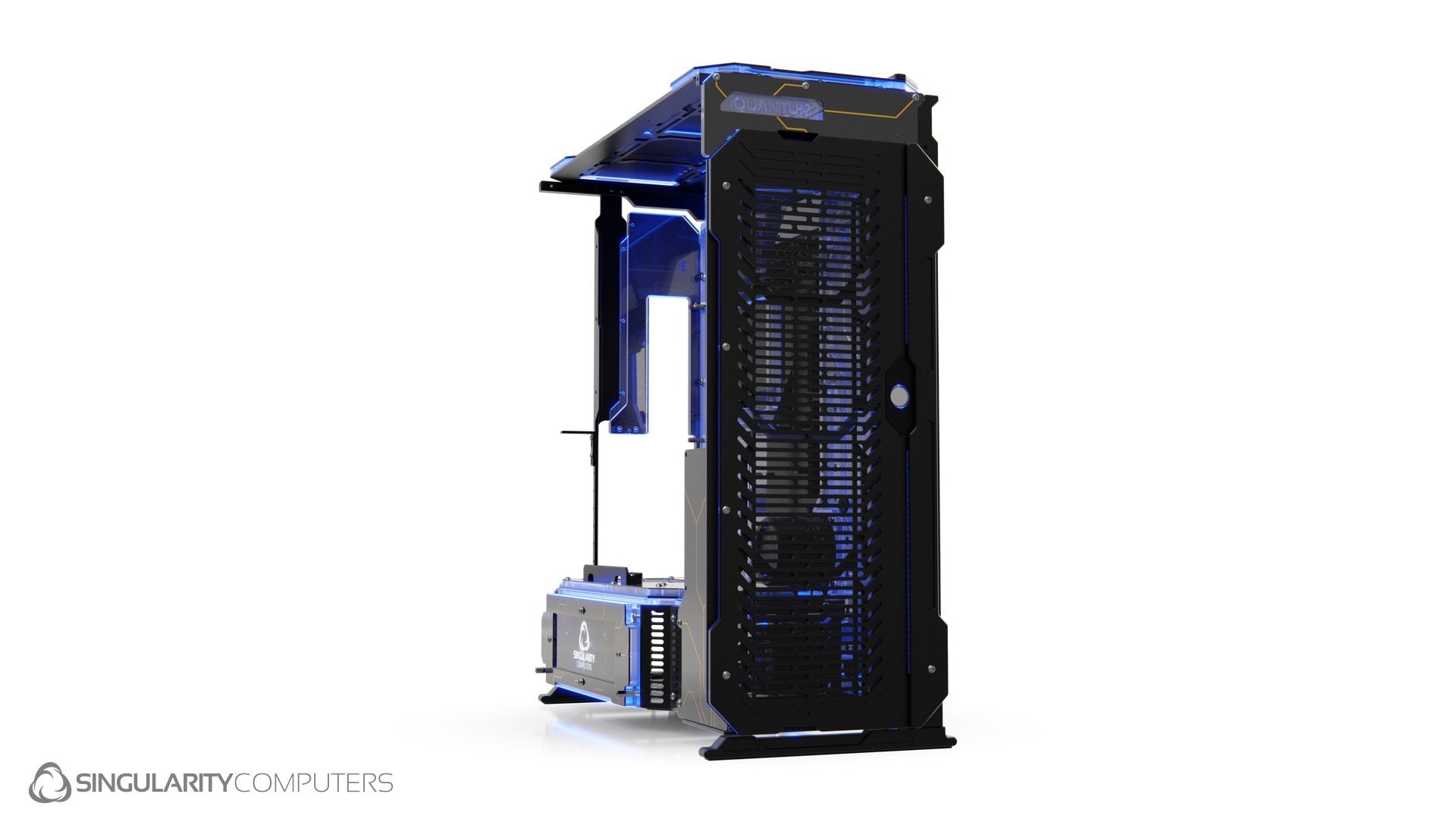

Singularity Computers Spectre 4 Quantum Gold Water-cooling Case

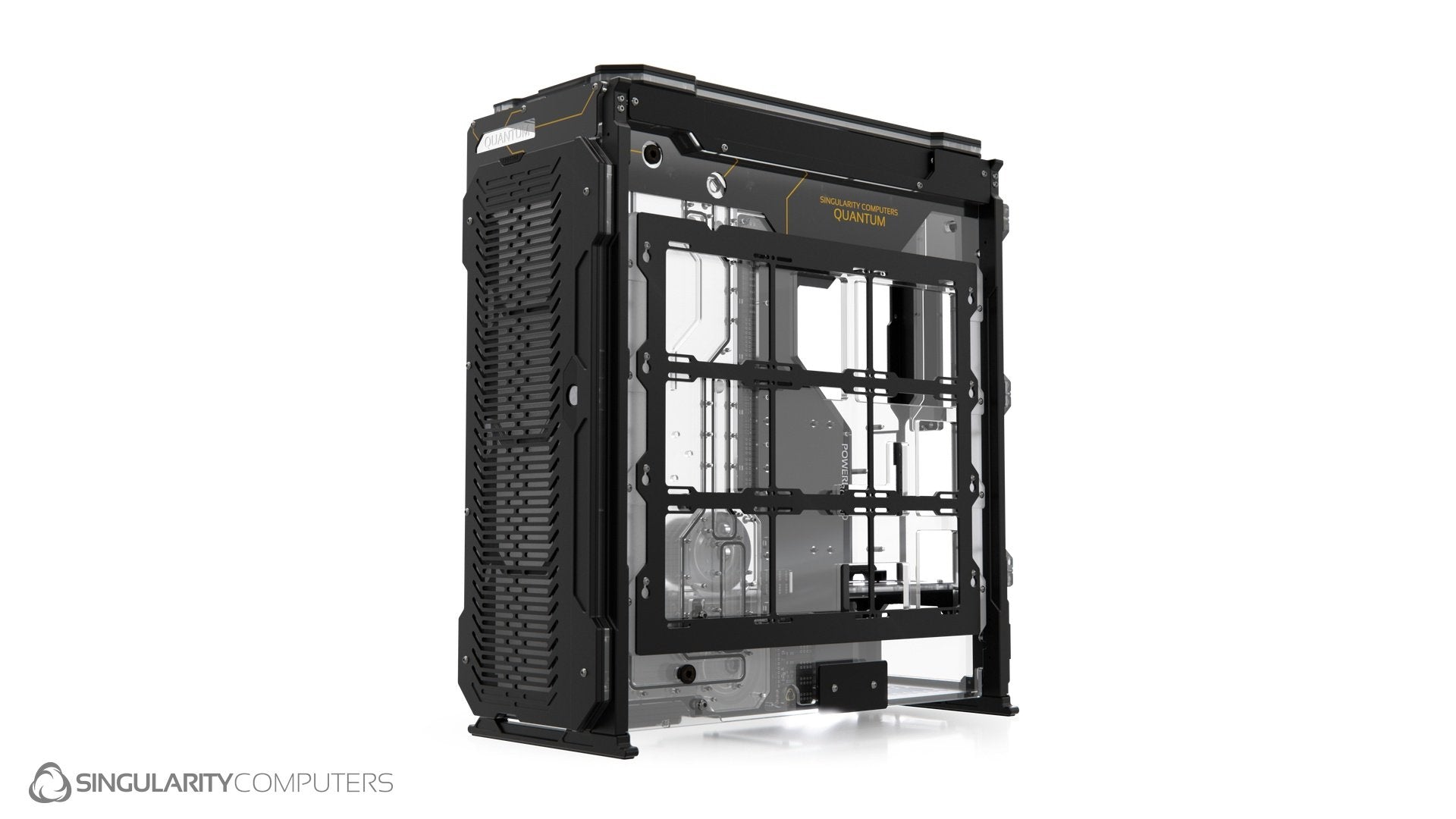

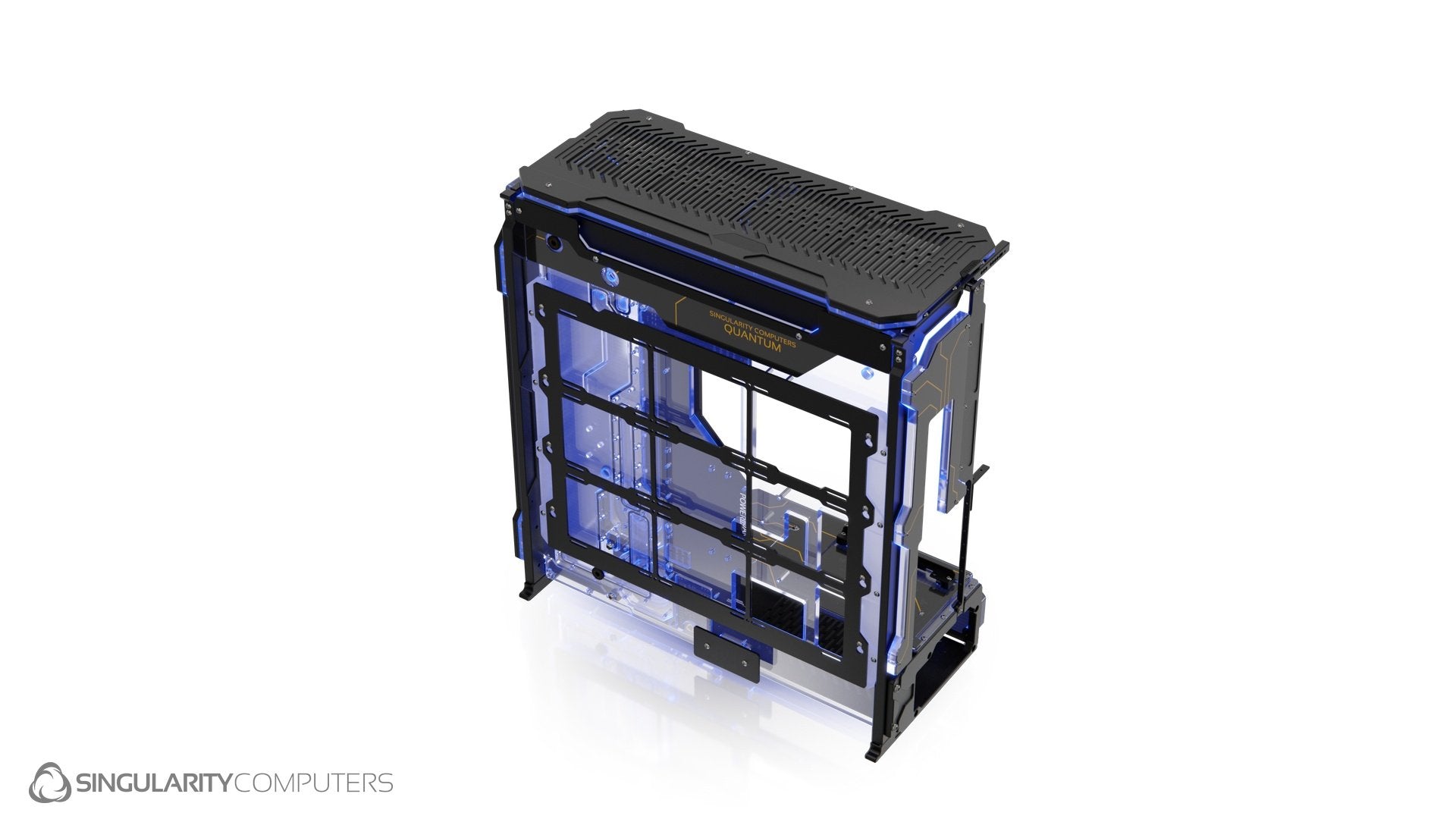

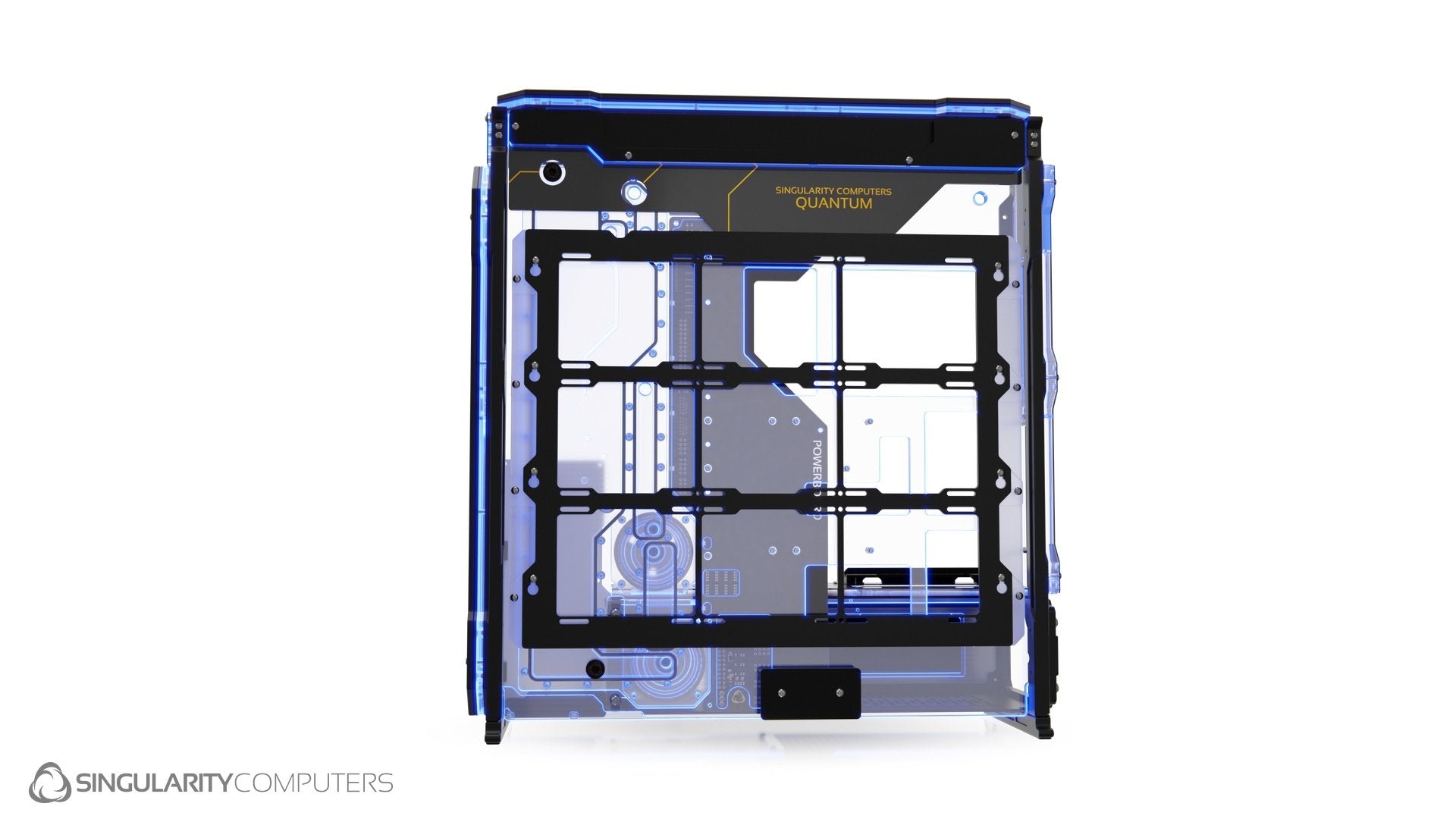

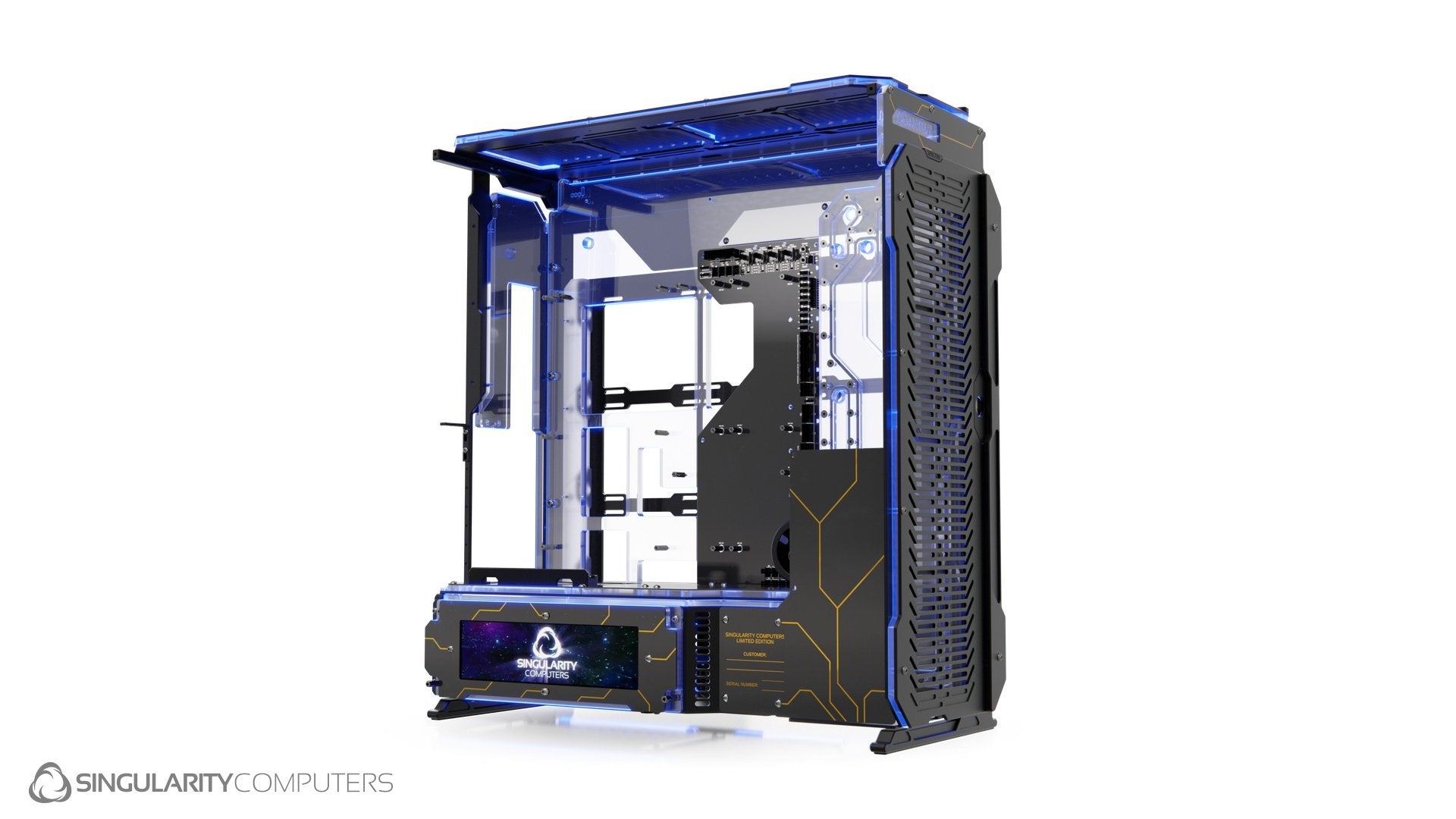

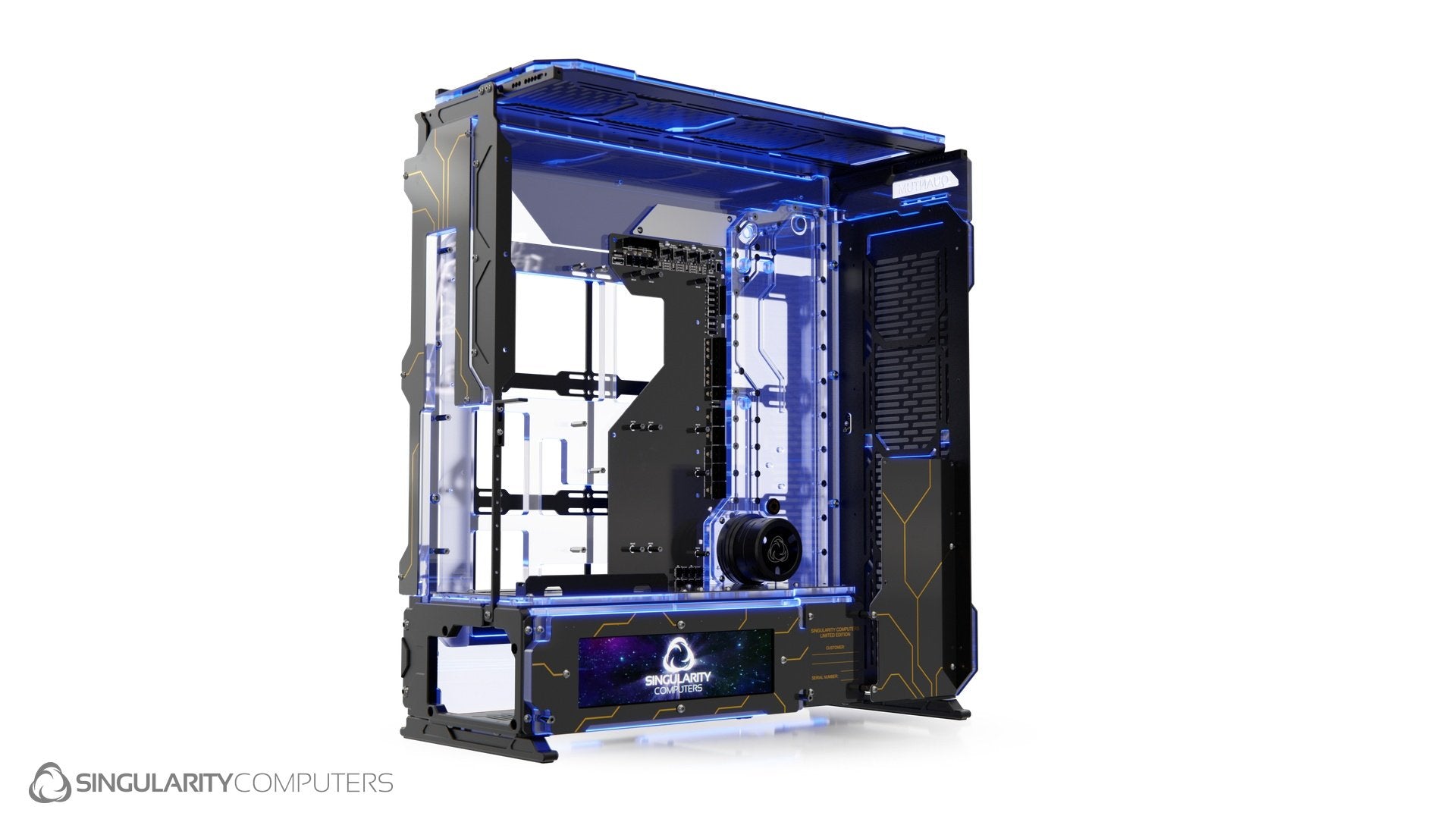

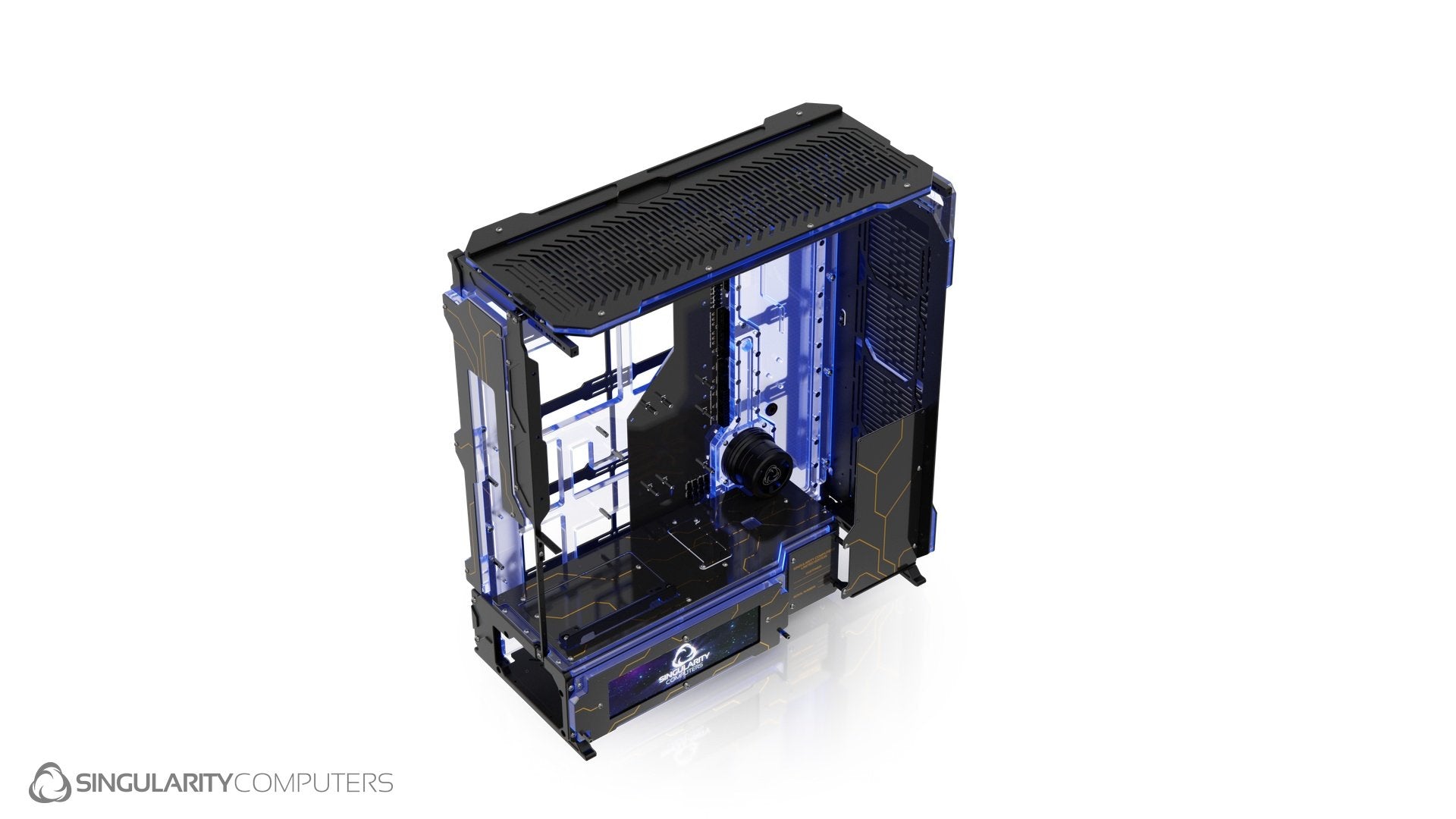

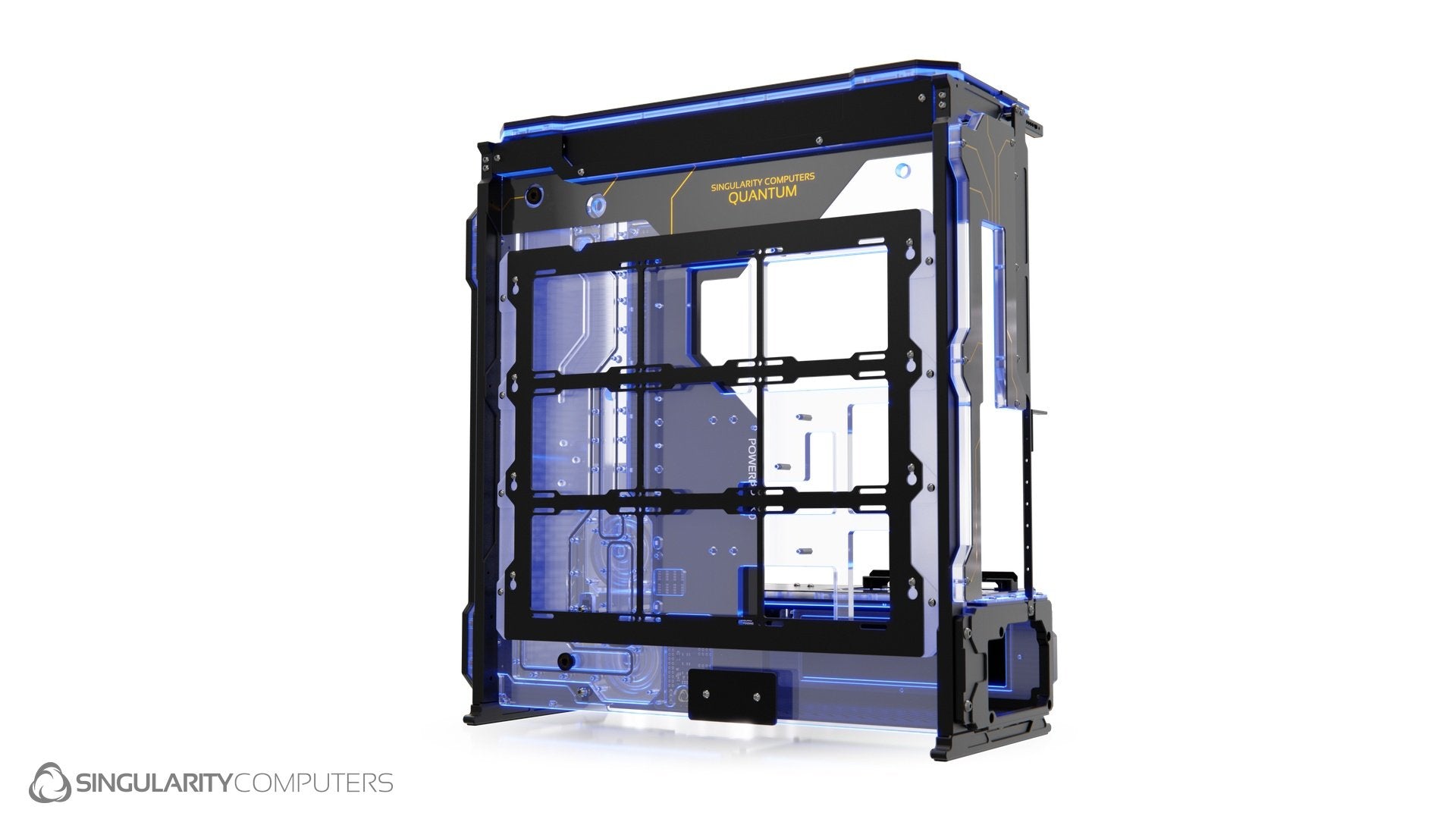

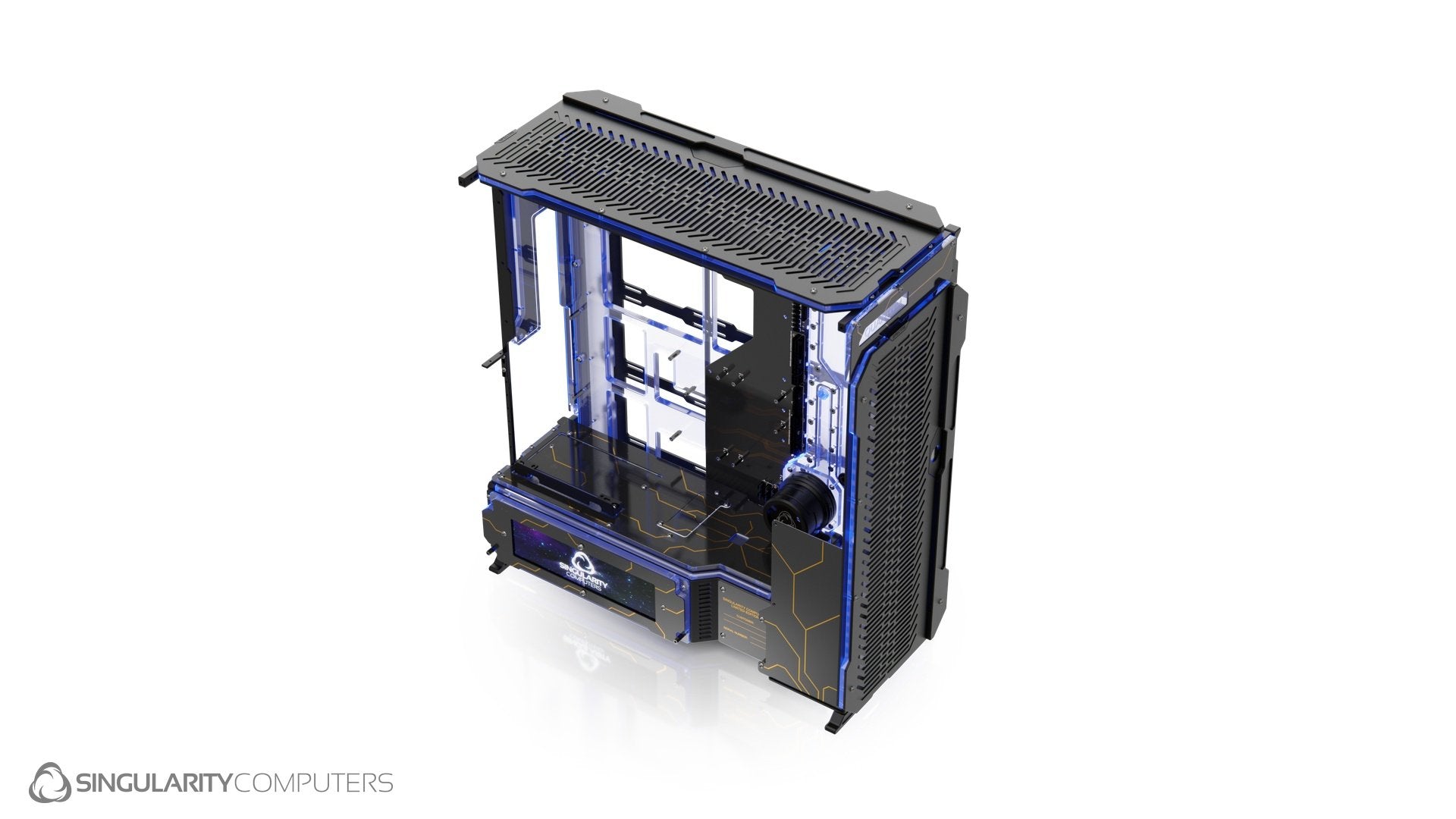

Spectre 4 Quantum is an extreme water-cooling case designed for workstations. It continues the famous Singularity Computers water-cooling integration via a distribution plate which makes up the rear wall of the case. It has the patented Singularity Computers PowerBoard which removes the need for cable management while integrating many features. Spectre 4 Quantum fits large motherboards including E-ATX, SSI-EEB and CEB. It has large cooling capacity fitting up to 2x 420mm or 360mm radiators internally, and 3x 360mm radiators or a MO-RA3 externally. It has a second ATX PSU mount and a 1920×1080 60Hz IPS Screen mounted on the PSU Shroud. Spectre 4 Quantum is our first case with PCB covers instead of acrylic covers like our other cases. It includes x8 PCB covers on the outside of the case, x5 of which have integrated LEDs. These PCBs are daisy chained so that there is no RGB cable mess or cable management.

Pumps not included. Compatible with any D5 Pumps.

Note: The default included cables will not work for all SSI-EEB and CEB configurations, contact support(at)singularitycomputers.com with any questions.

• It has the patented Singularity Computers PowerBoard which removes the need for cable management while integrating many features.
• Spectre 4 Quantum fits large motherboards including E-ATX, SSI-EEB and CEB.
• It has large cooling capacity fitting up to 2x 420mm or 360mm radiators internally, and 3x 360mm radiators or a MO-RA3 externally.
• It has a second ATX PSU mount and a 1920×1080 60Hz IPS Screen mounted on the PSU Shroud. Spectre 4 Quantum is our first case with PCB covers instead of acrylic covers like our other cases.
• It includes x8 PCB covers on the outside of the case, x5 of which have integrated LEDs.
• These PCBs are daisy chained so that there is no RGB cable mess or cable management.

Water-cooling Integration: Reservoir, Pump Tops, Pump Covers, Fill Port, Drain Ports, Parts of water-cooling loop.
Ports: x8 G1/4” BSPP. 1x Fill Port. 2x Drain Ports.
Pumps: (Not included): Compatible with all D5 pumps.
Electronics Integration:
PowerBoard and x8 other PCB Covers x5 of which have integrated LEDs.
Connectors: 24pin x1. PCIE 8pin x4. 12V2x6/PCIE 5.1 x2. 8pin EPS x4. PCIE 6pin Supplementary x1. (Equal inputs and outputs must be used).
Hubs: PWM Fan Hubs x2 each with x1 input and x3 outputs, with coolant temperature-based RPM control or motherboard control. Pump inputs and outputs x2. Each fan hub and pump output have coolant temperature-based RPM control or can be switched to motherboard RPM control. The built-in RPM control on the PowerBoard is independent of the motherboard and no software is needed.
Dedicated PWM header for 140mm fan which can be mounted behind the motherboard (controlled by PWM fan hub 1).
PWM Control: 4x potentiometers to set the minimum PWM speed.
ARGB Headers: x13 with one input.
Temperature sensor inputs: x2 for up to two loops. Compatible any water-cooling brand plug temperature sensor or inline sensor if it is a 10K NTC thermistor.
LEDs: x20 Integrated ARGB 90-degree LEDs around the external perimeter of the PowerBoard.
Power and Reset Buttons.
4pin ATX header x2 to power up to 4 pumps with custom cables from the PowerBoard.
12pin header for future controller addon.
PSU jump-start switch to run the pump/s without booting so that you can run only the pump for filling the loop.
Screen: 1920×480 60Hz IPS.
Cables: PowerBoard Linking Cables Standard Set: 24pin x1. 8pin EPS x2. 8pin PCIE x3 or 12V2x6/PCIE 5.1 (select above). 18AWG Black Headshrinkless Sleeve.
PWM Female to Female 50cm Black Sleeved x2.
ARGB Female to Female 50cm Black Sleeved x1.
Touch Power Button Cables: Power, Reset, Black 20cm. PowerBoard to Horten Touch Module 60cm Black.
Pump Power Cable 4pin ATX to SATA & Molex x2.
Screen cables: Black 1m Mini HDMI to HDMI, USB-A to USB Micro-B.
Motherboard Form Factor: SSI-EEB, SSI-CEB, XL-ATX (Up to: 305mm Wide & 350mm High). E-ATX, ATX, M-ATX, Mini-DTX, Mini-ITX.
Expansion Slots: x8.
Case Form Factor: Full Tower Water-cooling Case.
Storage: x2.5” x2 (can only be used with horizontally mounted GPU/s).
Radiators: Internal: 420mm/360mm X2 with 100mm of thickness for radiators and fans. External: 360mm x3 or MO-RA3 120 with no thickness limitations for radiators or fans. (Front radiator cannot be used with second PSU).
Maximum GPU Length: 445mm with 60mm front radiator and 25mm fans.
Maximum GPU Height: 170mm in standard orientation, unlimited in vertical orientation.
Maximum CPU Cooler Height: 170mm.
PSU: ATX PSU Mount supports up to 240mm long PSUs with a large amount of space for cables. (Second ATX PSU Mount available see above add on option).
Front Panel I/O: No Front I/O.
Power Button: Touch Activated.
Vertical GPU Mount: Vertical GPU mounting brackets with PCIE 5.0 Riser Cable. 2nd Vertical GPU Mount is available separately.
Materials: 6061 Aluminum Anodized. Cast Acrylic. Stainless Steel. PCB.
Manufacturing Process: CNC Mill, CNC Lathe, CNC Router, PCB.
Assembly: Distribution Plate Assembled by Hand. The case is flat packed, and the metal components need to be assembled by the customer.
Testing/Validation: All Distribution Plates are factory pressure tested and precise fastener tension is applied.
Case Dimensions: L: 550mm x W: 250mm x H: 615mm.
Case Weight: 14kg.
Packaged Dimensions: L: 640mm x W: 620mm x H: 110mm (Case is flat packed).
Packaged Weight: 16kg.
