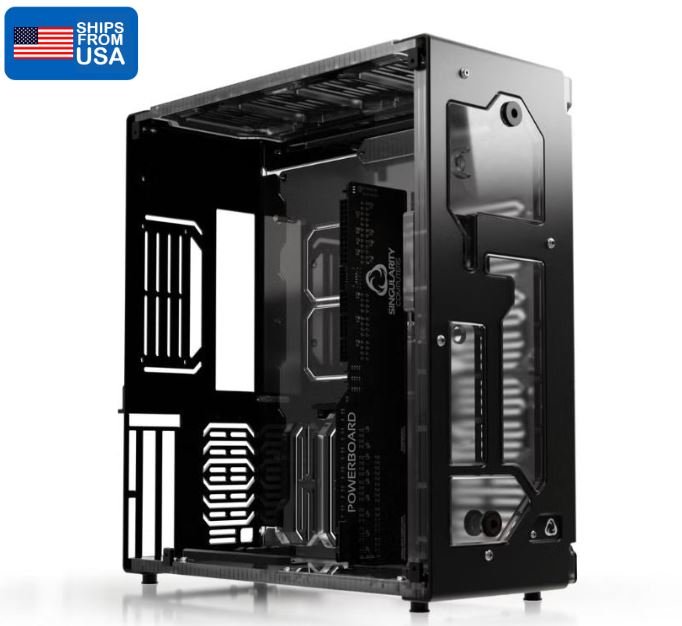

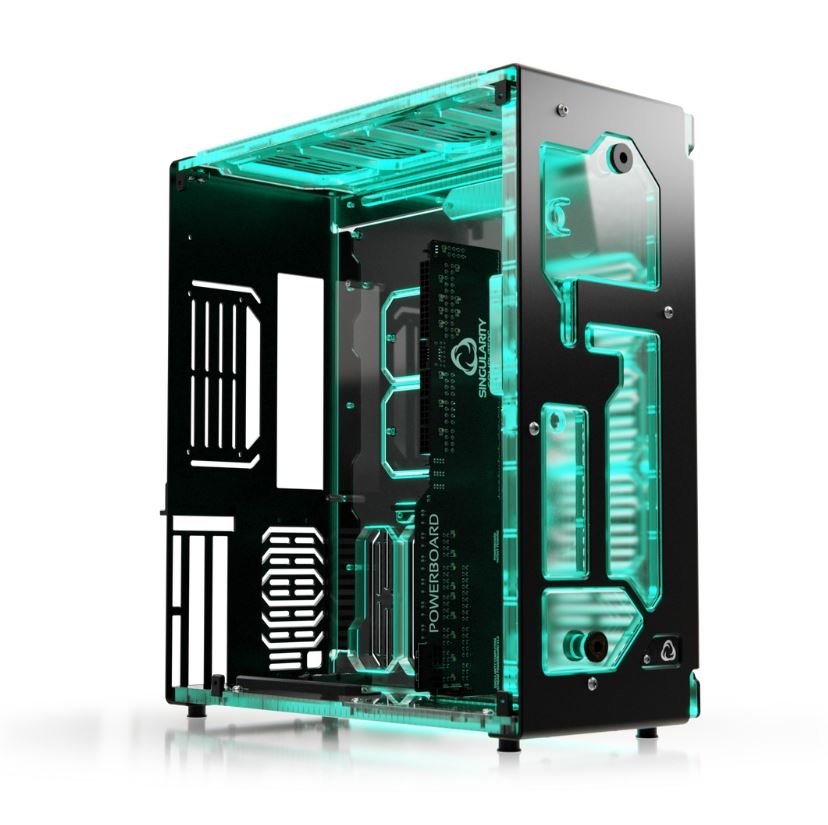

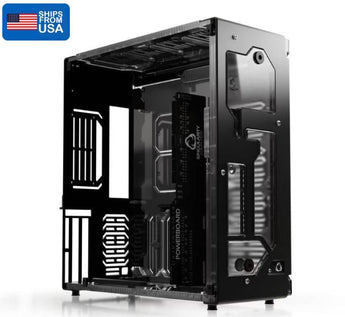

Singularity Computers Stream-S ITX Case

Stream-S is an SFF case designed for high end water-cooling. It has a distribution plate on the front panel which integrates a pump and reservoir. It fits x2 240mm radiators, a full sized GPU and 2x 2.5� drives. Stream-S is the first case which does not need wires for the main cables. It has a PowerBoard which connects directly to the PSU and includes flexible PCBs which connect the PowerBoard to the motherboard and GPU. The PowerBoard and flexible PCBs remove the need for cable management and make the cables extremely clean and compact which is particularly important for an SFF case.

IMPORTANT: Only compatible with Asus Loki series PSUs.
Note: Pump not included.

*The default cable provided is 12VHPWR

Stream-S ITX Case

Stream-S is an ITX SFF case designed for high end water-cooling. It fits 2x 240mm radiators, an SFX-L PSU, 2x 2.5� drives and large water-cooled GPUs.



Water-Cooling Integration

Stream-S has a distribution plate on the front panel with an integrated reservoir and DDC pump top. One 240mm radiator can be mounted to the top panel and one next to the motherboard.

PowerBoard Integration

Stream-S is the first case which has no wires for the core component cables. The PowerBoard distributes power to the components and is directly connected to the PSU. Flexible PCBs are included with the case to connect from the PowerBoard to the motherboard and GPU.

Quality

The case is built from 3mm anodized aluminum CNC machined and folded panels and CNC machined cast acrylic. The construction is solid to allow for the extra weight of a high-end water-cooled system.

*The default cable provided is 12VHPWR

Specifications:
Water-cooling Integration:
Reservoir, Pump Top, Pump Cover, Fill Port, Drain Port, Parts of water-cooling loop.
Ports: x6 G1/4� BSPP. 1x Fill Port. 1x Drain Port.
Pump: (Not included): Compatible with all DDC pumps.
Electronics Integration:
Core Component Connectors: 24pin x1. 8pin EPS x1. PCIE 8pin x3. 12VHPWR x1. 6pin PSU x2.
Hubs: PWM x4. ARGB x5 (Single input for all).
Extra Power Button.
Inbuilt PSU Jump starter for powering the pump only, for filling the loop.
Cables: PowerBoard Linking FPC Cables: 24pin x1. 8pin EPS x1. Select either 8pin PCIE x3 or 12VHPWR (non FPC) Cable.
PWM Female to Female 50cm Black Sleeved x1.
ARGB Female to Female 50cm Black Sleeved x1.
LED Strips: x3 Installed on the Distribution Plate, the Motherboard Tray, and the Top Panel.
Motherboard Form Factor: Mini-ITX.
Expansion Slots: x2.
Case Form Factor: SFF.
Case Dimensions: L: 346mm W: 165mm H: 381mm.
Package Weight: 6.5kg.
Package Dimensions: L: 406mm H: 225mm W: 441mm. (Case comes fully assembled).
Case Weight: 6kg.
Storage: 2x 2.5�.
Radiators: 240mm x 30mm with x1 set of standard 25mm fans.
Maximum GPU Length: 323mm.
Maximum GPU Height: Unlimited.
Maximum CPU Cooler Height: 138mm.
Maximum PSU Length: Compatible only with the Asus ROG Loki series.
Front Panel I/O: No Front I/O. Touch activated button.
Vertical GPU Mount: x1, 2 slot. PCIe 4.0 Vertical GPU Riser Cable 20cm.
Materials: 6061 Aluminum Anodized. Cast Acrylic. Stainless Steel. PCB.
Manufacturing Process: CNC Mill, CNC Lathe, CNC Router, Aluminium Folding, PCB.
Assembly: Distribution Plate Assembled by Hand. Metal Components need to be assembled and attached to the distribution plate by the customer.
Testing/Validation: All Distribution Plates are factory pressure tested and precise fastener tension is applied.
