Singularity Computers Test Bench D5 Reservoir Distribution Plate

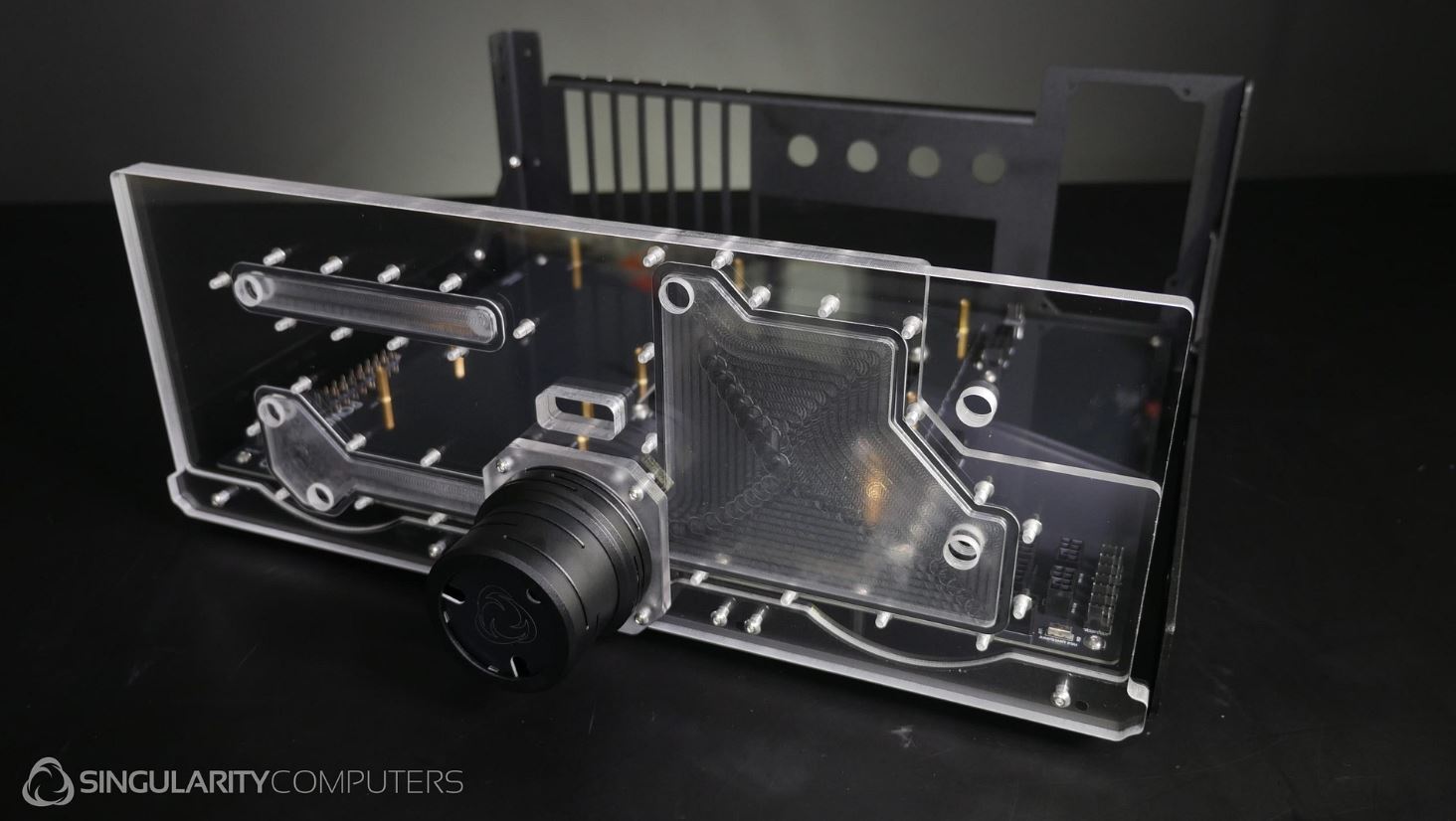

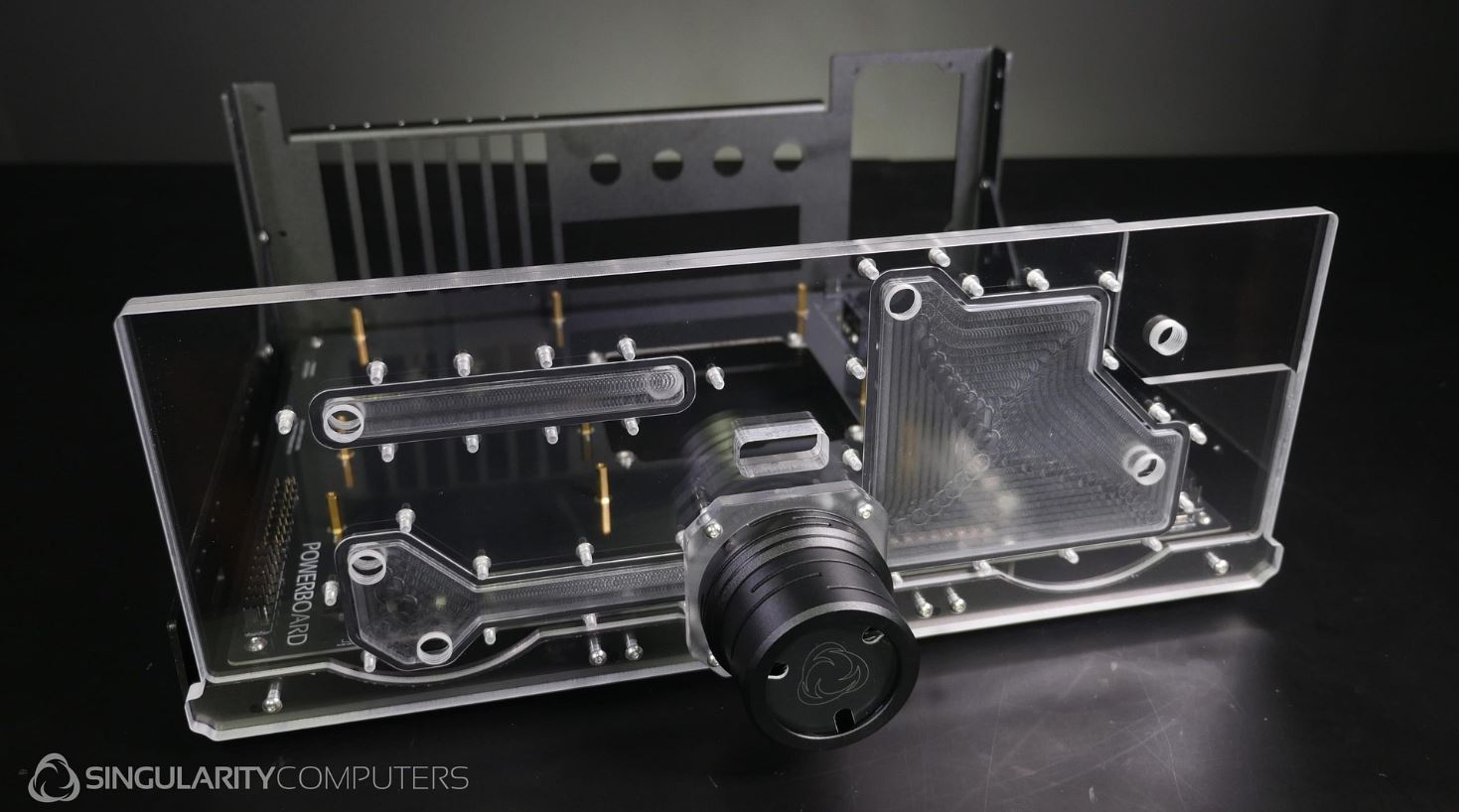

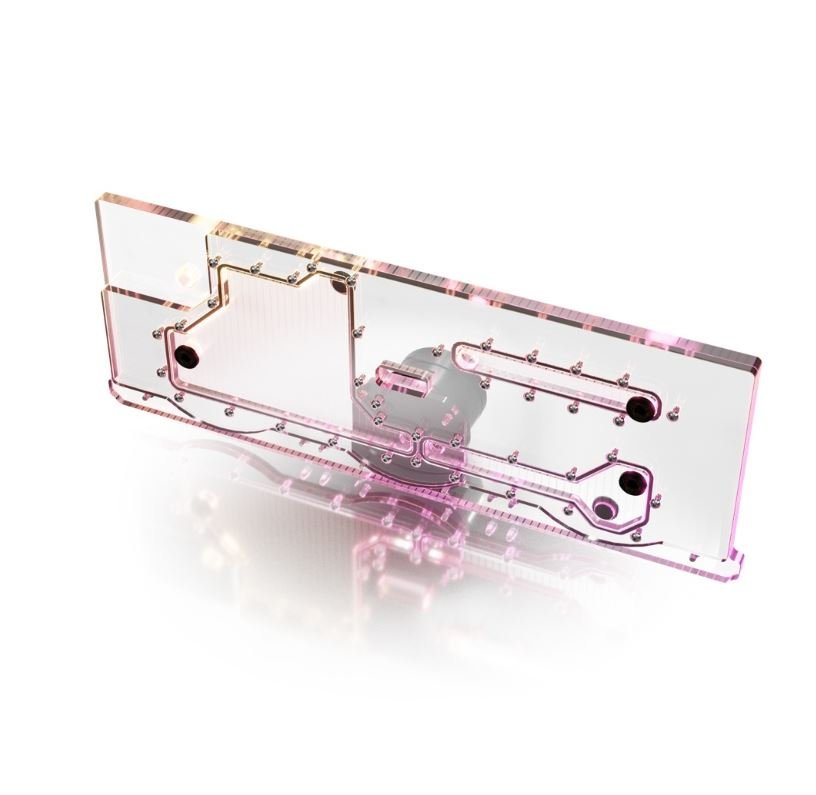

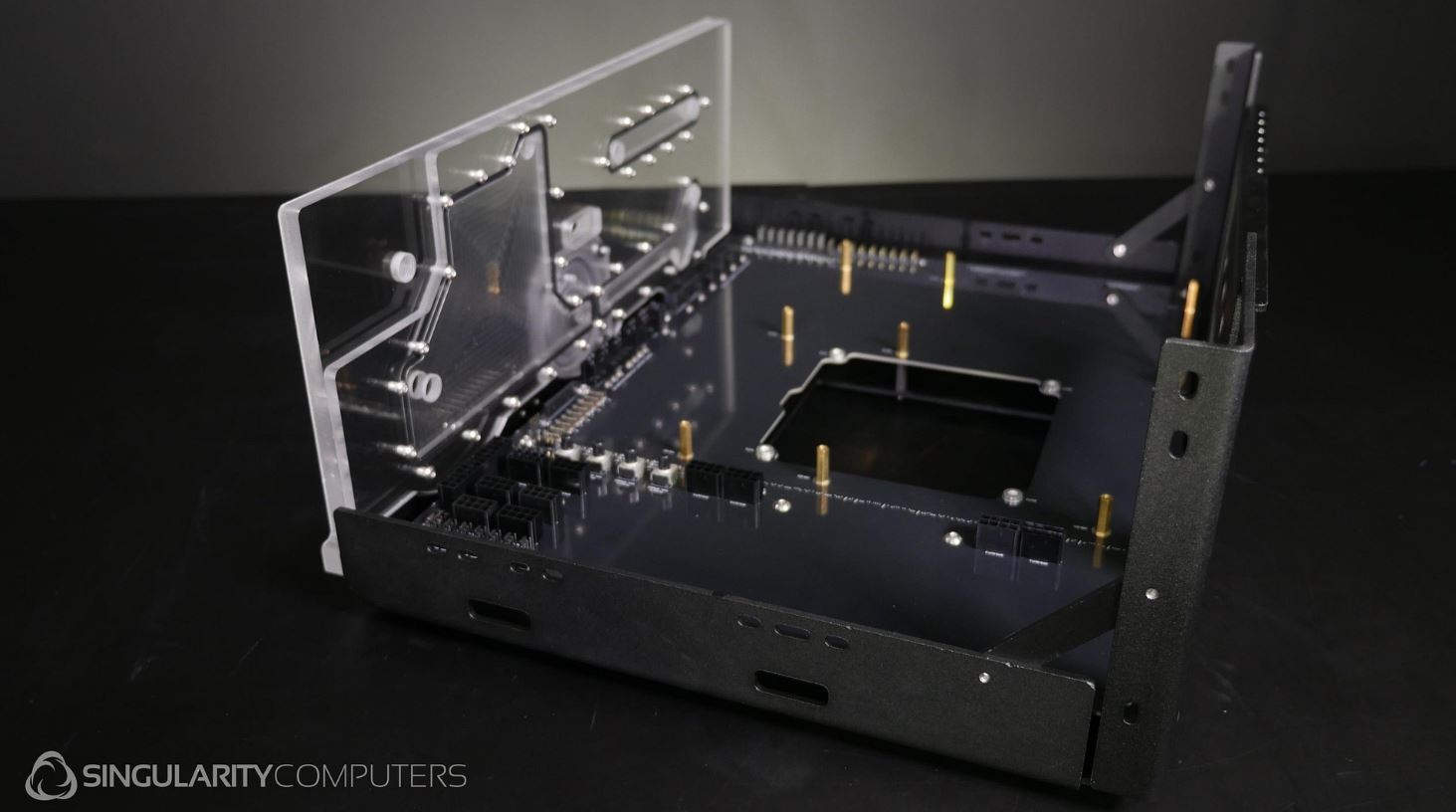

The SC Test Bench D5 Reservoir Distribution Plate adds a D5 and Reservoir Combination to the SC Test Bench. A Distribution Plate is the most compact way to add a pump and reservoir which is important for a test bench to keep things out of the way for easy access to the other components. It also improves the loop routes and is a major visual feature. This distribution plate installs on one side and has a loop route for easy connections to and from the side mounted radiators. It has an integrated reservoir, D5 pump top, D5 cover and a LED strip built in so that the distribution plate glows. The distribution plate is built from CNC machined clear cast acrylic and uses gaskets instead of O-Rings for increased durability. It is hand assembled with stainless steel fasteners.

Pump not included. Compatible with any D5 Pump.

Specifications & Included Items:
SC Test Bench D5 Reservoir Distribution Plate: Cast Acrylic, Clear, CNC Machined.
Integrated Reservoir.
Integrated Pump Top D5.
D5 Pump Cover CNC Machined Anodized Aluminum Black.
Pump Power Cable 4pin ATX to SATA & Molex x2.
LED Strip: ARGB 5V with 50cm cable.
Fasteners: Stainless Steel.
D5 O-Ring: Silicone Clear.
Gaskets: Silicone.
Dimensions: L: 476.5mm x W: 190mm x H: 90mm.
Weight: 2.5kg.
Packaged Dimensions: L: 500mm x W: 200mm x H: 120mm.
Packaged Weight: 3kg.
