Singularity Computers Test Bench Nano

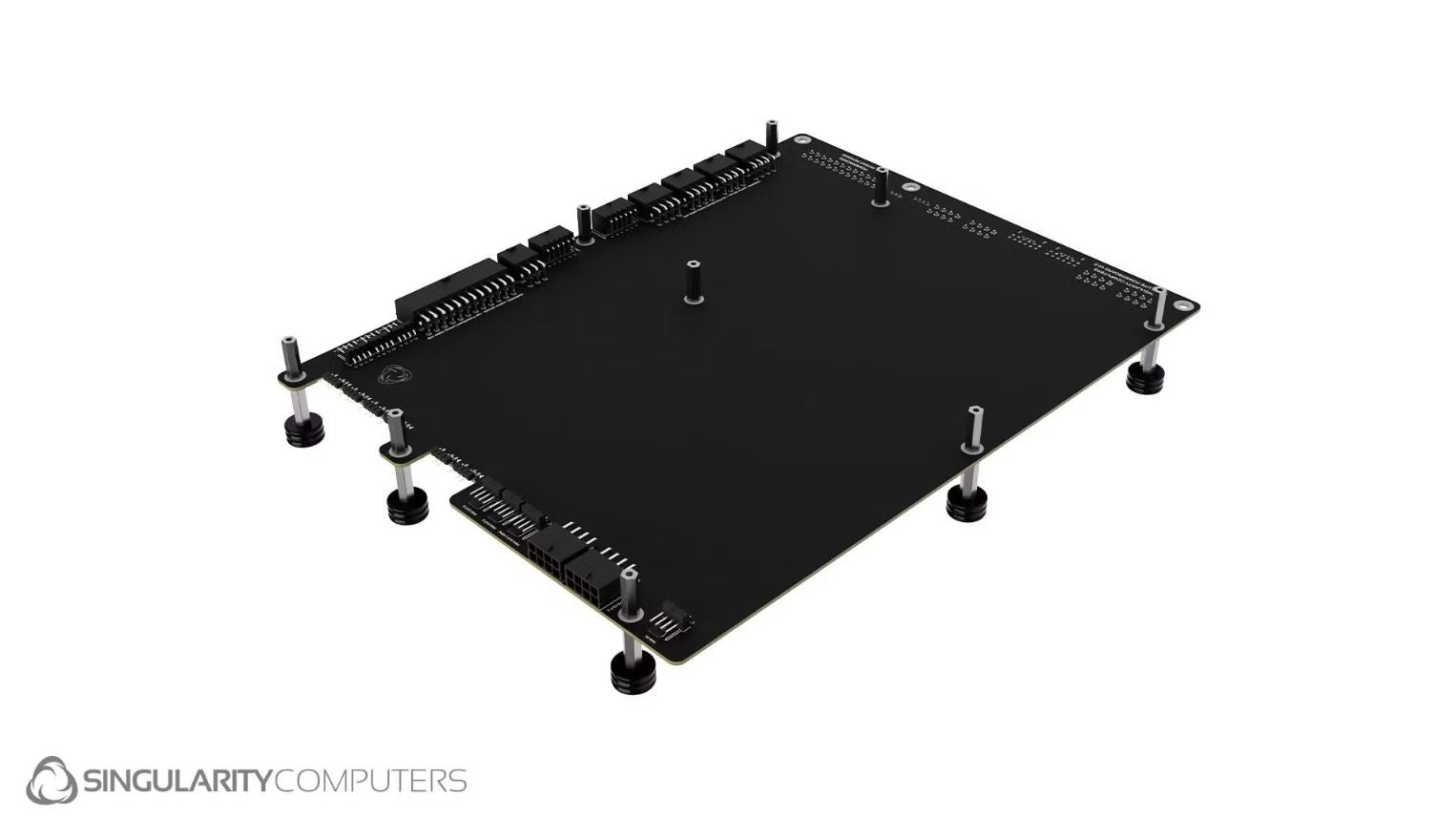

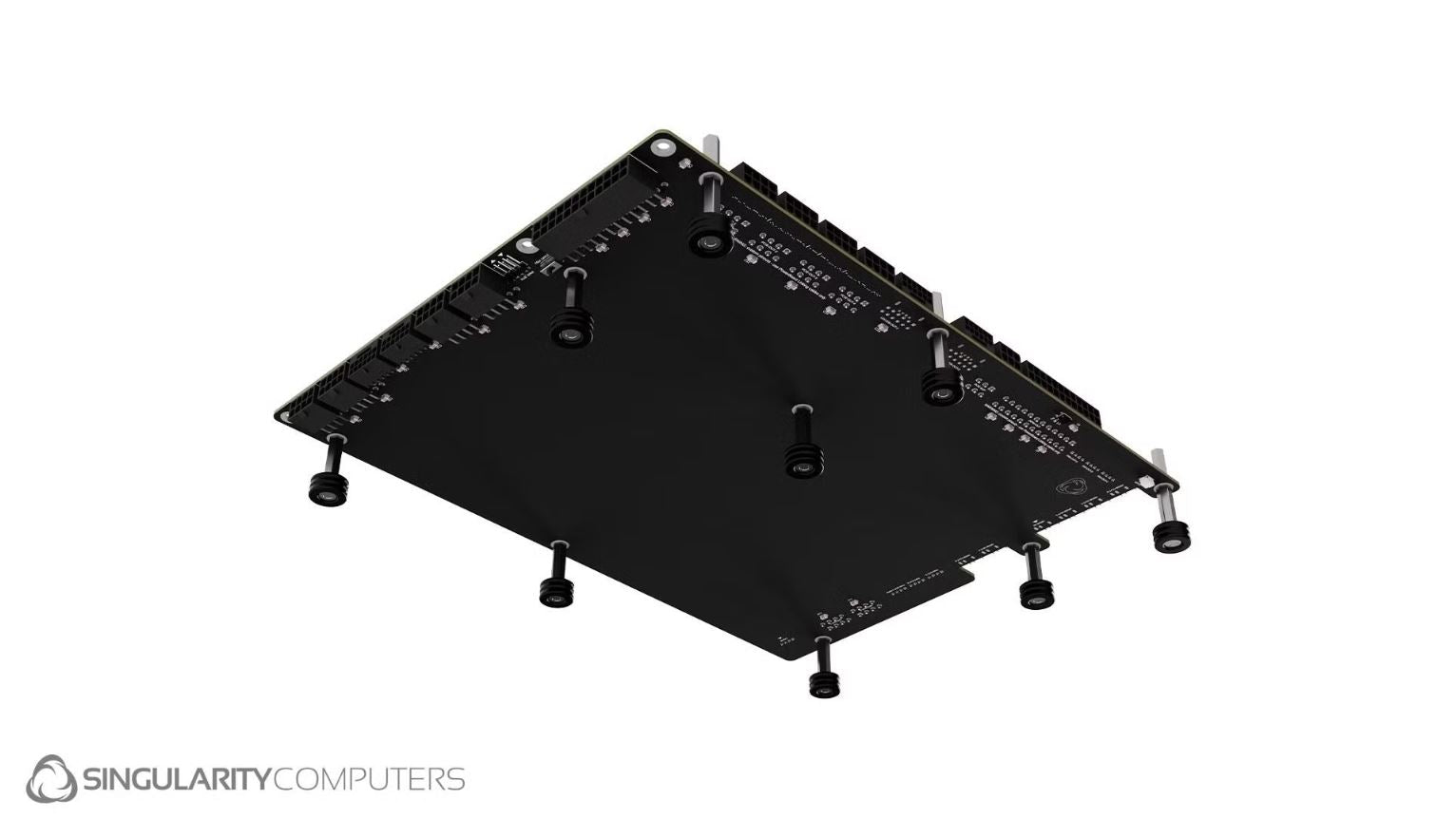

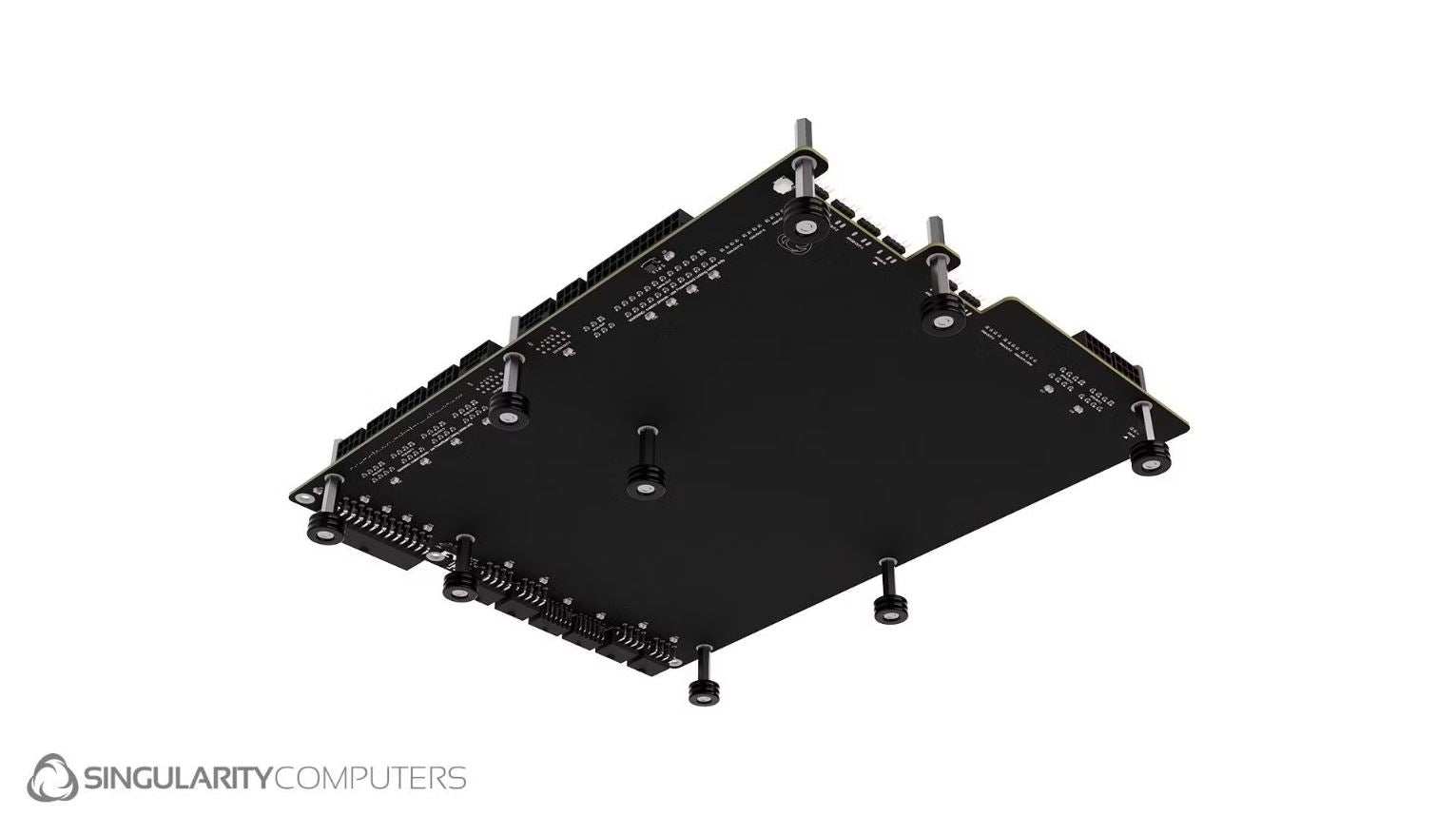

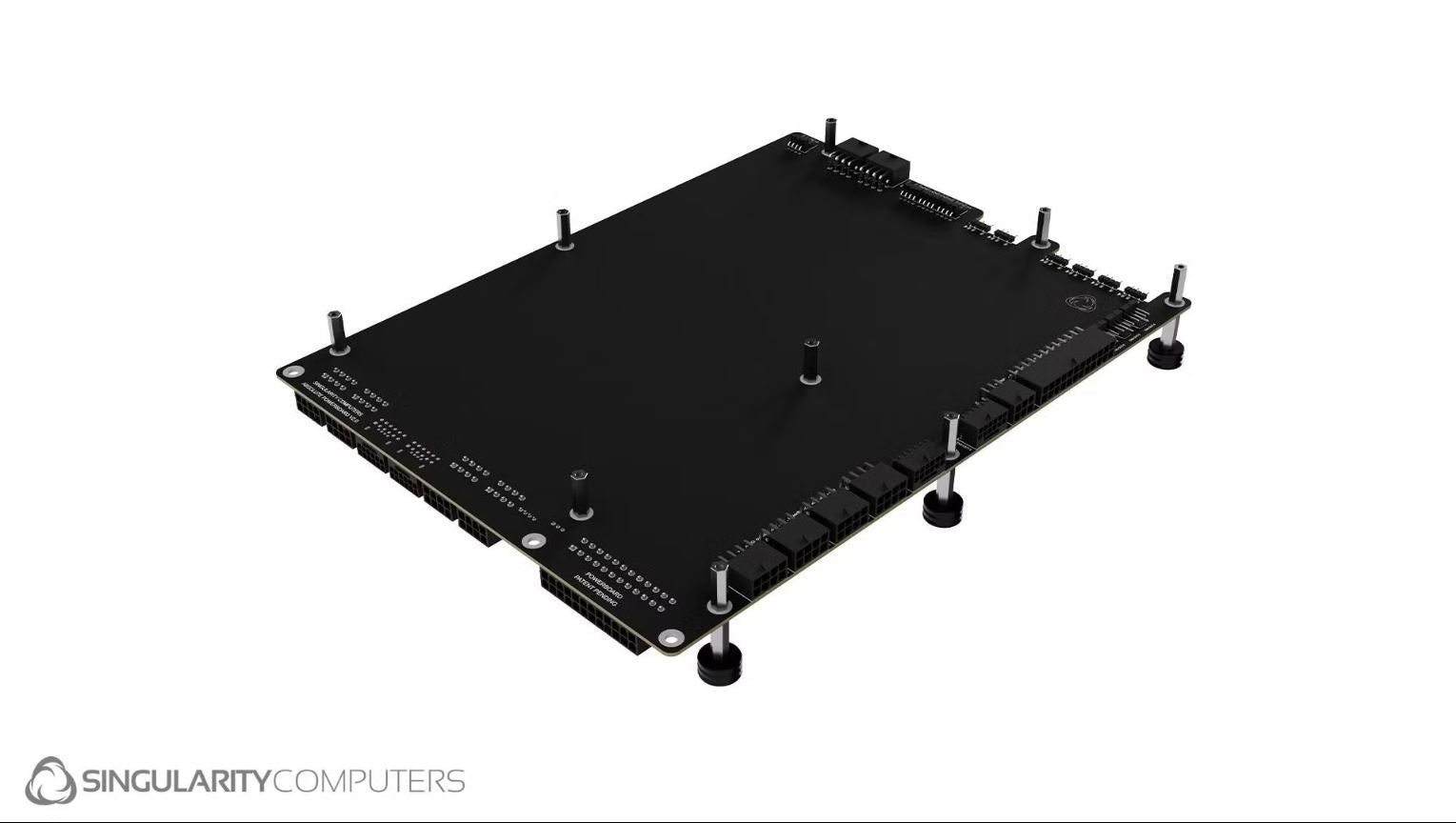

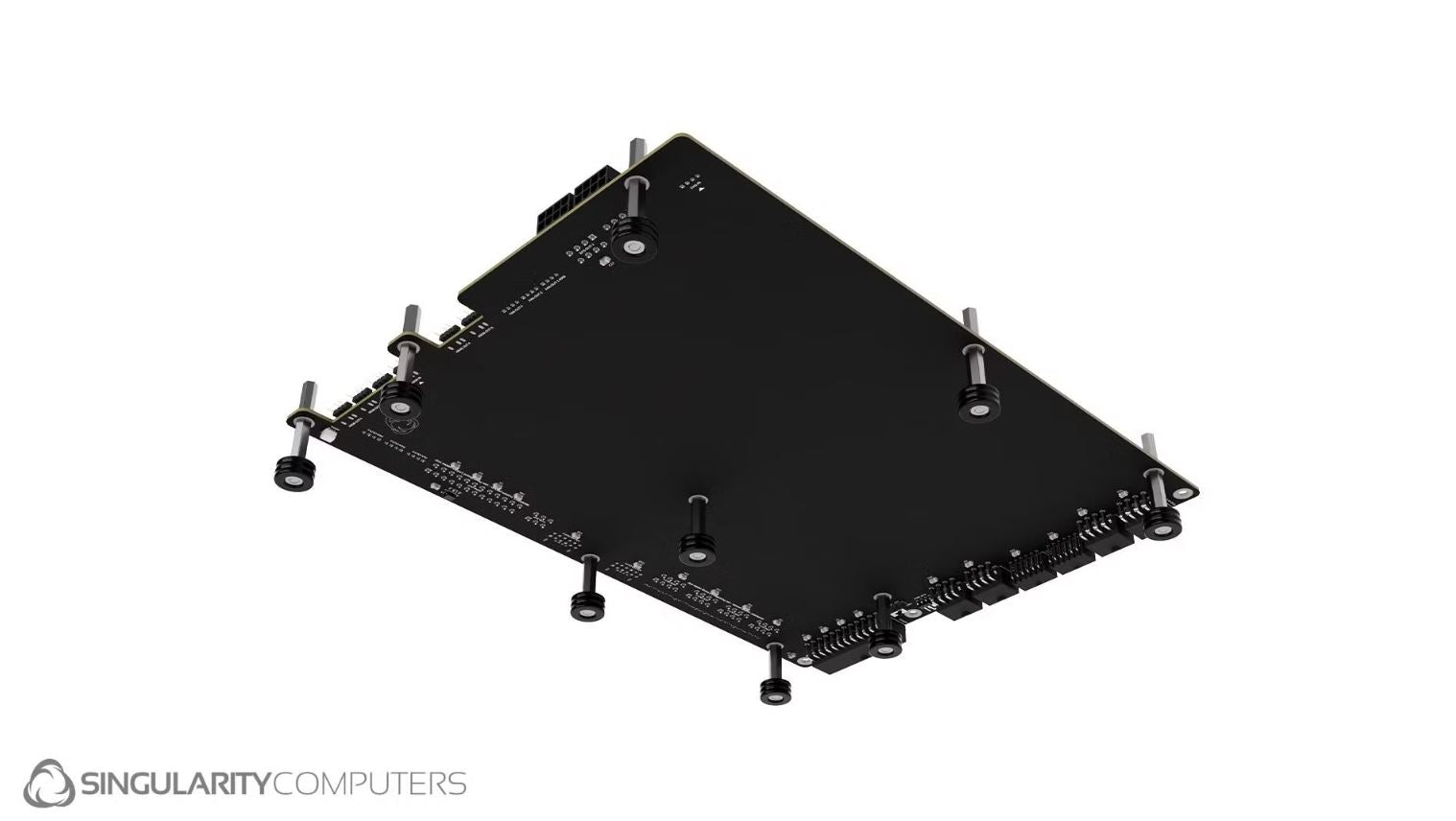

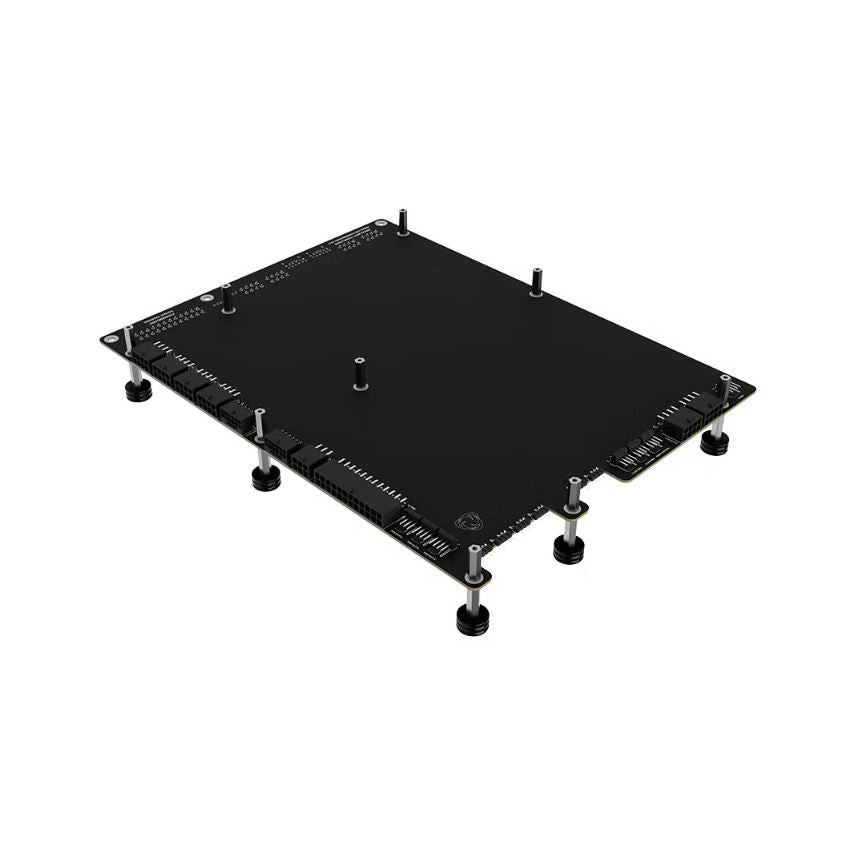

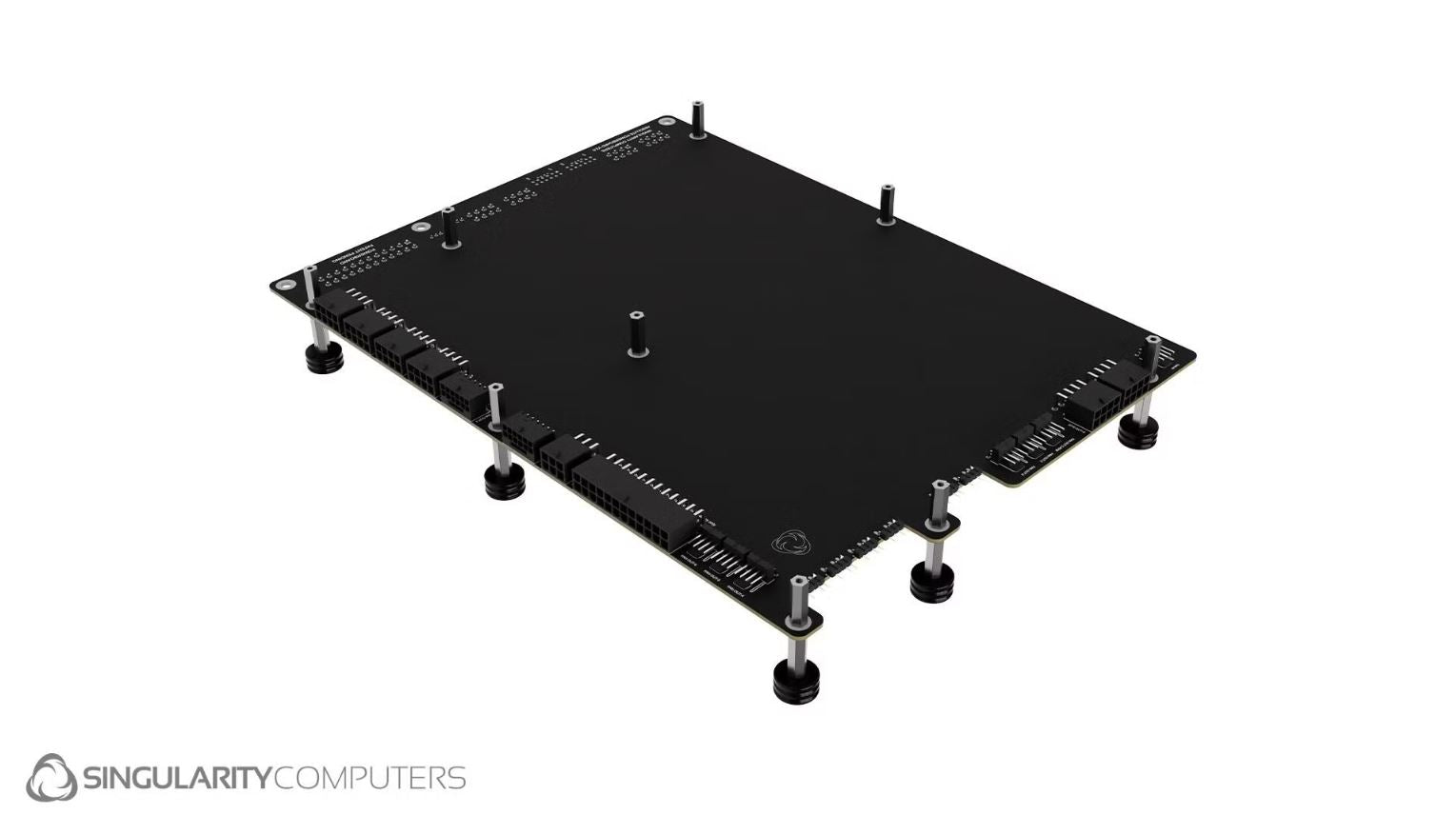

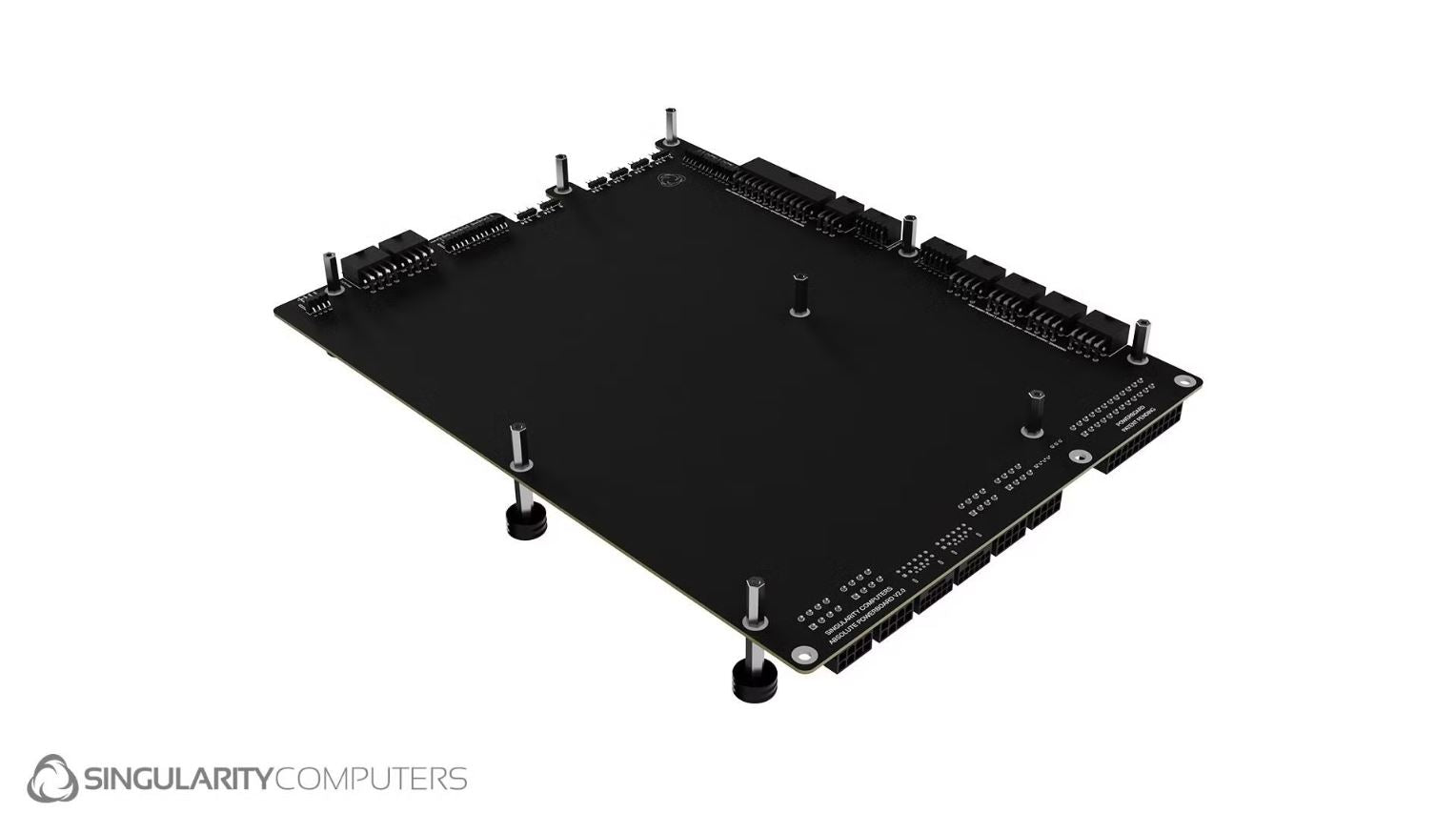

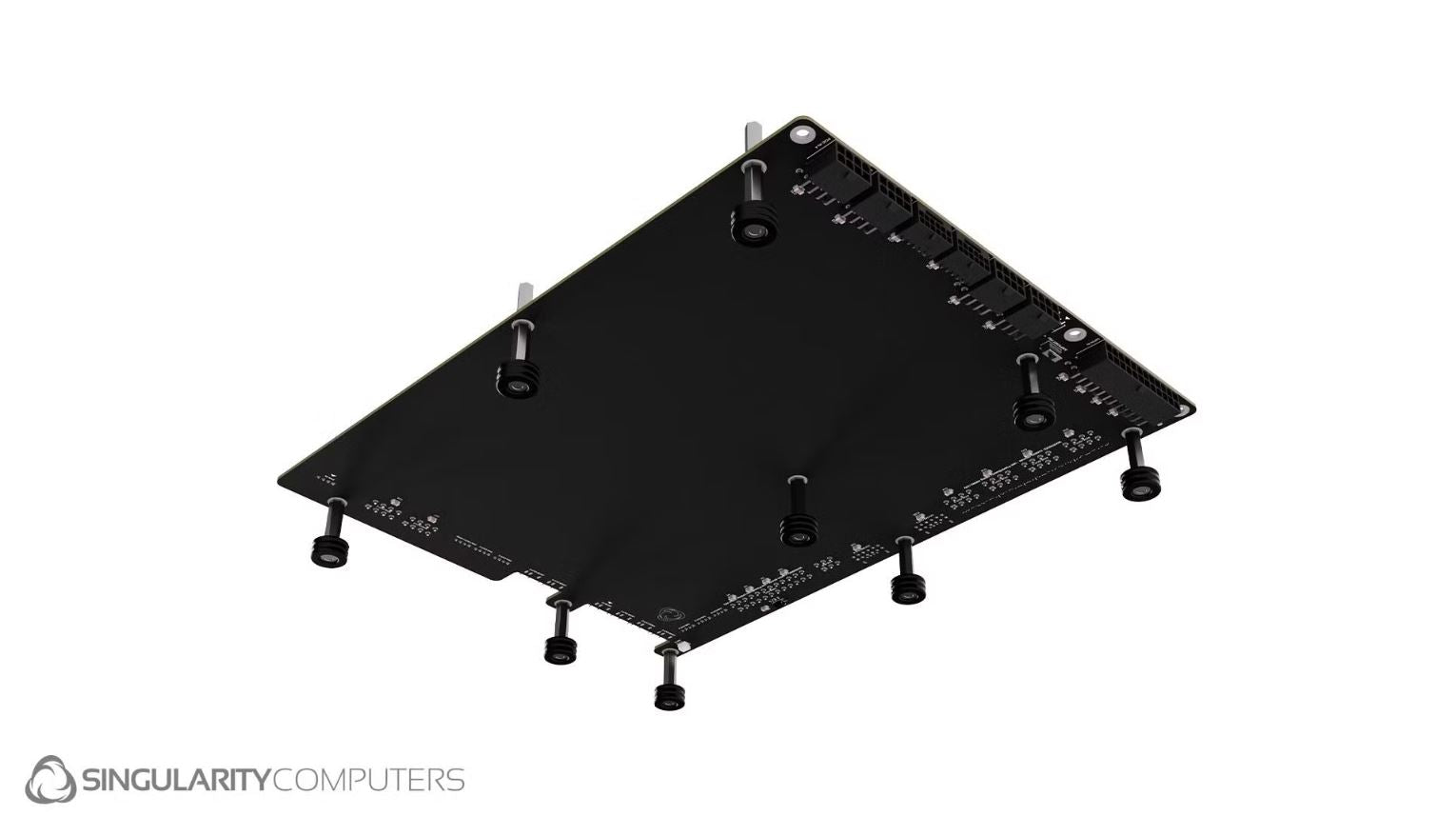

The Singularity Computers PowerBoard is a patent pending technology which completely solves the cable management problem. It is a PCB which integrates the core component cables, along with hubs and more. It is essentially a distribution plate for cables bringing the connectors close to the components allowing standardization of all cable lengths. The SC Test Bench Nano is the Absolute Case PowerBoard with stand offs, which components can be mounted directly onto for testing. It comes included with PowerBoard Linking Cables which go from the PowerBoard to the motherboard and GPU. The PSU can be connected to the PowerBoard inputs with the stock PSU Cables

Specifications:

SC Test Bench Nano. PCB.

Fasteners: Stainless Steel.

Dimensions: H: 317.5mm x W: 240mm x H: 16mm.

Weight: 1kg.

Packaged Dimensions: L: 430mm x W: 395mm x H: 50mm.

Packaged Weight: 1.5kg.

Electronics Integration:

Connectors: 24pin x1. PCIE 8pin x4. 12V2x6/PCIE 5.1 x2. 8pin EPS x2. PCIE 6pin Supplementary x1. (Equal inputs and outputs must be used).

Hubs: PWM Fan Hub x1 input x6 outputs. ARGB: x1 input x8 outputs.

Cables: PowerBoard Linking Cables Standard Set: 24pin x1. 8pin EPS x2. 8pin PCIE x3 or 12V2x6/PCIE 5.1 (select above). 18AWG Black Headshrinkless Sleeve.

PWM Female to Female 50cm Black Sleeved x1.

ARGB Female to Female 50cm Black Sleeved x1.
