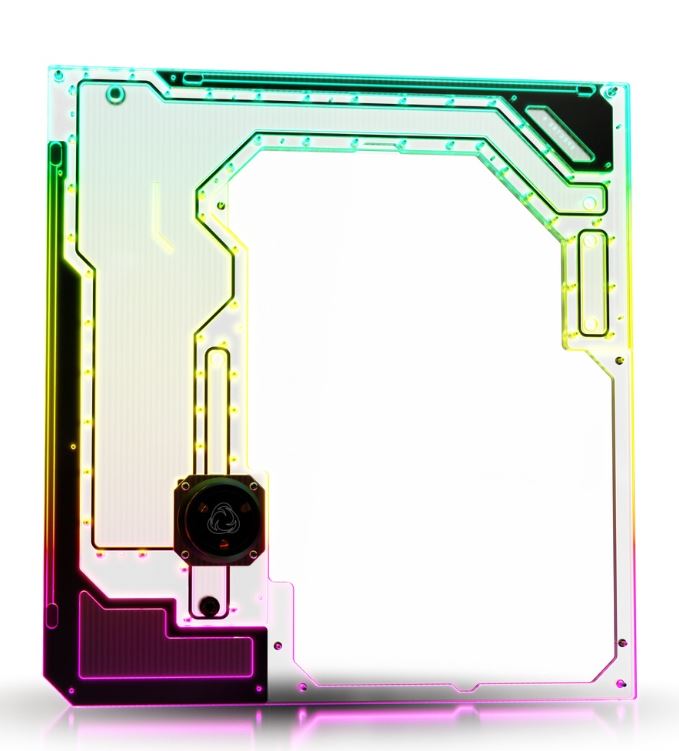

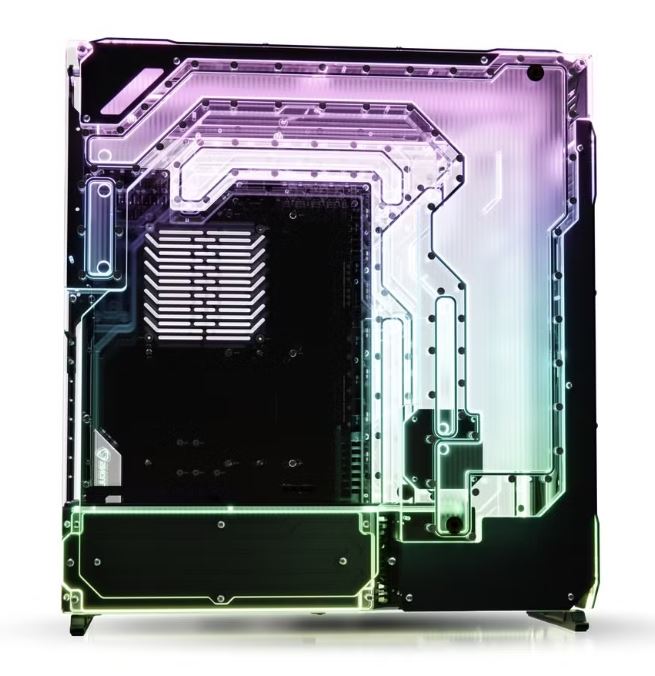

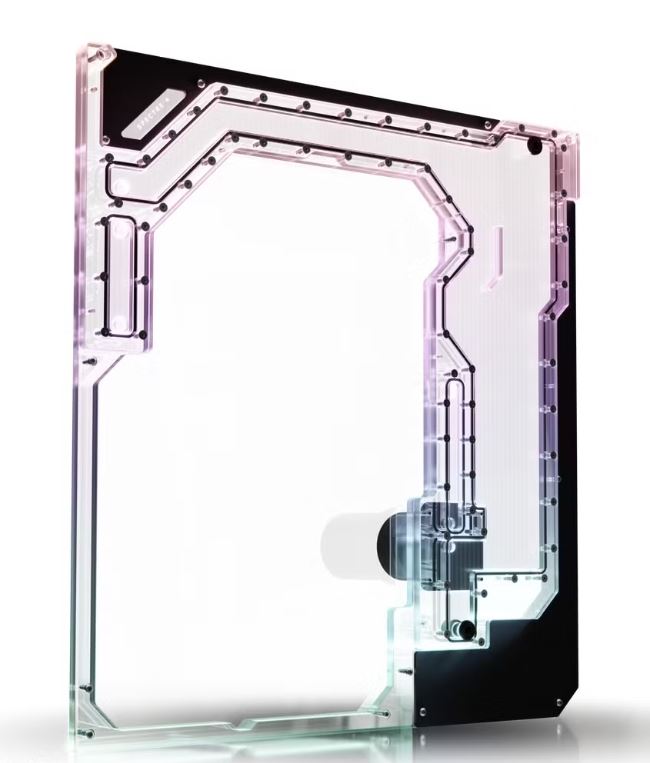

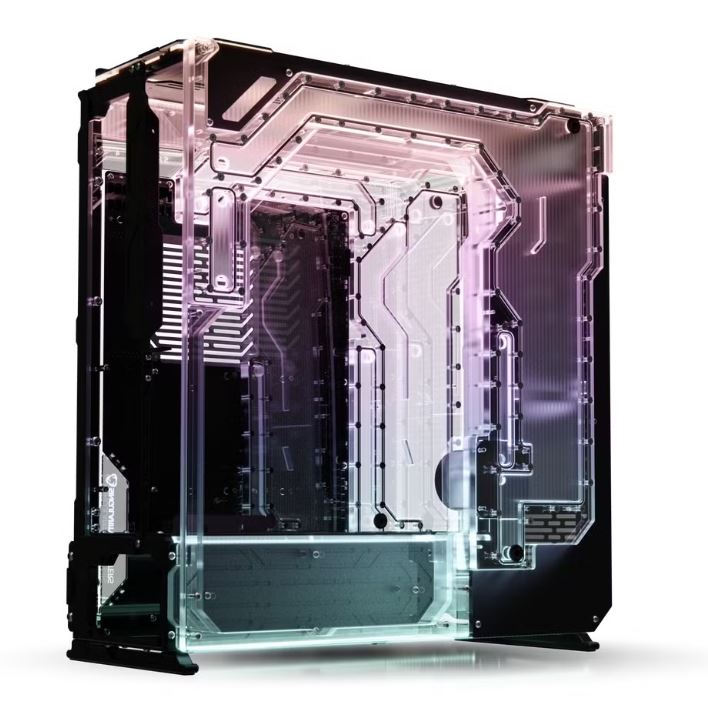

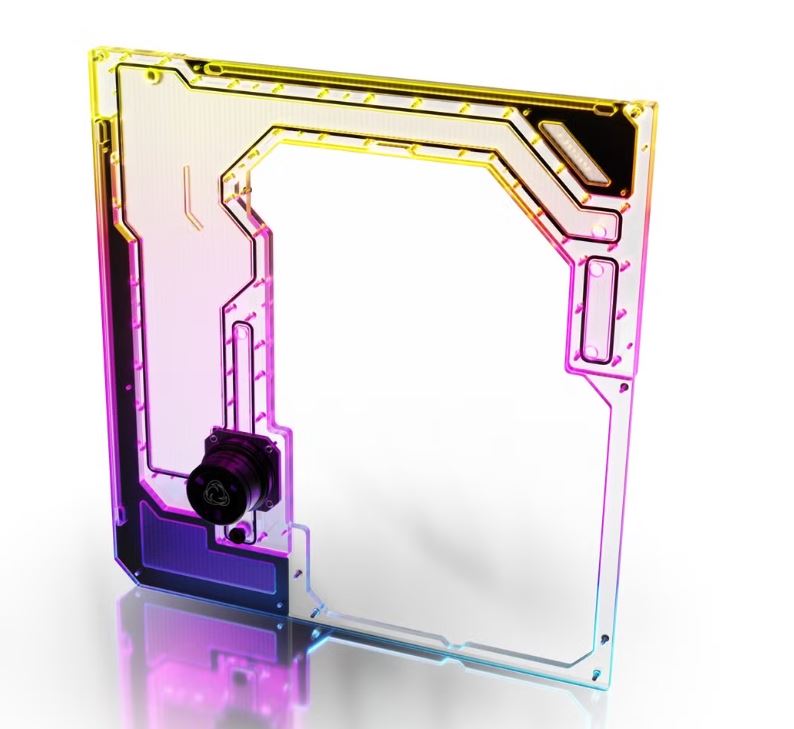

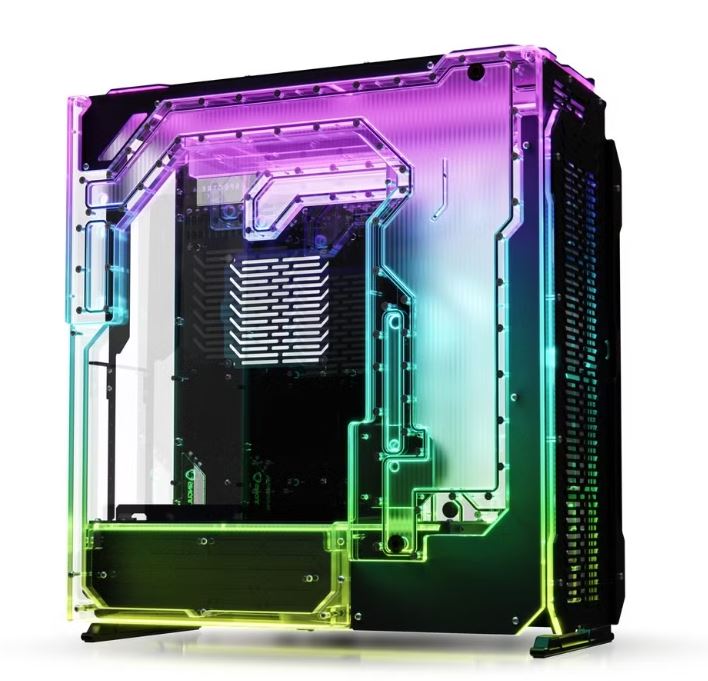

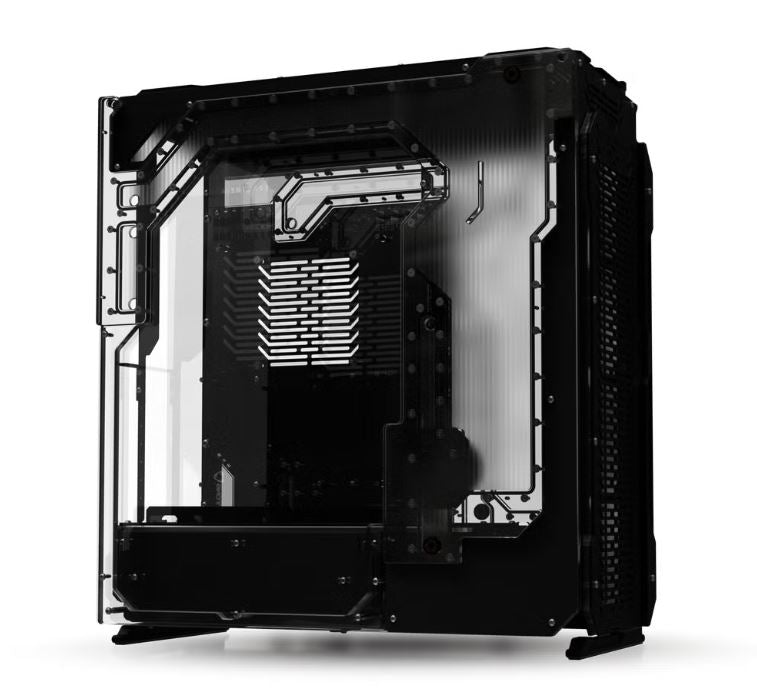

Singularity Spectre 4 Dual Loop Side Panel

The Spectre 4 Dual Loop Side Panel is an addon for the Spectre 4 Water-cooling Case. It mirrors parts of the main distribution plate, but some port locations are different so that the Dual Loop Side Panel can be used for the GPU loop and the main case distribution plate for the CPU loop.

It is a replacement for the stock side panel window and mounts directly onto the side panel window mounts. It is designed to be as open as possible so that you can still see the important parts of the build. It has a removable side panel window so that it is easy to gain access to the case to build the system while the Dual Loop Side Panel is attached. It has an integrated D5 pump top, D5 Pump Cover and two ARGB LED strips which come pre-installed. There are 4 ports which are positioned for the GPU loop and top radiator, and a fill and drain port. The port layout has been designed for two separate loops, but it can be used for dual loops, single loop, series or parallel.

Specifications & Included Items:
Spectre 4 Dual Loop Side Panel.
Protium 3.0 D5 Pump Cover.
Water-cooling Integration: Reservoir, Pump Top, Pump Cover, Fill Port, Drain Port, Parts of water-cooling loop.
Ports: x7 G1/4� BSPP. 1x Fill Port. 2x Drain Ports (x1 inside & x1 outside).
Pump: (Not included): Compatible with all D5 pumps.
LED Strips: x2 50cm ARGB LED Strips with 50cm cables (pre-installed).
Product Dimensions: L: 540mm H: 615mm W: 23mm (without pump top or pump).
Product Weight: 2.5kg.
Package Dimensions: L: 600mm H: 600mm W: 130mm.
Package Weight: 3kg.
Materials: Cast Acrylic. 6061 Aluminum. PCB.
Fasteners: Stainless Steel.
Gaskets: Silicone.
Manufacturing Process: CNC Router, CNC Lathe, CNC Mill, PCB.
Assembly: Distribution Plate Assembled by Hand.
Testing/Validation: All Distribution Plates are factory pressure tested and precise fastener tension is applied.

Installation: Installs in the location of the stock side panel window.

Experience Singularity:
We create the products we want in our builds based on our 20 years of experience building high end computers. All our designs begin with function, versatility is vital to increase the possibilities so that you can create the build you want to, something unique. Our products are premium, we do not hold back on quality to save cost. All our products use the most high-end available materials and manufacturing processes. Our vision is to continue to introduce unique and exciting ideas, to inspire and lead the industry.
