SK-UNI mounting bracket 28 mm (120 mm fan)

The SK-UNI mounting bracket 28 mm (120 mm fan) is a steel bracket. It is used to mount all SK-UNI Distroplates/Reservoirs and CubeTube Distroplates to all 120 mm (105 mm hole spacing) mounting holes on the radiator grille/radiator/fan.

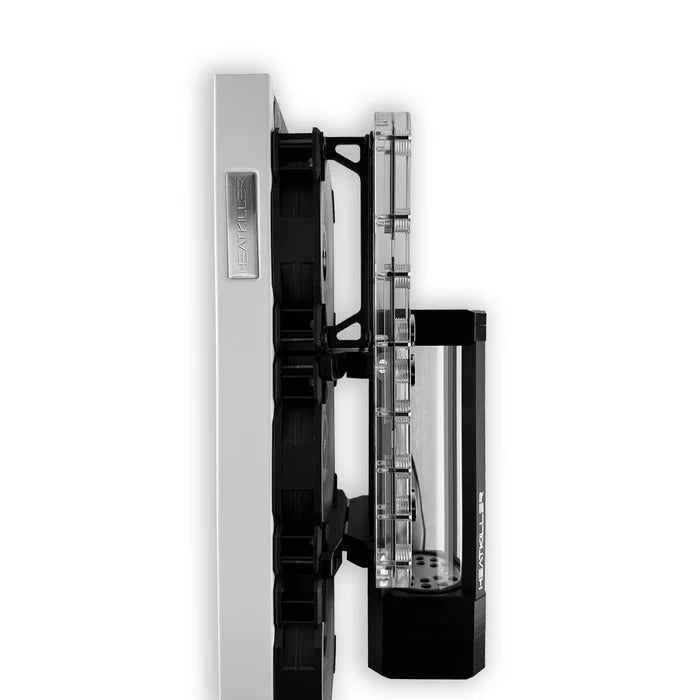

The distance of 28mm allows the installation of a DDC pump. This means that distroplates/reservoirs with or without a pump on the back can be easily installed in front of fan grilles/radiators/fans. In addition, our spacer bracket "SK-UNI mounting bracket 28mm" ensures a larger airflow, which can flow unhindered through the housing.

Made of folded, 1.5mm thick, black painted steel, our SK-UNI mounting bracket ensures a stable installation.

Compatibility list

• SK-UNI 80 Pump Combo - Acrylic
• SK-UNI 120 Pump Combo - Acrylic
• SK-UNI 240 Pump Combo - Acrylic
• SK-UNI 120D Distroplate - Acrylic Black Edition
• SK-UNI 120D Distroplate - Acrylic White Edition
• SK-UNI 360D Distroplate - Acrylic Black Edition
• Sk-Crossflow Distroplate - Acrylic- Lian Li - O11D XL EVO
• SK-120 Light Distroplate 120 mm - Acrylic D-RGB
• Stealkey CubeTube Distroplate 240 mm - Acrylic
• Stealkey CubeTube Distroplate 360 mm - Acrylic

Technical details

• Product dimensions (WxHxD): 115x28x13 mm

• Color: Black

• Material: Steel

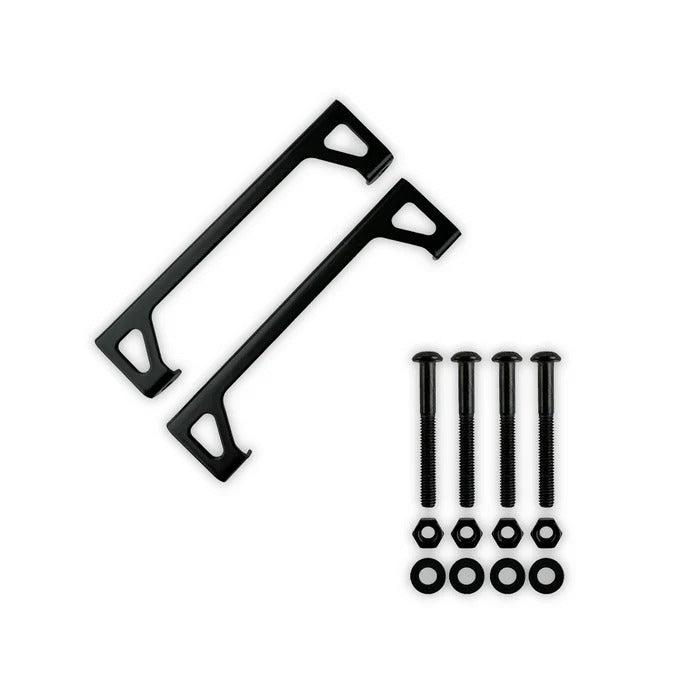

Included in delivery

• 1x pair of SK-UNI mounting brackets 28 mm (120 mm fan)
• 4x M4 washers
• 4x M4x35mm mounting screws
• 4x M4x6 mm mounting screws
• 4x M4 nuts
