Technical Specifications
 |
 |
Motherboard
|
- Extended ATX / E-ATX / EATX (305mm Ã? 335mm max)
- ATX (305mm Ã? 244 mm)
- Mini-DTX (203mm Ã? 170 mm)
- Mini-ITX (170mm Ã? 170 mm)
|
 |
CPU Air Coolers
|

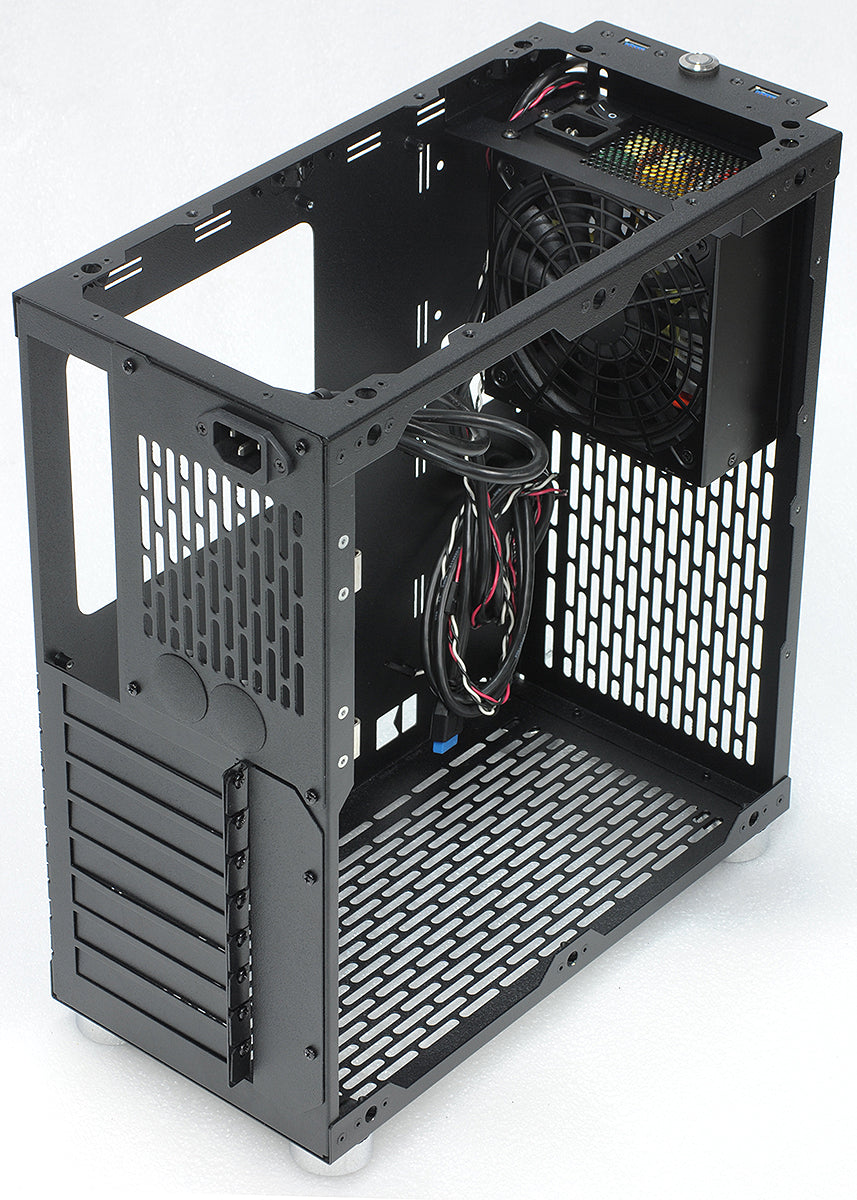

- SFX Internal Kit: 149mm with side hinge bracket removed, 142mm with the side hinge bracket installed
- bequiet! Dark Rock TF (131mm)
- ARCTIC Freezer Xtreme Rev. 2 (140mm)
- PHANTEKS PH-TC14CS (141mm)
- Noctua NH-C14S (142mm)
- Thermaltake NiC L31 (145mm)
- PCCOOLER GI-X5R (148mm)
- Thermolab Trinity (149mm) [contacts side panel]
- Scythe Fuma Rev B (149mm) [contacts side panel]
- SFX Rear Plate: 75mm max height
- Noctua NH-L9x65 (65mm)
- Noctua NH-L12S (70mm)
- ATX Rear Plate: 48mm max height
- Air coolers are not recommended, see all-in-one liquid coolers.
|
 |
AIO Liquid Cooler Support
|
- Single Radiator Options
- 1x 120mm radiator in bottom or front
- 1x 140mm radiator in bottom or front
- 1x 240mm radiator in bottom
- 1x 280mm radiator in bottom
- Dual Radiator Options
- 2x 120mm or 140mm radiators in bottom, or mix of bottom/front.
- 1x 280mm radiator in bottom w/ 25mm fans + 1x 120mm or 140mm radiator in front top of case
- 2x 240mm x 27.5mm thick radiator in front / bottom + 25mm fans on both
- 2x 240mm x 30mm thick radiator in front / bottom with 15mm thick fans on both
- Thickness of radiator on front of case + thickness radiator fans + GPU length must equal less than 330mm total.
- Recommended to purchase a low profile USB 3.0 motherboard header adapter for 280mm radiators in bottom of case.
- Some of these recommendations might not work with EATX motherboards.
|
 |
Fan Mounting
|

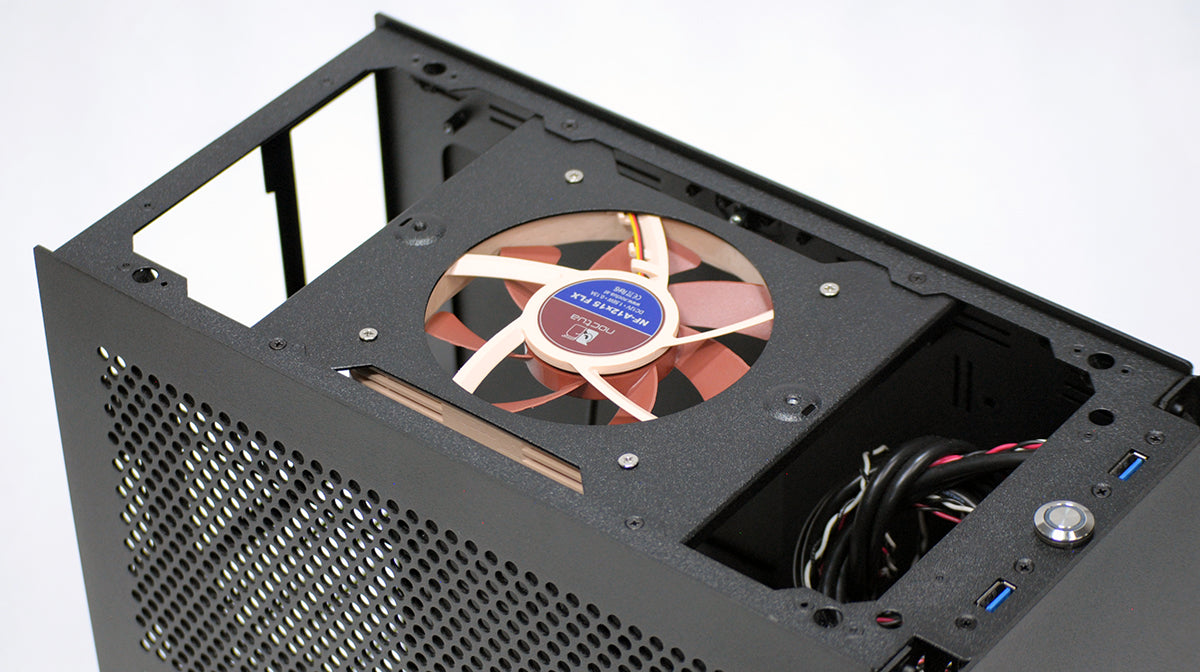

- One 120mm x 15mm fan on top fan bracket (120mm x 25mm possible but depends on motherboard)
- Two 140mm fans in bottom
- 120mm x 240mm radiator in front + 120mm x 240mm radiator in bottom (with SFX rear plate or ATX rear plate)
- Slim 15mm fans behind front panel
|
 |
Dust Filters
|
- Bottom
- Demcifilter Cerberus Bottom
- Front
- Demcifilter Cerberus Front
- Rear (for SFX Internal Kit)
- Demcifilter Cerberus Rear Filter

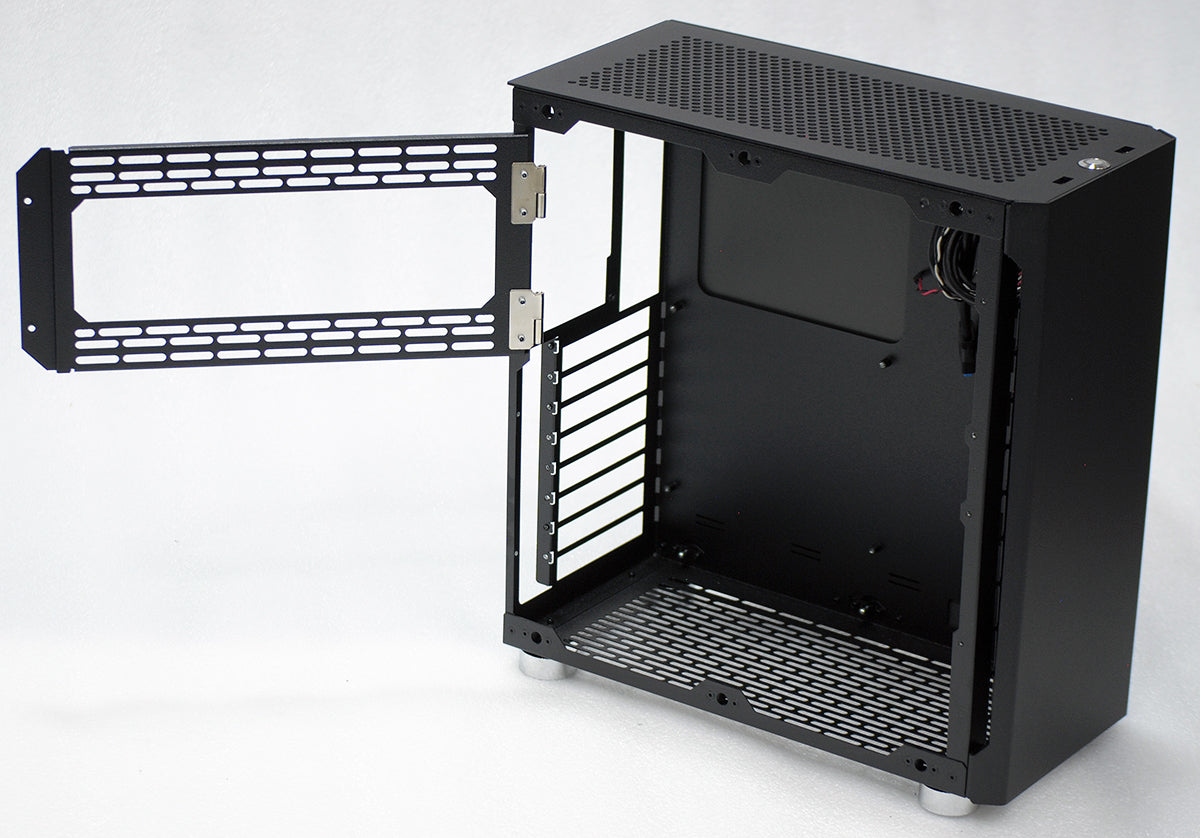

- Side Hinge Bracket
- Demcifilter Side Hinge Filter
- Top, with handle (requires three pieces)
- Handle Rear Section
- Handle Middle Section
- Handle Front Section
- Top, no handle
- Top, No Handle
- Full kit, with handle
- Demcifilter Full Cerberus X Kit with Handle
- Full kit, no handle
- Demcifilter Full Cerberus Kit, No Handle
|
 |
GPU / PCIe Cards
|
- Maximum card height: 152mm (bottom of card PCIe tab to top of power connector wires)
- Maximum card length: 330mm

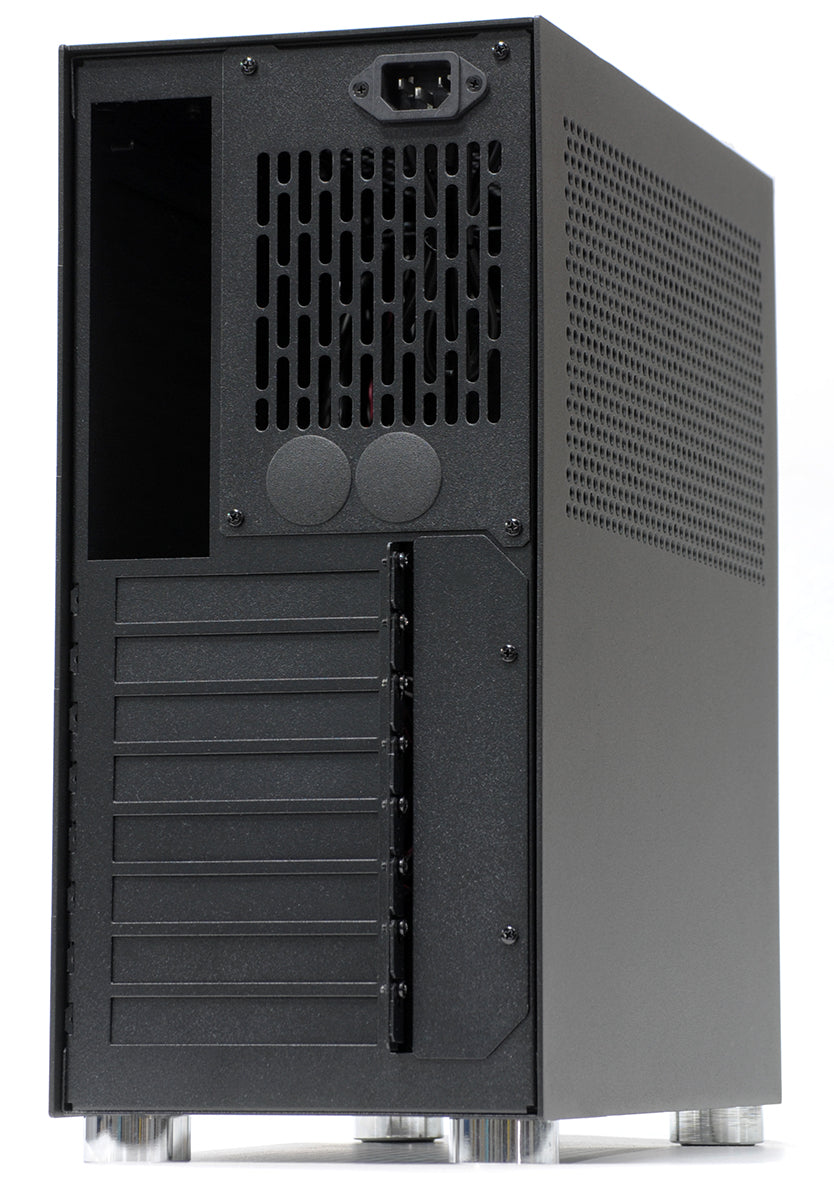

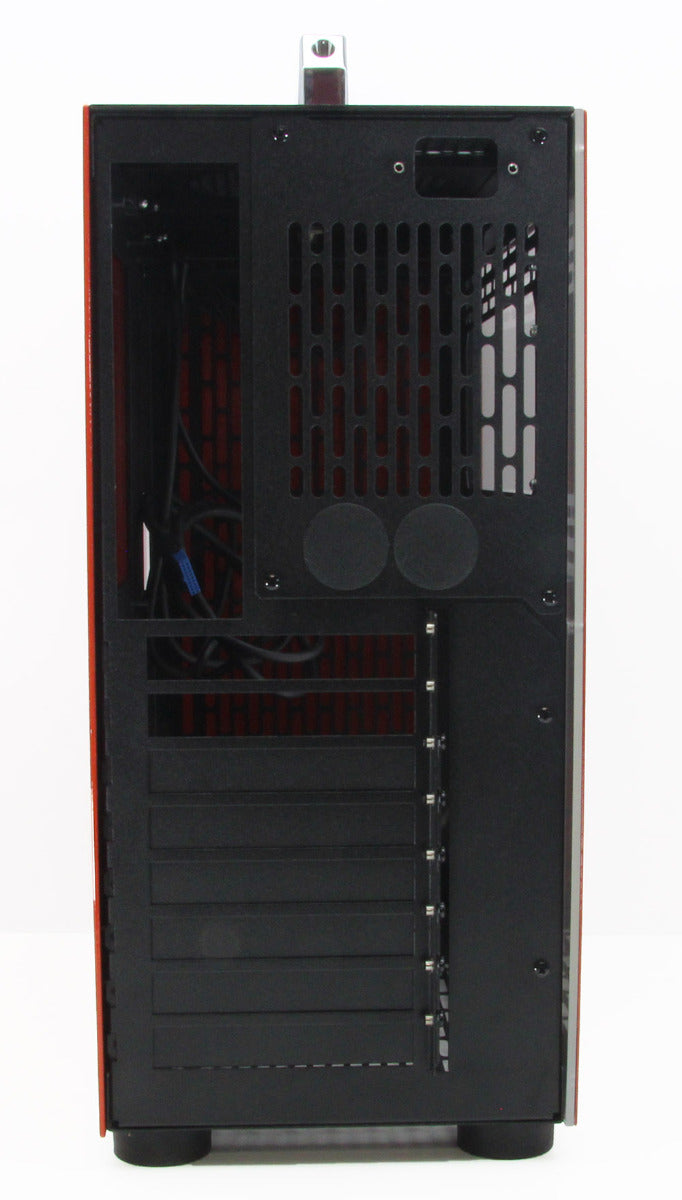

- 8x card slot openings for up to 4-way SLI / Crossfire
|
 |
Storage
|
- (2x) 2.5 SSD/HDD mounting points on base chassis
- Optional bracket for (2x) 2.5 SSD/HDDs
- Optional bracket for (3x) 3.5 HDDs
- Bracket can be configured for a combination of 3.5 and 2.5 drives
- Custom quantity HDD / SSD brackets on request with 10 pieces MOQ
|
 |

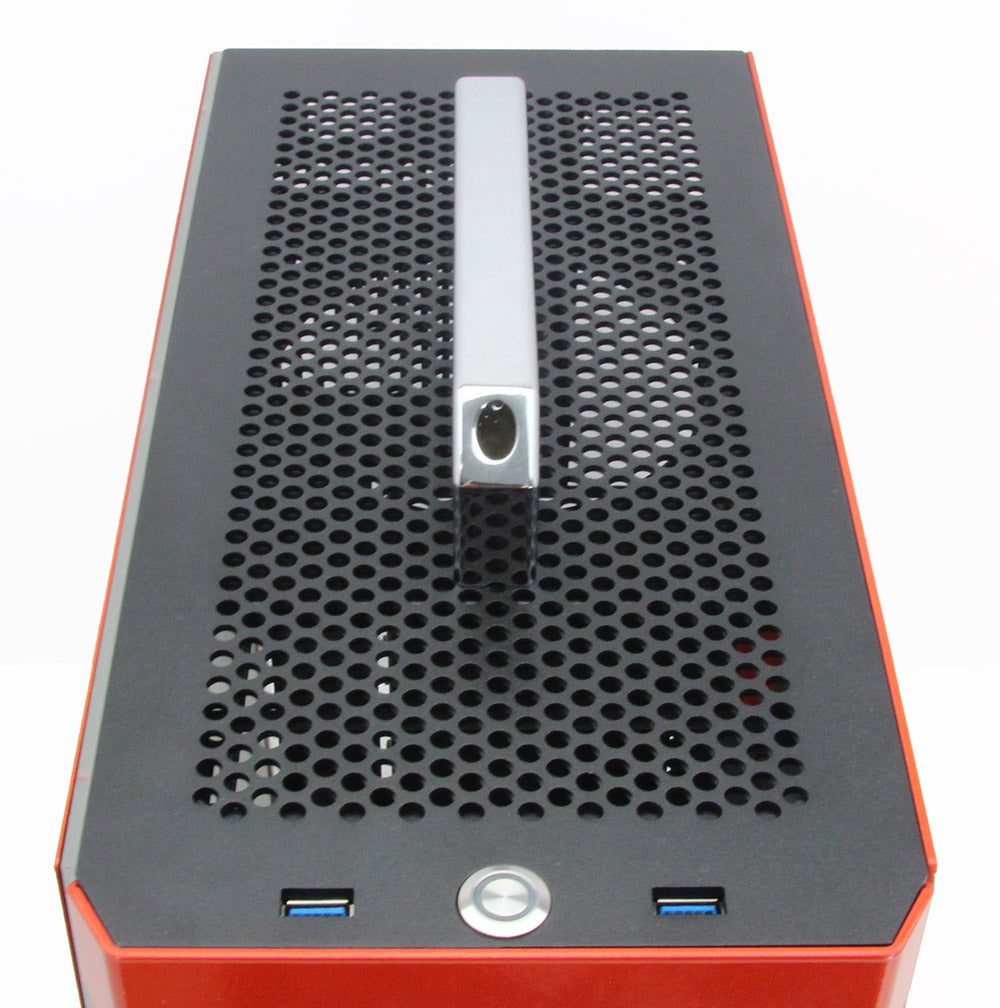

Front Panel I/O
|
- (2x) USB 3.0 Ports
- (1x) Momentary Switch / Power Status LED (Ring Shape, White)
|
 |

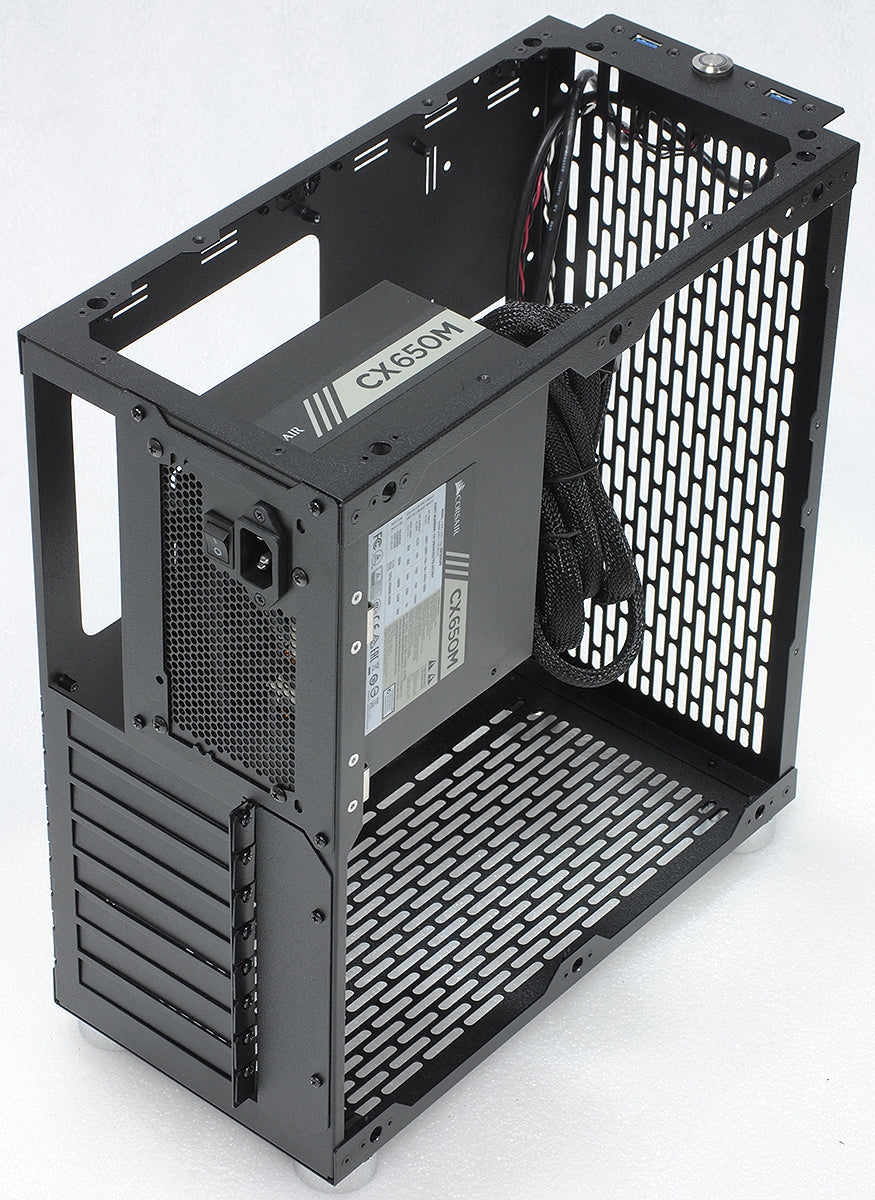

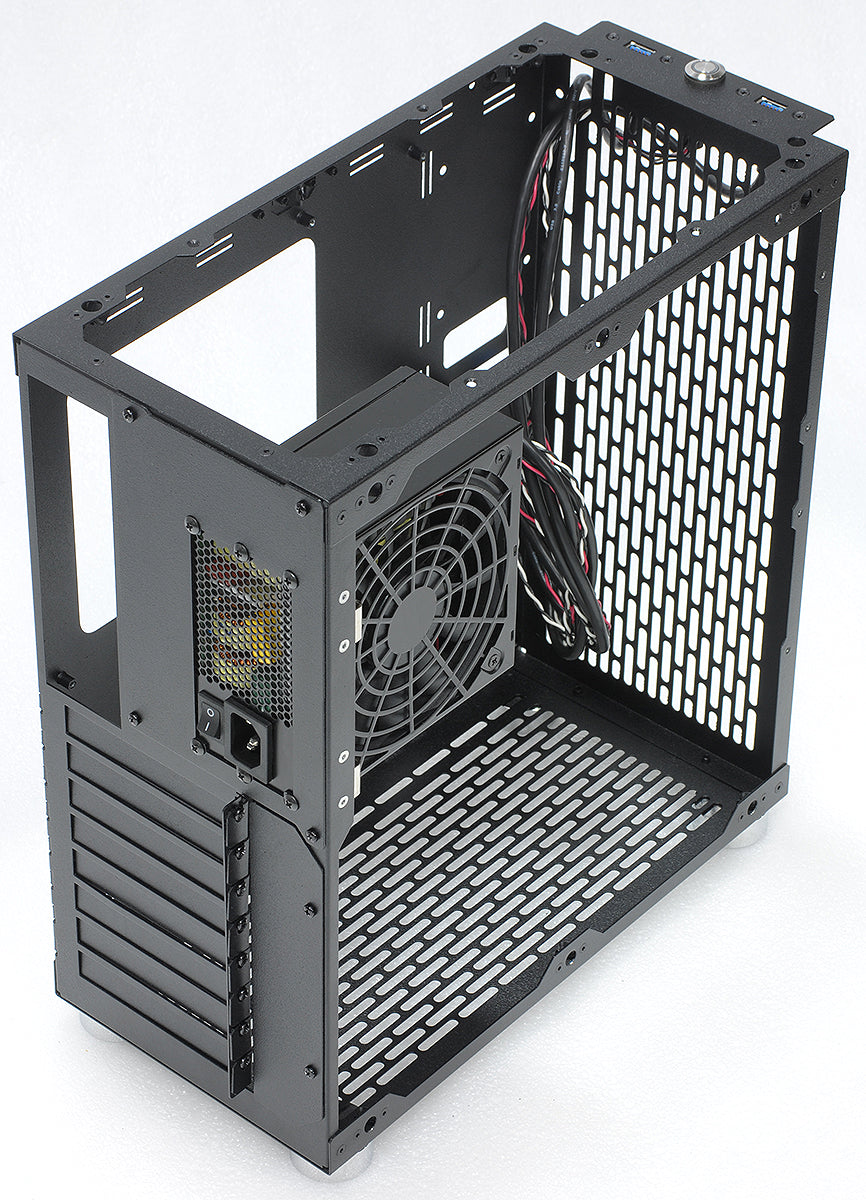

Power Supply
|
- ATX
- Supports all lengths
- SFX / SFX-L
|
 |
Material
|

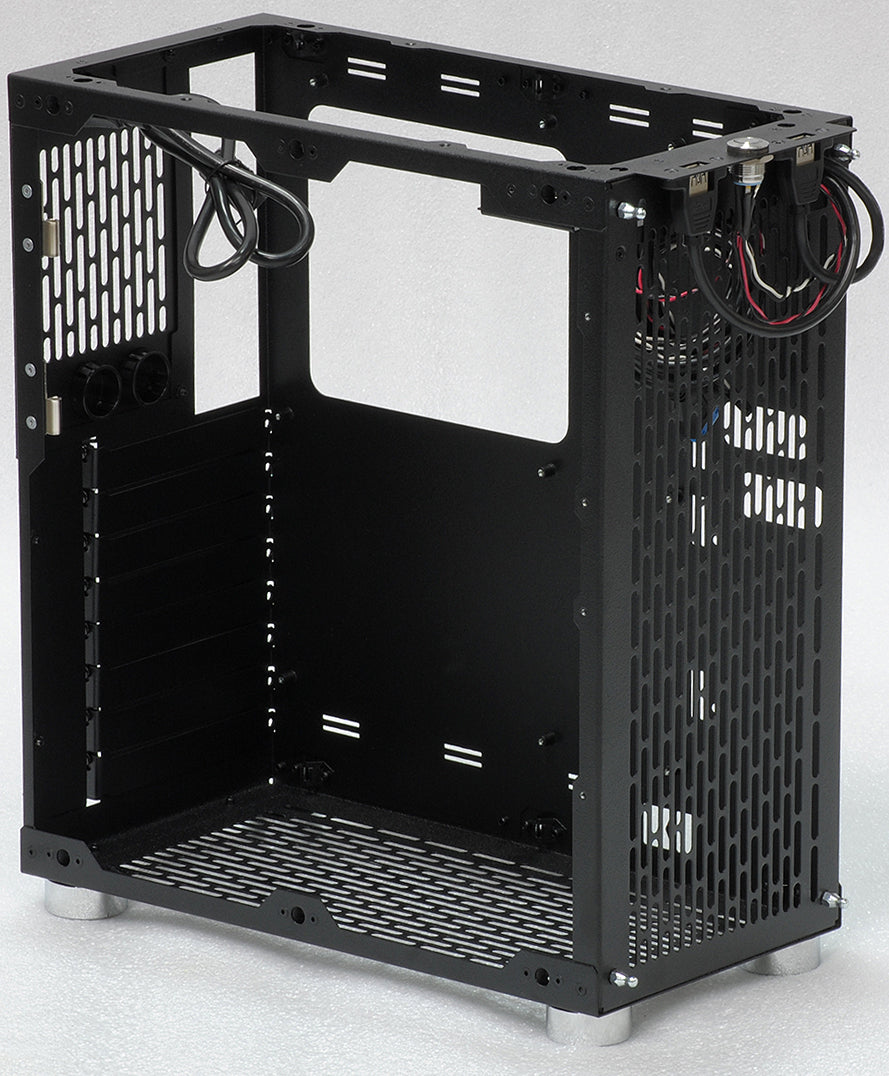

- Chassis
- ASTM-A-653 G30 Zero Spangle 20 Gauge Galvanized Steel

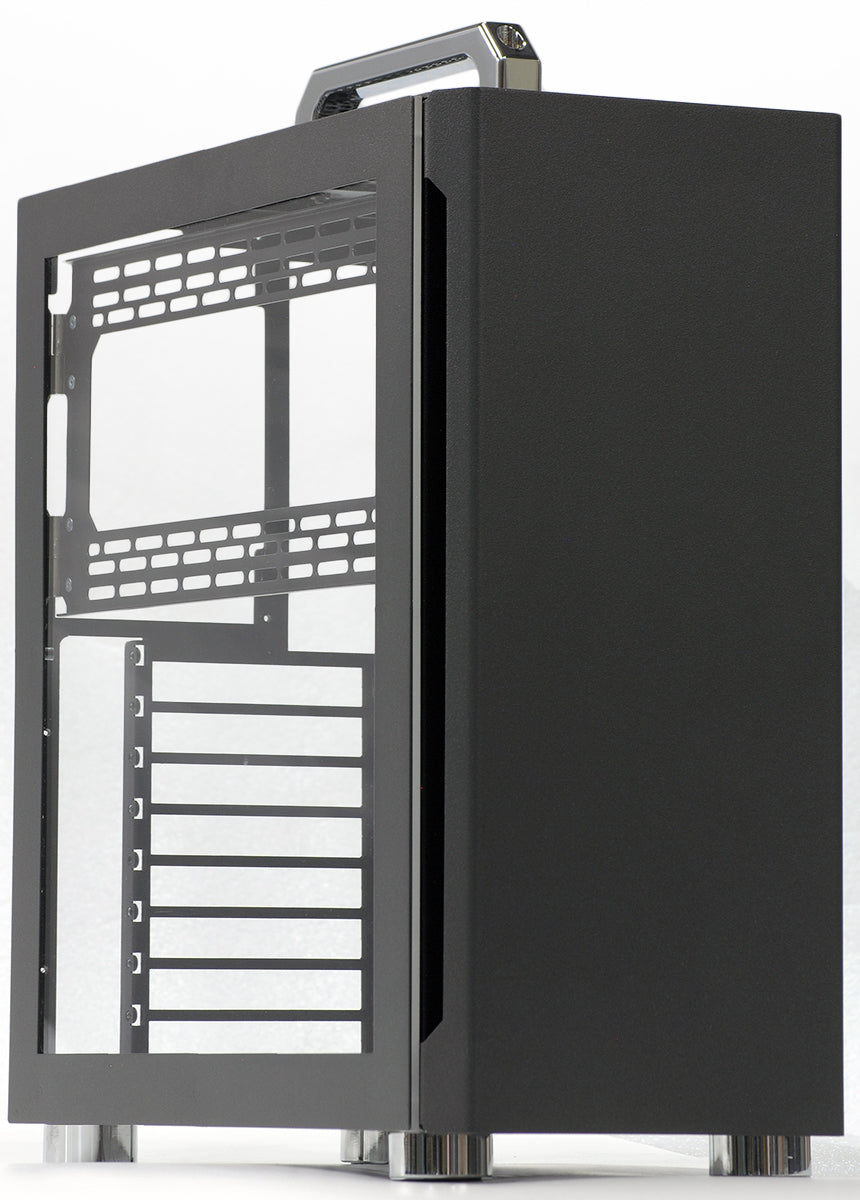

- Side Panels
- ASTM B209-10 5052-H32 0.080 Aluminum Sheet
- Handle
- Machined B308M-10 Aluminum-Alloy 6061-T6

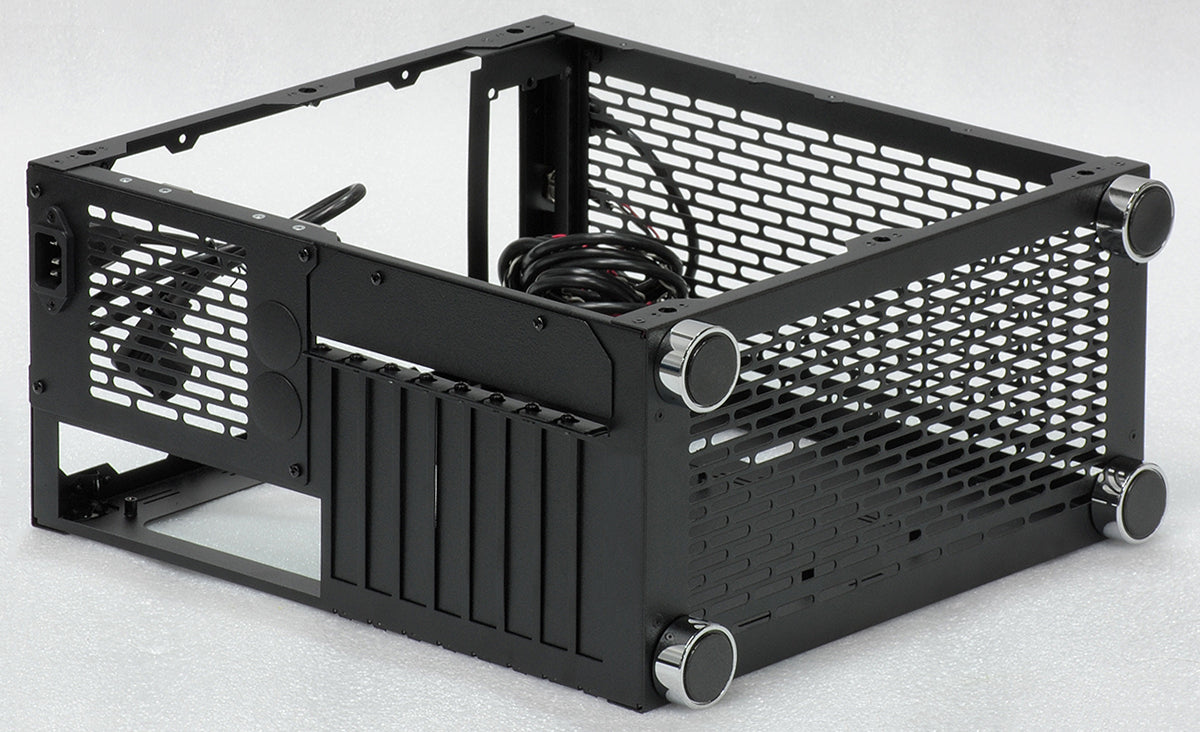

- Feet
- Cavity Molded 75 Durometer Nonmarking Black SBR
- or
- Machined B308M-10 Aluminum-Alloy 6061-T6
|
 |

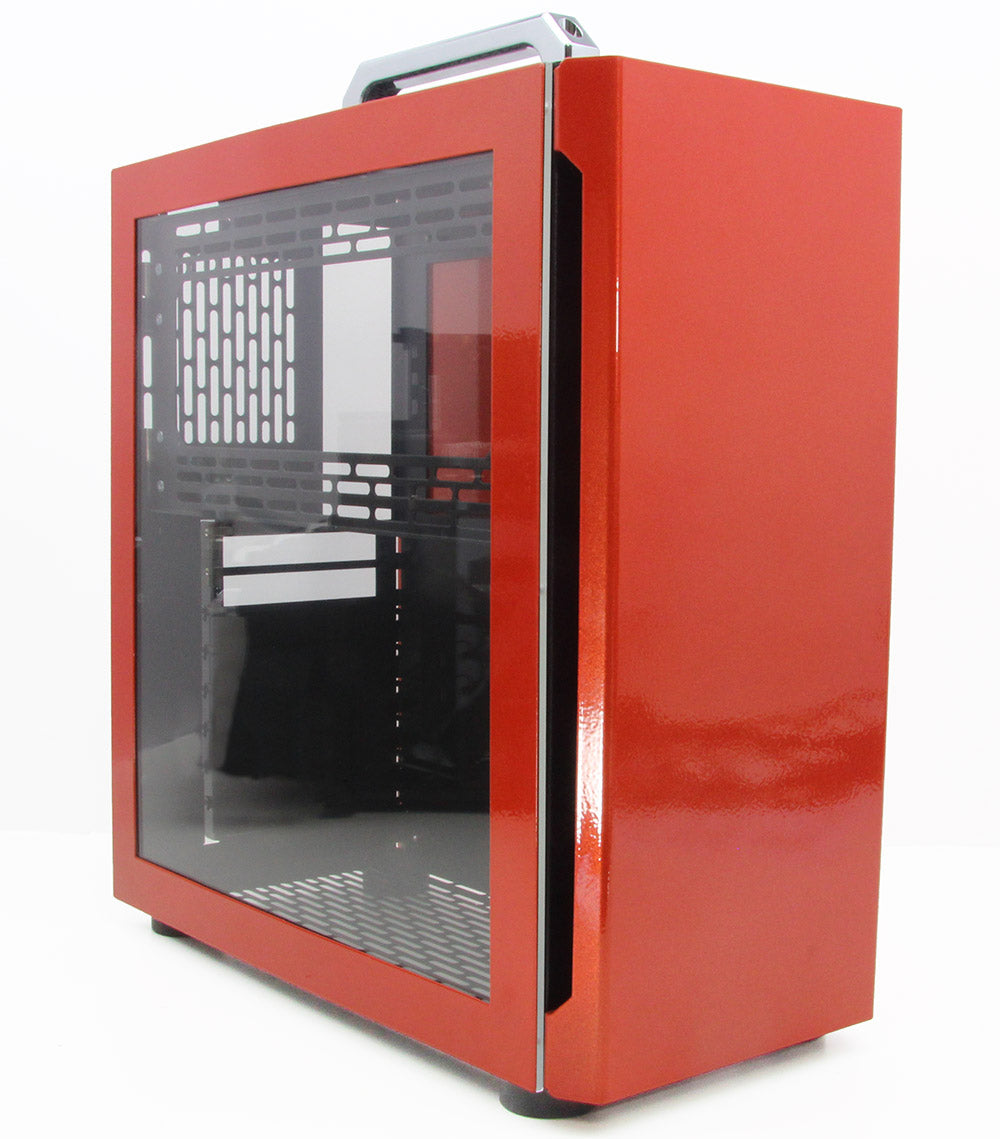

Finish
|
- Powder coated, panels, and feet/handle

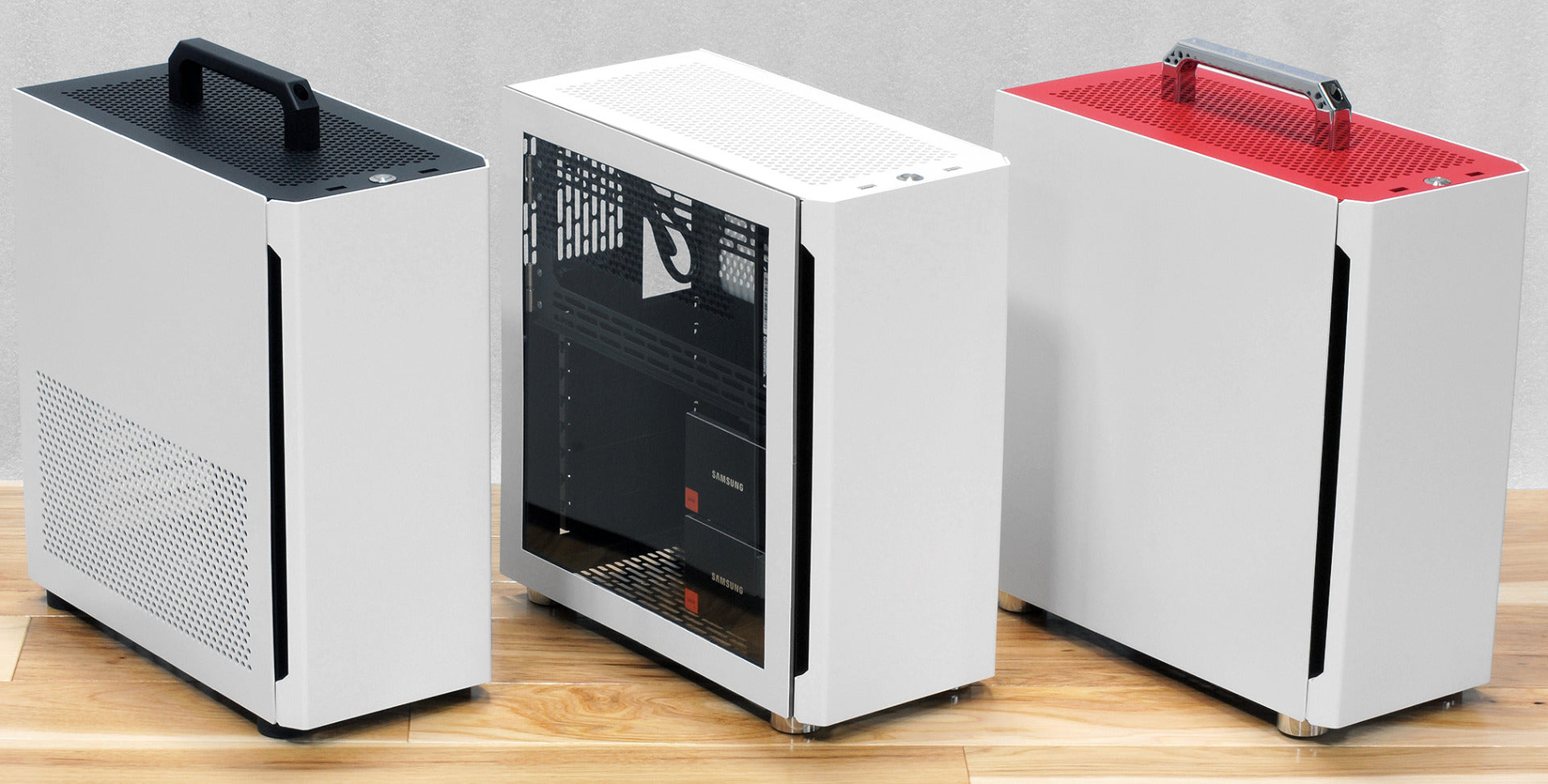

- Optional Black, White, or Grey
|
 |
Case Dimensions (HxWxD)
|
- 14.97 x 6.78 x 14.09 (counting feet and side panels)
- 380mm x 172mm x 358mm
- 14.17 x 6.44 x 12.99 (inside dimension)
- 359.92mm x 163.67mm x 330.17mm
- Shipping Box: 18.25 x 16.25 x 11.25
|
 |
