Motherboard
|
- Mini-ITX (170mm Ã? 170 mm)
|
Liquid Cooling
|
- 1x 280mm AIO
- Maximum 328mm x 150mm x 72mm (LxWxH -- 72mm height includes fan and radiator thickness)
- RECOMMENDED: NZXT Kraken X62 or X61, ThermalTake Floe Ring 280, CoolerMaser Nepton 280L
- DIFFICULT: Corsair Hydro H115i, EVGA CLC 280mm
- INCOMPATIBLE: Corsair H115i and CoolerMaster Liquid Pro 280
- 1x 240mm AIO
- 2x 120mm AIO
- 1x 120mm + 1x 140mm AIOs (ex: 1x GPU, 1x CPU)
- 1x 120mm or 1x 140mm AIO with 1x of the optional 2x 3.5 HDD brackets
- Bottom Fan Plenum
- 1x 120mm radiator less than 27mm thick with 15mm thick fan
- Prefilled AIO are not recommended here, recommended for custom loops only.
- Maximum of 55mm tall CPU pump blocks
|
CPU Air Coolers
|
- Maximum of 55mm tall CPU coolers
- Coolers that require a Vented Side Panel on the CPU side
- ID-COOLING IS-60 (55mm) [CLIP VERSION ONLY, do not get the version that has a screw on fan.]
- AMD Wraith Stealth (54mm)
- Cooltek LP53 (53mm)
- Coolers compatible with all side panel types (Unvented, Window, or Vented)
- Alpenföhn® Black Ridge (47mm)
- Noctua L9i/L9a
- Intel Boxed Cooler
- Cryorig C7 CU
- Cryorig C7
- Cooltek ITX30
- Phanteks PH-TC90LS
- RAIJINTEK Zelos
- Silverstone AR05
- Silverstone AR11
- SEMI-PASSIVE MODE: requires Unvented or Window panels on both sides
- be quiet! SHADOW ROCK LP (FAN REMOVED)
- Phanteks PH-TC12LS (FAN REMOVED)
- Noctua NH-L9x65 (FAN REMOVED)
- REEVEN BRONTES RC-1001b (FAN REMOVED)
- Scythe SCSK-1100 Shuriken Rev. B (FAN REMOVED)
- SCYTHE Big Shuriken 3 CPU Cooler SCBSK-3000 (FAN REMOVED)
- Thermalright AXP-100H Muscle(FAN REMOVED)
- Thermalright AXP-100 Copper(FAN REMOVED)
- Cooltek CR-701 (FAN REMOVED)
|
Fan Mounting
|
- 2x 140mm fans in bottom plenum
- Fans can be a maximum of 25mm thick
- 2x 140mm fans on top radiators or without radiator.
- Recommended airflow is bottom intake, top exhaust
- For any (FAN REMOVED) heat sinks listed above both fans must be populated with high static pressure fans
|
GPU / PCIe Cards
|
- Supports three(3) slot wide cards with room between side panel and card for airflow

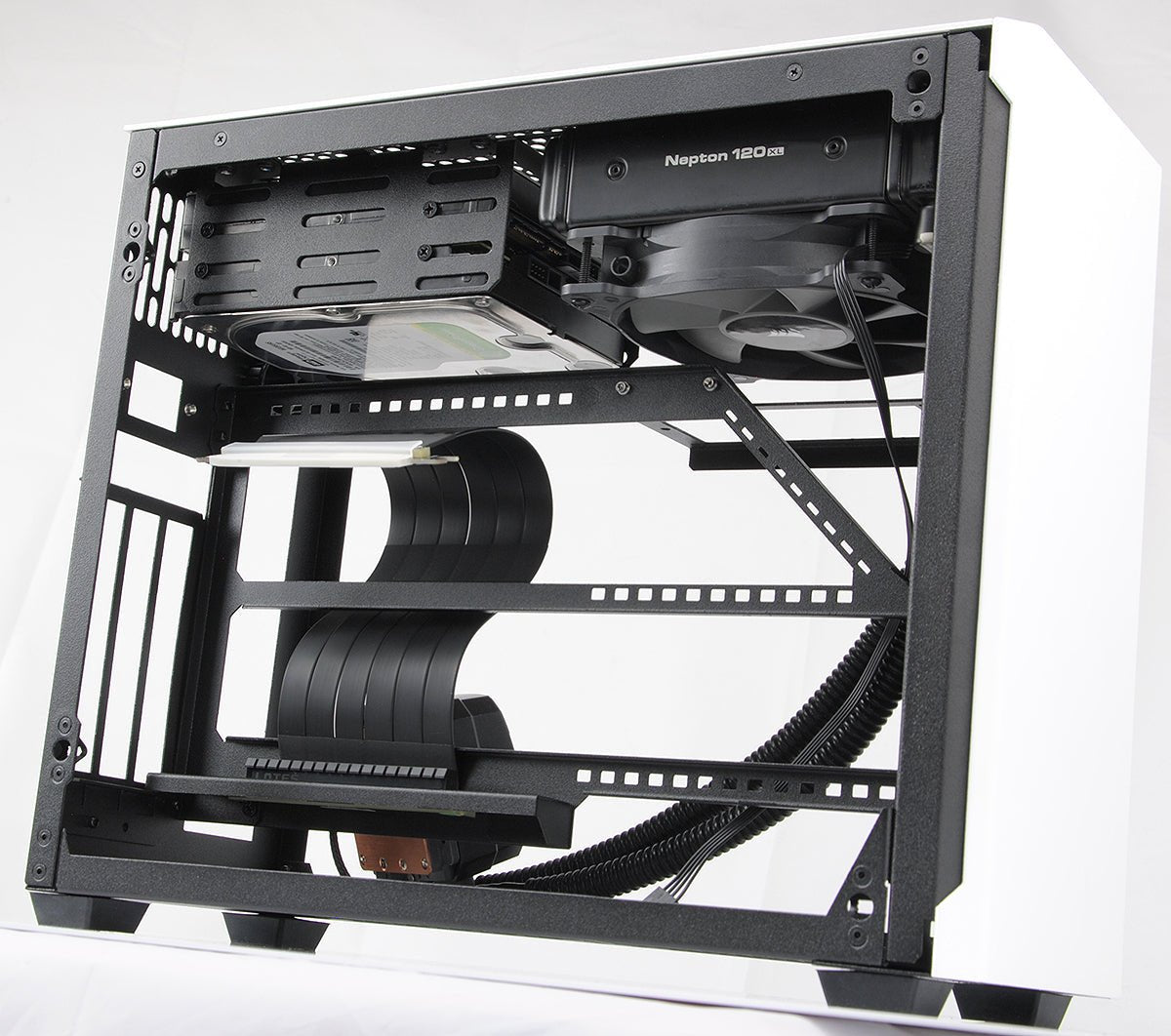

- Card is mounted behind motherboard on a PCIe 3.0 16x Flexible Ribbon Riser
- with Standard Inlet
- Maximum card height: 133mm (157mm for power connectors)
- Maximum card length: 325mm
- Maximum card width: 67mm
- with Pigtail Inlet
- Maximum card height: 157mm
- Maximum card length: 325mm
- Maximum card width: 67mm
- Bifurcation riser limits the outer PCIe 16x 2.0 card to 2 slots wide, and inner slot to a single slot card.
- Bifurcation outer slot maximum card width: 47mm
|
Storage
|
- (2x) 2.5 SSD/HDD mounting points behind front panel
- Optional (4x) 2.5 SSD/HDD mounting bracket [replaces 1x 140mm bottom fan]
- Maximum two brackets for total of 8x 2.5 SSD/HDDs
- Optional (1x) 3.5 HDD mount bracket [replaces 1x 140mm bottom fan]
- Maximum two brackets for (2x) 3.5 HDD in bottom of case
- Optional (2x) 3.5 HDD mount bracket (top of case)
- Maximum two brackets for total of 4x 3.5 HDDs in top of case
- Total maximum of (6x) 3.5 HDDs
|
Power Supply
|
- SFX
- Corsair SF series
- SilverStone SST-SX series
- EVGA SuperNOVA GM series
- FSP Dagger series
- SFX-L is supported, however it is a very tight fit and not recommended.
- Sliger recommends a fan guard grill or custom cables if you do go with SFX-L.
|
Front Panel I/O
|
- One USB 3.1 Gen 2 Type C to USB E header (SS+ 10 Gbit/s)
- One USB 3.0 Type A to 20-Pin Motherboard Header
- Two Audio Jacks to standard 9-Pin HD AUDIO header
|
Material
|
- Chassis
- ASTM-A-653 G30 Zero Spangle 20 Gauge Galvanized Steel
- Side Panels
- ASTM B209-10 5052-H32 0.080 Aluminum Sheet
- Feet
- Cavity Molded 75 Durometer Nonmarking Black SBR
|
Finish
|
- Powder coated chassis and panels
|
Case Dimensions (LxWxH)
|
- 14.05 x 6.10 x 11.30 - LxWxH
- 357mm x 155mm x 287mm - LxWxH
|
Volume
|
|
Security
|
- 1x Kensington Lock Cutout
|
Warranty
|
|
