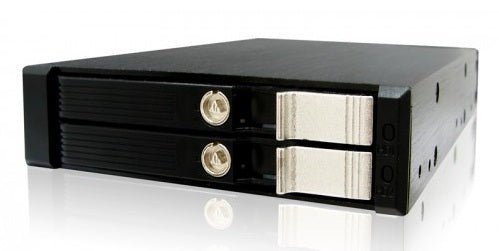

SNT Mobile Rack Trayless SNT-2223 SATA

SNT - 2223SATA ST is a 3.5 media that can hold up to two 2.5 drives SATA . Plug and Play , hot swappable easy to insert and remove .

• FRONT PANEL LED DESIGN
  1) Support SATA I, II and transfer rate up to 6Gbps.
  2) Aluminum frame design- more effective of heat transfer.
  3) The thermal conductivity ratio of metal k(W/(m.K)) is as : Gold(317)>aluminum(237)>iron(80)
  4) The LED indicators shown both power and HDD access.


• SUPPORT 2.5 HDD/SSD X 2
  Support 2 2.5 HDD(SSD) with HDD thickness limit from: 7mm~9.5mm. Making data transmission more convenient.


• SAFETY METAL KEYLOCK
  Unique Triangular anti-thief lock design in Front panels will ensure the safety usage of HDD.When in unlock stage gently just open the Front panels the HDD will be pull out easily by the cochineal role. When in lock stage it will helps to stabilize the HDD.


• INSERTED DIRECTLY INTO THE 5.25 TRAY
  1) Support SATA HDD/SSD with HDD thickness limit from 7~9.5mm
  2) User can have inference to install this 3.5 device into our another 5.25 device, ST-10155, so can fully utilized the 2.5 HDD.


• SUPPORT HOT SWAPPABLE
  1) Support Hot Swappable and Plug & Play
  2) Support 2 X SATA ports & 15 pin SATA power connector.

Model	ST-2223SATA
Color	Black
HDD	Support 2 x2.5 SATA HDD (SSD) ï¼?HDD height limitï¼?9mm~9.5mm)
Application	3.5 form factor drive space
Interface	Support SATA I,II, III
Transfer Connector	7-pin SATA port connector
Transfer Rate	6Gbps
Material	Aluminum Frameï¼?Plastic handle design
Lock Design	Metal lock design with triangular loc.
LED Display	Power & HDD accessing status
Switch Design	Special handle design --- HDD Auto ejecting design
Power	15-pin power
Dimension	146(L) x 101(W) x 25 (H)mm
Weight	0.23 kg
Dimension	202(L) x 146(W) x 86(H) mm
Weight	1.3kg
