Copper/Aluminum

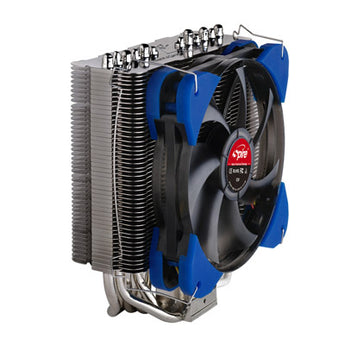

Spire Coolgate II Universal CPU Cooler

#1 Best Seller
in CPU Heatsinks
#1 Best Seller
in Heatsinks Clearance
#2 Best Seller
in Spire
#3 Best Seller
in On Sale
#3 Best Seller
in Clearance/Scratch&Dent
Spire

SP988B1-V3-PWM-D

CoolGate II is the next evolution of the hugely successful TherMax and Gemini CPU cooler Series. The increased number of heat-pipes combined with a higher number and density of dimpled fins and crowned with one high airflow, yet silent and PWM controlled fans for great cooling performance. Six (6) U-shaped 6mm heat-pipes are in Direct contact (HDT) with the CPU heat source.

Found a better price? Let us know and we'll try and match it!
Estimate shipping
$59.99 $6.00 Sale Sold out
Shipping calculated at checkout.

Pickup currently unavailable at Performance-PCs.com

  • 99% of orders ship same day M-F!
  • FREE Shipping Possible!
  • All-Star CS Team
  • 30-Day Hassle Free Returns
Details

CoolGate II is the next evolution of the hugely successful TherMax and Gemini CPU cooler Series. The increased number of heat-pipes combined with a higher number and density of dimpled fins and crowned with one high airflow, yet silent and PWM controlled fans for great cooling performance. Six (6) U-shaped 6mm heat-pipes are in Direct contact (HDT) with the CPU heat source. Swift heat transfer to the 46 aluminum dimpled fins providing a larger surface area for optimum heat dissipation. The CoolGate II is supplied with one 12cm balanced, Nano-Tech bearing fans providing high airflow and adequate cooling. This fan is PWM controlled to provide the lowest noise v.s. cooling ratio possible. Compatibility is guaranteed with multi-platform mounting for all current Intel (incl. Socket 2011) and all popular AMD micro-processors. The CoolGate II is pure cooling power that takes performance to the next level. Spire ? Powered by Innovation.
Features


  • Six (6) 6mm all copper U-shaped sinter-powder heat-pipes

  • HDT Heat-pipe direct contact with all of the processor area

  • Straight lined heat-pipes allowing air to easily pass through

  • 46 Stamped aluminum wide fins for best surface rate

  • Dimpled surface fin for increased heat transfer rate

  • All black-Nickel coated heatpipes to preserve killer looks from oxidation

  • One (1) 120mm Nano-Tech bearing fan design

  • Silent and superior MTBF Nano-tech bearing

  • Supports AM2/AM3 socket 775/1155/1156 & 1366/2011

  • Best cooling performance on hot cpu's up to TDP 150W

  • PWM fan speed RPM control,4 PIN PWM (2510) Mainboard Connector


Compatibility:
The CoolGate 2012 Cooler is compatible with the latest ATX boards based on the Intel and AMD Micro-processors sockets 775/1155/1156/1366/2011 for Intel and AM2/AM3/940/939 for AMD (not G34 compatible).


Product Includes :
CoolGate 2012 heat-sink, One (1) BlueStar LED 120mm PWM controlled Fans, Two (2) Spring-Wire fan clips, BlueFrost thermal interface compound, Intel universal mounting set, AMD universal mounting set, Motherboard back-plate, User installation manual, Warranty registration card.

Specifications










Product Specification















































































































Dimensions











Heat sink :        140×47×160 mm (l × w × h)
12VDC Fan : 120×120×25 mm

Material Al+Cu
Heatpipe Six (6) 6mm all copper U-shaped direct
Bearing Nano Bearing
Rated speed











Cooler :        600~1800 RPM +/-10%
Only Fan : 600~1800 RPM +/-10%

Rated power 2.16 W
Rated Voltage 12 V
Noise level 10~22 dBA
Air flow 74.63 CFM Max.
Current 0.18 A
Remark Note:Width of case should be more than 190mm, otherwise, can not fit.
Connector 4 PIN PWM (2510)
Application Intel Core i3
Intel Core i5
Intel Core i7 Cooler
Intel LGA 2011
Intel LGA775 (Prescott)
AMD Athlon XP (Thoroughbred)
AMD FM1 (AMD Radeon HD 6530D)
AMD Phenom II (AM2/AM3)
TDP 150 W
Thermal resistance 0.097 oC/W
Thermal paste BlueFrost - SP802 blue grease(Injection Tube,0.5g)
Static Pressure 2.86 mmH2O
Life hours 70000H
Operating Temperature -10~70 oC
Storage Temperature -40~70 oC
Warranty 5 years
Packaging type Color Box
Package includes clip 1 set / sp-802 grease / manual
N.W 0.73 KG
Features 120mm BlackStar 7 blade fan design High Quality
Long MTBF Nano precision bearing Anti-Vibe universal rubber fan mountings (crews)
Supports AM2/AM3 and 775/1155/1156 & 1366 &2011 All catena
UPC Code 6943051205861







* All Spire CPU cooling products come with thermal compound either pre-applied onto the cooler or in an injection tube. Compound will begin to function at its optimum potential, after a gradual increase in heat-dissipation, approximately 150 hours (6days) after initial application.


* All technical data shown above are measurements from our own laboratory. Product images shown may differ from actual product. Specifications are subject to change without prior notice.
