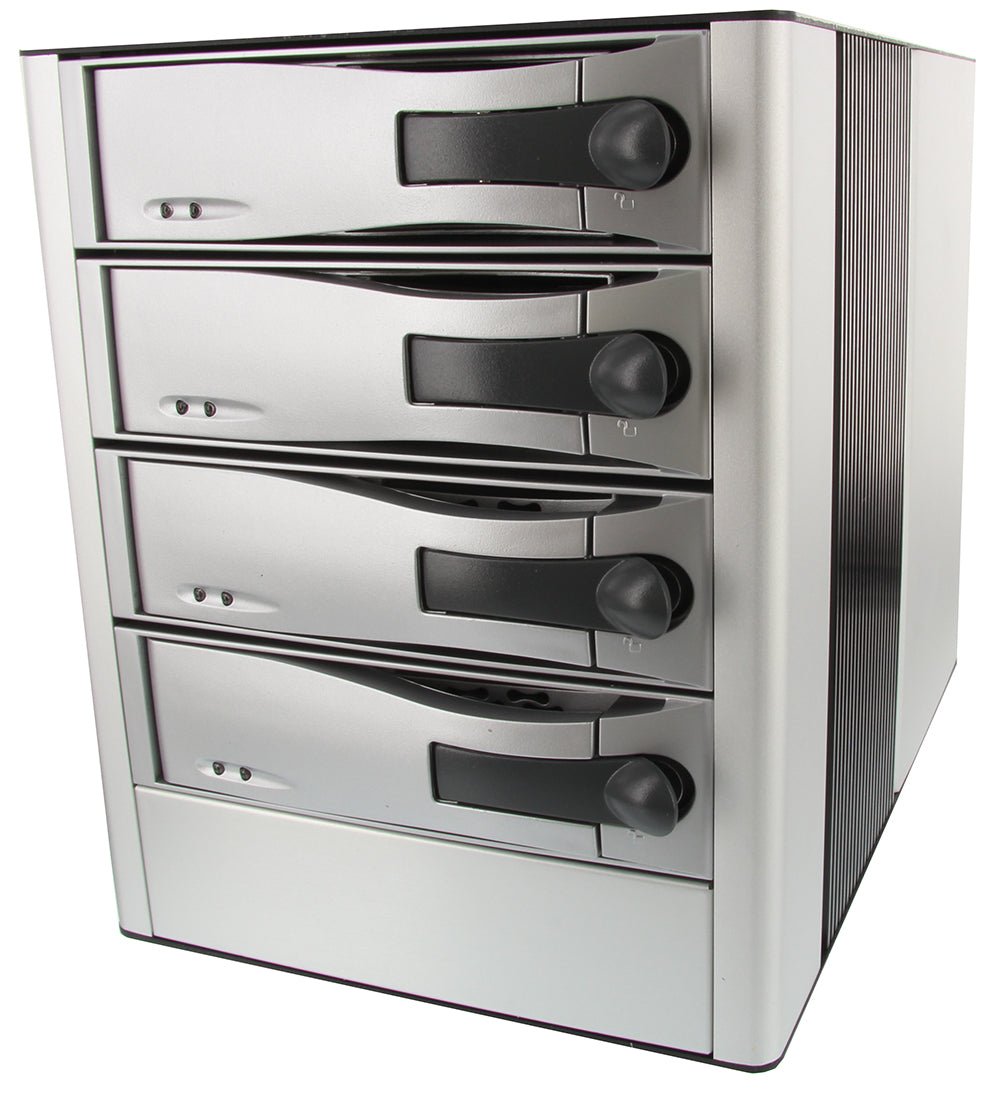

Stardom SOHOTANK U7 Series - 5.25" 4-Bay Aluminum Enclosure

SOHOTANK U7 Series with unlimited stackable design enables users to expand capacity easily, install with ease, remove devices quickly, and decrease host over-heating issues. U7 Series have complete aluminum casings to reach the highest level of overheat prevention.

• Stackable Design



  • Stackable Design for saving the space. It also supports the audio output, to turn personal Hi-Fi equipment into Stereo with additional 2-channel speakers.






• Compatible Features:



  • DVD-ROM/DVD-RW and HD Mobile Rack etc.5.25Â? IDE Devices are compatible. Easy of Use


  • Plug & Play by Tray Module Design enables you to expand the Hard Drive easily.






• High Performance



  • Support various Interface (SCSI/USB/1394a/1394b+USB Combo/SATA) and platform of (PC/MAC).






• High Transfer Rate:



  • The high transfer rate ensures you to improve the job efficiency. (Transfer rate of 1394b up to 80 MB/Sec; USB 2.0 up to 56 MB/Sec)






• Large Capacity:



  • Providing the 1 Bay, 2 Bays and 4 Bays IDE Devices for selection and allows you to expand the capacity unlimited.






• High Stability:



  • To use the Oxford and Cypress chips which matching and stability features are accepted by customers, thus also ensures the stability of system without any crash burden.






• Tasteful Form Factor



  • Innovation and modernize appearance, also with Aluminum Case for overheats prevention.





OHOTANK  Stackable  External  Storage  Enclosure - U7  Series

SOHOTANK Stackable  External  Storage  Enclosure Model No. ( SCSI U3/320 to SCSI ) U7-1-U3 U7-2-U3 U7-4-U3 Model No. ( 1394a to IDE ) U7-1-WA U7-2-WA U7-4-WA Model No. ( 1394b+USB2.0 to IDE ) U7-1-WB U7-2-WB   Model No. ( USB2.0 to IDE ) U7-1-B2 U7-2-B2 U7-4-B2

General

Host Interface U3:SCSI Ultra 3/320,  WA:1394a,  WB:1394b+USB2.0,  B2:USB2.0 Host Transfer Rate SCSI:320MB/sec, 1394a:50MB/sec, 1394b:80MB/sec, USB:56MB/sec

Devices

Number of Devices 1 2 4 Device Interface U3 - SCSI ;  WA, WB, B2 - IDE

Enclosure Features

Support Devices DVD-ROM, DVD-RW, HD Mobile Rack Support OS Supports all O.S. (For SCSI); Windows98 sec/me/2000/XP, Mac 8.6 (For 1394 and USB) Cooling Fans 1x4cm 1x6cm 2x6cm (For USB, 1394) 1x8cm (For SCSI) Power Supply 30W Dual 12V&5V DC Adapter 90~240V 50~60Hz 70W 90~240V 50~60Hz 200W Enclosure Audio Output to Stereo (not for U7-WB) Aluminum IDE Mobile Rack Optional

Electrical & Environmental

Operating Temperature 41â??to 104â??Fï¼?5â?? to 40â??ï¼? Operating Humidity 10%－95% non-condensing

Physical Dimensions

Material Aluminum Case Dimension ( mm ) 270Lx177Wx56H 270Lx177Wx142H 270Lx177Wx228H
