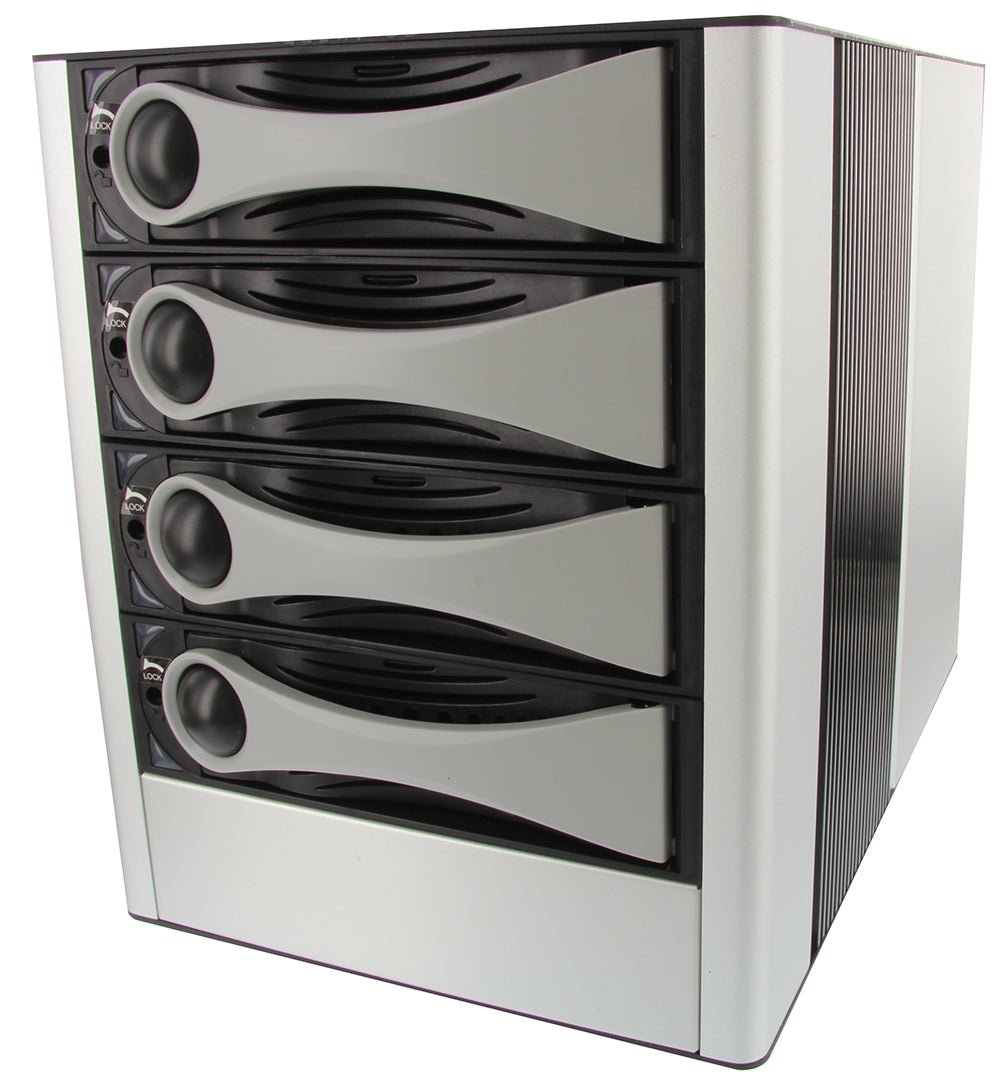

Stardom SOHOTANK U7 Series - 5.25" 4-Bay Aluminum Enclosure

SOHOTANK U7 Series with unlimited stackable design enables users to expand capacity easily, install with ease, remove devices quickly, and decrease host over-heating issues. U7 Series have complete aluminum casings to reach the highest level of overheat prevention.

• Stackable Design



  • Stackable Design for saving the space. It also supports the audio output, to turn personal Hi-Fi equipment into Stereo with additional 2-channel speakers.






• Compatible Features:



  • DVD-ROM/DVD-RW and HD Mobile Rack etc.5.25Â? IDE Devices are compatible. Easy of Use


  • Plug & Play by Tray Module Design enables you to expand the Hard Drive easily.






• High Performance



  • Support various Interface (SCSI/USB/1394a/1394b+USB Combo/SATA) and platform of (PC/MAC).






• High Transfer Rate:



  • The high transfer rate ensures you to improve the job efficiency. (Transfer rate of 1394b up to 80 MB/Sec; USB 2.0 up to 56 MB/Sec)






• Large Capacity:



  • Providing the 1 Bay, 2 Bays and 4 Bays IDE Devices for selection and allows you to expand the capacity unlimited.






• High Stability:



  • To use the Oxford and Cypress chips which matching and stability features are accepted by customers, thus also ensures the stability of system without any crash burden.






• Tasteful Form Factor



  • Innovation and modernize appearance, also with Aluminum Case for overheats prevention.





Specifications:

SOHOTANK  Stackable  External  Storage  Enclosure - U7  Series

SOHOTANK Stackable  External  Storage  Enclosure Model No. ( SATA to SATA ) U7-1-S1 U7-2-S1 U7-4-S1

General

Host Interface SATA Host Transfer Rate  SATA:150MB/sec

Devices

Number of Devices 1 2 4 Device Interface SATA 1.5Ghz

Enclosure Features

Support Devices 5.25 DVD-ROM, DVD-RW, HD Mobile Rack Device System Requirements Windows98/SE/ME/XP/2000 ; Mac OS 9.0 or higher Ball Bearing Fans 4 x 4 x1cm x1 set 6 x 6 x 1.5cm x1 set 1394 & USB Interface: 6 x 6 x1.5cm x 2 set SCSI Interace: 8 x 8 x2cm x 1 set Power Supply Dual 12V&5V DC Adapter 37W 100~240V 50~60Hz 70W 100~230V 50~60Hz 200W Enclosure Audio Output to Stereo

Electrical & Environmental

Operating Temperature 41 to 104Fï¼?5â?? to 40â??ï¼? Operating Humidity 10%－95% non-condensing

Physical Dimensions

Material Aluminum Case Dimension ( mm ) 270Lx177Wx56H 270Lx177Wx142H 270Lx177Wx228H Dimension per unit with box ( mm ) 338Lx110Wx230H 335Lx175Wx230H 335Lx225Wx265H Weight per unit with box ( kg ) 6lbs 10 13

Price is for SATA enclosure but, Firewire and USB 2.0 Versions can be ordered using the options below.

Model No.	U7-4X
U7-4-B2     Host Interface	USB2.0(56 MB/Sec)
U7-4-WA   Host Interface	1394a (50 MB/Sec)
U7-4-S1   Host Interface	SATA (150MB/Sec) (Optional)
Drive Interface	IDE ATA 133 or SATA 1.5Ghz
Chipset	1394a: Oxford 911 USB2.0: Cypress AT2 Plus SATA: NO.
IDE Device	4
Cooling Fan(cm)	SCSI Interace: 8 x 8 x2 x 1 set 1394 & USB Interface:6 x 6 x1.5 x 2 set
System Requirement	Windows 98/SE/ME/XP/2000 ; Mac OS 9.0 or higher
Power Supply	Input:90V~240V Output:50~60Hz 200W (Max.)
Case Material	Aluminum
Dimension	270Wx177Lx228H mm
Weight	4.3 Kg
