The Lian Li O11 Dynamic EVO XL x Stealkey Crosscool 2 is secured to the front of the case behind the front panel using four screws: two at the top and two at the bottom, aligning with pre-existing mounting holes on the case. This makes the installation process straightforward and intuitive.

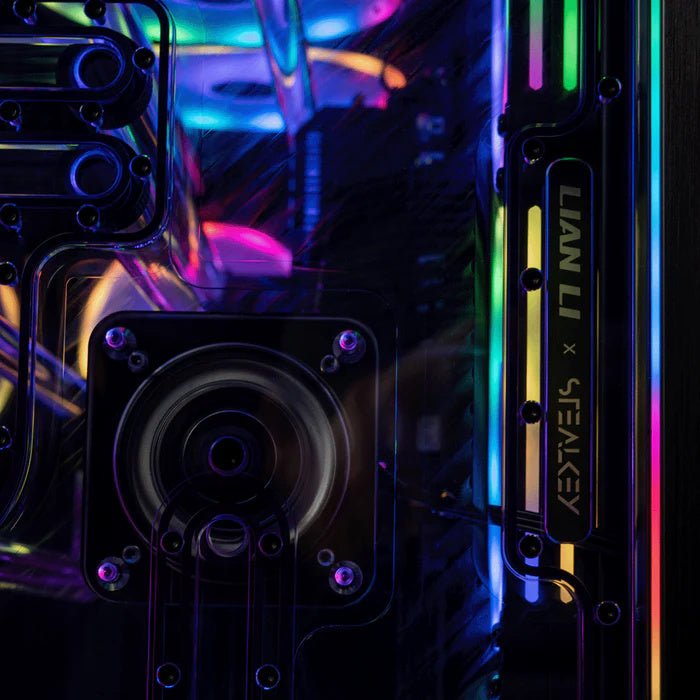

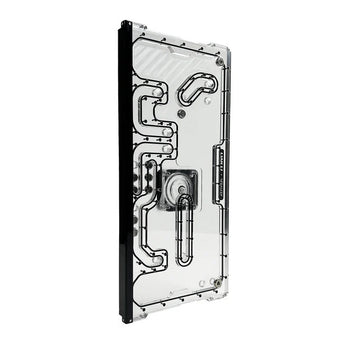

For mounting the D5/DDC pumps, we utilize a proven method from the past. A custom adapter is attached to the distroplate. A POM D5 ring is placed over the D5 pump and secured to the adapter on the distroplate. In contrast, the DDC pump can be directly screwed onto the adapter. The result is a slim yet robust distroplate.
It was paid attention to the fact that the graphics card can be installed not only horizontally, but also vertically and due to several connection options straight tubing is possible. including the "Upright GPU Kit" from Lian Li. The Distroplate thus ensures a tidy case and smooth operation of your system.
In addition to the orientation of the graphics card, the number and position of the radiators is an essential factor for a powerful cooling circuit. The Distroplate supports up to 3x 420mm radiators, so that the size advantages of the case can be exploited to get the full potential of the hardware components out. Best performance even at maximum power output guarantees maximum gaming fun or stress-free work management in business.
With the installed distribution plate, the maximum radiator thickness is as follows:
- Bottom: 78 mm + maximum 30 mm fan thickness
- Top: 78 mm + maximum 30 mm fan thickness
- Side 44 mm + maximum 25 mm fan thickness

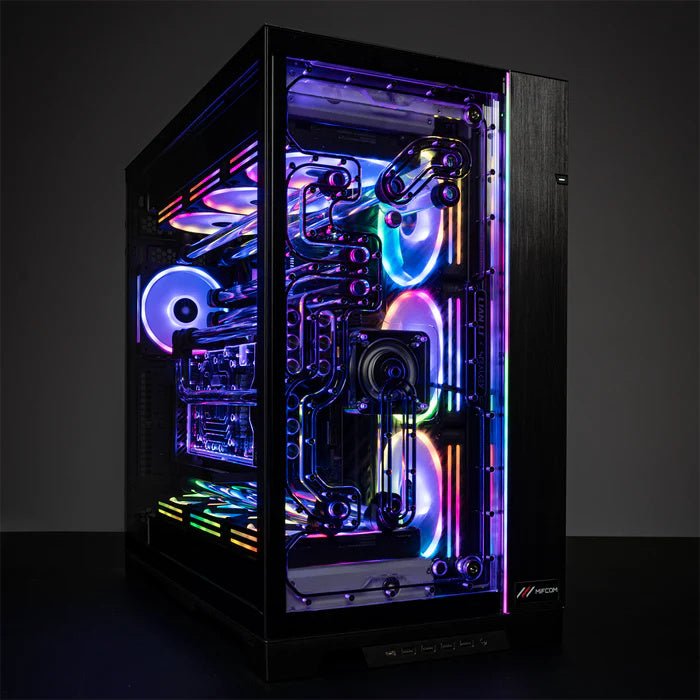

That is what we want. It has to work. With the Lian Li O11 Dynamic EVO XL x Stealkey Crosscool 2 Distroplate, you'll experience the continuation of a legend and the perfection of the Crosscool series. Your PC build will not only be cooler, but also more stylish than ever before.
The included addressable D-RGB LED strip, which runs along the entire length of the left side of the distroplate, showcases the Crosscool² in perfect lighting. It's a real eye-catcher, not only due to its unique design but also because its surface remains mostly untreated, maintaining transparency. The RGB lighting is connected to the motherboard's 5V header. It's also compatible with MSI MYSTIC LIGHT SYNC, ASROCK POLYCHROME SYNC, ASUS AURA SYNC, and GIGABYTE RGB FUSION 2 software for coordinated lighting effects.
Features at a glance
• optimized for the Lian Li O11 Dynamic EVO XL case
• largest distroplate of the Lian Li series
• easy mounting on the housing
• D5/ DDC Pump compatible
• straight tubing
• horizontal & vertical position of the graphic card possible
• up to 3x420mm radiators
• integrated RGB lighting
• supports CPU and GPU of all sizes
