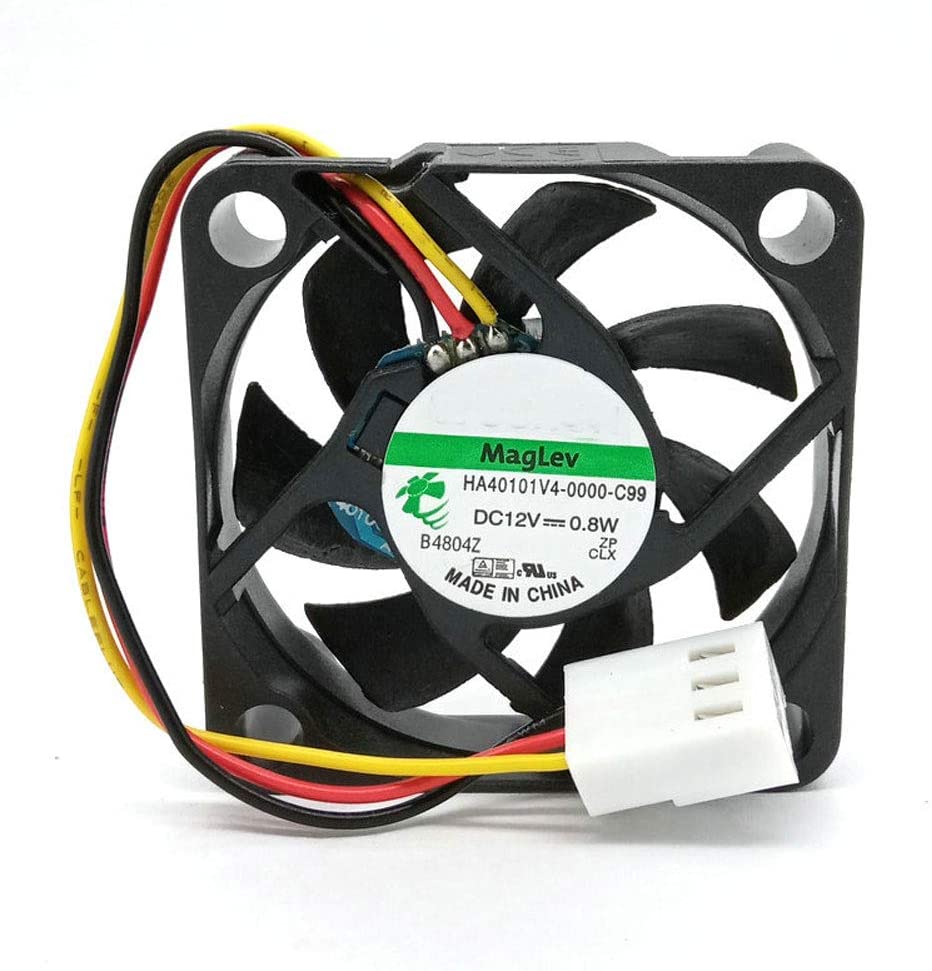

Sunon MagLev HA40101V4-0000-C99 40x10mm-3pin with speed Sensor 4500RPM 5.3cfm 18dBA

#2 Best Seller
in Sunon

HA40101V4-0000-C99

Incorporating highly ergonomic technology with the lifestyles of the future, Sunon has developed the â??Super
Silence� fan series, which is characterized by our insistence on maintaining the best environmental quality
and paying attention to minute detail.

Found a better price? Let us know and we'll try and match it!
Title
Estimate shipping
$7.95 USD $1.19 USD Sale Sold out
Shipping calculated at checkout.

Pickup currently unavailable at Performance-PCs.com

  • 99% of orders ship same day M-F!
  • FREE Shipping Possible!
  • All-Star CS Team
  • 30-Day Hassle Free Returns
Title
Details

Incorporating highly ergonomic technology with the lifestyles of the future, Sunon has developed the â??Super
Silence� fan series, which is characterized by our insistence on maintaining the best environmental quality
and paying attention to minute detail. This series is designed and engineered to ensure the best sound
quality. Using multidimensional noise analysis, the sound quality has been improved from traditional
acoustic norms to psychoacoustic levels. Micro-motor technology has allowed us to create the maximum
possible space between fan blades and air channels. With its low rotating speed, the fan performs silently
while still maximizing cooling efficiency. â??Super Silenceâ? fan series have low voltage characteristic and are
designed for a wide range of uses. These fans have medical, household, commercial, and many other applications.
They also will create a soothing and ergonomic user environment and carry on the Cool and Quiet traditions typical of SUNON products.

Specifications

Rated Voltage: 12VDC
Size / Dimension Square: 40x40x10mm
Air Flow: 5.3 CFM (0.148m³/min)
Static Pressure: 0.060 in H2O (14.9 Pa)
Bearing Type: Maglev Vapo-Bearing�
Fan Type: Tubeaxial
Noise: 18.2 dB(A)
Power (Watts): 800mW
Fan Speed: 4500 RPM
Termination: 3 Wire Leads with connector
Operating Temperature: 14 ~ 158°F (-10 ~ 70°C)
Weight: 0.032 lb (14.51g)
Current Rating: 0.065A
Voltage Range: 4.5 ~ 13.8VDC
Material - Frame: Polybutylene Terephthalate (PBT)
Material - Blade: Polybutylene Terephthalate (PBT)
Lifetime @ Temp.: 60000 Hrs @ 40°C
